Bike test: 100 km Pinarello Dogma F Disc Shimano Dura-Ace Di2 12-speed Princeton Peak 4550 H102 Luxter Amber

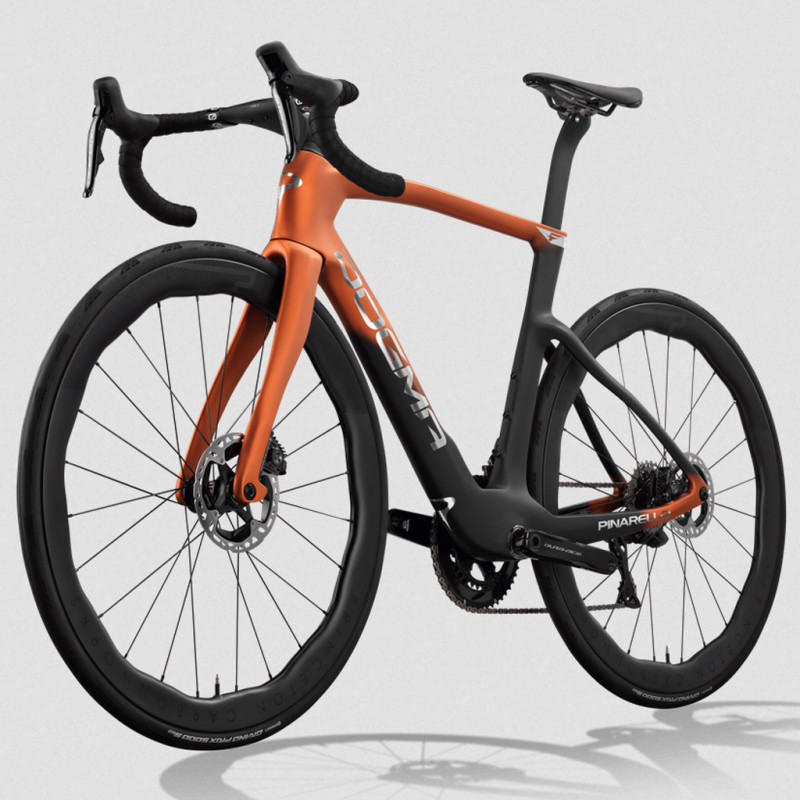

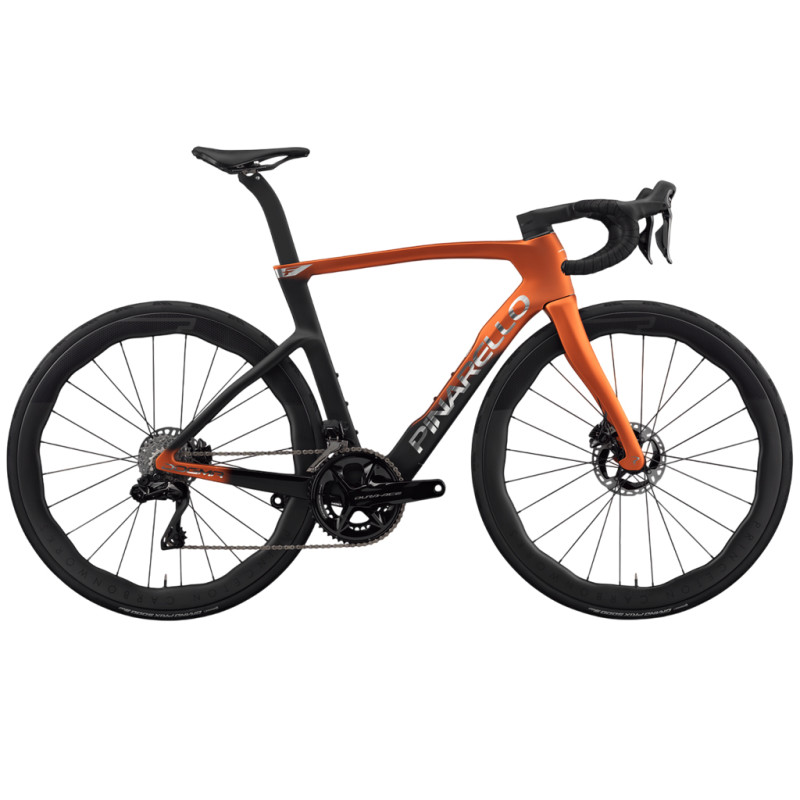

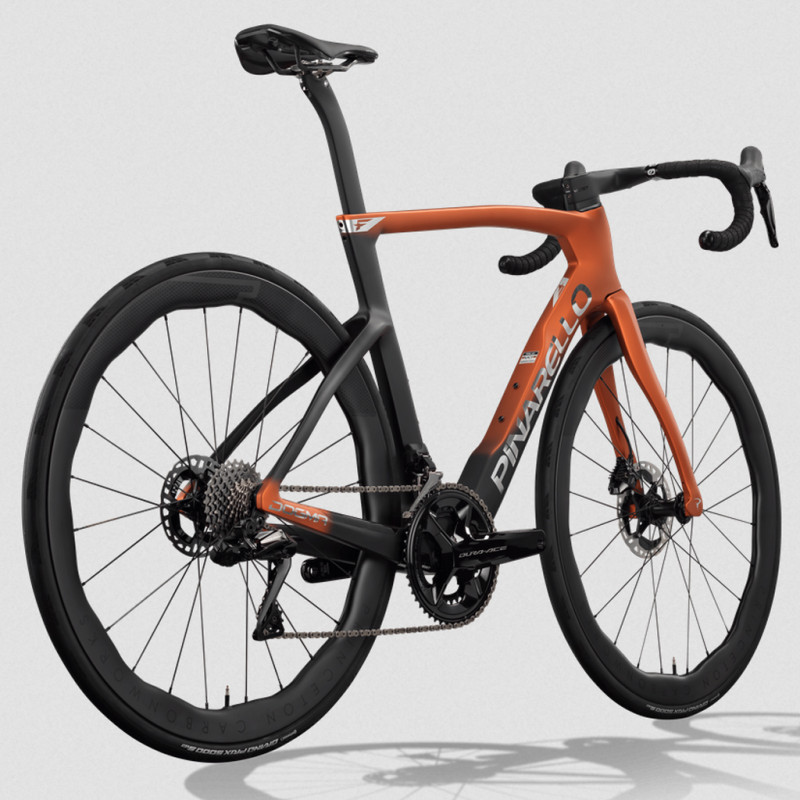

This Dogma F Disc H102 Luxter Amber Pinarello is the same bike used by the Ineos Grenadiers team in the Tour de France, but in a different colour scheme. Fitted with the same top-of-the-range components, it is THE ultimate high-end bike. Constructed from TorayCa M40X carbon and a revolutionary new fibre, the frame is designed to be lightweight and responsive, offering exceptional lateral stiffness to convert all your power into speed.

The entire frame has been redesigned. This includes the down tube, which has been reduced in size to improve aerodynamic performance, and the head tube, which has been tapered for a sleeker design. The seatpost is integrated into the frame to reduce the overall weight, whilst the Onda fork—thinner and raked—improves manoeuvrability. The Talon Ultra Fast handlebar-stem combo is lighter and more aerodynamic.

This Pinarello New Dogma F Disc H102 Luxter Amber is fitted with the Shimano Dura-Ace Di2 12v electronic groupset, which ensures precise gear changes and ultra-efficient disc braking in all conditions. Finally, the Peak 4550 carbon wheels Princeton guarantee exceptional performance and responsiveness, allowing you to excel on all terrains, whether in the mountains or on the flat.

Technical Specifications:

Frame:
- Frame: TorayCa M40X, TiCR cable routing
- Fork: New eTICR Onda with Forkflap, 1.5" upper and lower pivots

Drivetrain:
- Crankset: Shimano Dura Ace Hollowtech 2 FC-R9200 12s
- Cassette: Shimano Dura Ace CS-R9200 12
- Chain: Shimano Dura Ace CN-M9100
- Shifters: Shimano Dura Ace Di2 ST-R9270
- Front derailleur: Shimano Dura Ace Di2 FD-R9200 12v
- Rear derailleur: Shimano Dura Ace Di2 RD-R9200 12v

Braking:
- Brakes: Shimano Dura Ace BR-R9200, 2-piston
- Rotors: 160mm front, 140mm rear

Components:
- Integrated handlebar and stem: Most Talon UltraFast
- Saddle: Most Lynx UltraFast Superflox L Carbon Large 145mm
- Seatpost: Pinarello Aero with 3D-printed titanium saddle clamp Bottle cages: Most Trap PACF, and Elite Fly 550ml black bottle

Wheels:
- Wheels: Princeton Peak 4550
- Tyres: Continental GP5000 S TR 28mm

General information:
- Colour: H102 Luxter Amber
- Sizes: 43, 46.5, 50, 51.5, 53, 54, 55, 56, 57.5, 59.5, 62
- Weight: 6.77kg (size 53)
- Brand: Pinarello

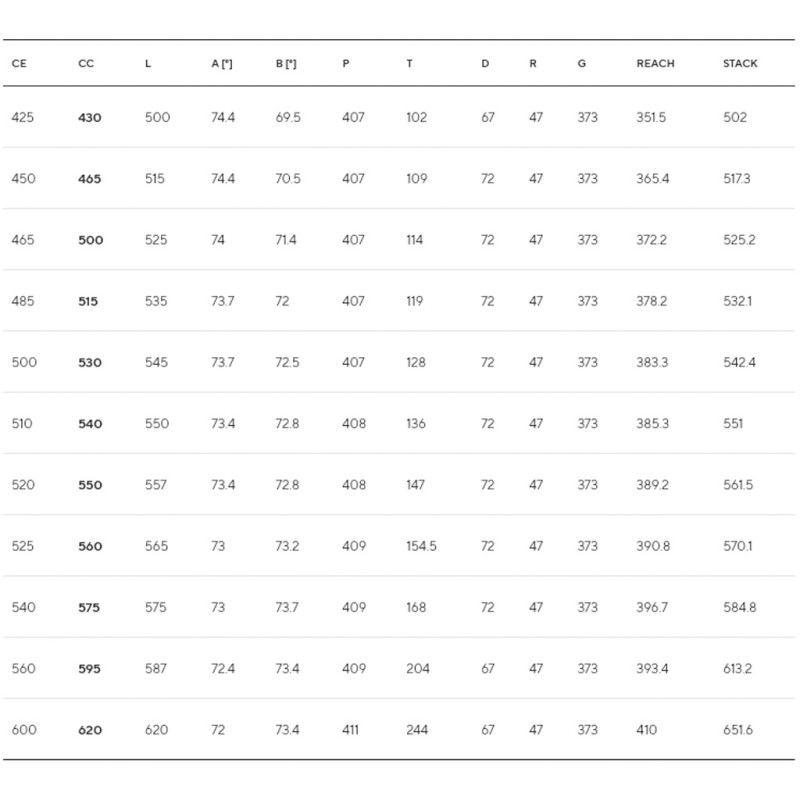

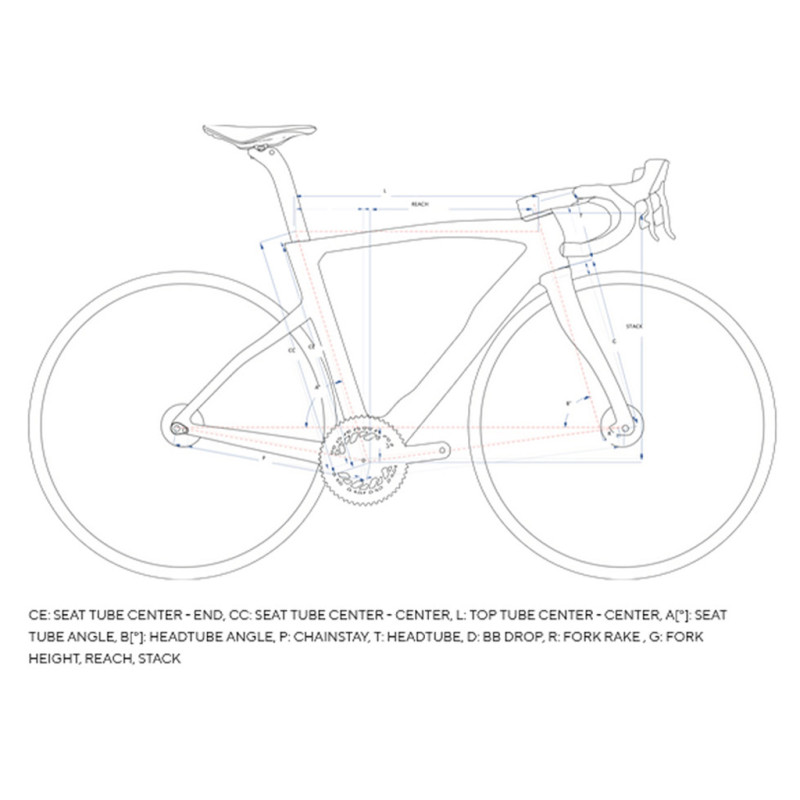

Geometry:

(mm)	43	46.5	50	51.5	53	54	55	56	57.5	59.5	62
A	502	517.3	525.2	532.1	542.4	551	561.5	570.1	584.8	613.2	651.6
B	351.5	365.4	372.2	378.2	383.6	385.3	389.2	390.8	396.7	393.4	410
C	102	109	114	119	128	136	147	154.5	168	204	244
D	425	450	465	485	500	510	520	525	540	560	600
E	500	515	525	535	545	550	557	565	575	587	620
