Berria, NAII BR, Rival XPLR AXS PWM, Vision, TC45 Airone GR Naked Carbon 2027 gravel bikes

The Berria NAII BR Rival XPLR AXS PWM 2027 is a high-performance carbon gravel bike Designed for cyclists looking for maximum performance without compromising on comfort and versatility. With its frame Berria NAII Carbon HM3X, its suspension system 28 mm SOFTEX, its electronic transmission SRAM Rival XPLR AXS E1 13-speed, its carbon wheels Vision TC45 and its integrated cockpit Avanforce Airone GR Naked Carbon, the NAII BR offers a particularly comprehensive package.

Berria positions the NAII as a Fast Gravel, with a design tailored for fast riding on trails whilst maintaining control and comfort when the terrain becomes more challenging.

An HM3X carbon frame with the SOFTEX system

The heart of the Berria NAII BR is based on a frame made entirely of HM3X carbon fibre, produced using a construction method Triple Monocoque. This design combines rigidity, lightness and precise handling, with a high degree of integration between the various components.

One of the key features of the NAII BR is its system SOFTEX, which offers 28 mm of travel in order to improve the absorption of vibrations and uneven ground.

The system is integrated into the bike’s design and works with a Avanforce NAII Tibia UD carbon seatpost, which is also specific to the SOFTEX system.

Managers also benefit from:

• a bottom bracket T47 ; ;
• the complete routing of the cables ICS2 ; ;
• a semi-integrated headset OH2S 1-1/2" – 1-1/2" ; ;
• brake fixings Flat Mount ; ;
• a rear through-axle 12 x 142 mm ; ;
• of the derailleur standard UDH ; ;
• with tyres compatible up to 700 x 50C.

Fork Berria NAII BR Full Carbon

The fork NAII BR is made entirely from carbon fibre and also features the ICS2 internal cable routing system.

It features a conical pivot 1-1/8" – 1-1/2", a through-axis 12 x 100 mm and a fork offset of 48 mm.

It accommodates discs up to 160 mm and tyres up to 700 x 50C, which confirms the NAII BR’s versatile positioning.

Transmission SRAM Rival XPLR AXS E1 13-speed

The unit is fitted with the electronic control unit SRAM Rival XPLR AXS E1, specially developed for gravel drivetrains.

This configuration works by 13-speed single chainring, featuring:

• Handlebar controls/brakes: SRAM Rival XPLR AXS E1 ;
• Rear derailleur: SRAM Rival XPLR AXS E1 electronic, 13-speed ;
• Crankset: SRAM Rival XPLR AXS E1 PWM ;
• Tray: 42 teeth ;
• Cassette: SRAM XPLR XG-1351, 10–46 teeth ;
• Channel: SRAM Rival E1, 118 links ;
• Bottom bracket: SRAM DUB Wide T47.

The association 42 teeth / 10–46 teeth offers a gear ratio that is particularly well-suited to competitive gravel cycling, with a sufficiently long gear ratio for fast sections and enough power reserve for climbs.

Hydraulic brakes SRAM Rival AXS E1

Braking is handled by the system SRAM Rival AXS E1 Hydraulic.

Opting for hydraulic brakes provides precise control and the right level of power for gravel riding, particularly on long descents or when the terrain becomes more technical.

The frame accommodates a 140 mm rear disc, whilst the fork is designed for discs of up to 160 mm.

Carbon wheels Vision TC45

The Berria The NAII BR Rival XPLR AXS PWM comes with a pair of Vision TC45 Carbon.

These wheels feature:

• carbon rims ;
• profile of 45 mm ; ;
• internal width of 23 mm ; ;
• technology Tubeless Ready (TLR) ; ;
• disc mount Centre Lock.

The 45 mm profile perfectly complements the sporty character of the NAII BR. It promotes dynamic handling and good performance on fast sections, whilst retaining a useful level of versatility for gravel riding.

Avanforce Airone GR Naked Carbon integrated cockpit

The cockpit is also one of the top-of-the-range features of this setup.

The Avanforce Airone GR is a integrated gravel handlebar made entirely of carbon fibre, with all cables routed via the ICS2 system.

A range of sizes is available depending on the size of the bike, including:

• 405 x 80 mm ;
• 425 x 90 mm ;
• 425 x 100 mm ;
• 425 x 110 mm ;
• 445 × 120 mm.

The cockpit also features built-in mounts for GPS and GoPro.

The finish Naked Carbon – Kerochalk It also gives the bike a particularly elegant visual identity, highlighting the carbon finish of the frame and cockpit. Berria offers this finish across the NAII range.

Seat post and saddle

The bike is fitted with a Avanforce NAII Tibia SOFTEX made from UD carbon fibre, with a 0 mm offset and available in lengths of 300 or 350 mm.

The saddle is a Fizik Vento Argo X5, with 7 x 7 mm steel rails, a length of 265 mm and a width of 140 mm.

Tyres and versatility

The frame and fork of the NAII BR are compatible with tyres up to 700 x 50C.

This feature allows you to adapt the bike’s handling to suit your riding style: a lighter set-up to prioritise speed on fast trails, or a wider tyre section for greater comfort and traction when the terrain becomes rougher.

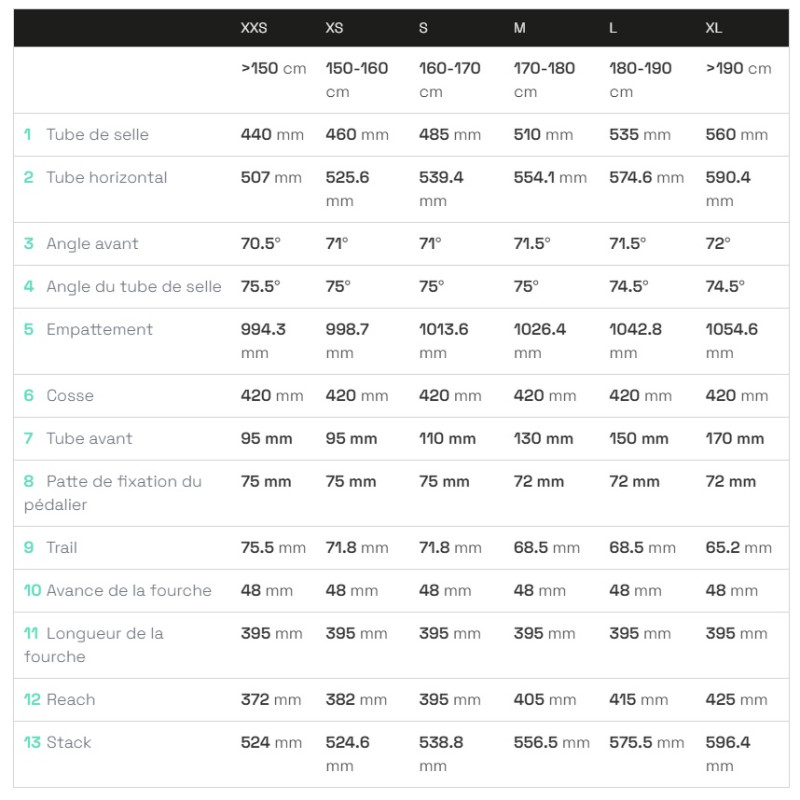

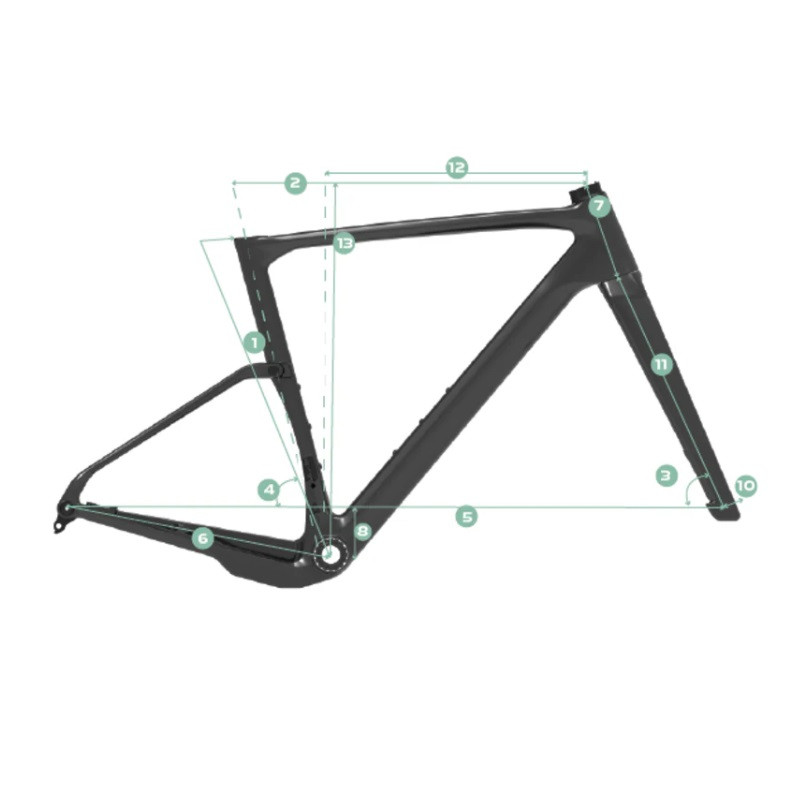

Geometry and sizes

The Berria NAII BR is available in several sizes, ranging from XXS to XL.

Size	Sample cyclist	Reach	Stack	Wheelbase
XXS	> 150 cm	372 mm	524 mm	994.3 mm
XS	150–160 cm	382 mm	524.6 mm	998.7 mm
S	160–170 cm	395 mm	538.8 mm	1,013.6 mm
M	170–180 cm	405 mm	556.5 mm	1,026.4 mm
L	180–190 cm	415 mm	575.5 mm	1,042.8 mm
XL	> 190 cm	425 mm	596.4 mm	1,054.6 mm

The size information is that provided by Berria ;a personalised fitting and a postural assessment are still recommended to determine the most suitable size and accessories.

Technical specifications

Equipment	Features
Frame	Berria NAII Carbon HM3X
Construction	Triple Monocoque
Suspension system	SOFTEX – 28 mm
Fork	Berria NAII BR Full Carbon
Transmission	SRAM Rival XPLR AXS E1
Number of gears	13
Crankset	SRAM Rival XPLR AXS E1 PWM
Plateau	42 teeth
Cassette	SRAM XPLR XG-1351 – 10–46 teeth
Brakes	SRAM Rival AXS E1 hydraulic brakes
Wheels	Vision TC45 Carbon
Rim profile	45 mm
Internal width	23 mm
Tubeless	TLR
Disc fastening	Centre Lock
Coat hanger	Avanforce Airone GR Integrated Carbon
Cable routing	ICS2 Full Internal
Seat post	Avanforce NAII Tibia SOFTEX UD Carbon
Saddle	Fizik Vento Argo X5
Bottom bracket shell	SRAM DUB Wide T47
Front axle	12 x 100 mm
Rear axle	12 x 142 mm
Standard derailleur	UDH
Maximum tyres	700 x 50C
Finish	Naked Carbon – Kerochalk

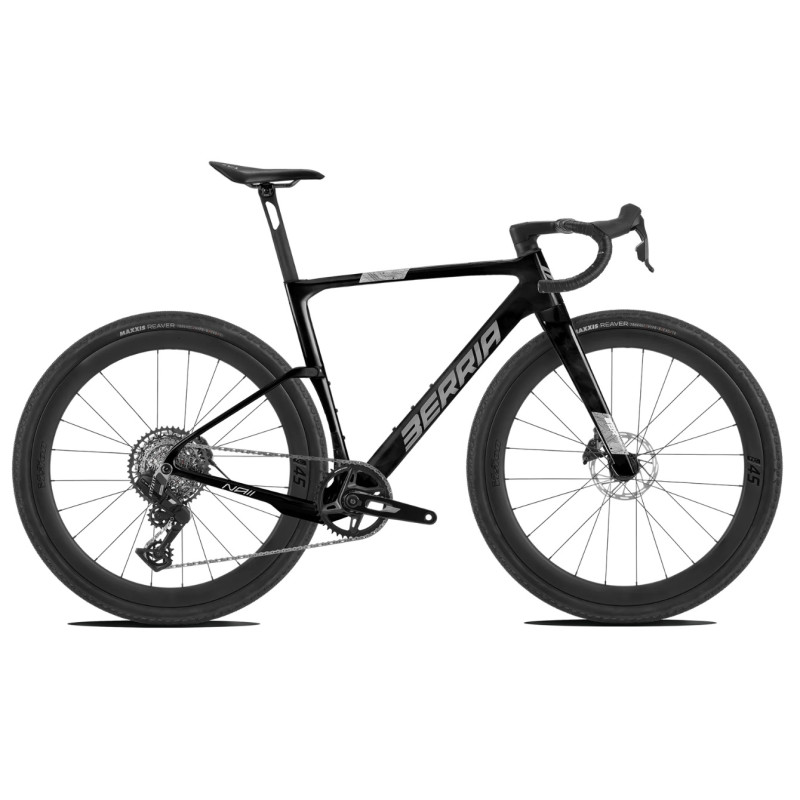

Please note that the photo is for illustrative purposes only and is not contractually binding; this bike is fitted with the groupset and wheels specified in the title and description.
