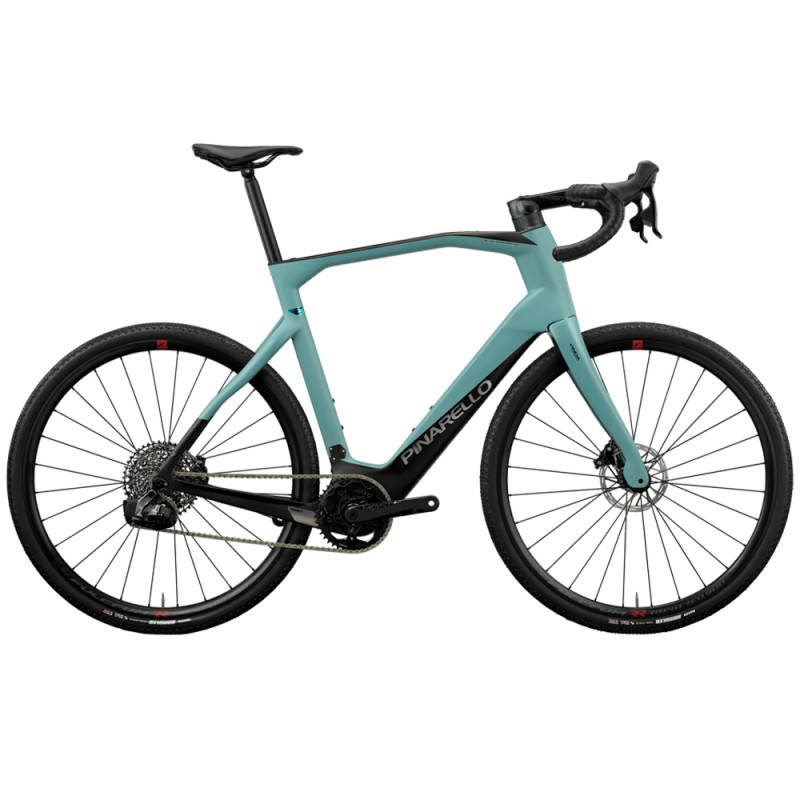

Pinarello Nytro Gravel E5 Disc Sram Rival 12v RR900XD CD330 electric gravel bike

Ride without limits on the Pinarello Nytro Gravel E5. Fast and comfortable on both roads and trails, its lightweight carbon frame features an electric motor system that allows you to ride faster for longer. Indeed, its TQ-HPR50 motor, with a maximum power output of 300W and 50Nm of torque, is ideal for helping you accelerate out of a bend or tackle the steepest climbs. Powered by an integrated 360Wh battery, it guarantees a long range so you can ride for longer without exerting extra effort.

This bike is fitted with a 12-speed Sram Rival eTap AXS drivetrain, which ensures precise gear changes and offers a wide range of gear ratios to suit all situations. Its single chainring ensures better chain retention and prevents derailments. Equipped with hydraulic disc brakes, you’ll enjoy precise and powerful braking to stop safely. Finally, the sturdy Fulcrum Rapid Red 900 wheels and wide Maxxis Rambler tyres ensure excellent grip and promise maximum comfort on rough terrain.

TECHNICAL SPECIFICATIONS:

Frame:
- Frame: TorayCa T700 UD, TiCR™ Cable Routing
- Fork: Nytro Onda carbon fork with forkflap™, tapered head tube

Drivetrain:
- Crankset: Most custom 42T
- Grips: Sram Rival ETAP AXS 12-speed
- Rear derailleur: Sram Rival ETAP AXS 12-speed
- Cassette: Sram Rival 12-speed 11-44
- Chain: Sram Rival ETAP AXS 12-speed

Braking:
- Brakes: Sram Rival 2-piston hydraulic disc brakes
- Rotors: 160/140 mm

Components:
- Handlebar: Most Jaguar GR TiCR Aluminium
- Stem: Most Tiger Aero Aluminium TiCR
- Handlebar tape: Most bar tape
- Saddle: Most Lynx Aircross FEC Alloy Large 145mm
- Seatpost: Pinarello Aero Seatpost

Wheels:
- Wheels: Fulcrum Rapid Red 900
- Tyres: Maxxis Rambler 700x40c

Motorisation:
- Motor: TQ-HPR50 Drive Unit
- Battery: 360 Wh Integrated Battery
- Display: Integrated and compatible with Ant+ bike computers

General information:
- Colour: Airforce Grey
- Sizes: 46/50/53/55/57.5/60
- Size geometries in the photo gallery
- Brand: Pinarello

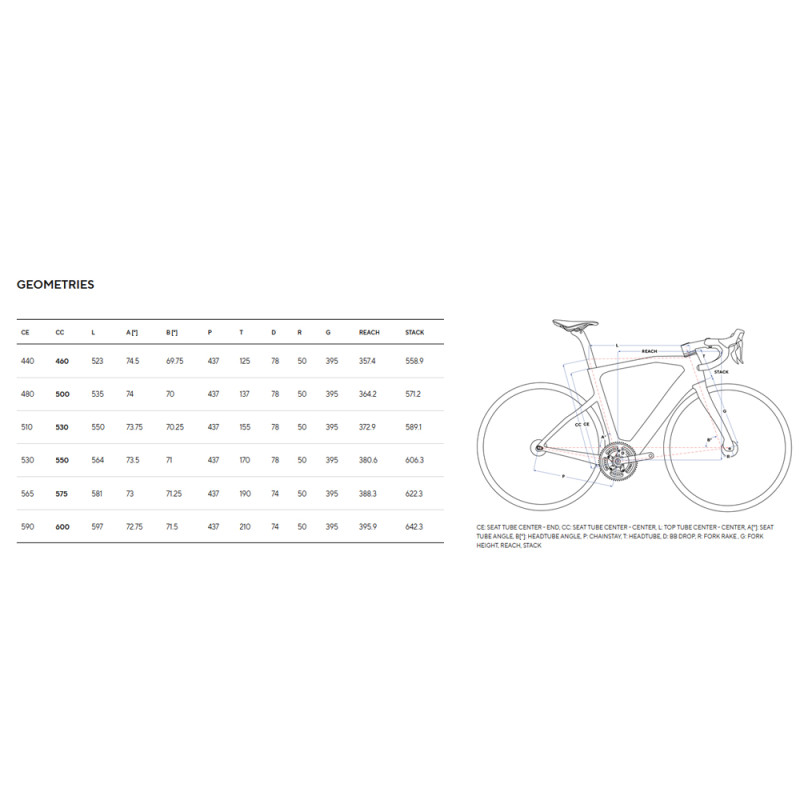

Geometry:

(mm)	46	50	53	55	57.5	60
A	558.9	571.2	589.1	606.3	622.3	642.3
B	357.4	364.2	372.9	380.6	388.3	395.9
C	125	137	155	170	190	210
D	440	480	510	530	565	590
E	523	535	550	564	581	597
