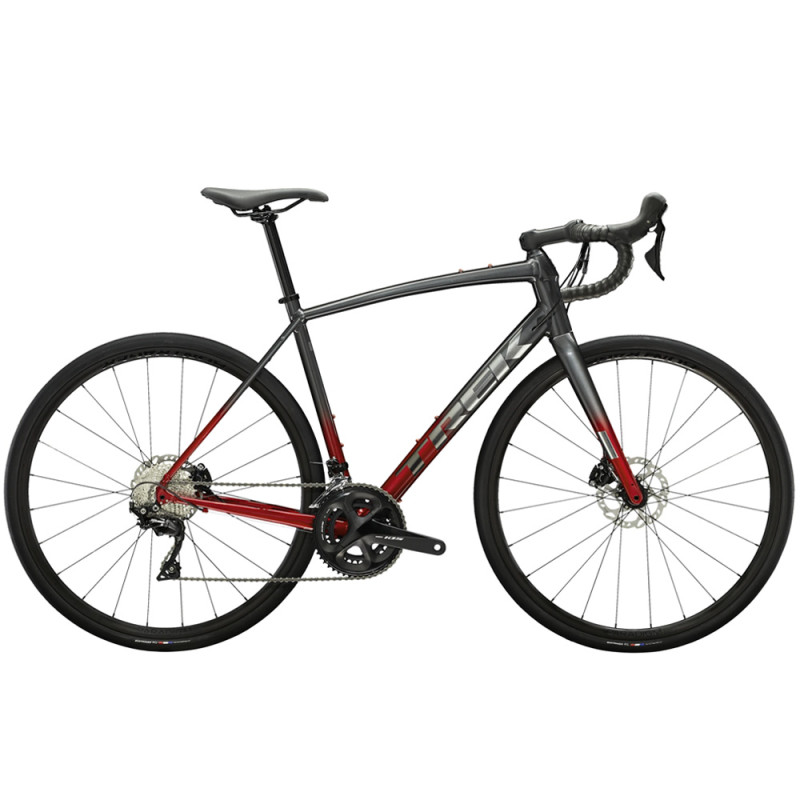

Trek Domane AL 5 Disc Shimano 105 11-speed Lithium Grey to Crimson Fade 2023 road bike

The Trek Domane AL 5 Disc road bike is a versatile, comfortable and high-performance bike. Perfect for clocking up the miles on tarmac, it is built around a lightweight aluminium frame and a vibration-absorbing carbon fork. Its endurance geometry ensures great stability and improved comfort for your longest rides.

This bike is equipped with a highly reliable 105 2x11-speed drivetrain, offering a wide range of gear ratios to suit all types of terrain. Hydraulic disc brakes guarantee powerful and precise braking in all conditions. Finally, sturdy rims and wide tyres perfectly complete this bike, which promises an excellent riding experience on the most beautiful routes.

TECHNICAL SPECIFICATIONS:

Frame:
- Frame: Alpha Aluminium Series 100, tapered head tube, internal cable routing, mudguard mounts, DuoTrap S compatible, Flat-Mount disc
- Fork: Domane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc
- Axles: 12x142/12x100mm

Groupset:
- Shifters: Shimano 105 R7020, 11-speed
- Front derailleur: Shimano 105 R7000
- Rear derailleur: Shimano 105 R7000, long cage, max 34-tooth sprocket
- Cassette: Shimano 105 HG700-11, 11-speed
- Crankset: Shimano 105 R7000
- Crank length: 165mm (44) 170mm (49-52) 172.5mm (54-65) 175mm (58-61)
- Chain: Shimano HG601, 11-speed
- Bottom bracket: Prowheel PW-BB73+, 68/73 mm, external thread

Brakes:
- Brakes: Shimano 105 hydraulic disc
- Discs: Shimano RT70, Centerlock, 160 mm

Components:
- Handlebar: Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop
- Handlebar width: 38cm (44-49) 40cm (52) 42cm (54-56) 44cm (58-61)
- Stem: Bontrager Elite, 31.8 mm, Blendr-compatible, 7 degrees
- Stem length: 70 mm (44) 80 mm (49) 90 mm (52-54) 100 mm (56-58) 110 mm (61)
- Handlebar tape: Bontrager Supertack Perf handlebar tape
- Seatpost: Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, length 250 mm (44-49) 330 mm (52-61)
- Saddle: Bontrager Verse Comp, steel rails, width 155 mm (44-52) 145 mm (54-61)

Wheels & tyres:
- Wheels: Bontrager Affinity Disc, Tubeless Ready, 28-hole, 21 mm wide, Presta valve
- Tyres: Bontrager R1 Hard-Case Lite, bead-sealed, 60 tpi, 700x32 mm

General information:
- Colour: Lithium Grey to Crimson Fade
- Sizes: 44/49/52/54/56/58/61

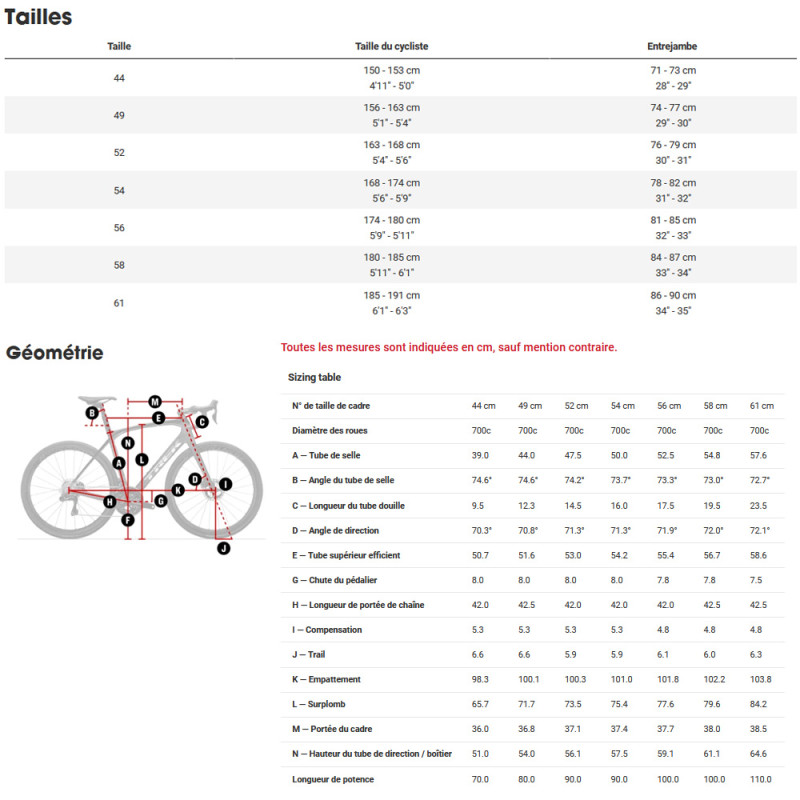

- Geometry in photo gallery
- Weight: 10.10 kg (56)
- Max. weight: 125 kg
- Brand: Trek
