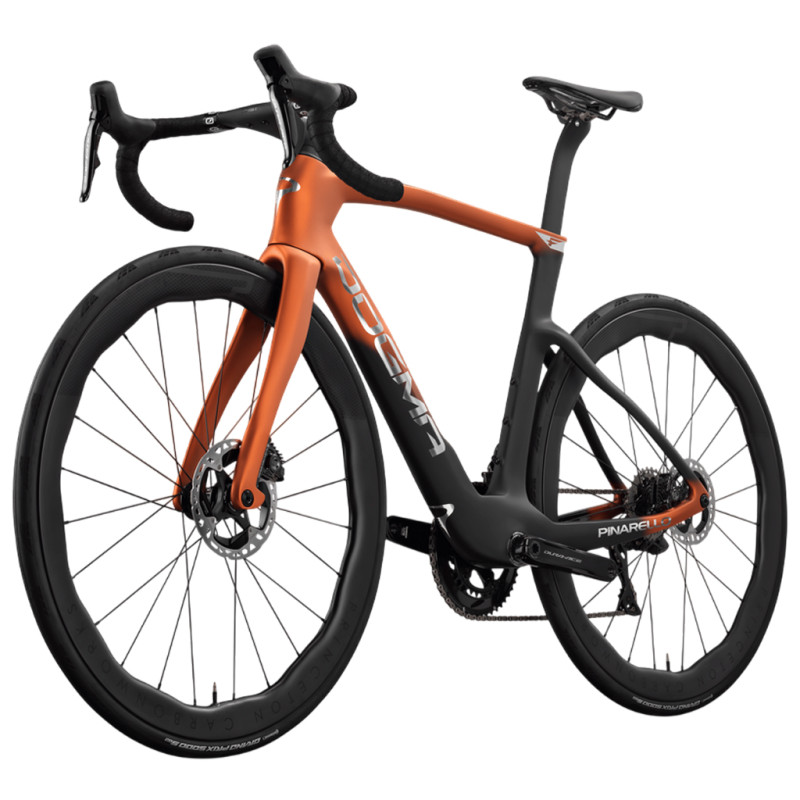

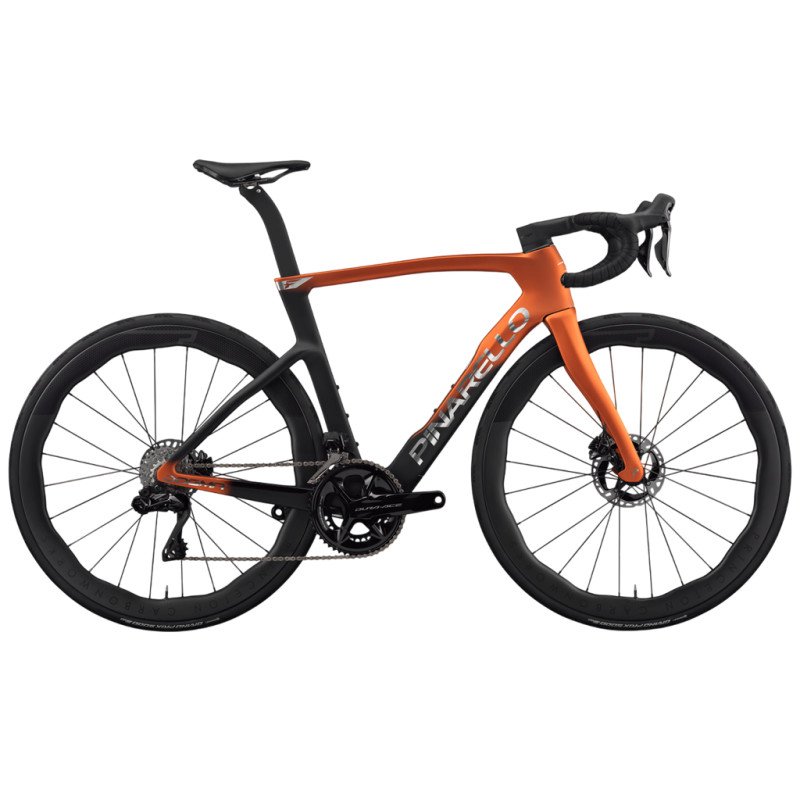

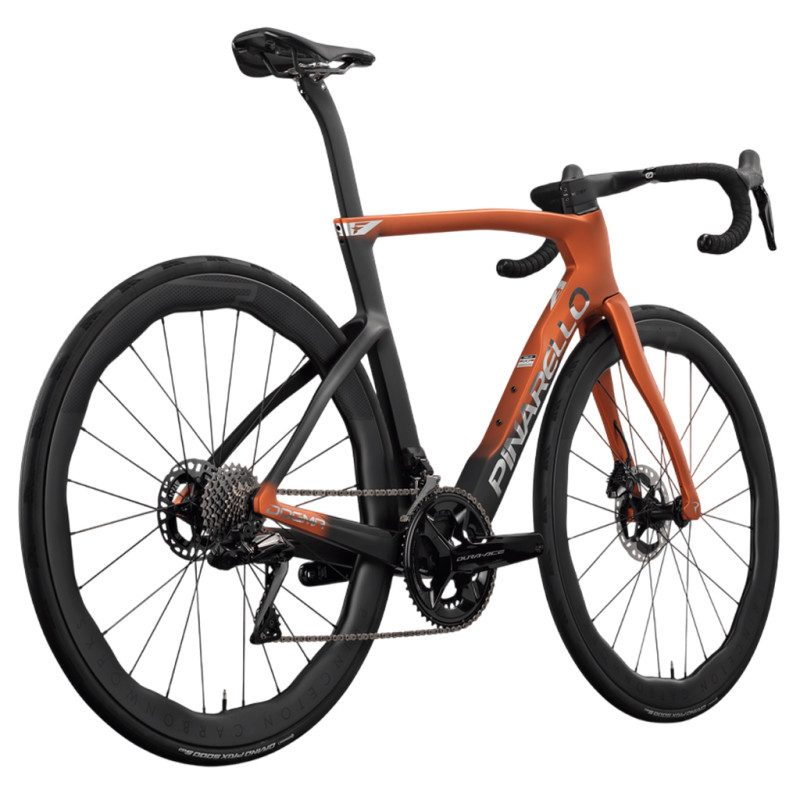

Bike test: 100 km Pinarello Dogma F Disc Shimano Dura-Ace Di2 12-speed Powermeter DT Swiss ARC1450 H102 Luxter Amber

The Dogma F Disc Shimano Dura-Ace Di2 12v PM DT Swiss ARC1450 H102 Luxter Amber Pinarello embodies the Dogma F’s competitive DNA in a configuration designed to maximise performance and speed. Its TorayCa M40X carbon frame combines lightness, stiffness and aerodynamics, with a design fully optimised to deliver sharp acceleration, excellent pedalling efficiency and precise handling on the most demanding sections.
Pinarello takes integration even further with the tapered down tube, the Aero-Keel bottom bracket, the ONDA fork with ForkFlap, integrated thru-axles and a concealed seatpost clamp. The integrated MOST Talon Ultra Fast cockpit completes the package, improving aerodynamic efficiency whilst maintaining precise and stable handling, particularly at high speeds.

The 12-speed Dura-Ace Di2 ‘ Shimano ’ drivetrain delivers fast and precise gear changes, whilst the power metre integrated into the crankset allows you to accurately track the watts produced and optimise your training sessions. The DT Swiss ARC1450 carbon wheels with a 50 mm profile enhance the bike’s aerodynamics whilst offering an excellent balance between efficiency, stability and versatility. With its H102 Luxter Amber colour scheme, this Dogma F combines top-level performance with a particularly exclusive finish.

Technical specifications:

Frame:

- Frame: Pinarello Dogma F made from TorayCa M40X carbon, eTiCR internal cable routing, Italian bottom bracket, UCI-approved
- Fork: Pinarello ONDA eTICR carbon fork with ForkFlap technology, 1.5” tapered steerer
- Bottom bracket: Shimano Dura-Ace SM-BB9200 (Italian BB)

Drivetrain:

- Crankset: Shimano Dura-Ace FC-R9200 Hollowtech II 12-speed with power metre
- Cassette: Shimano Dura-Ace CS-R9200 12-speed
- Chain: Shimano Dura-Ace CN-HG 12-speed
- Shifters: Shimano Dura-Ace Di2 12-speed
- Front derailleur: Shimano Dura-Ace Di2 FD-R9200
- Rear derailleur: Shimano Dura-Ace Di2 RD-R9200

Brakes:

- Brakes: Shimano Dura-Ace BR-R9200 hydraulic
- Rotors: 160 mm front / 140 mm rear

Components:

- Handlebars / Integrated stem: MOST Talon Ultra Fast
- Saddle: MOST Lynx Ultrafast Superflow L Carbon 145 mm
- Seatpost: Pinarello Aero Seatpost with 3D titanium clamp
- Bottle cage: Pinarello Trap PACF + Pinarello Fly 550 ml bottle

Wheels:

- Wheels: DT Swiss ARC1450
- Rim height: 50 mm
- Tyres: Continental Grand Prix 5000 S TR 700x28 Tubeless Ready

General information:

- Colour: H102 Luxter Amber
- Sizes: 43 - 46.5 - 50 - 51.5 - 53 - 54 - 55 - 56 - 57.5 - 59.5 - 62
- Weight: 6.77 kg (size 53, without pedals)
- Brand: Pinarello
