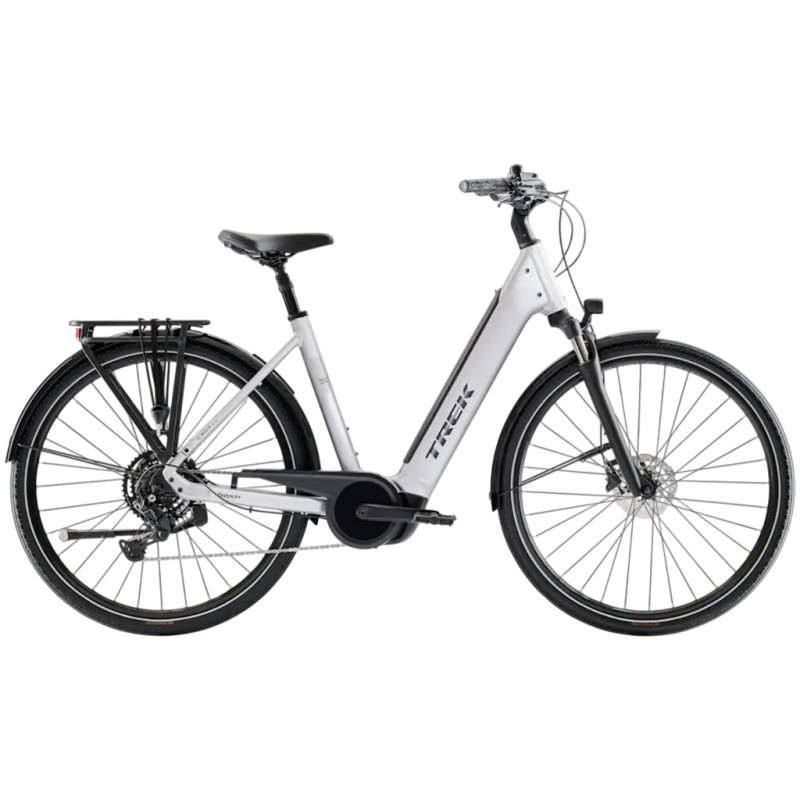

Trek District+ 3 R9 360 LS Lunar Silver 2027 electric e-bike

The Trek District+ 3 R9 360 LS is a versatile electric hybrid bike designed to make everyday journeys easier and more enjoyable. Its Alpha Platinum aluminium frame, comfortable riding position and 60 mm suspension fork ensure a smooth ride in town and on country lanes, whilst the wide 700x50C tyres provide stability and comfort on a wide variety of surfaces.

Bosch ’s Active Line Plus motor, delivering 60 Nm of torque, works with a 360 Wh PowerTube battery to provide natural assistance with every pedal stroke, particularly on climbs and during longer journeys. The 9-speed CUES drivetr Shimano, combined with mudguards, lights, the MIK luggage rack and a kickstand, makes this District+ a bike that’s ready to go for both daily commutes and weekend rides.

Technical specifications:

Frame and Fork:

- Frame: Alpha Platinum aluminium, top-loading PowerPack, integrated cable routing at the handlebars, 135x5 mm quick-release
- Fork: NEX-E25 SR Suntour, coil spring, preload adjustment, 100 mm quick-release, 60 mm travel

Motor and Battery:

- Motor: Bosch Active Line Plus, 60 Nm
- Battery: Bosch PowerTube 360 Wh, smart system
- Charger: Bosch Standard 2 A, 230 V, smart system
- Speedometer: Bosch Purion 200
- Maximum assisted speed: 32 km/h
- System: Bosch Smart System

Drivetrain:

- Gear shifter: Shimano CUES U4000, optical indicator, 9-speed
- Rear derailleur: Shimano CUES U4000
- Cassette: Shimano Linkglide LG300, 11–46 teeth, 9-speed
- Chain: Shimano LG500, compatible with 9/10/11-speed
- Pedals: Nylon platform

Braking:

- Brakes: Shimano RT10, 160 mm hydraulic disc brakes

Wheels and tyres:

- Rims: Bontrager Kovee, double-walled, Tubeless Ready, 32 holes, 23 mm wide
- Front hub: Shimano QC300, Centre Lock
- Rear hub: Shimano FH-QC300-HM, 32-hole, Centre Lock, 8/9/10/11-speed, 135x5 mm
- Tyres: Bontrager Girona Comp, puncture protection, reflective strip, 700x50C

Components:

- Saddle: Bontrager Boulevard
- Seatpost: Alloy, 31.6 mm, length 300 mm
- Handlebars: Alloy, 31.8 mm, rise 25 mm, width 630 mm
- Grips: Bontrager XR Endurance Comp, Lock-On
- Stem: Bontrager alloy, adjustable rise, Blendr-compatible, 70 mm in S/M and 110 mm in L/XL
- Headset: FSA IS-2, sealed cartridge bearings

Equipment:

- Front light: Herrmans FL-26 Nordic CL3
- Light: Spanninga SOLO for e-bikes
- Kickstand: Pletscher Comp Flex 18
- Luggage rack: Alloy, rear, MIK-compatible
- Front mudguard: SKS plastic
- Rear mudguard: SKS plastic

General information:

- Colour: Lunar Silver / Silver

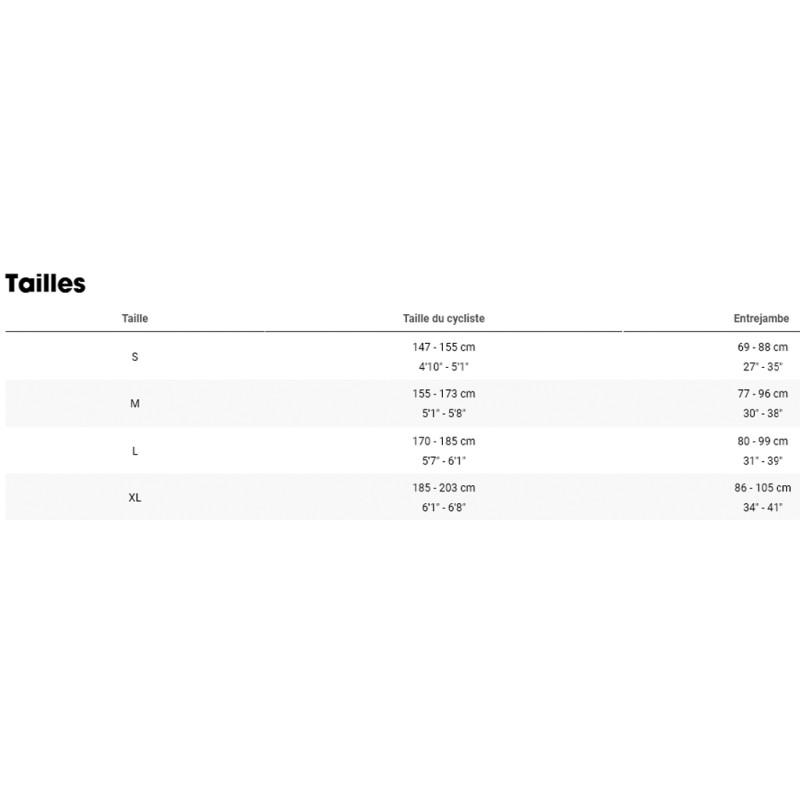

- Size: S / M / L / XL
- Weight: 26.40 kg in size L
- Maximum authorised total weight: 136 kg, including bike, rider and luggage
- Brand: Trek
