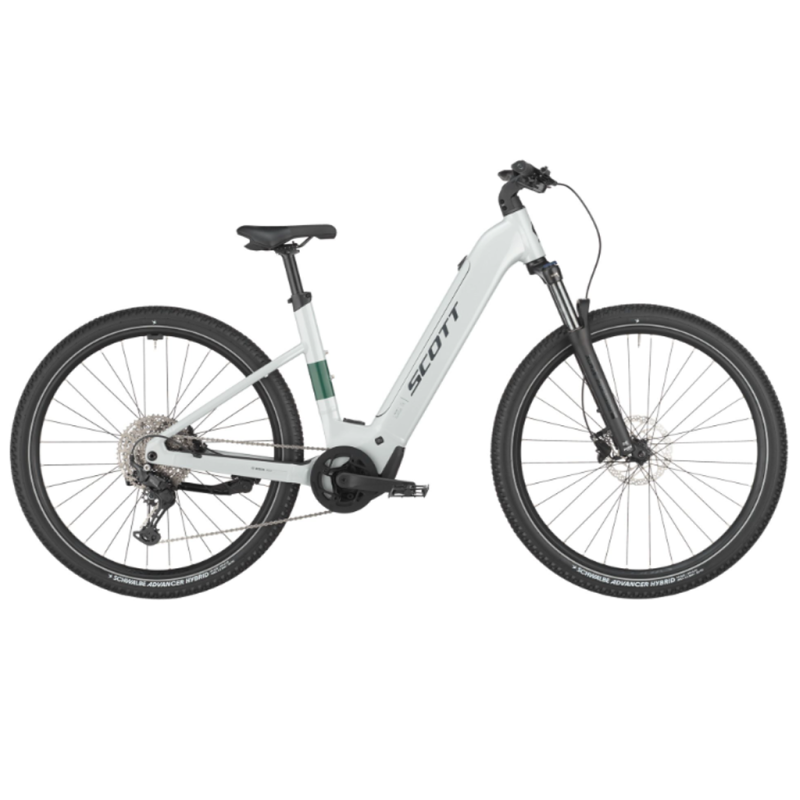

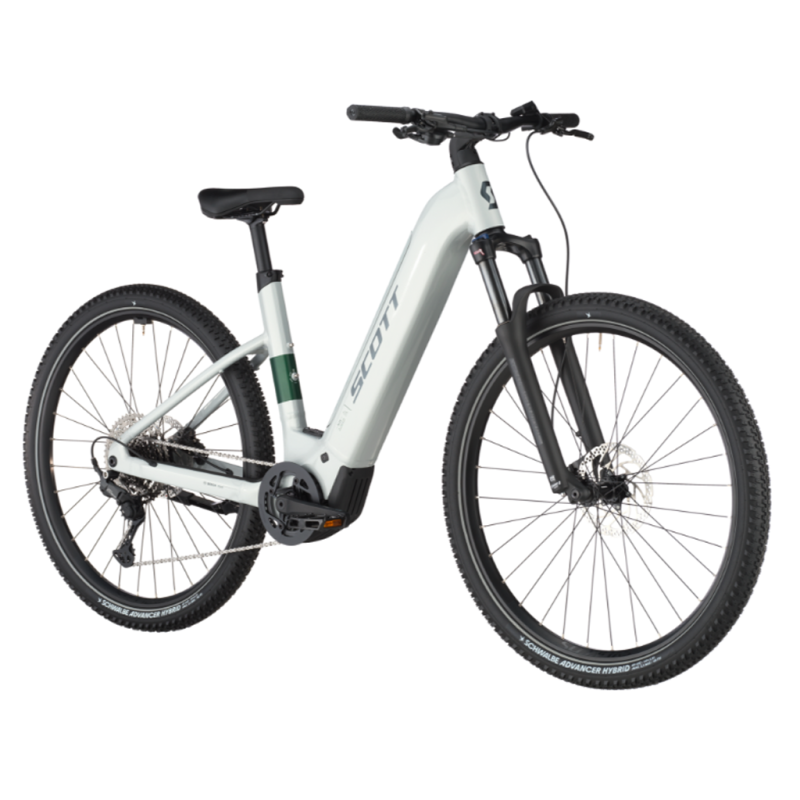

Scott Axis 30 Wave Rhino Grey Bosch 600Wh electric hybrid bike

Designed to combine comfort, practicality and manoeuvrability, the Axis 30 Wave from Scott is an electric hybrid bike ideal for urban use, leisure rides or trail riding. It features the latest Bosch Performance CX motor with a 600 Wh PowerTube battery, delivering smooth and powerful assistance on all routes.

Its low-step Wave frame design makes it easy to get on and off, whilst the 120 mm SR Suntour fork effectively absorbs bumps in the terrain. Perfect for long rides, daily commutes or weekend getaways, this e-bike is fitted with a trailer hitch, ideal for families.

With its 11-speed Shimano drivetrain, hydraulic disc brakes and reliable Syncros components, the Scott Axis 30 Wave is ready for all your adventures, in style and with peace of mind.

Technical specifications:

Frame / Fork:
- Frame: 6061 aluminium, Wave geometry, integrated battery,
12x148 mm Boost axle - Fork: SR Suntour XCM34 LO Coil – 120 mm – 15x110 mm axle

Motorisation:
- Motor: Bosch Performance CX – 85 Nm – max. 25 km/h
- Battery: Bosch PowerTube 600 Wh
- Display: Bosch Purion 200
- Charger: Bosch 2A

Drivetrain:
- Crankset: FSA CK-220 – 165 mm – 36-tooth chainring with chain guard
- Cassette: Shimano CS-LG400 11–50T – 11-speed
- Chain: Shimano LG500
- Shifters: Shimano SL-U6000-11RC
- Rear derailleur: Shimano CUES RD-U6000GS – 11-speed

Braking:
- Brakes: Shimano BR-MT200 – hydraulic disc brakes
- Rotors: SM-RT30 Centre Lock 180 mm front / rear

Components:
- Handlebars: Syncros 3.0 – 720 mm – Rise 12 mm – Backsweep 9°
- Grips: Syncros Lock On
- Stem: Syncros
- Saddle: Syncros Capilano
- Seatpost: Syncros M3.0 – Ø 31.6 mm

Wheels:
- Rims: Syncros X18 Disc
- Hubs: Shimano TC500 Boost (15x110 mm front / 12x148 mm rear)
- Tyres: Schwalbe Advancer 60-622 Wired front / rear

Accessories:
- Kickstand: Ursus
- Luggage rack: Syncros Heavy Duty – max load 27 kg
- Trailer compatibility via specific thru-axle Syncros

General information:
- Colour: Rhino Grey

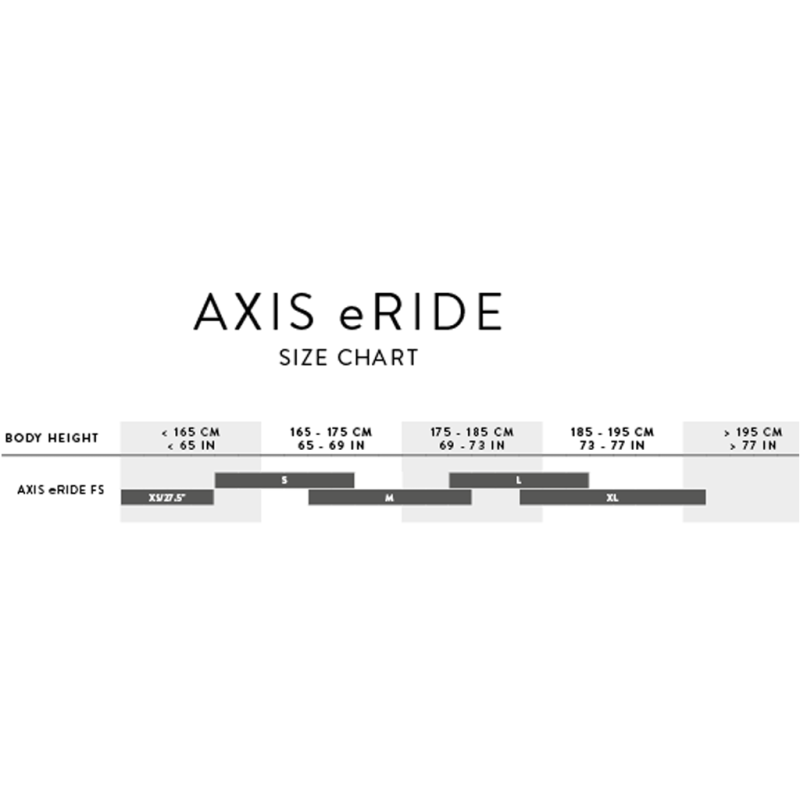

- Sizes: S, M, L, XL
- Weight: 28.2 kg (approx.)
- Maximum authorised weight: 160 kg (bike + rider + kit)
- Product code: 423333
- Brand: Scott
