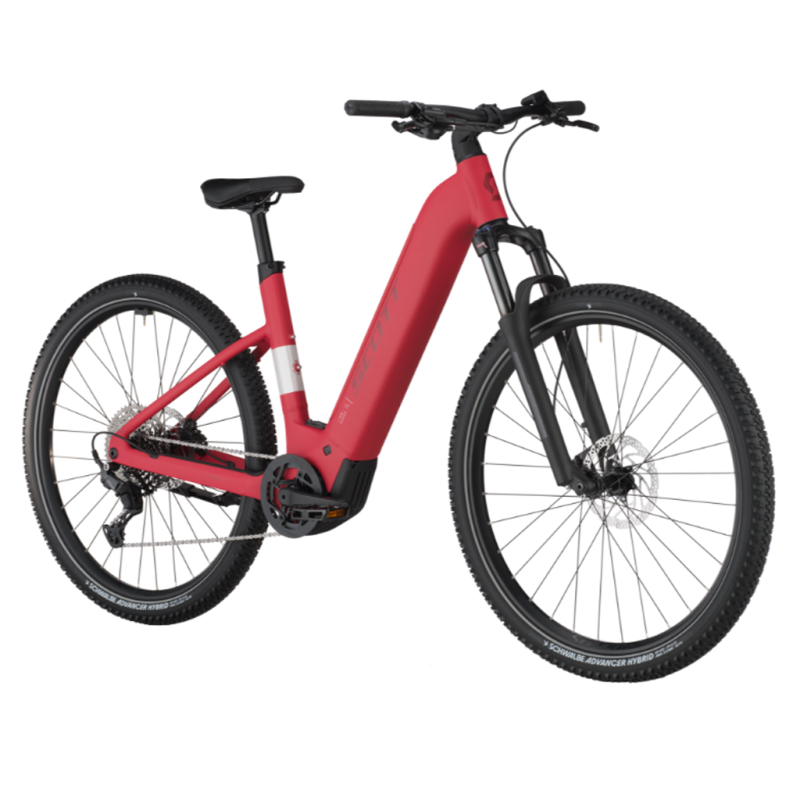

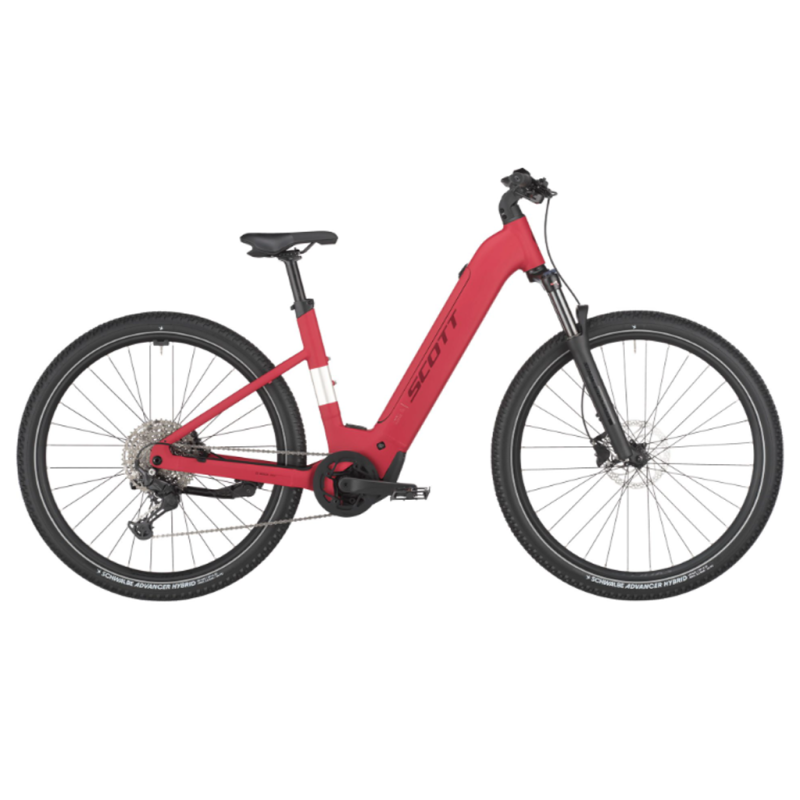

Scott Axis 30 Wave Raspberry Red electric hybrid bike Bosch 600 Wh

The perfect balance between a city bike and an all-terrain bike, the Axis 30 Wave Raspberry Red from Scott is designed for cyclists looking for reliability, power and comfort. This electric hybrid bike is powered by the Bosch Performance CX motor, paired with a 600 Wh PowerTube battery, for stress-free rides in both town and country.

Its low-step Wave geometry makes getting on and off the bike easy and accessible to everyone, whilst the 120 mm front suspension effectively absorbs shocks. The reinforced ‘ Syncros ’ luggage rack can carry up to 27 kg, and the dedicated thru-axle allows for the attachment of trailers.

When it comes to the drivetrain, the Shimano 11-speed components ensure smooth operation and reliability. The hydraulic disc brakes and Schwalbe tyres round off this versatile, robust bike, ready to accompany you on all your adventures.

Technical specifications:

Frame and fork:

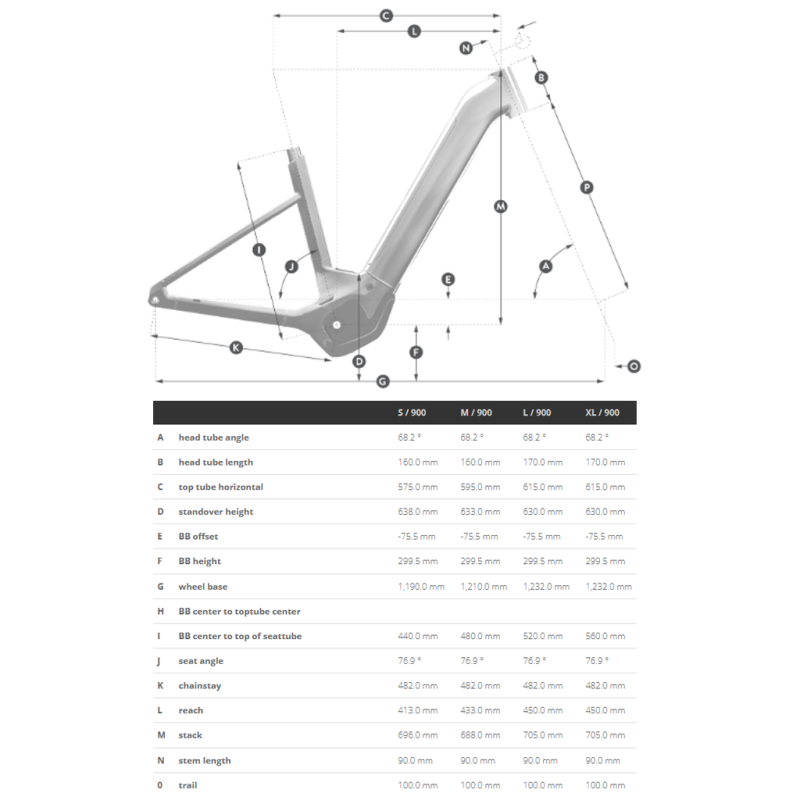

– Frame: 6061 aluminium, Wave geometry, integrated battery, 12x148 mm Boost axle
– Fork: SR Suntour XCM34 LO Coil – 120 mm – 15x110 mm axle

Motorisation:
- Motor: Bosch Performance CX – 85 Nm – max. 25 km/h
- Battery: Bosch PowerTube 600 Wh
- Display: Bosch Purion 200
- Charger: Bosch 2A

Drivetrain:
- Crankset: FSA CK-220 – 165 mm – 36-tooth chainring with chain guard
- Cassette: Shimano CS-LG400 11–50T – 11-speed
- Chain: Shimano LG500
- Shifters: Shimano SL-U6000-11RC
- Rear derailleur: Shimano CUES RD-U6000GS – 11-speed

Braking:
- Brakes: Shimano BR-MT200 – hydraulic disc brakes
- Rotors: SM-RT30 Centre Lock 180 mm front / rear

Components:
- Handlebars: Syncros 3.0 – 720 mm – Rise 12 mm – Backsweep 9°
- Grips: Syncros Lock On
- Stem: Syncros
- Saddle: Syncros Capilano
- Seatpost: Syncros M3.0 – Ø 31.6 mm

Wheels:
- Rims: Syncros X18 Disc
- Hubs: Shimano TC500 Boost (15x110 mm front / 12x148 mm rear)
- Tyres: Schwalbe Advancer 60-622 Wired front / rear

Accessories:
- Kickstand: Ursus
- Luggage rack: Syncros Heavy Duty – max load 27 kg
- Trailer compatibility via specific thru-axle Syncros

General information:
- Colour: Raspberry Red

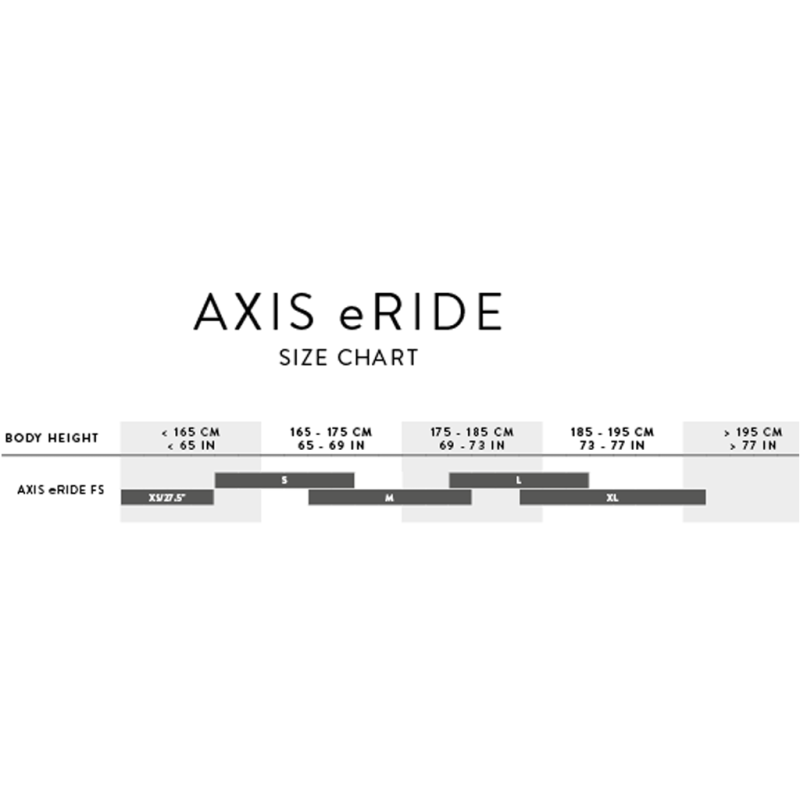

- Sizes: S, M, L, XL
- Weight: 28.2 kg (approx.)
- Maximum permissible weight: 160 kg (bike + rider + kit)
- Product code: 423334
- Brand: Scott
