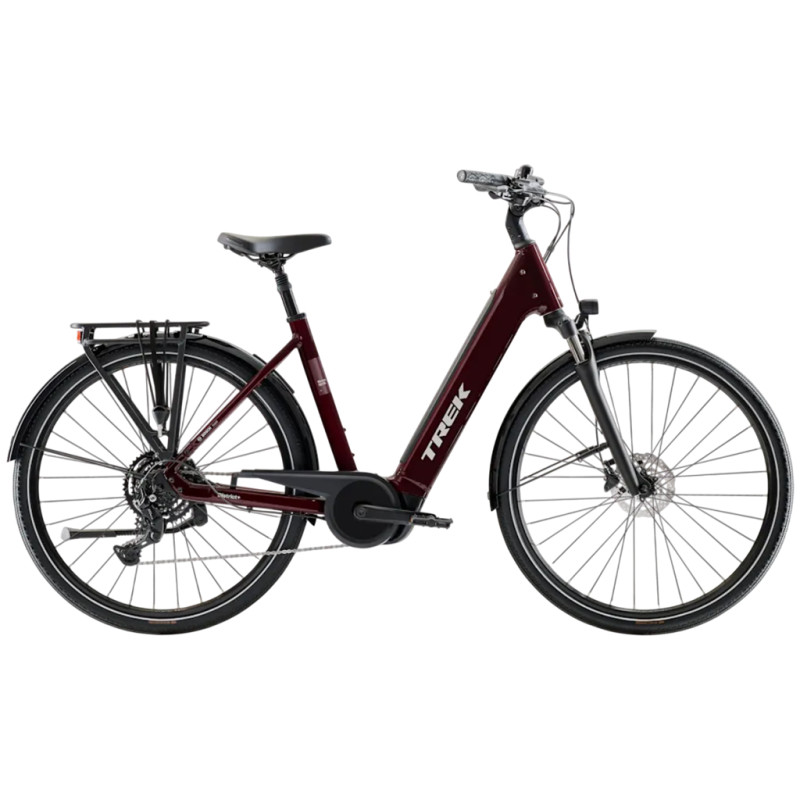

Trek District+ 3 R9 360 LS Cobra Blood 2027 electric e-bike

The District+ 3 R9 360 LS Trek combines the comfort of a classic hybrid bike with discreet and efficient electric assistance. Its Alpha Platinum aluminium frame, 60 mm SR Suntour fork and wide 700x50C tyres ensure a stable and comfortable ride, whether for getting about in town or for weekend getaways.

The 60 Nm Active Line Plus motor from Bosch and the integrated 360 Wh PowerTube battery provide natural assistance to tackle hills and extend your rides without unnecessary effort. With its 9-speed Shimano CUES and comprehensive range of features including lights, mudguards, a kickstand and MIK-compatible luggage racks, this District+ is ready to accompany you on all your daily journeys.

Technical specifications:

Frame and Fork:

- Frame: Alpha Platinum aluminium, top-loading PowerPack, integrated cable routing at the handlebars, 135x5 mm quick-release
- Fork: NEX-E25 ‘ SR Suntour ’, coil spring, preload adjustment, 100 mm quick-release, 60 mm travel

Motor and Battery:

- Motor: Bosch Active Line Plus, 60 Nm
- Battery: Bosch PowerTube 360 Wh, smart system
- Charger: Bosch Standard 2 A, 230 V, smart system
- Speedometer: Bosch Purion 200
- Maximum assisted speed: 32 km/h
- System: Bosch Smart System

Drivetrain:

- Gear shifter: Shimano CUES U4000, optical indicator, 9-speed
- Rear derailleur: Shimano CUES U4000
- Cassette: Shimano Linkglide LG300, 11–46 teeth, 9-speed
- Chain: Shimano LG500, compatible with 9/10/11-speed
- Pedals: Nylon platform

Brakes:

- Brakes: Shimano RT10, 160 mm hydraulic disc brakes

Wheels and tyres:

- Rims: Bontrager Kovee, double-walled, Tubeless Ready, 32-hole, 23 mm wide
- Front hub: Shimano QC300, Centre Lock
- Rear hub: Shimano FH-QC300-HM, 32 holes, Centre Lock, 8/9/10/11-speed, 135x5 mm
- Tyres: Bontrager Girona Comp, puncture protection, reflective strip, 700x50C

Components:

- Saddle: Bontrager Boulevard
- Seatpost: Alloy, 31.6 mm, length 300 mm
- Handlebars: Alloy, 31.8 mm, rise 25 mm, width 630 mm
- Grips: Bontrager XR Endurance Comp, Lock-On
- Stem: Bontrager alloy, adjustable rise, Blendr-compatible, 70 mm in S/M and 110 mm in L/XL
- Headset: FSA IS-2, sealed cartridge bearings

Equipment:

- Front light: Herrmans FL-26 Nordic CL3
- Light: Spanninga SOLO for e-bikes
- Kickstand: Pletscher Comp Flex 18
- Luggage rack: Alloy, rear, MIK-compatible
- Front mudguard: SKS plastic
- Rear mudguard: SKS plastic

General information:

- Colour: Cobra Blood / Red

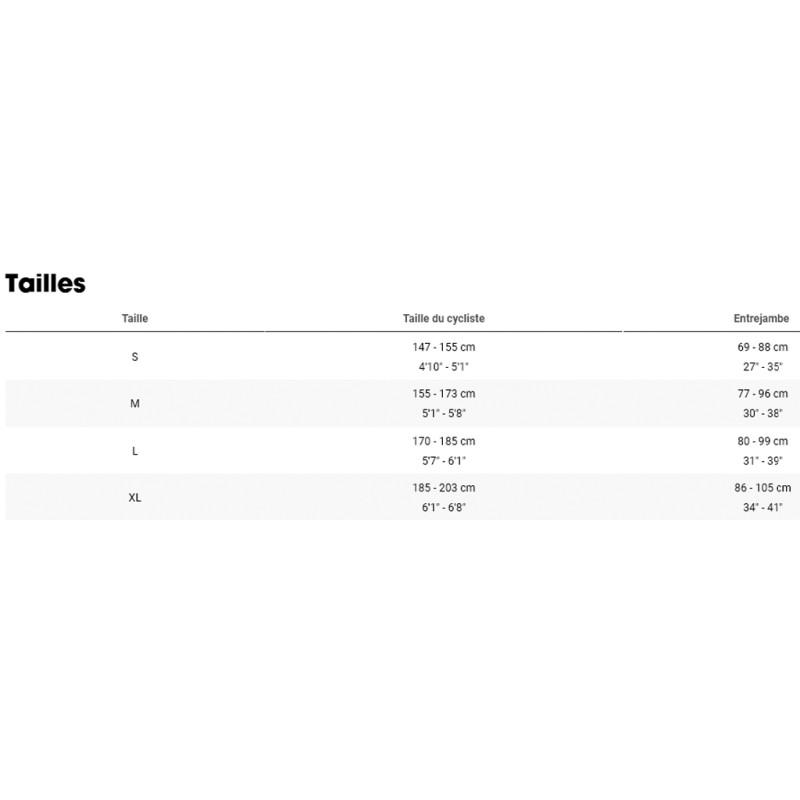

- Size: S / M / L / XL
- Weight: 26.40 kg in size L
- Maximum permitted total weight: 136 kg, including bike, rider and luggage
- Brand: Trek
