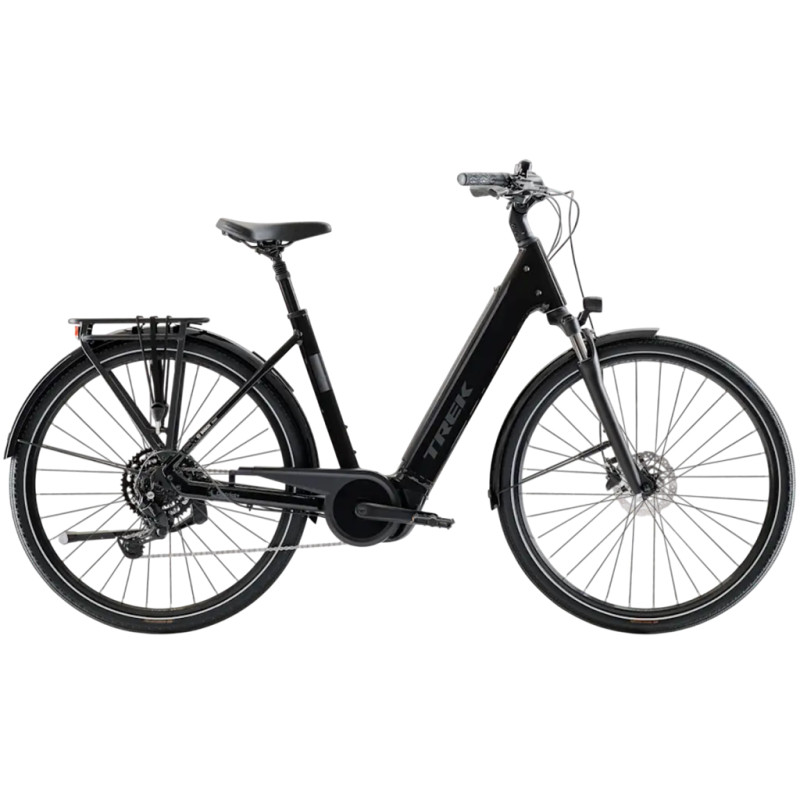

Trek District+ 3 R9 360 LS Dark Star 2027 electric e-bike

The Trek District+ 3 R9 360 LS is an electric hybrid bike designed for both everyday commutes and weekend rides. Its Alpha Platinum aluminium frame, comfortable riding position and practical features make it a particularly versatile bike for getting around town whilst remaining comfortable when the road slopes uphill.

With its 60 Nm Bosch Active Line Plus motor and integrated, removable 360 Wh battery, it offers smooth, natural assistance so you can cover the kilometres with ease. The 9-speed CUES Shimano, 700x50C wide tyres, 60 mm suspension fork and a host of standard features – including lights, mudguards, a kickstand and a MIK luggage rack – mean you can set off straight away, with maximum comfort and practicality.

Technical specifications:

Frame and Fork:

- Frame: Alpha Platinum aluminium, top-loading PowerPack, integrated cable routing at the handlebars, 135x5 mm quick-release
- Fork: NEX-E25 SR Suntour, coil spring, preload adjustment, 100 mm quick-release, 60 mm travel

Motor and Battery:

- Motor: Bosch Active Line Plus, 60 Nm
- Battery: Bosch PowerTube 360 Wh, intelligent system
- Charger: Bosch Standard 2 A, 230 V, smart system
- Speedometer: Bosch Purion 200
- Maximum assisted speed: 32 km/h
- System: Bosch Smart System

Drivetrain:

- Gear shifter: Shimano CUES U4000, optical indicator, 9-speed
- Rear derailleur: Shimano CUES U4000
- Cassette: Shimano Linkglide LG300, 11–46 teeth, 9-speed
- Chain: Shimano LG500, compatible with 9/10/11-speed
- Pedals: Nylon platform

Brakes:

- Brakes: Shimano RT10, 160 mm hydraulic disc brakes

Wheels and tyres:

- Rims: Bontrager Kovee, double-walled, Tubeless Ready, 32-hole, 23 mm wide
- Front hub: Shimano QC300, Centre Lock
- Rear hub: Shimano FH-QC300-HM, 32-hole, Centre Lock, 8/9/10/11-speed, 135x5 mm
- Tyres: Bontrager Girona Comp, puncture protection, reflective strip, 700x50C

Components:

- Saddle: Bontrager Boulevard
- Seatpost: Alloy, 31.6 mm, length 300 mm
- Handlebars: Alloy, 31.8 mm, rise 25 mm, width 630 mm
- Grips: Bontrager XR Endurance Comp, Lock-On
- Stem: Bontrager aluminium, adjustable rise, Blendr-compatible, 70 mm in S/M and 110 mm in L/XL
- Headset: FSA IS-2, sealed cartridge bearings

Equipment:

- Front light: Herrmans FL-26 Nordic CL3
- Light: Spanninga SOLO for e-bikes
- Kickstand: Pletscher Comp Flex 18
- Luggage rack: Alloy, rear, MIK-compatible
- Front mudguard: SKS plastic
- Rear mudguard: SKS plastic

General information:

- Colours: Dark Star / Black

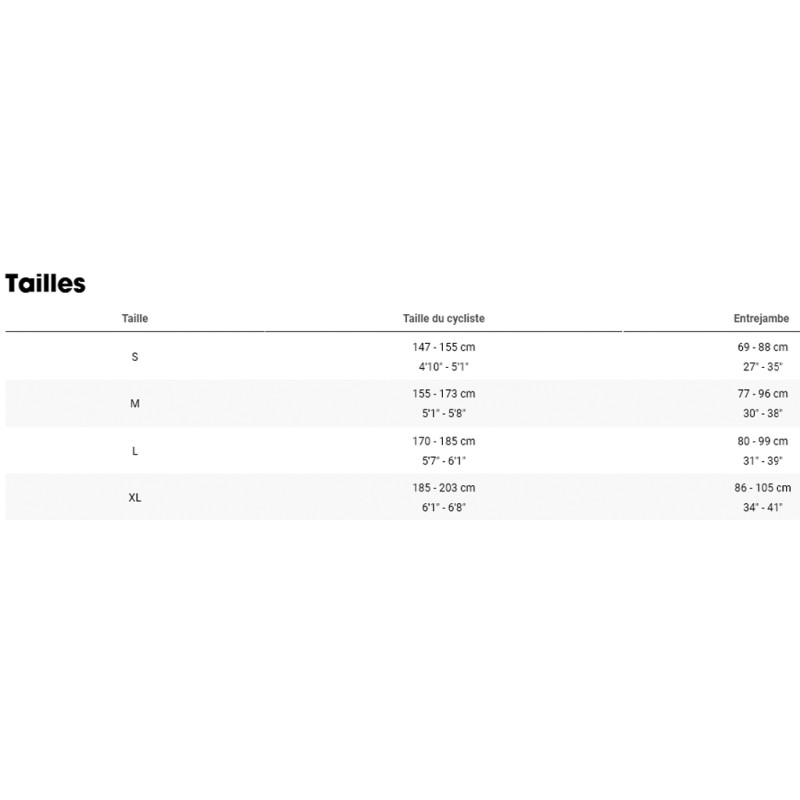

- Size: S / M / L / XL
- Weight: 26.40 kg in size L
- Maximum authorised total weight: 136 kg, including bike, rider and luggage
- Brand: Trek
