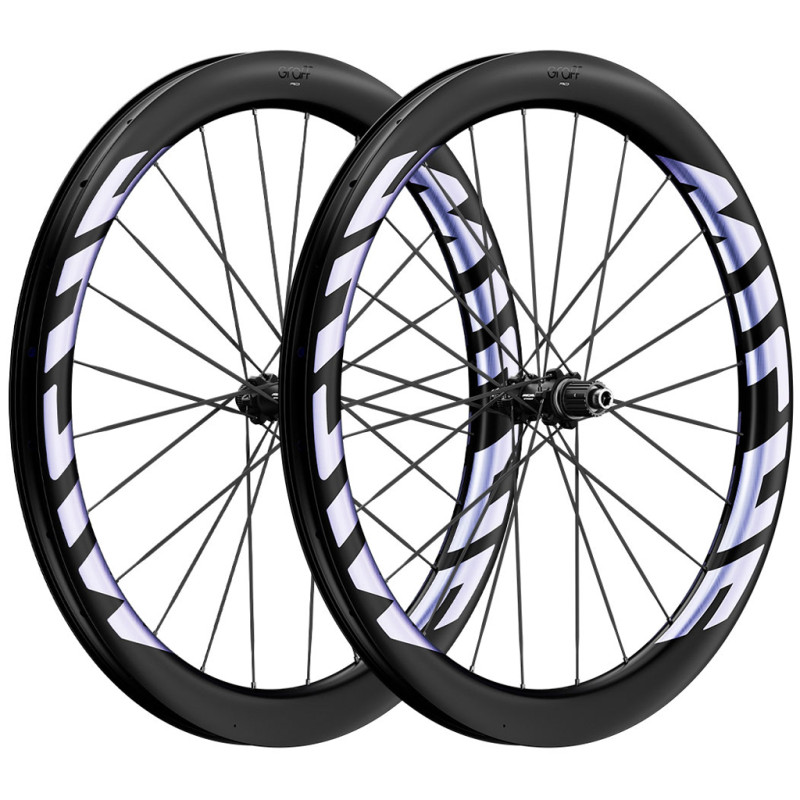

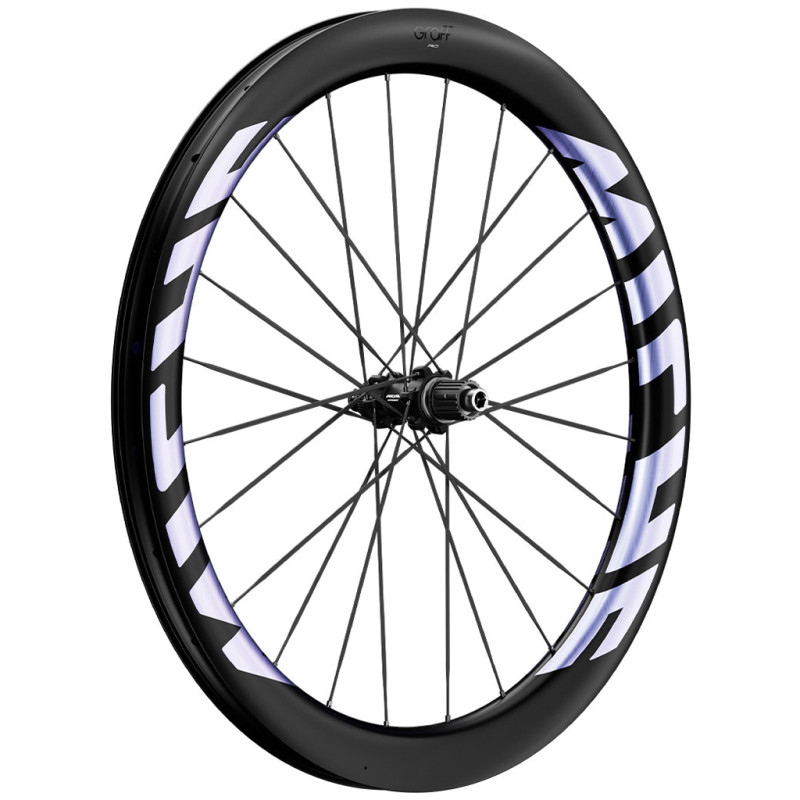

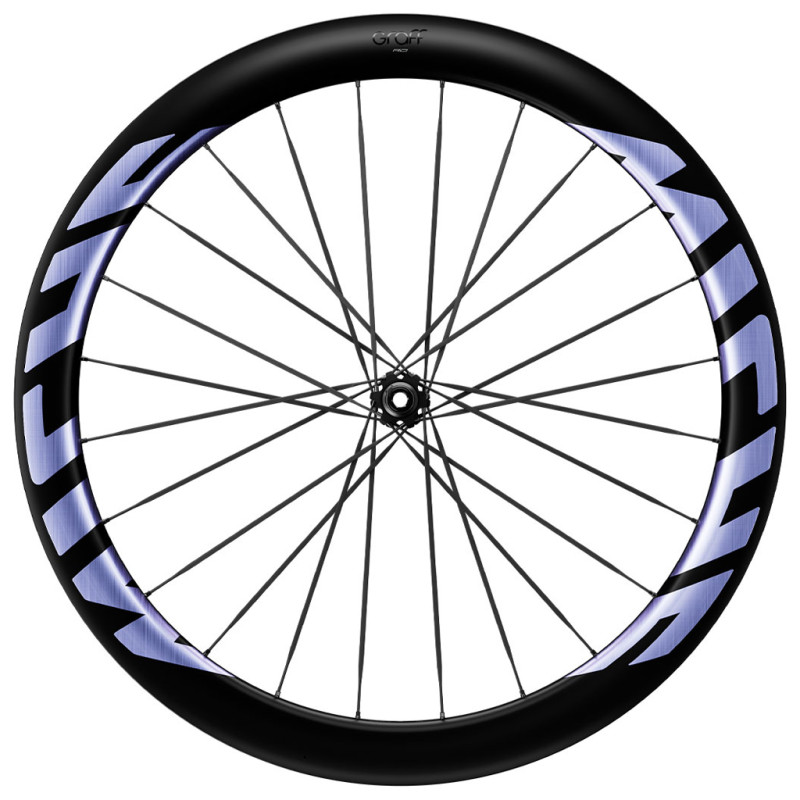

Miche Graff RD gravel bike wheels

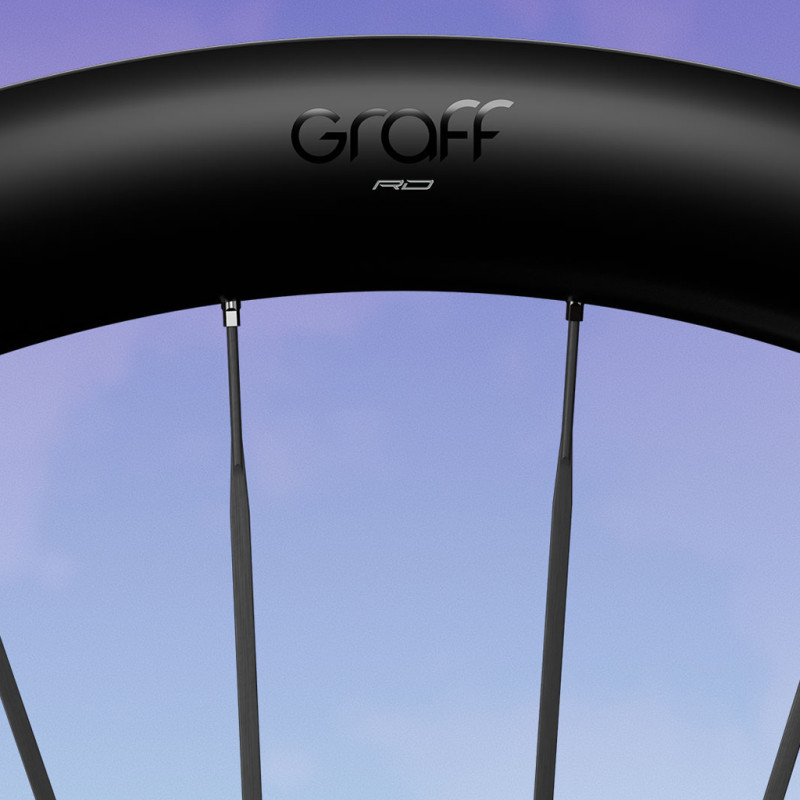

Miche ’s Graff RD wheelset has been developed specifically for competitive gravel riding, with a design born from real-world experience and tested in events such as The Traka, Unbound Gravel and the UCI Gravel World Series. Its T700/T800 carbon rim, 52 mm high and 30 mm wide internally, features a NACA profile and a hookless design intended to work with tyres ranging from 47 to 65 mm, combining aerodynamics, stability and shock absorption on demanding terrain.

The Graff RD also boasts a particularly sophisticated build, featuring 24 carbon spokes— Vonoa —on both the front and rear, 7075 T6 aluminium hubs and Alpha- CeramicSpeed bearings. Weighing in at 1,455 g and featuring the RES 30 Rapid Engagement System freewheel, this pair of wheels strikes a balance between lightness, responsiveness and impact resistance, whilst remaining compatible with the main gravel drivetrain standards.

Technical specifications:

- Wheels Miche Graff RD
- Colour: Silver
- Discipline: Gravel
- Use: competitions and training
- Material: carbon
- Braking system: Centrelock
- Tyre type: Tubeless Ready / hookless

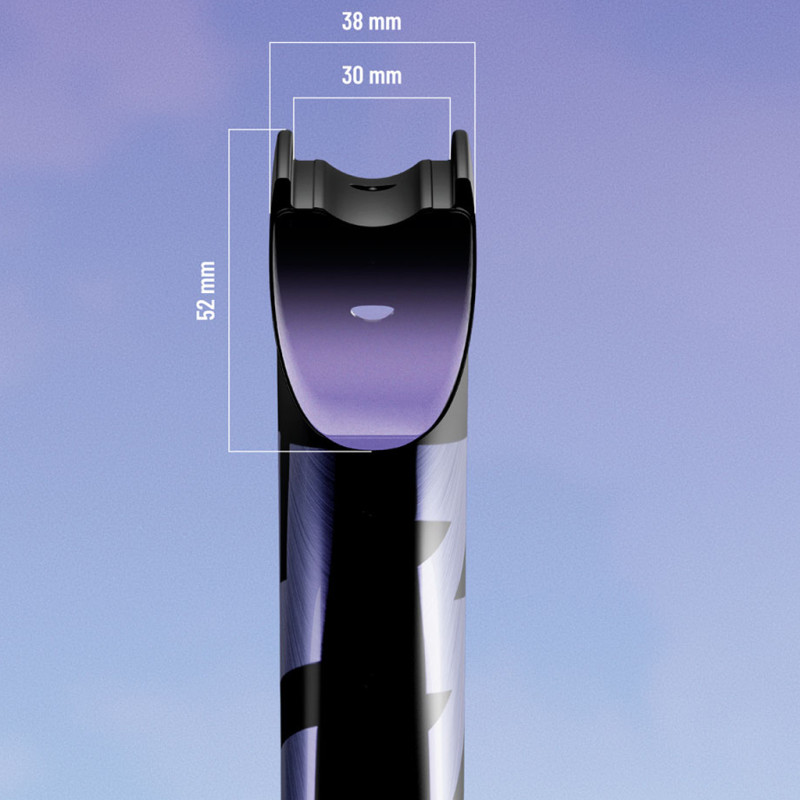

- Rim height: 52 mm
- Internal rim width: 30 mm (40–65 mm tyres) with NACA profile

Weight: 1,455 grams per pair

Hubs:

- Rear axle: 12x142mm
- Front axle: 12x100mm

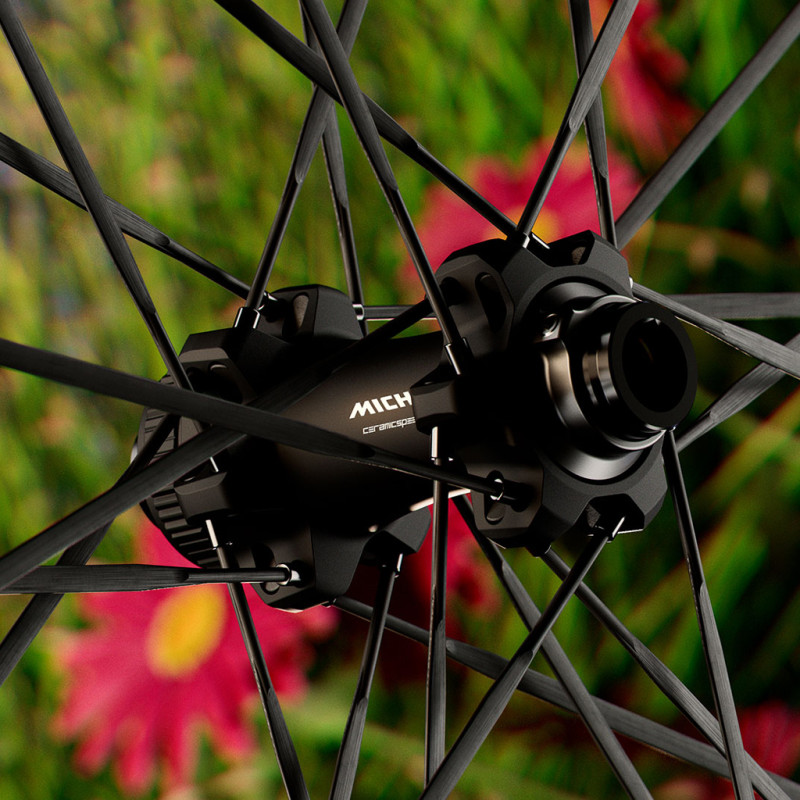

- Hubs: Miche made from Ergal 7075 with Alpha CeramicSpeed bearings
- Freewheel compatibility: Shimano MicroSpline, Shimano HG, SRAM XDR, Campagnolo N3W

Spokes:

- Spokes: Vonoa aerodynamic carbon
- Nuts: AL 7075 T6
