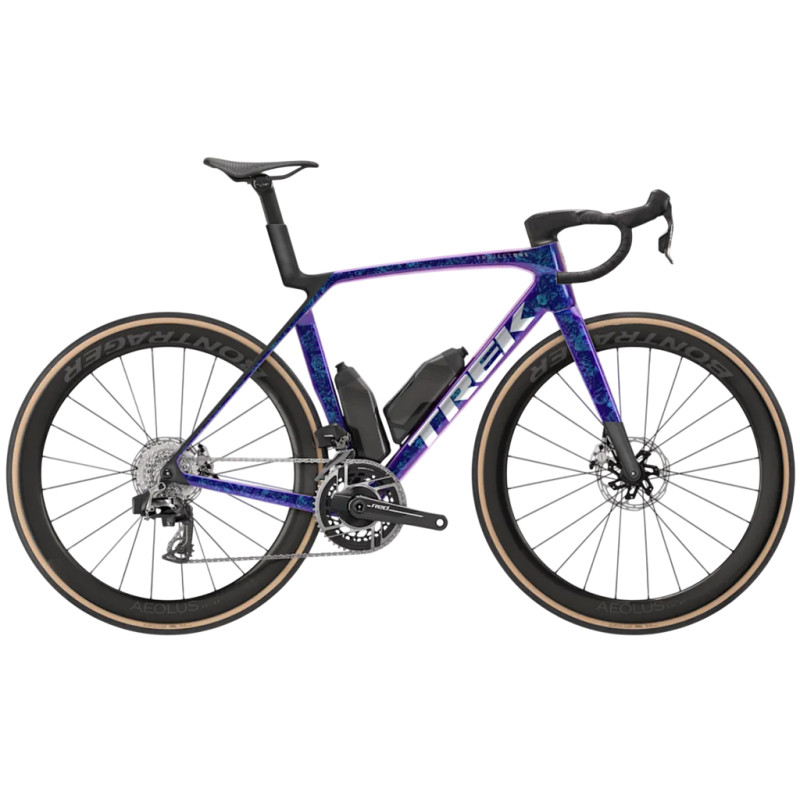

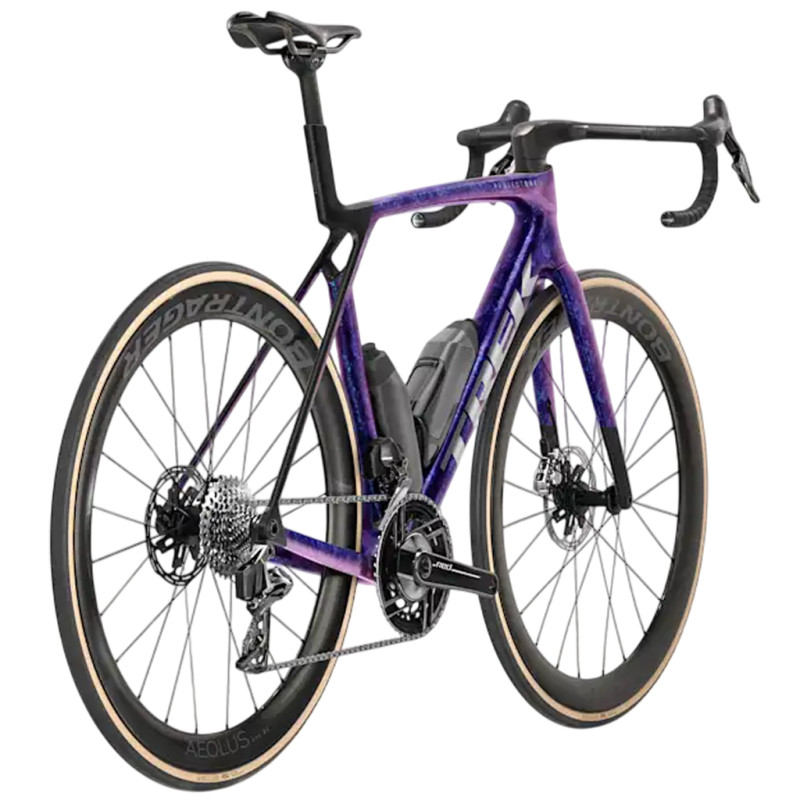

The 8th-generation Madone SLR 9 Trek s designed for cyclists looking for an uncompromising racing bike. Its 900 Series OCLV carbon frame, combined with Full System Foil aerodynamic profiles and IsoFlow technology, offers a remarkable balance between lightness, efficiency and comfort. Weighing just 7 kg in size ML, it’s just as explosive on climbs as it is fast on open roads, with a precision that immediately makes you want to accelerate.

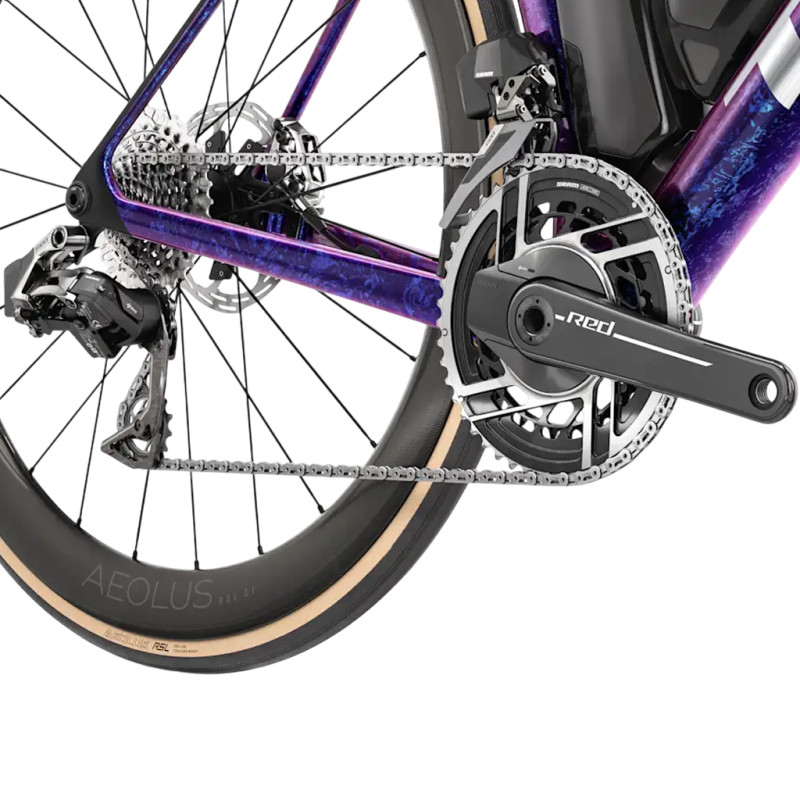

Its top-of-the-range spec matches its ambitions. The RED AXS E1 2x12 ‘ SRAM ’ drivetrain with power metre ensures fast and precise gear changes, whilst the Aeolus RSL 51 OCLV carbon wheels from ‘ Bontrager ’ deliver excellent aerodynamic efficiency without compromising the bike’s performance on climbs. The integrated Aero RSL Trek cockpit completes the package with a race-oriented riding position and exceptionally clean integration.

Designed down to the smallest detail to maximise efficiency, the Madone SLR 9 completely conceals its cables and features a cohesive design right down to its RSL aerodynamic components. It is a true racing machine – light, responsive and fast – capable of turning every pedal stroke into speed whilst retaining enough comfort to remain competitive as the kilometres mount up.

Technical specifications:

Frame and Fork:

- Frame: OCLV Carbon 900 Series, Full System Foil tubes, IsoFlow seat tube, RCS headset, electronic cable routing only, removable aerodynamic chain guard, T47 bottom bracket, Flat Mount disc brakes, UDH universal derailleur hanger, 142 x 12 mm thru-axle
- Fork: 8th-generation full-carbon Madone, carbon tapered steerer, internal brake cable routing, Flat Mount disc brakes, 12 x 100 mm thru-axle

Drivetrain:

- Shifters: SRAM RED AXS E1, 12-speed
- Front derailleur: SRAM RED AXS E1, braze-on
- Rear derailleur: SRAM RED AXS E1, compatible with cassettes up to 36 teeth
- Crankset: SRAM RED AXS E1 with power meter, 48/35, DUB axle, 160 or 165 mm cranks /XS and S or 170 mm M/ML/L/XL
- Bottom bracket: SRAM DUB, T47 threaded, internal bearings
- Cassette: SRAM RED XG-1290 E1, 10-33, 12-speed
- Chain: SRAM RED E1

Wheels and Tyres:

- Wheels: Bontrager Aeolus RSL 51, OCLV carbon, Tubeless Ready, rim height 51 mm, freehub body SRAM XD-R
- Wheel quick-release: Thru-axle Bontrager Fluted Switch
- Tyres: Bontrager Aeolus RSL RD, Pirelli P Zero Race TLR RS or Pirelli P Zero Race depending on configuration, 700 x 28 mm
- Sealant: Bontrager TLR, 177 ml
- Inner tube: Pirelli P Zero SmarTube, TPU
- Maximum tyre width: 32 mm

Components:

- Saddle: Aeolus RSL, carbon rails, width 145 mm, or Aeolus RSL AirLoom
- Seatpost: Madone Aero carbon, 0 mm offset, short version

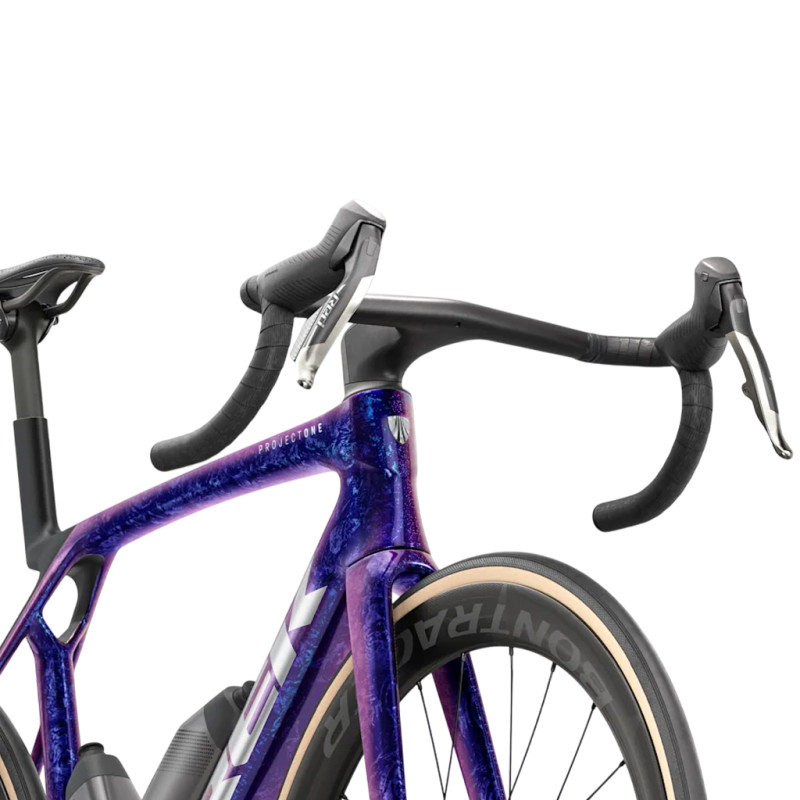

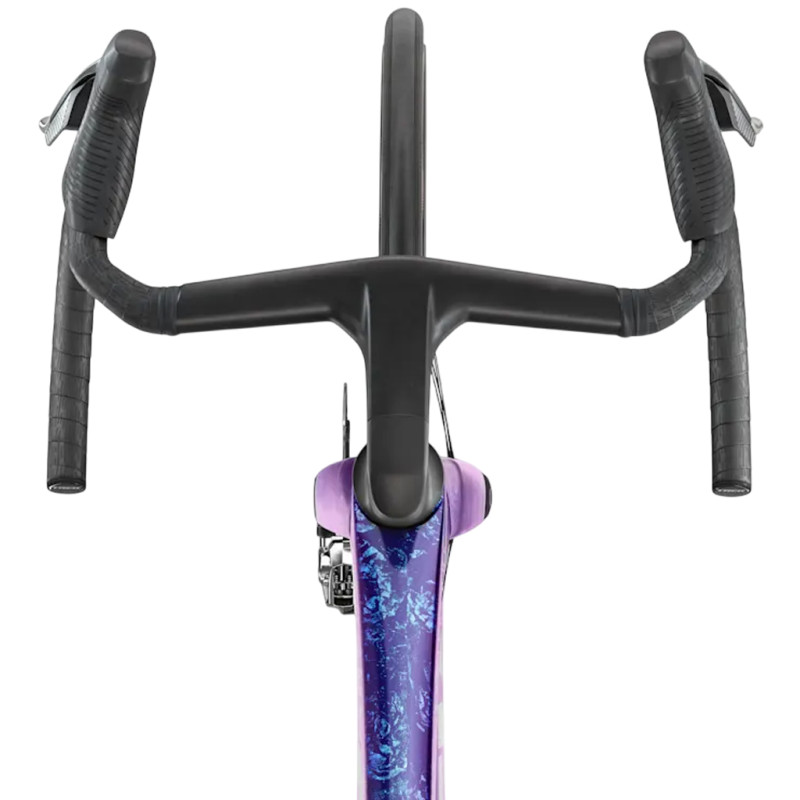

- Handlebars/stem: Trek Aero RSL integrated, OCLV carbon, Race Fit, depth 80 mm, height 124 mm, handlebar width/stem length (XS: 38 cm, 80 mm stem / S: 40 cm, 90 mm stem / M: 42 cm, 90 mm stem / ML, L: 42 cm, 100 mm stem / XL: 44 cm, 110 mm stem)
- Handlebar tape: Trek EcoTack or Trek Gel Cork
- Brakes: SRAM Paceline X, Centre Lock, 160 mm
- Maximum disc size: 180 mm at the front, 160 mm at the rear

General information:

- Weight: 7 kg in size ML, with TLR sealant, excluding inner tubes and bottle cages/bottles
- Maximum weight: 125 kg (bike + rider + luggage)

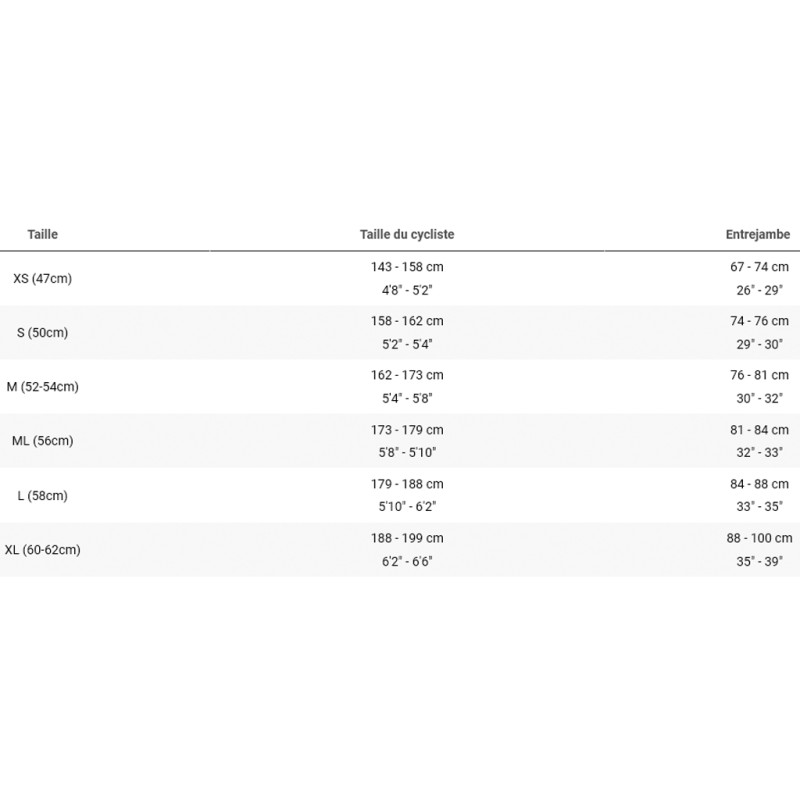

- Sizes: XS, S, M, ML, L, XL
- Colours: Purple Phaze, Amethyst, Marble
- Brand: Trek
