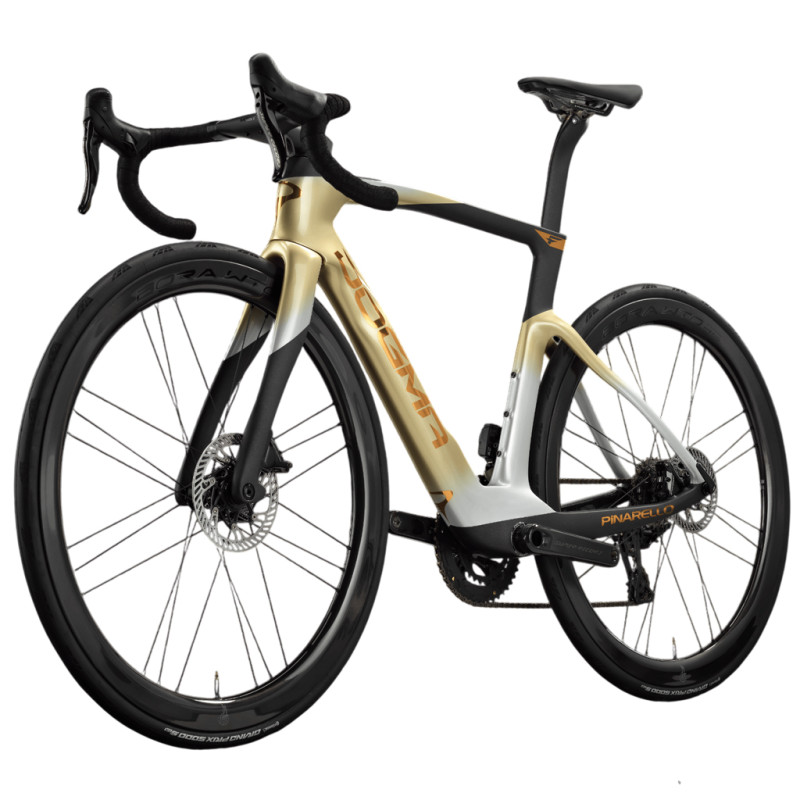

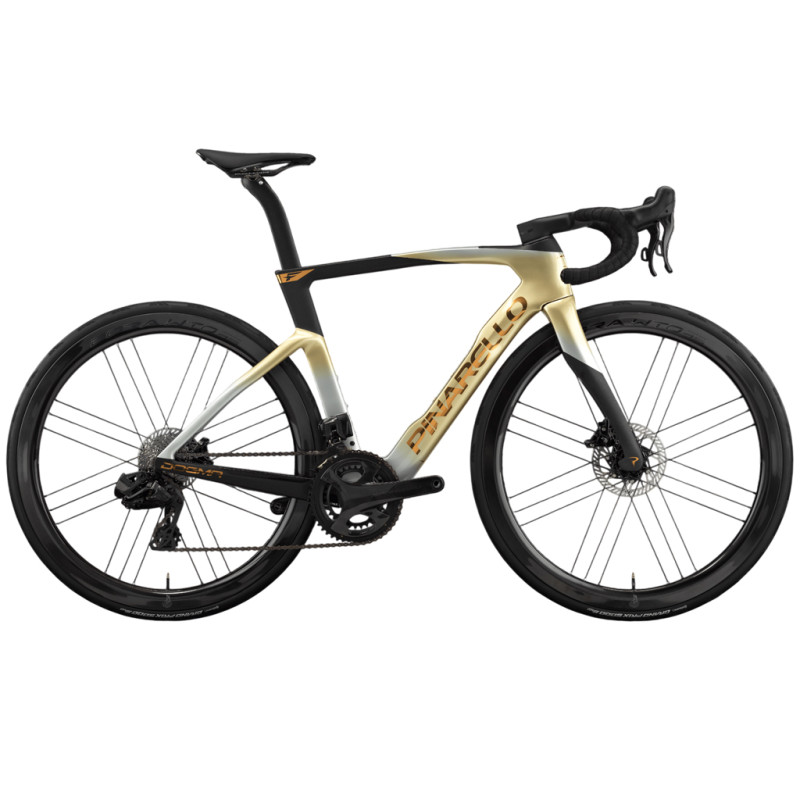

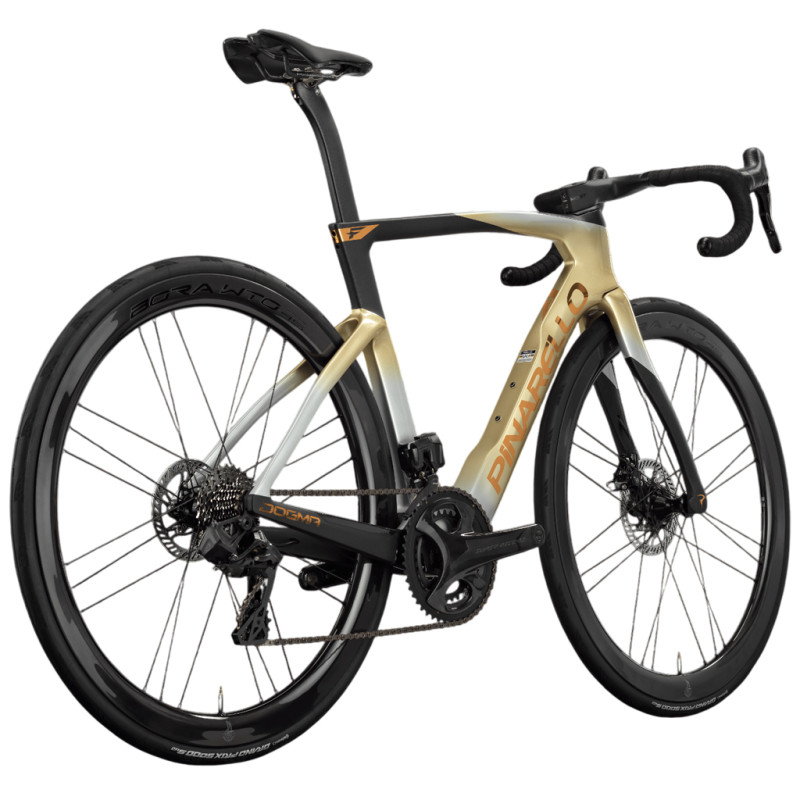

Vélo route Pinarello Dogma F Shimano Dura-Ace Di2 12v Princeton Peak 4550 J102 Molten Sand

The Dogma F Disc Pinarello is the bike ridden by the Ineos Grenadiers team in the world’s biggest races, such as the Tour de France. It is the ultimate high-end bike. Constructed from TorayCa M40X carbon and a revolutionary new fibre, the frame is designed to be lightweight and responsive, offering exceptional lateral stiffness.

The entire frame has been redesigned. This includes the down tube, which has been reduced in size to improve aerodynamic performance, and the head tube, which has been tapered for a sleeker design. The seatpost is integrated into the frame to reduce the overall weight, whilst the Onda fork – which is slimmer and raked – improves handling. The Talon Ultra Fast handlebar-stem combo is lighter and more aerodynamic.

This Pinarello New Dogma F Disc J102 Molten Sand is fitted with the Shimano Dura-Ace Di2 12v electronic groupset, complete with a power meter. Finally, the Peak 4550 wheels Princeton ensure exceptional efficiency and responsiveness, enabling you to achieve the best possible performance on all terrains, whether in the mountains or on the flat.

Please note that the photo is for illustrative purposes only; this bike is indeed fitted with the Dura-Ace Di2 Shimano groupset and Princeton Peak 4550 wheels.

Technical Specifications:

Frame:
- Frame: TorayCa M40X, TiCR cable routing
- Fork: New eTICR Onda with Forkflap, upper and lower pivots 1.5'

Drivetrain:
- Crankset: Shimano Dura-Ace Hollowtech 2 FC-R9200 12s with power meter
- Cassette: Shimano Dura-Ace CS-R9200 12
- Chain: Shimano Dura-Ace CN-M9100
- Shifters: Shimano Dura Ace Di2 ST-R9270
- Front derailleur: Shimano Dura Ace Di2 FD-R9200 12v
- Rear derailleur: Shimano Dura Ace Di2 RD-R9200 12v

Braking:
- Brakes: Shimano Dura Ace BR-R9200, 2-piston
- Rotors: 160mm front, 140mm rear

Components:
- Integrated handlebar-stem: Most Talon UltraFast
- Saddle: Most Lynx UltraFast Superflox L Carbon Large 145mm
- Seatpost: Pinarello Aero with 3D-printed titanium seat clamp Bottle cages: Most Trap PACF, and Elite Fly 550ml black bottle

Wheels:
- Wheels: Princeton Peak 4550
- Tyres: Continental GP5000 S TR 28mm

General information:
- Colour: J102 Molten Sand
- Sizes: 43, 46.5, 50, 51.5, 53, 54, 55, 56, 57.5, 59.5, 62
- Weight: 6.77 kg (size 53)
- Brand: Pinarello

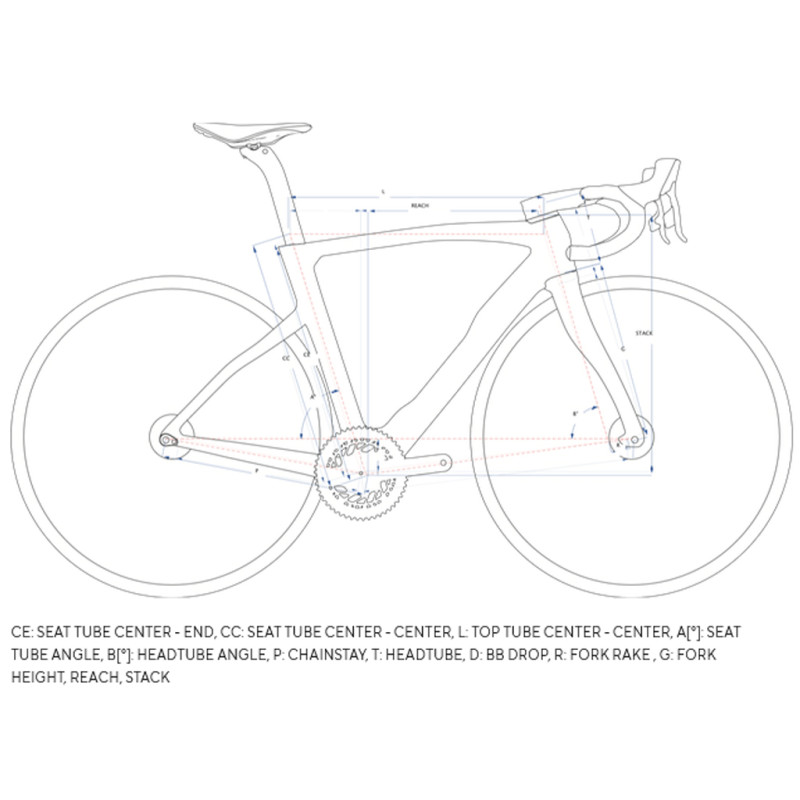

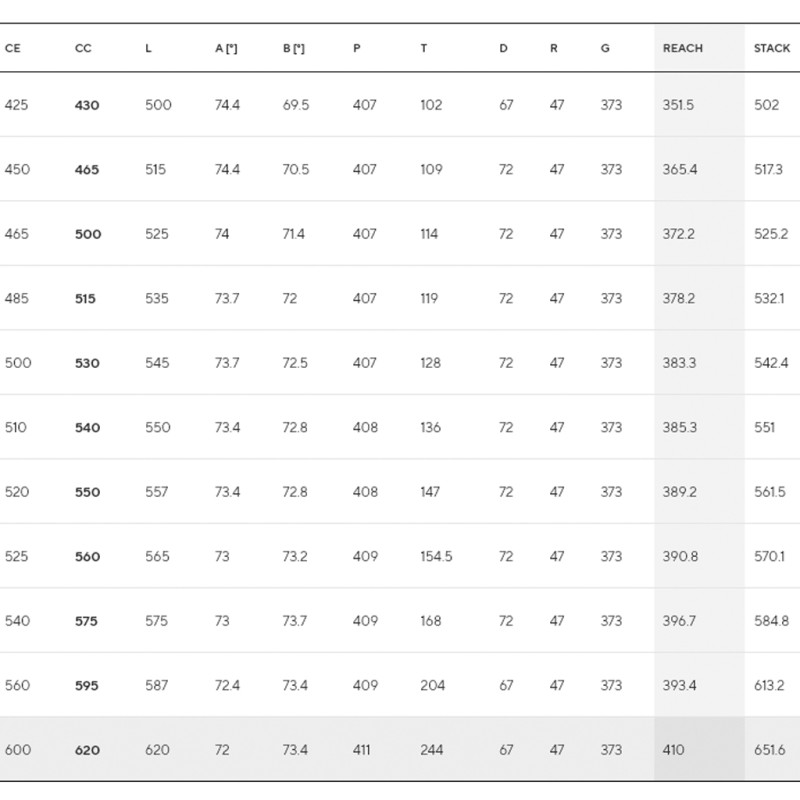

Geometry:

(mm)	43	46.5	50	51.5	53	54	55	56	57.5	59.5	62
A	502	517.3	525.2	532.1	542.4	551	561.5	570.1	584.8	613.2	651.6
B	351.5	365.4	372.2	378.2	383.6	385.3	389.2	390.8	396.7	393.4	410
C	102	109	114	119	128	136	147	154.5	168	204	244
D	425	450	465	485	500	510	520	525	540	560	600
E	500	515	525	535	545	550	557	565	575	587	620
