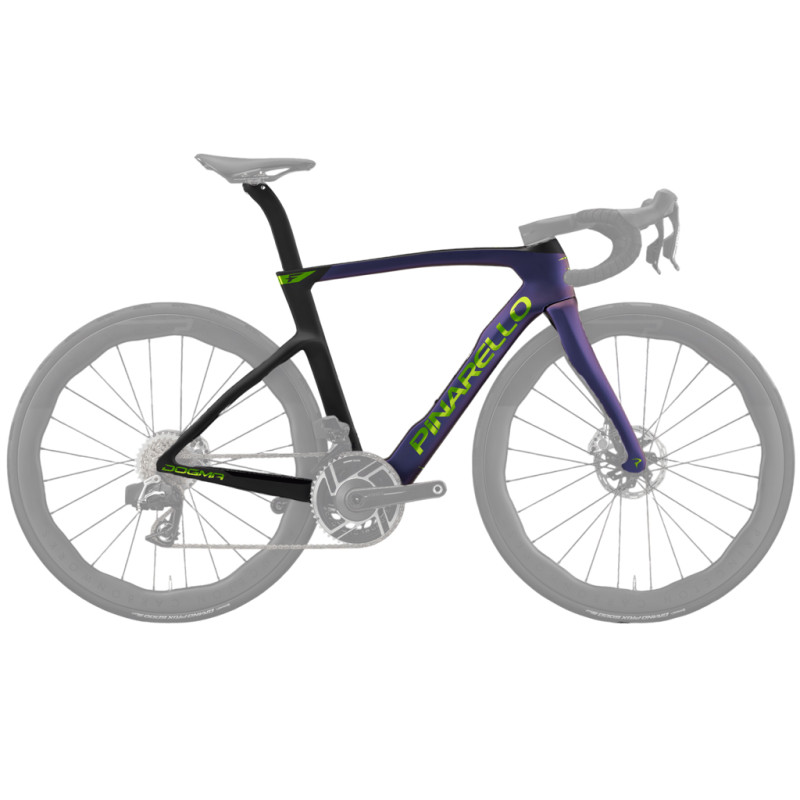

Pinarello Dogma F J104 Cobalt Phantom 2027 Road Bike Frame Kit

This Dogma F Pinarello, in the J104 Cobalt Phantom 2027 finish, is much more than just a frame: it is a true work of technological art that combines World Tour-level performance, cutting-edge aerodynamics and that unique Italian flair. Ranked amongst the finest road bikes on the market, it offers a rare balance of exceptional stiffness, intuitive handling and lightness. The Cobalt Phantom colourway, with its purple and green hues, further enhances its clean lines.

The Dogma F is built using ultra-premium TorayCa M40X carbon, tested and approved by the INEOS Grenadiers team on the roads of the Tour de France. This fibre offers exceptional tensile modulus, taking lateral stiffness to the next level whilst reducing weight. The frame incorporates numerous innovations, including a redesigned down tube for improved aerodynamics, an Aero-Keel BB chainstay that boosts aerodynamics, and a new, slimmer Onda fork for precise handling on descents.

Designed for competition yet comfortable over long distances thanks to seamless cable integration (TiCR) and balanced geometry, this frame kit is ready to be fitted with a top-of-the-range groupset, such as the Shimano Dura-Ace Di2, and carbon wheels. Ideal for lovers of pure speed, this frame kit is therefore a prestigious choice for discerning cyclists seeking a unique riding experience.

Technical specifications:

- Colour: J104 Cobalt Phantom
- Sizes: 43, 46.5, 50, 51.5, 53, 54, 55, 56, 57.5, 59.5, 62
- Frame: TorayCa M40X, TiCR Cable Routing, Italian BB
- Fork: New eTICR Onda -Fork with ForkFlap™, 1.5’ upper and lower steerer
- More aerodynamic down tube
- Streamlined head tube
- Integrated seatpost
- Brand: Pinarello

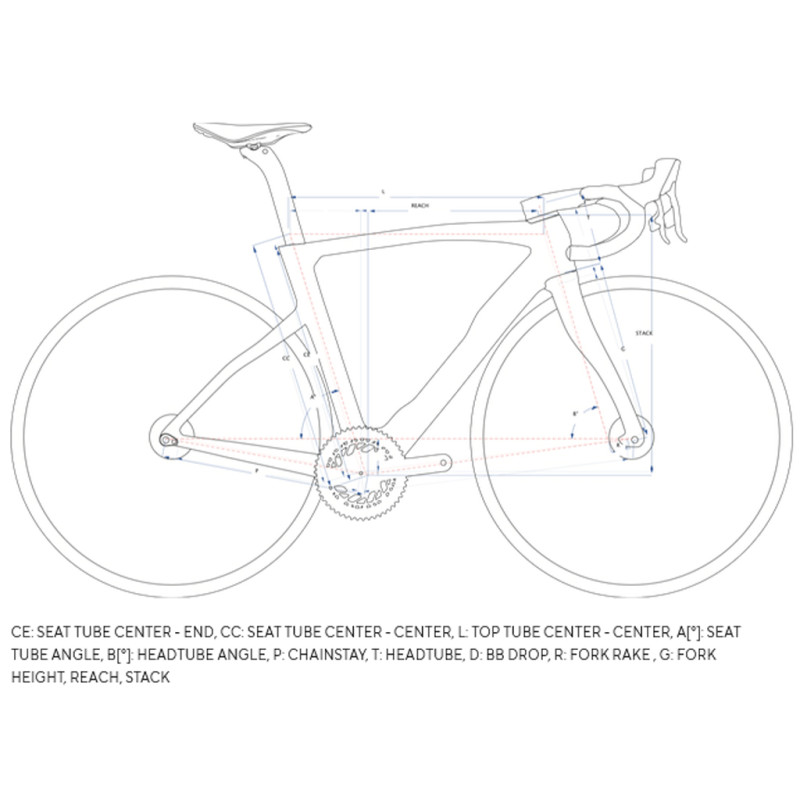

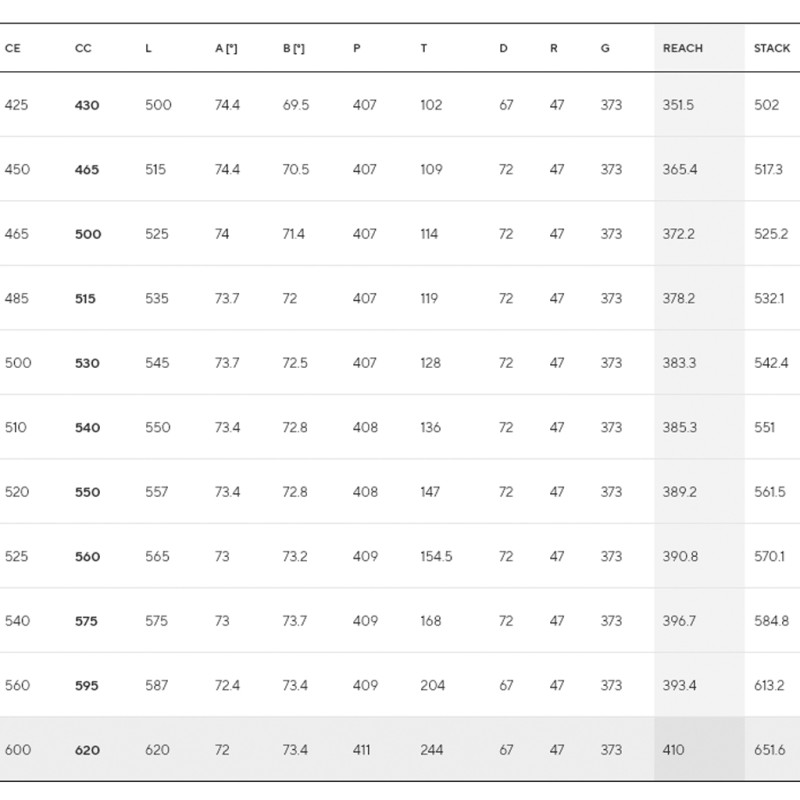

Geometry:

(mm)	43	46.5	50	51.5	53	54	55	56	57.5	59.5	62
A	502	517.3	525.2	532.1	542.4	551	561.5	570.1	584.8	613.2	651.6
B	351.5	365.4	372.2	378.2	383.6	385.3	389.2	390.8	396.7	393.4	410
C	102	109	114	119	128	136	147	154.5	168	204	244
D	425	450	465	485	500	510	520	525	540	560	600
E	500	515	525	535	545	550	557	565	575	587	620
