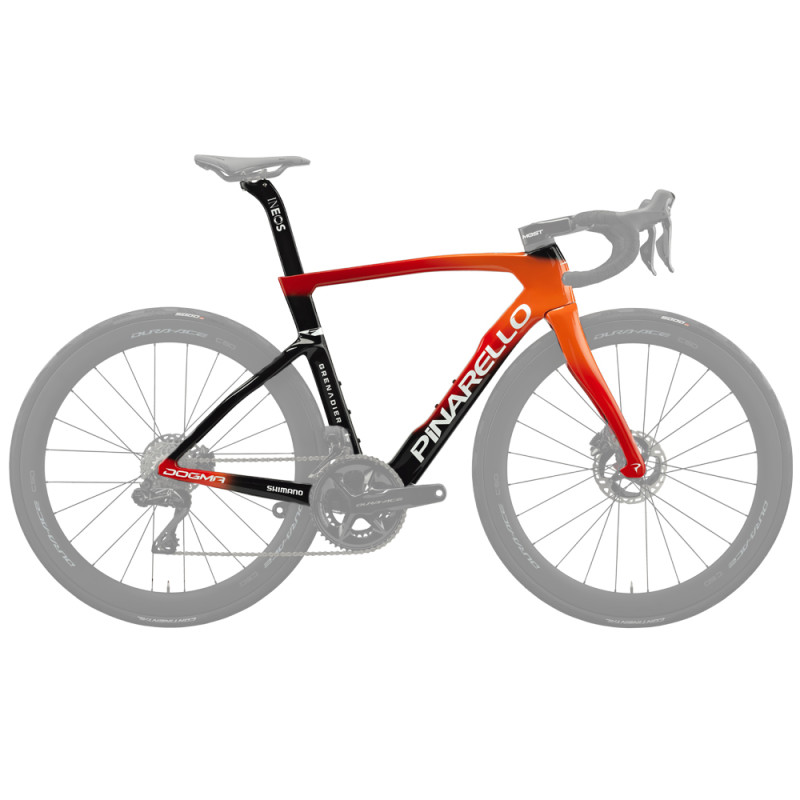

Pinarello New Dogma F G116 Ineos Replica 2025 Frame Kit

TorayCa M40X carbon frame

I choose my options

Colours

Size

Type of braking

MPN : F196-31556 | Ref : 18828370006
€6,000.00 €6,700.00
In stock

Pinarello New Dogma F G116 Ineos Replica 2025 Frame Kit

More details In stock

Pinarello New Dogma F G116 Ineos Replica 2025 Frame Kit

€6,000.00 €6,700.00
Our advice

Denis M.

A former racer with a keen eye for equipment

The Pinarello New Dogma F G116 Ineos Replica frame kit will be perfect for putting you in the shoes of a Tour de France pro like Egan Bernal or Carlos Rodriguez. This ultra-high-end frame is made from TorayCa M40X carbon, featuring the latest generation of fibre, to guarantee maximum stiffness.

The down tube is as aerodynamic as possible, whilst the elliptical head tube offers a sleek design with reduced width. The integrated seatpost serves to lighten the frame whilst offering a separate clamping design. As for the fork, the New Onda is raked and slimmer for greater manoeuvrability and speed.

With this Pinarello New Dogma F G116 Ineos Replica frame, you can fit an electronic groupset and choose lightweight carbon wheels to create a true racing machine.

Bike shipping preparation

Technical specifications:

- Colour: G116 Ineos Replica
- Frame: TorayCa M40X, TiCR Cable Routing, Italian BB
- Fork: New eTICR Onda Fork with ForkFlap™, 1.5" upper and lower steerer
- More aerodynamic down tube
- Sleek head tube
- Integrated seatpost

Colours orange
Size 54
Type of braking disc brakes
Supplier reference F196-31556

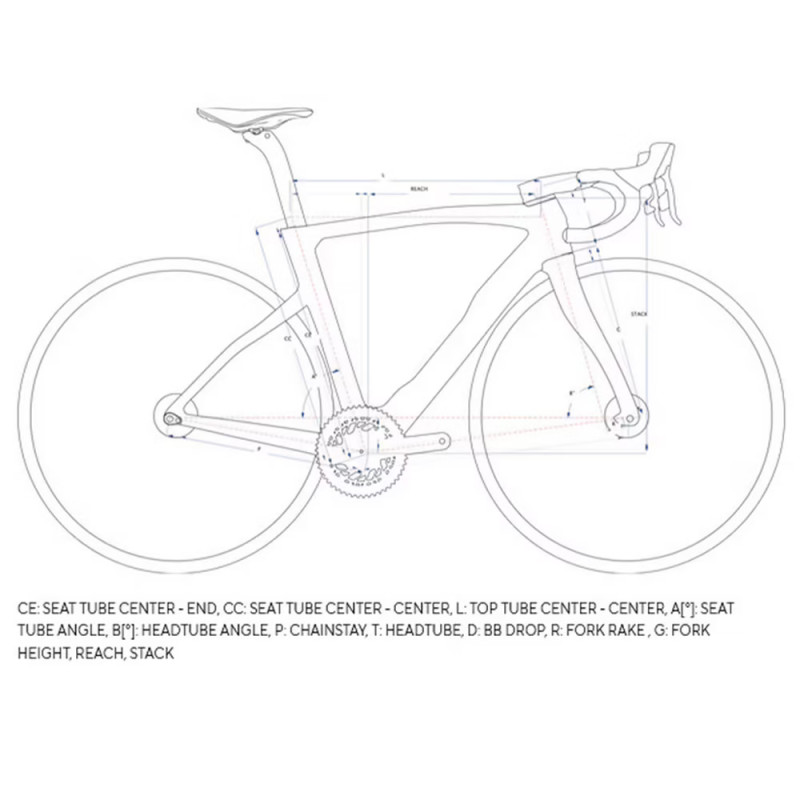

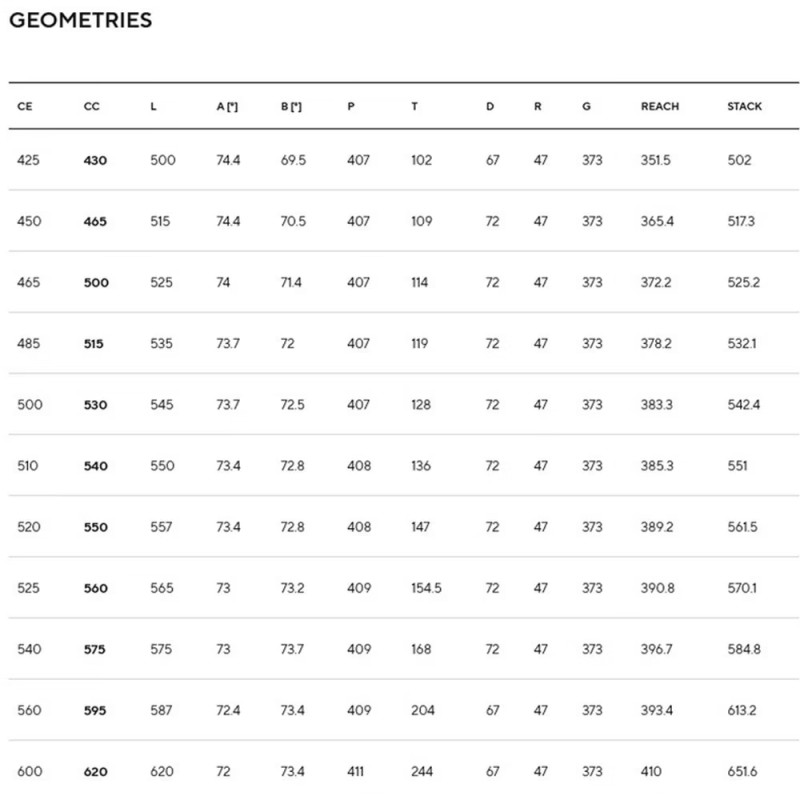

Frame dimensions diagram
(mm) 43 46.5 50 51.5 53 54 55 56 57.5 59.5 62
A (Stack) 502 517.3 525.2 532.1 542.4 551 561.5 570.1 584.8 613.2 651.6
B (Reach) 351.5 365.4 372.2 378.2 383.6 385.3 389.2 390.8 396.7 393.4 410
C (Head tube length) 102 109 114 119 128 136 147 154.5 168 204 244
D (Bottom bracket axis - top of seat tube) 425 450 465 485 500 510 520 525 540 560 600
E (Horizontal length) 500 515 525 535 545 550 557 565 575 587 620

Colours Size Type of braking Availability Price Supplier reference EAN
Web Stores
orange54disc brakesIn stock
1 store
  • MV Lille shop
€6,000.00F196-31556
orange46.5disc brakesTo order, contact us on 04.74.694.694Sold out€6,000.00F196-31552
orange50disc brakesTo order, contact us on 04.74.694.694Sold out€6,000.00F196-31553
orange43disc brakesSold outSold out€6,000.00F196-31551
orange51.5disc brakesSold outSold out€6,000.00F196-31554
orange53disc brakesSold outSold out€6,000.00F196-31555
orange55disc brakesSold outSold out€6,000.00F196-31557
orange56disc brakesSold outSold out€6,000.00F196-31558
orange57.5disc brakesSold outSold out€6,000.00F196-31559
orange59.5disc brakesSold outSold out€6,000.00F196-31560
orange62disc brakesSold outSold out€6,000.00F196-31561
