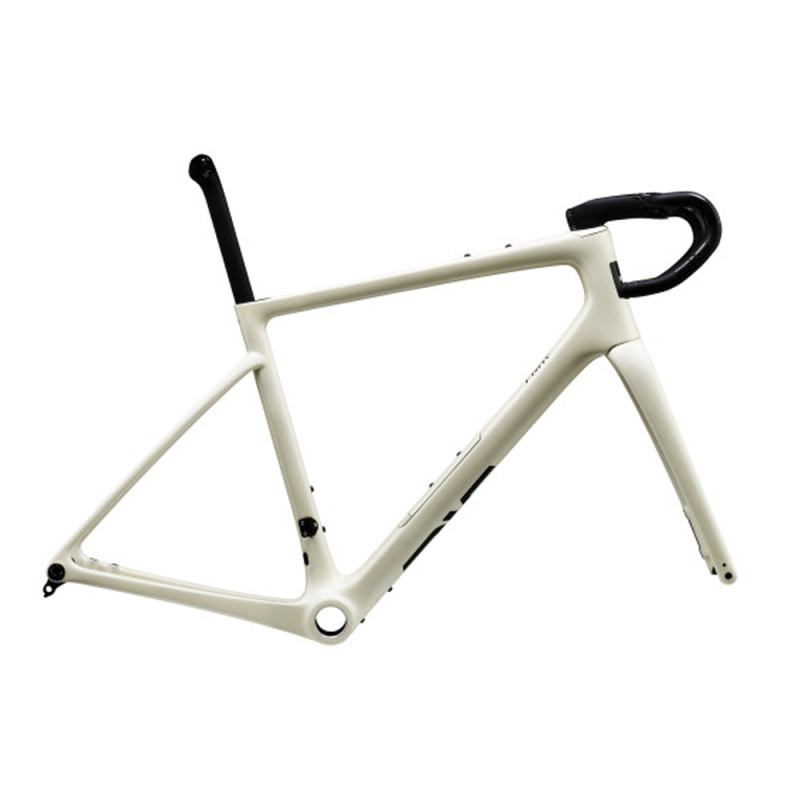

Enve Fray Salt road bike frame kit

The ENVE Frey all-road road bike frame kit has been designed for long endurance rides on roads and trails. Its geometry offers exceptional comfort whilst keeping the bike lively and fast! Its undeniable versatility will give you maximum enjoyment whatever the situation. The frame is compatible with tyre sizes ranging from 27 to 40 mm. ENVE claims optimal performance with tyres between 31 and 35 mm.

In terms of practicality, this frame features a storage compartment in the down tube called the “ENVE Cargo Bay”; with this technology, you can leave your saddle bag behind. Your repair kit can be stored in this compartment, resulting in a sleek and modern bike.

Well known for its exceptional wheels, notably used by Tadej Pogacar in the Tour de France, the reliability and efficiency of Enve components are well established. With this frame, you can build the bike of your dreams by adding the groupset and wheels of your choice. This frame kit includes the frame, fork, headset, stem, handlebars and seatpost. With these various components, you’ll be able to customise your bike to suit your body type.

Technical specifications:

- Colour: Salt (matt white)
- Frame sizes: 47, 50, 52, 54, 56, 58, 60
- Stem sizes: 80mm, 90mm, 100mm, 110mm, 120mm, 130mm
- Seatpost drop: 0mm, 20mm
- Handlebar width: 40mm, 42mm, 44mm, 46mm
- Frame material: MOD Carbon
- Fork material: MOD Carbon
- Frame weight: 900 grams (size 56, painted, without components)
- 1.5? IS52 top and bottom
- Seatpost: Aero 350 mm x 0 mm / Aero 350 mm x 20 mm
- Flat-mount brake mount
- Front axle 12×100 (Total length: 122, TP: 1.5, TL: 15)
- Rear axle 12 × 142 (total length: 168, TP: 1.0, TL: 14)
- Minimum tyre size: 27c / Optimal tyre size: 31c–35c / Maximum tyre size: 40c (1x), 38c (2x)
- Drivetrain compatibility: all drivetrains except mechanical Sram double chainrings, mechanical Campagnolo double chainrings (Fray requires a continuous housing for the front derailleur) and Campagnolo EPS electronic.
- Compatible with Universal Derailleur Hanger (UDH)
- Top tube and down tube mounts for attaching bags, a bottle cage, tools or any other equipment needed for your big adventures
- Brand: ENVE
