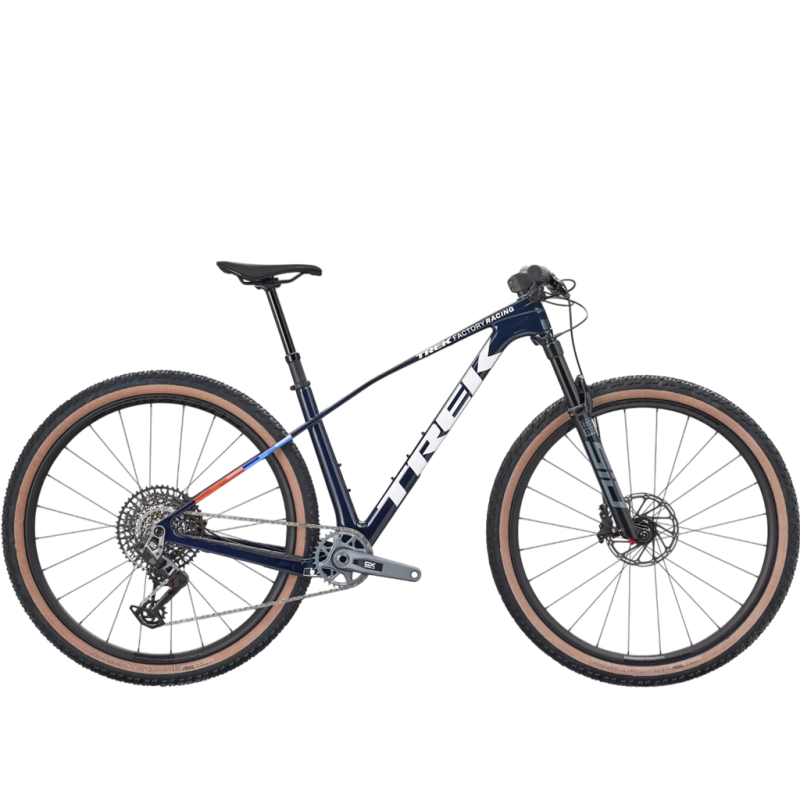

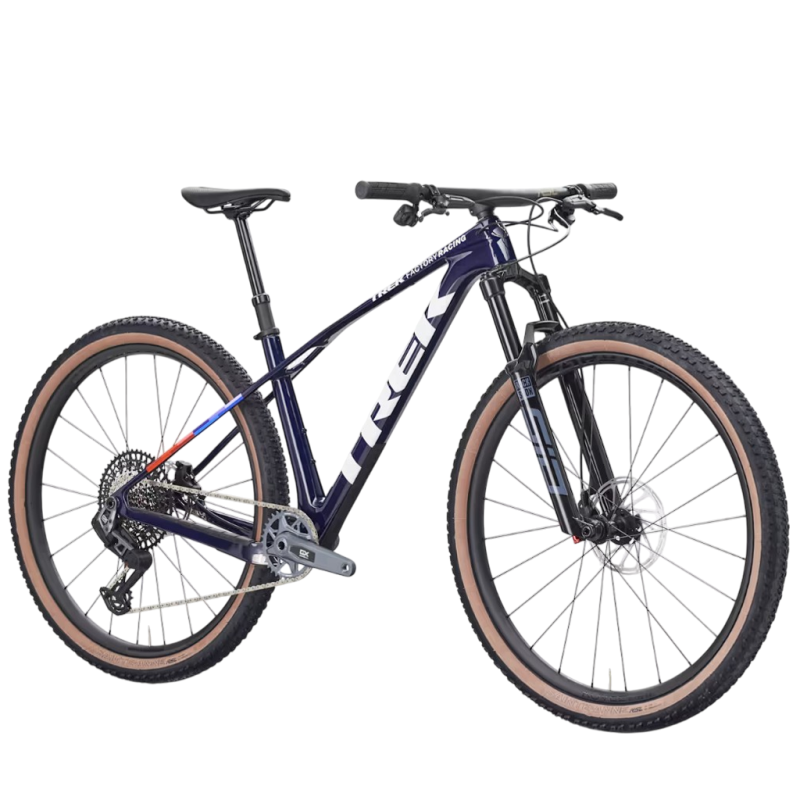

Trek Procaliber 9.7 3rd Gen hardtail mountain bike, Sram GX AXS T-Type 12-speed, Navy Smoke

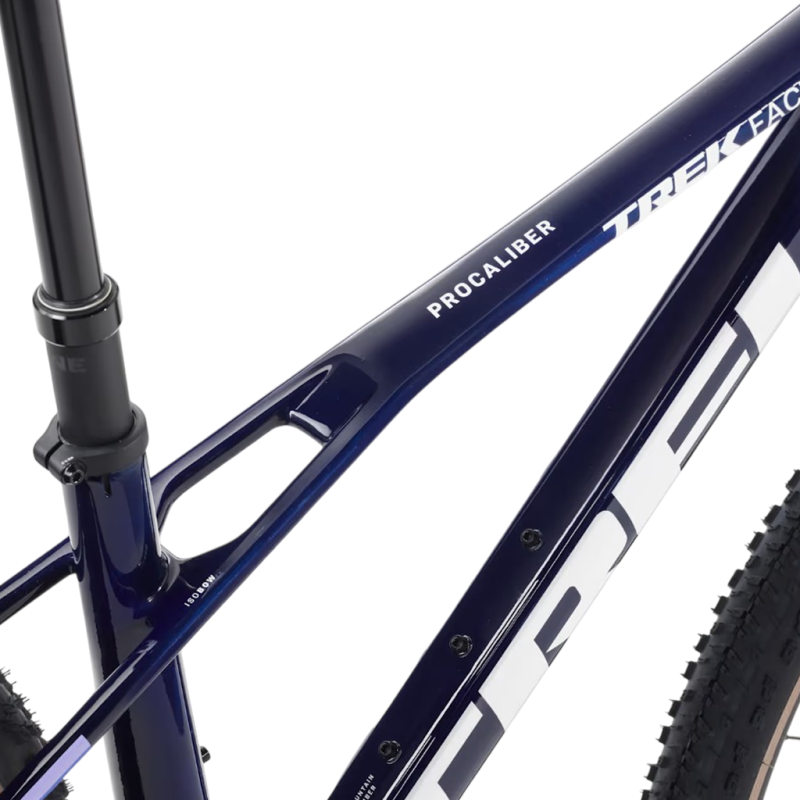

The Procaliber 9.7 3rd- Trek is a carbon hardtail mountain bike designed for cross-country (XC) riding, where lightness, performance and handling precision are essential. Its OCLV Mountain carbon frame features IsoBow technology, which helps absorb vibrations from the terrain whilst keeping the overall weight down.

The RockShox SID fork, with 120 mm of travel, a DebonAir spring and handlebar lockout, offers the control needed for technical and fast XC trails. The SRAM GX Eagle AXS T-Type 12-speed wireless drivetrain, combined with a 10–52-tooth cassette and a 34-tooth chainring, provides a wide range of gear ratios to tackle both climbs and sprints.

Bontrager The 29-inch Kovee Elite 30 carbon wheels, compatible with the Tubeless Ready system, combine stiffness and efficiency for effective acceleration on the trails. The 2.40-inch tyres provide a contact patch suited to varied terrain, whilst the four-piston hydraulic disc brakes ensure powerful and controlled braking.

The integrated OCLV carbon RSL Bontrager and the Bontrager Line Dropper seatpost promote control and freedom of movement on descents.

With its Navy Smoke colour scheme, competition-oriented spec and a claimed weight of 10.58 kg in size M, the Trek Procaliber 9.7 is designed for XC mountain bikers seeking speed and efficiency.

Technical specifications

frame and fork- Frame: OCLV Mountain Carbon - Comfort technology: IsoBow - Head tube: tapered - Cable routing: internal and guided - Rear brake mount: Post Mount - Derailleur hanger: UDH - Rear standard: Boost 148 mm
- Fork: RockShox SID - Spring: DebonAir - Shock: Rush RL - Lockout: on handlebars - Offset: 44 mm - Front standard: Boost 110 mm - Front axle: Maxle Stealth 15 mm - Travel: 120 mm
- Maximum tyre size: 29 x 2.40 inches front and rear, subject to the manufacturer’s specifications

wheels and tyres- Wheels: Bontrager Kovee Elite 30 OCLV Mountain carbon
- Diameter: 29 inches
- Compatibility: Tubeless Ready
- Disc mount: 6-hole
- Front wheel: Boost 110 mm, 15 mm thru-axle
- Rear wheel: Boost 148 mm, 12 mm thru-axle
- Rear hub: Rapid Drive 108
- Front tyre: Bontrager Sainte-Anne RSL XR, Tubeless Ready, dual-compound, aramid bead, 220 TPI, 29 x 2.40 inches
- Rear tyre: Maxxis Aspen, Tubeless Ready, EXO casing, flexible bead, 29 x 2.40 inches
- Sealant: Bontrager TLR, 177 ml
- Rim tape: Bontrager TLR

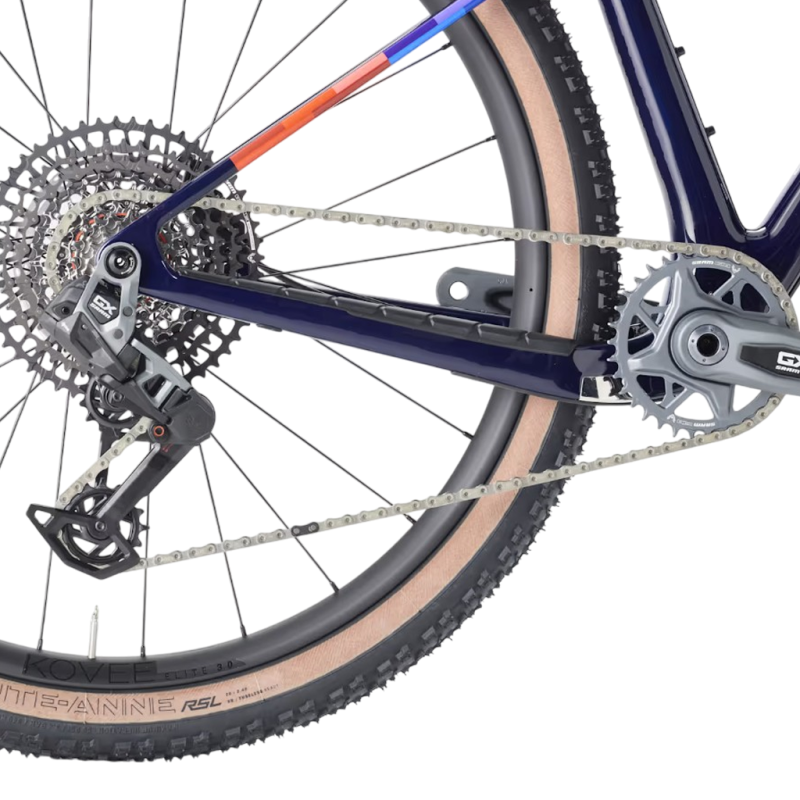

Drivetrain
- Derailleur shifter: SRAM AXS POD
- Rear derailleur: SRAM GX Eagle AXS T-Type, wireless electronic
- Drivetrain: SRAM GX Eagle T-Type, 12-speed
- Crankset: SRAM GX Eagle T-Type, DUB axle
- Chainring: 34 teeth
- Chainline: 55 mm
- Crank length: 170 mm in sizes S, M and ML; 175 mm in sizes L and XL
- Bottom bracket: SRAM DUB PressFit, 92 mm
- Cassette: SRAM Eagle XS-1275 T-Type, 10–52 teeth
- Chain: SRAM GX Eagle T-Type, 12-speed
- Maximum chainring size: 38 teeth
- Battery: SRAM AXS with charger

Braking
- Brakes: SRAM Level Bronze or SRAM Motive Bronze, four-piston hydraulic brakes depending on configuration
- Discs: SRAM CentreLine, 6-hole mounting, rounded edge
- Disc diameter: 180 mm at the front and 160 mm at the rear, depending on the configuration specified
- Maximum rear disc diameter: 180 mm
- Front disc limit: as per the fork manufacturer’s specifications

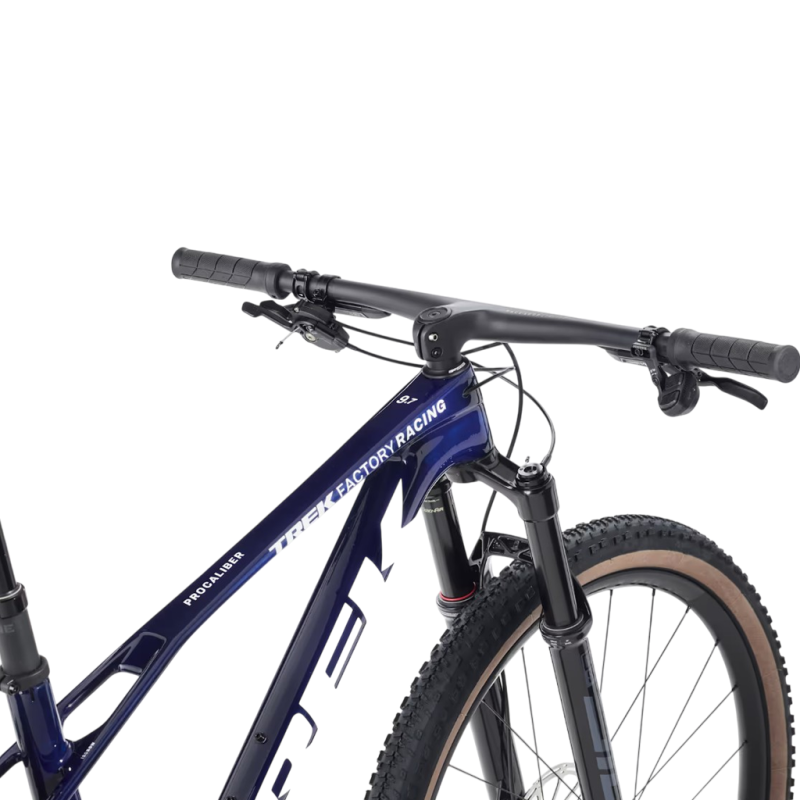

components- Handlebar and stem: integrated set Bontrager OCLV carbon RSL
- Handlebar width: 750 mm
- Handlebar rise: 0 mm
- Stem angle: -13°
- Stem length: 70 mm in sizes S, M and ML; 80 mm in size L; 90 mm in size XL
- Grips: ESI Chunky
- Saddle: Verse Short Elite, hollow magnesium rails, width 145 mm
- Seatpost: Bontrager Line Dropper telescopic, diameter 31.6 mm
- Seatpost travel: 100 mm in size S; 150 mm in sizes M, ML and L; 170 mm in size XL
- Headset: FSA IS-2, 1 1/8-inch top and 1.5-inch bottom

General information
- Model: Trek Procaliber 9.7, 3rd generation
- Type: XC hardtail mountain bike
- Frame: OCLV Mountain carbon with IsoBow technology
- Weight: 10.58 kg in size M, with TLR sealant and without inner tube
- Maximum authorised total weight: 136 kg, including bike, rider and luggage included
- Colour: Navy Smoke
- Brand: Trek
