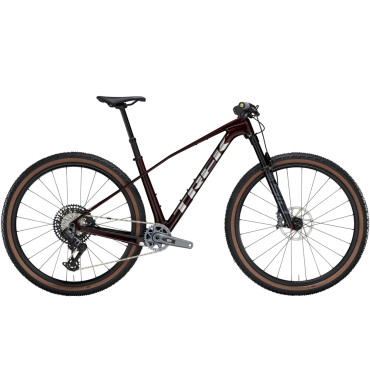

Trek Procaliber 9.6 3rd Gen Dark Star 2026 hardtail cross-country mountain bike

The Procaliber 9.6 is a hardtail cross-country bike designed for speed and performance. Its lightweight carbon frame features IsoBow technology for added comfort, whilst the 120 mm RockShox Reba RL fork effectively absorbs bumps from roots and rocks. The 12-speed SRAM Eagle drivetrain ensures precise gear changes on climbs, and the SRAM DB6 4-piston brakes guarantee powerful and controlled braking in all conditions.

Technical specifications:

Frame:
- OCLV Mountain Carbon with IsoBow technology
- Tapered head tube
- Internal cable routing
- Balanced Post-Mount brakes
- Boost148 standard

Fork:
- RockShox Reba RL, DebonAir spring, Motion Control damper
- Lockout, tapered steerer, 44 mm offset
- Boost110, 15 mm Maxle Stealth thru-axle
- 120 mm travel

Suspension:
- Bontrager DropLock handlebar lock

Wheels:
- Front wheel: Bontrager Kovee Comp 25, Tubeless Ready, 6-hole, Boost110, 15 mm thru-axle, 29’’
- Rear quick-release: Bontrager Switch thru-axle, removable lever

Tyres:
- Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40’’
- Bontrager TLR sealant, 177 ml
- Bontrager TLR rim tape
- Max. size: frame 29x2.40’’ / fork: as per manufacturer

Drivetrain:
- Shift lever: SRAM Eagle 70, 12-speed
- Rear derailleur: SRAM Eagle 70, T-Type
- SRAM Eagle 70 T-Type crankset, DUB axle, 32-tooth chainring, 55 mm chainline:
- S, M, ML: 170 mm cranks
- L, XL: 175 mm cranks
- Bottom bracket: SRAM DUB PressFit 92 mm
- Cassette: SRAM Eagle XS-1270, T-Type, 10-52, 12-speed
- Chain: SRAM Eagle 70, T-Type, 12-speed
- Max. compatible chainring: 38 teeth

Components:
- Saddle: Bontrager Verse Short Comp, steel rails, width 145 mm
- Bontrager Line Dropper seatpost, internal routing, MaxFlow:
- S: 100 mm (Ø31.6, length 310 mm)
- M, ML, L: 150 mm (Ø31.6, length 410 mm)
- XL: 170 mm (Ø31.6, length 450 mm)

Handlebar:
- S: Bontrager Comp, alloy, 31.8 mm, rise 5 mm, width 720 mm
- M, ML, L, XL: Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
- Grips: Trek Line Comp, nylon lock-on
- Bontrager stem, Blendr-compatible, 7° angle:
- S: Comp 50 mm
- M, ML: Elite 60 mm
- L: Elite 70 mm
- XL: Elite 80 mm
- Headset: FSA IS-2 (1-1/8” top, 1.5” bottom)

Braking:
- Discs: SRAM CenterLine, 6-bolt, rounded, 160 mm
- Max. disc size: frame 180 mm / fork as per manufacturer

Specific equipment:
- Bontrager Switch lever with integrated tool

General information:
- Weight (size M): 11.83 kg (26.09 lbs) with TLR sealant (without inner tubes)
- Maximum weight capacity: 136 kg (bike + rider + equipment + luggage)
- Brand: Trek
