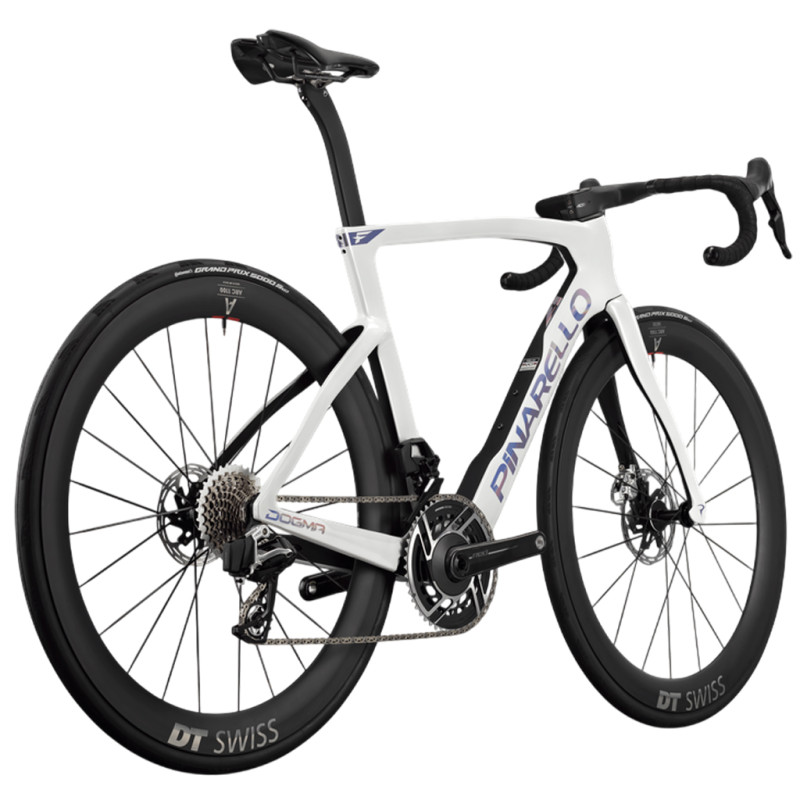

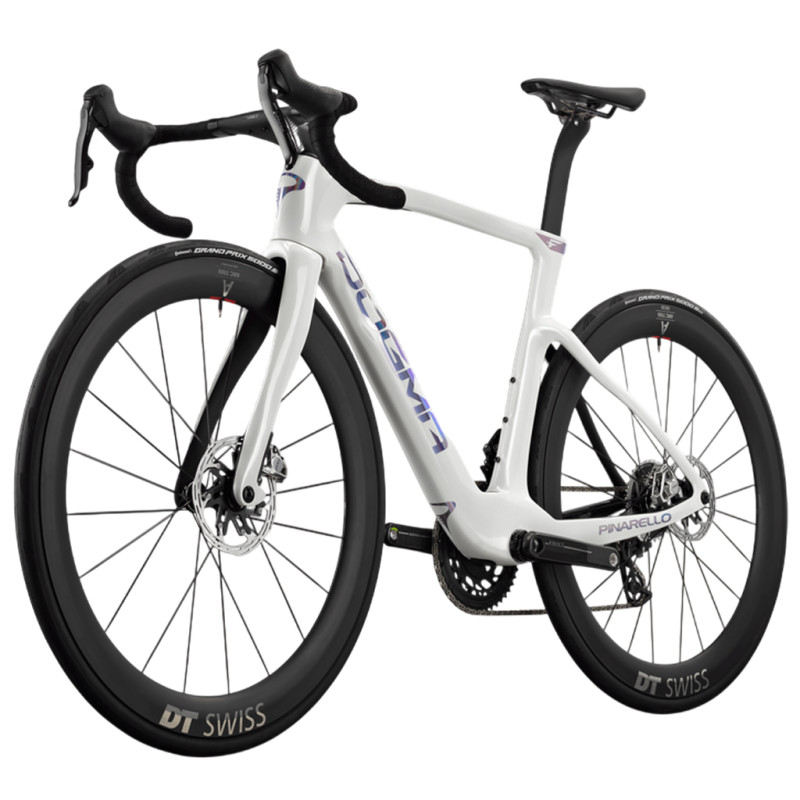

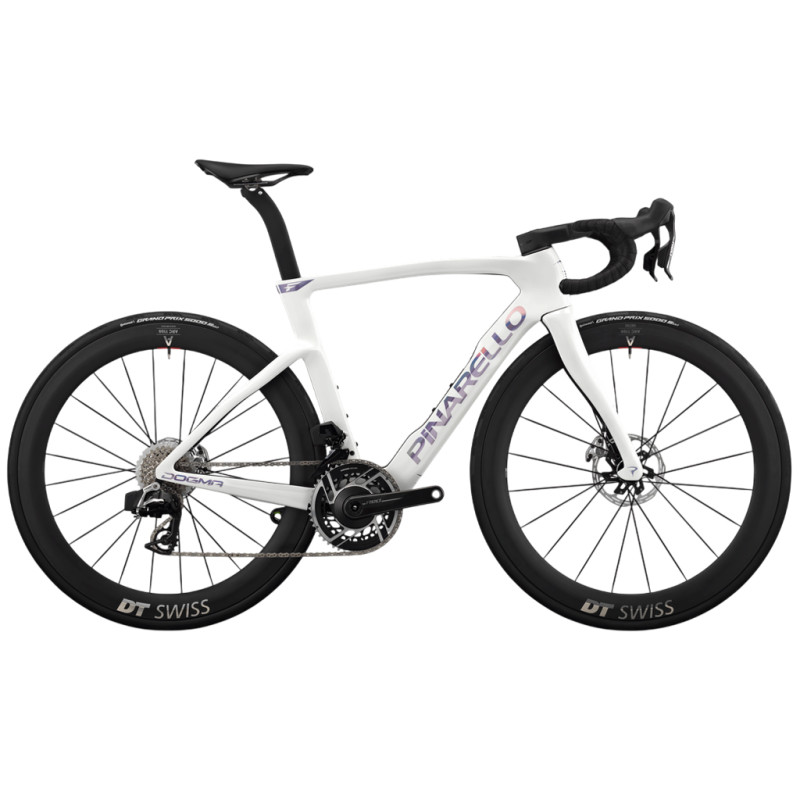

Pinarello Dogma F road bike with SRAM Red AXS PM 12-speed Princeton, Peak 4550 J100 Phantom Ice

The Dogma F Pinarello s the brand’s most advanced expertise in competitive road bikes. Its TorayCa M40X carbon frame combines lateral stiffness with weight management, whilst the new down tube, the Aero-Keel bottom bracket area and the tapered head tube have been engineered to improve aerodynamic efficiency. The new Onda fork and performance-oriented geometry complete a package designed to deliver precision and efficiency when the pace picks up.

In this J100 Phantom Ice colourway, the Dogma F is fitted with the SRAM Red AXS 12-speed electronic groupset, featuring a power metre integrated into the crankset – ideal for accurately tracking performance data during both training and competition. The pair of Princeton Peak 4550 DB wheels further emphasise its sporty character, whilst the Continental Grand Prix 5000 S TR tyres and the Most Talon Ultra Fast integrated cockpit round off this top-of-the-range build. Weighing just 6.63 kg (as per the manufacturer’s specifications) in size 53, excluding pedals and water bottles, this Dogma F combines top-of-the-range components with a design entirely focused on speed.

Technical specifications:

Frame and fork:

- Frame: Dogma F ‘ Pinarello ’, TorayCa M40X carbon, eTiCR cable routing, Italian bottom bracket, UCI-approved
- Fork: new eTICR ‘ Onda ’ with ForkFlap, 1.5” upper and lower pivots

Drivetrain:

- Groupset: SRAM Red eTap AXS 12-speed
- Crankset: SRAM Red eTap AXS 12-speed with power metre
- Front derailleur: SRAM Red eTap AXS 12-speed
- Rear derailleur: SRAM Red eTap AXS 12-speed
- Cassette: SRAM Red XG-1290
- Bottom bracket: SRAM Red

Brakes:

- Calipers: SRAM Red, 2-piston
- Front and rear rotors: SRAM Red Centerline, 160 mm

Wheels and tyres:

- Wheels: Princeton Peak 4550 DB, with DT Swiss ARC 1400 50 mm
- Axles: Most Ultra Light Custom Axle, 12 x 100 mm at the front and 12 x 142 mm at the rear, tool-free removal
- Tyres: Continental Grand Prix 5000 S TR, 28-622

Components:

- Handlebars: Most Talon Ultra Fast integrated
- Handlebar tape: Most
- Seatpost: Pinarello Aero Seatpost with 3D Titanium Clamp
- Saddle: Most Lynx Ultrafast Superflow L Carbon Large, 145 mm
- Seatpost clamp: Dogma F TwinForce integrated

Accessories:

- Bottle cage: Pinarello Trap PacF Ø 74 mm
- Water bottle: Pinarello Fly 550 ml, black

Weight and general information:

- Weight: 6.63 kg in size 53, excluding pedals and water bottles
- Discipline: Road / Competition
- Sizes: 43 – 46.5 – 50 – 51.5 – 53 – 54 – 55 – 56 – 57.5 – 59.5 – 62
- Colours: J100 Phantom Ice / White
- Brand: Pinarello
