Pinarello road bike Dogma F Shimano Dura-Ace 12-speed PM DT Swiss ARC 1100 55 H105 Q36.5 Replica

The Dogma F Team Replica Pinarello is a competition bike built around a TorayCa M40X carbon frame, designed to combine lateral stiffness, lightness and aerodynamic efficiency. Its redesigned down tube, Aero-Keel bottom bracket shell and new Onda fork work together to optimise aerodynamic efficiency, whilst the integrated Most Talon Ultra Fast cockpit further enhances the bike’s overall integration.

Designed without compromise for performance, the Dogma F features a 12-speed Dura-Ace Di2 drivetrain Shimano with a power metre, hydraulic braking with 160 mm discs and a high-end DT Swiss ARC 1100 wheelset. Its race-oriented geometry, fully integrated eTICR cable routing and aerodynamic seatpost complete a platform designed for fast rides as well as competition at the highest level.

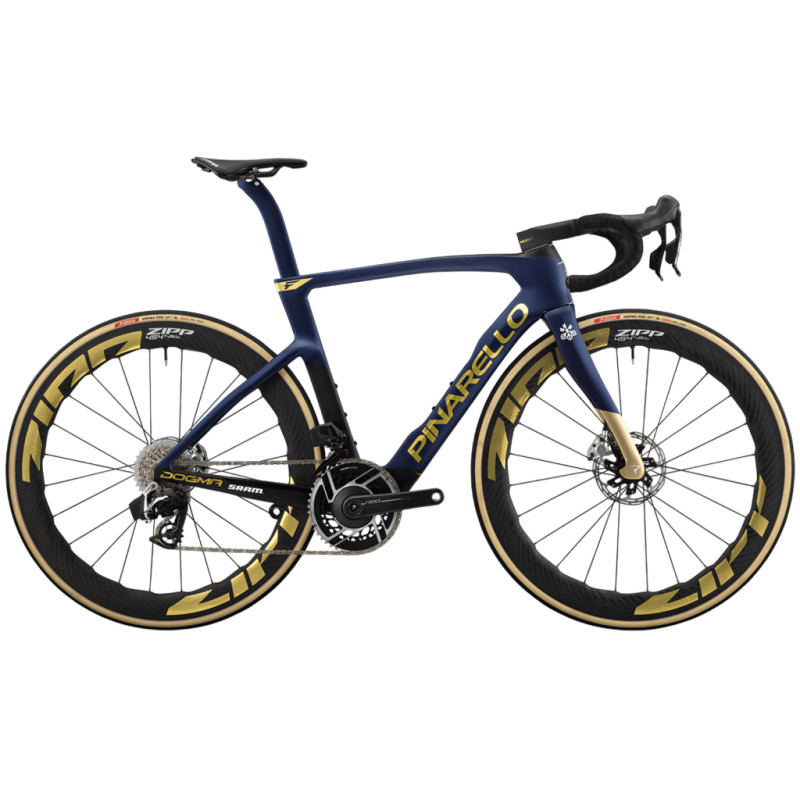

The photo is for illustrative purposes only; this bike is fitted with a Dura-Ace Di2 group Shimano.

Technical specifications:

Frame and fork:

- Frame: TorayCa M40X, eTICR cable routing, Italian bottom bracket, UCI-approved
- Technology: Aerodynamically optimised down tube, Aero-Keel bottom bracket and redesigned top tube
- Fork: New eTICR Onda Fork with ForkFlap, 1.5” upper and lower pivots
- Axles: Most Ultra Light Custom Axle, 12 x 100 mm and 12 x 142 mm
- Seatpost clamp: Integrated into the frame

Drivetrain:

- Crankset: Shimano Dura Ace Hollowtech 2 FC-R9200 12-speed with power metre
- Cassette: Shimano Dura Ace CS-R9200 12-speed
- Chain: Shimano Dura Ace CN-M9200
- Shifters: Shimano Dura Ace Di2 ST-R9270
- Front derailleur: Shimano Dura Ace Di2 FD-R9200 12v
Rear derailleur: Shimano Dura Ace Di2 RD-R9200 12v

Wheels and tyres:

- Wheels: DT Swiss ARC1100, 55 mm rim height
- Tyres: Continental GP5000 S TR 28 mm

Braking:

- Brakes: Shimano Dura Ace BR-R9200, 2-piston
- Rotors: 160mm at the front, 140mm at the rear

Components:

- Handlebars: Most Talon Ultra Fast integrated
- Handlebar tape: Most Bar Tape
- Saddle: Most Lynx Ultrafast Superflow L Carbon Large, 145 mm
- Seatpost: Pinarello Aero Seatpost with 3D Titanium Clamp

Accessories:

- Bottle cage: Trap PACF, 74 mm diameter
- Water bottle: Pinarello Fly Bottle, 550 ml, black

Weight and general information:

- Approximate weight: 6.63 kg in size 53
- Sizes: 43 - 46.5 - 50 - 51.5 - 53 - 54 - 55 - 56 - 57.5 - 59.5 - 62

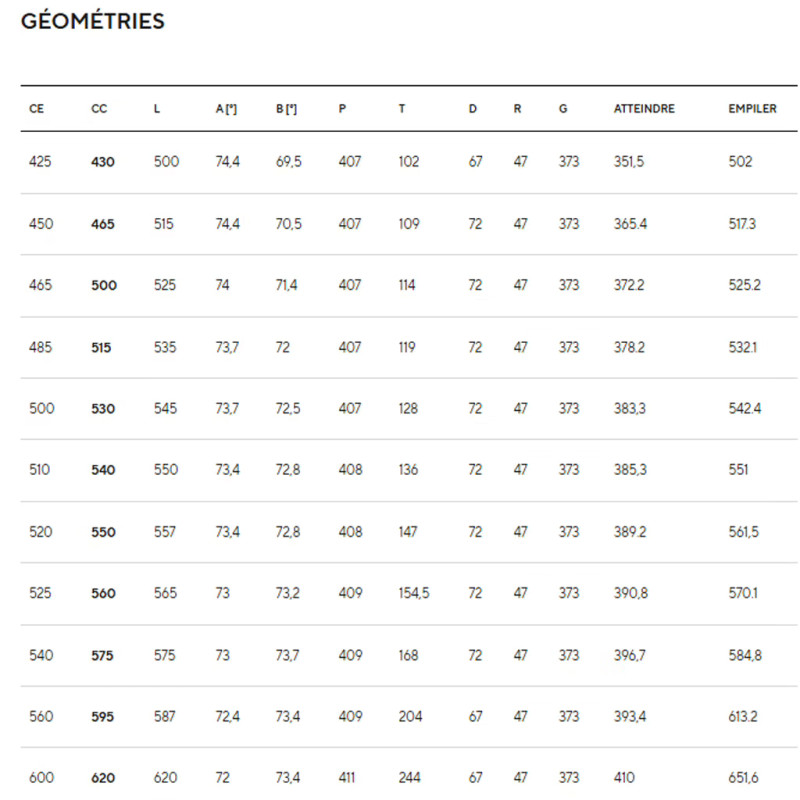

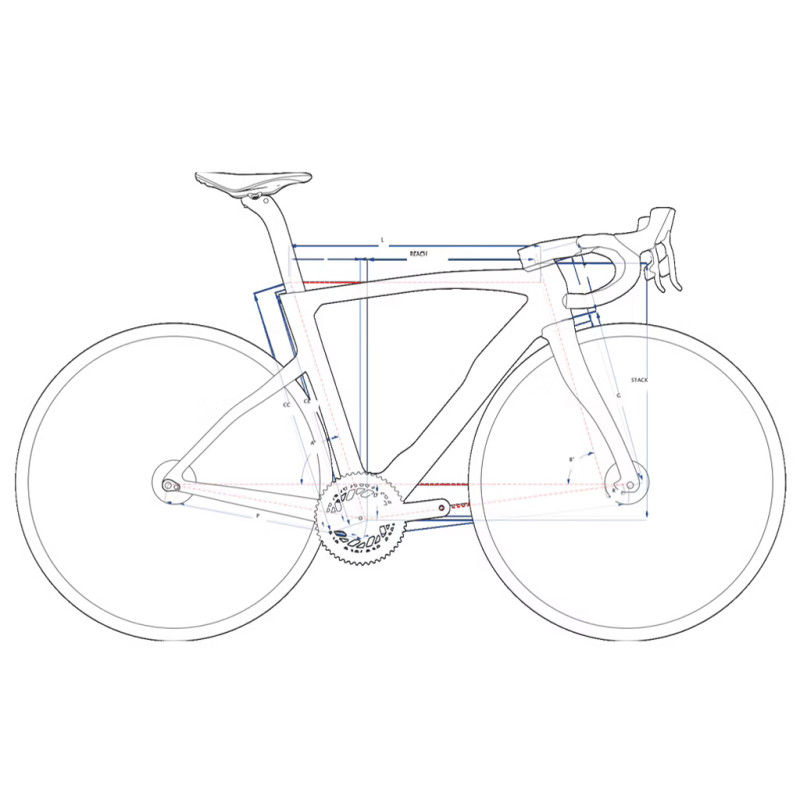

- Geometry: Road Competition
- Colours: Q36.5 Team Replica / PQ3 Team Replica - Dark Blue
- Brand: Pinarello
