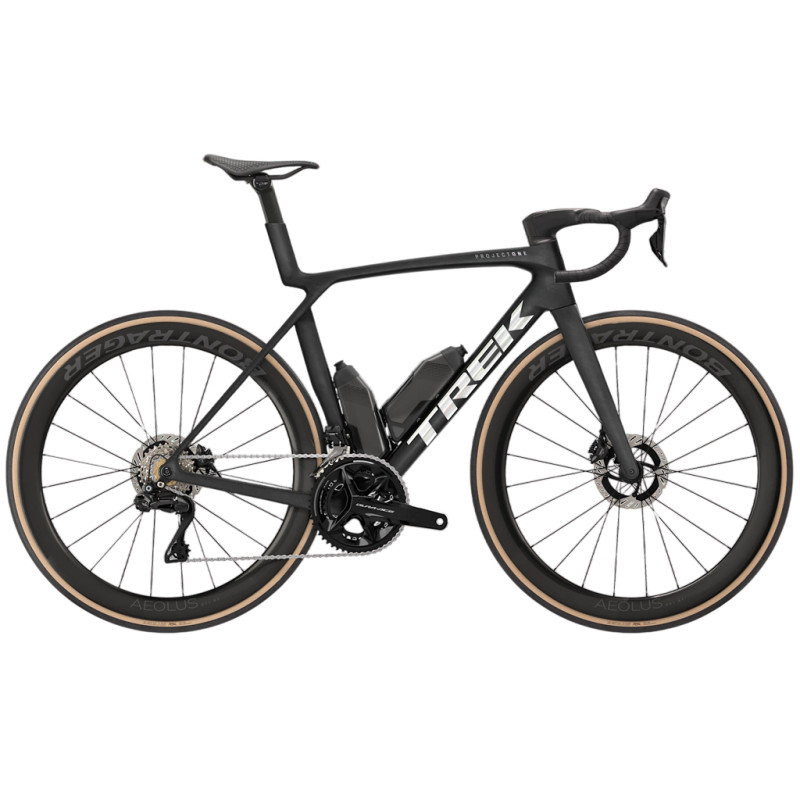

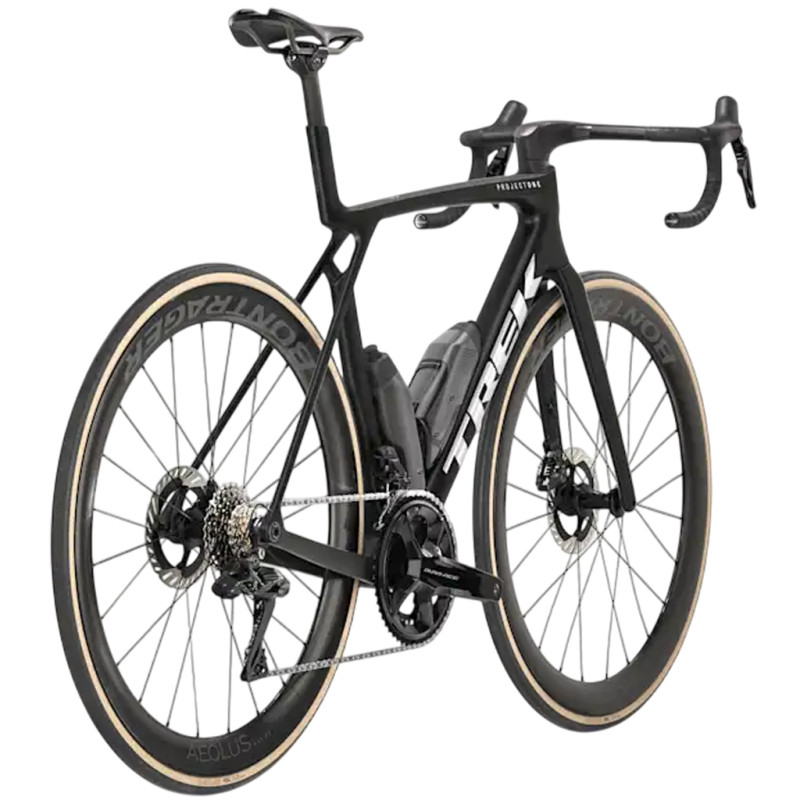

Trek Madone SLR 9 8th Gen road bike Shimano Dura-Ace Di2 12-speed Bontrager Aeolus RSL 51 Matte Deep Smoke 2027

This 8th-generation Madone SLR 9 Trek is designed for cyclists looking for a true racing machine. Its 900 Series OCLV carbon frame, combined with Full System Foil aerodynamic profiles and IsoFlow technology, offers a remarkable balance between lightness, efficiency and comfort. Weighing just 7 kg in size ML, it is just as explosive on climbs as it is fast on open roads, with a precision that immediately makes you want to accelerate.

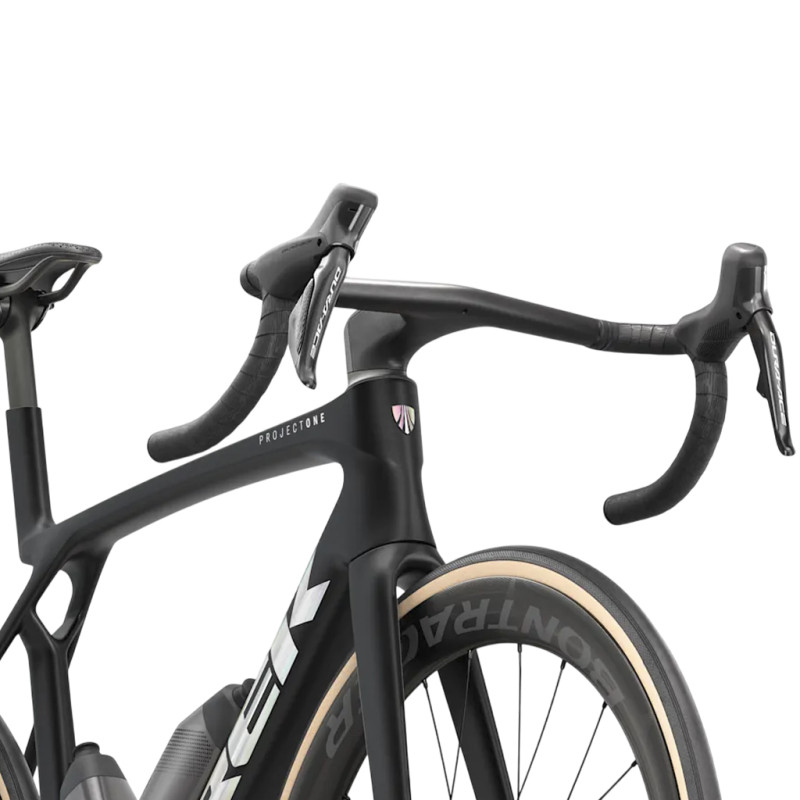

Its high-end spec matches its ambitions. The Dura-Ace Di2 12-speed ‘ Shimano ’ drivetrain ensures fast and precise gear changes, whilst the OCLV carbon Aeolus RSL 51 ‘ Bontrager ’ wheels deliver excellent aerodynamic efficiency without compromising the bike’s handling on the hills. The integrated Aero RSL Trek cockpit completes the package with a race-oriented riding position and exceptionally clean integration.

Designed down to the smallest detail to maximise efficiency, the Madone SLR 9 completely conceals its cables and features a cohesive design right down to its RSL aerodynamic components. It is a true competition machine – light, responsive and fast – capable of transforming every pedal stroke into speed whilst retaining enough comfort to perform well as the kilometres mount up.

Technical specifications:

Frame and Fork:

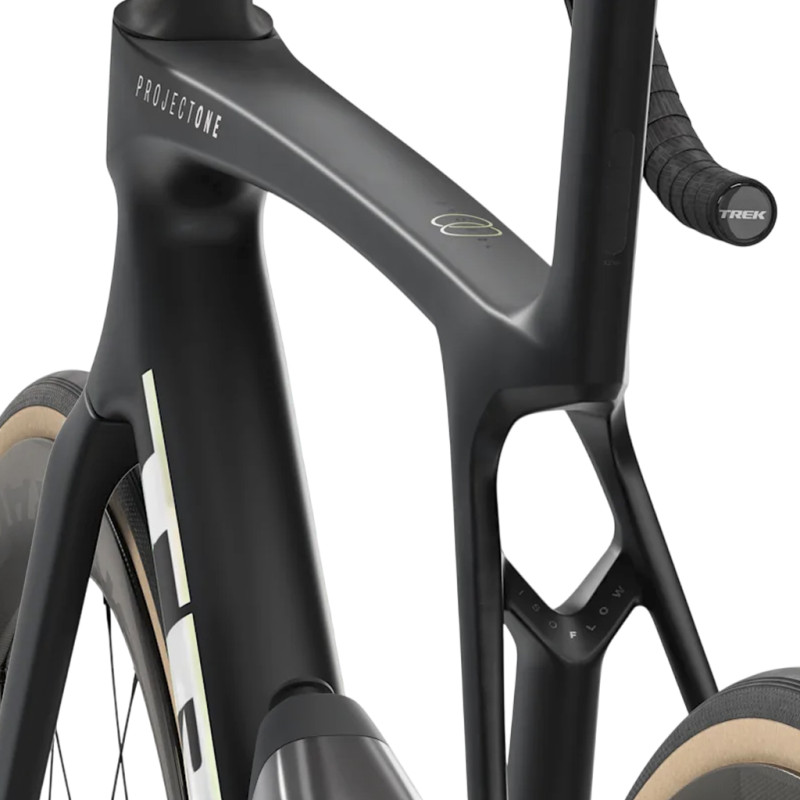

- Frame: 900 Series OCLV Carbon, Full System Foil tubes, IsoFlow seat tube, RCS headset, electronic cable routing only, removable aerodynamic chain guard, T47 bottom bracket, Flat Mount disc brakes, UDH universal derailleur hanger, 142 x 12 mm thru-axle
- Fork: 8th-generation all-carbon Madone, carbon tapered steerer tube, internal brake cable routing, Flat Mount disc brakes, 12 x 100 mm thru-axle

Drivetrain:

- Shifters: Shimano Dura-Ace R9270 Di2, 12-speed
- Front derailleur: Shimano Dura-Ace R9250 Di2, to-be-soldered, down swing
- Rear derailleur: Shimano Dura-Ace R9250 Di2, 34-tooth sprocket max

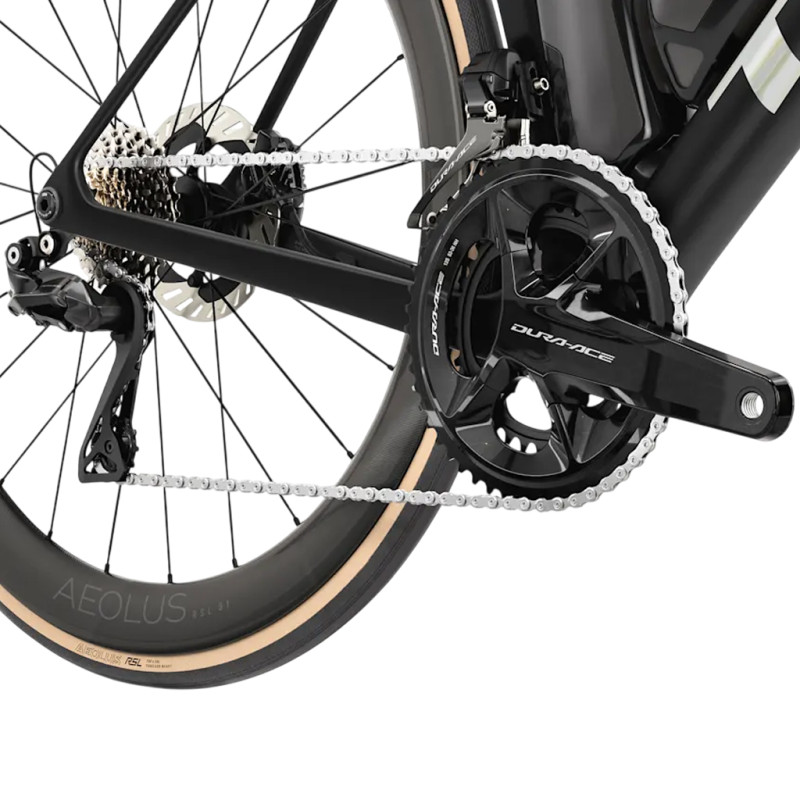

- Crankset: Shimano Dura-Ace R9200, 52/36, lengths: 165mm, 170, 172.5, 175
- Bottom bracket: Praxis, T47 threaded, internal bearing
- Cassette: Shimano Dura-Ace R9200, 11–30, 12-speed
- Chain: Shimano Dura-Ace/XTR M9100, 12-speed

Components:

- Saddle: Aeolus RSL, carbon rails, width 145 mm, or Aeolus RSL AirLoom
- Seatpost: Madone Aero carbon, 0 mm offset, short version

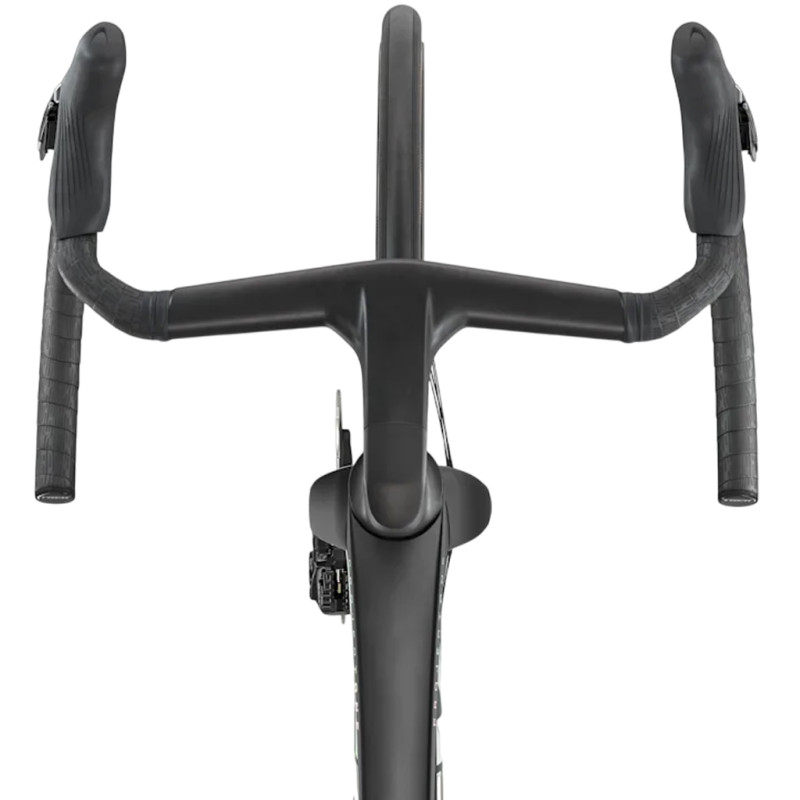

- Handlebars/stem: Trek Aero RSL integrated, OCLV carbon, Race Fit, depth 80 mm, height 124 mm, handlebar width/stem length (XS: 38 cm, 80 mm stem / S: 40 cm, 90 mm stem / M: 42 cm, 90 mm stem / ML, L: 42 cm, 100 mm stem / XL: 44 cm, 110 mm stem)
- Handlebar tape: Trek EcoTack or Trek Gel Cork
- Brakes: Shimano Dura-Ace hydraulic disc brakes, Flat-Mount mounting

Wheels and tyres:

- Wheels: Bontrager Aeolus RSL 51, OCLV carbon, Tubeless Ready, rim height 51 mm, SRAM XD-R freehub body
- Tyres: Bontrager Aeolus RSL RD, Pirelli P Zero Race TLR RS or Pirelli P Zero Race depending on configuration, 700 x 28 mm

General information:

- Weight: 7 kg in size ML, including TLR sealant, excluding inner tubes and bottle cages/bottles
- Maximum weight: 125 kg (bike + rider)

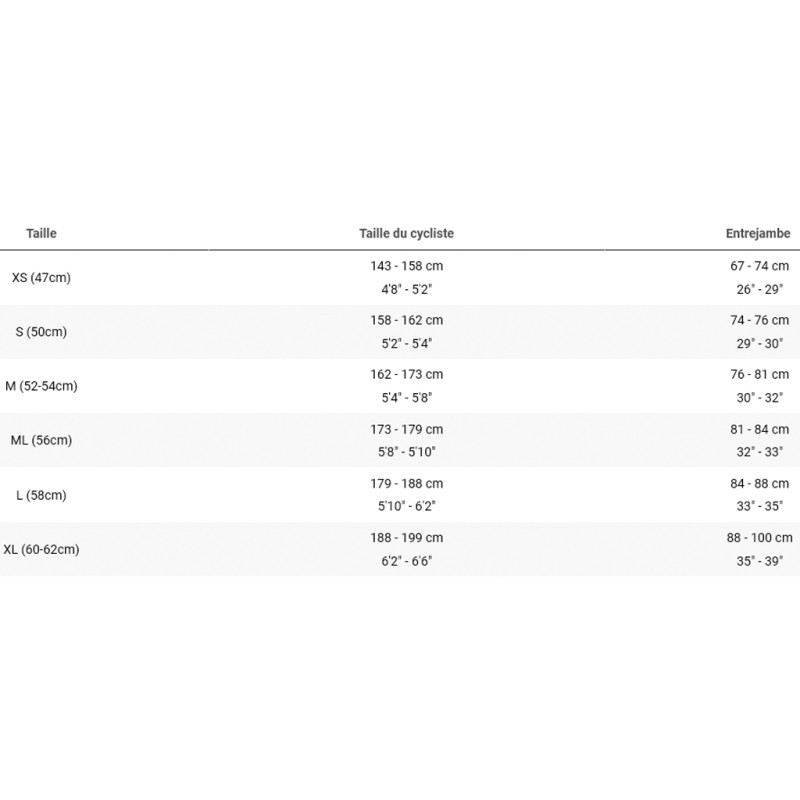

- Sizes: XS, S, M, ML, L, XL
- Colour: Matte Deep Smoke
- Brand: Trek
