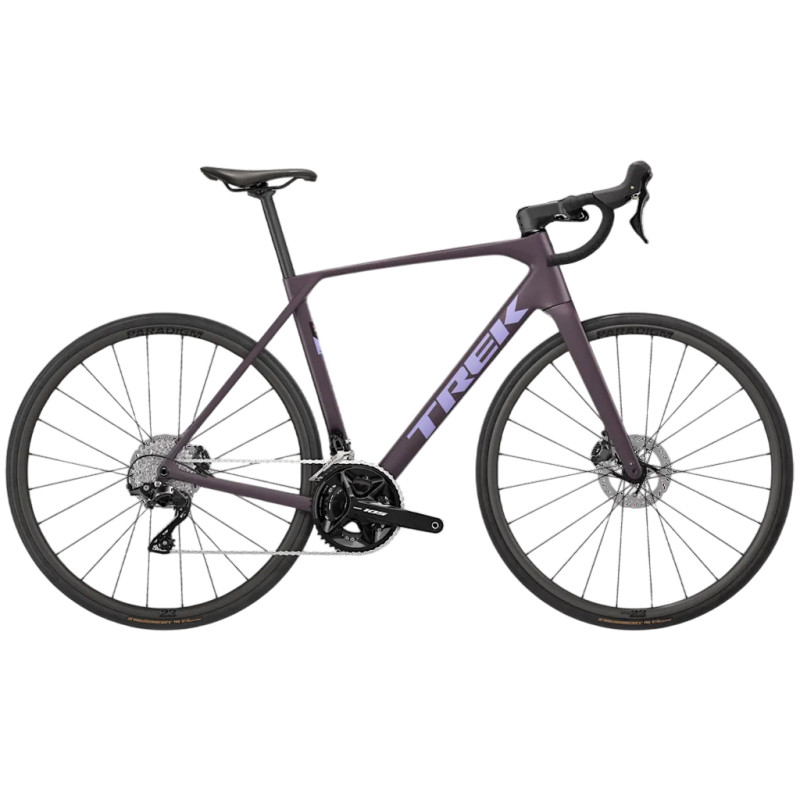

The 5th-generation Domane SL 5 Trek is designed for those who enjoy long rides where you no longer really keep track of the kilometres. Its 500 Series OCLV carbon frame combines lightness, comfort and efficiency, with an Endurance geometry that helps you maintain a natural riding position as the hours go by. It’s a bike that’s just as enjoyable on a ride lasting a few hours as it is on a full day’s adventure, remaining stable and easy to handle.

The 105 12-speed Shimano set-up provides the precision and simplicity needed to enjoy the bike to the full, whilst the Bontrager Paradigm 23 wheels and 35 mm Kwaremont Pro tyres enhance its versatility. With clearance for tyres up to 40 mm, mountings for mudguards and panniers, and a 20 mm riser handlebar, the Domane SL 5 isn’t limited to perfect tarmac: it’s ready to take you wherever your cycling adventures lead. Finally, its Matte Nightshade colour scheme adds a understated and elegant touch to this decidedly modern package.

Technical specifications:

Frame and Fork:

- Frame: OCLV Series 500 carbon, internal cable routing, integrated pannier mounts, T47 bottom bracket, integrated chain guide, mudguard mounts, Flat Mount disc brakes, universal derailleur hanger (UDH), 142 x 12 mm thru-axle
- Fork: Domane SL carbon, carbon tapered steerer tube, internal cable routing, mudguard mounts, Flat Mount disc brakes, carbon dropouts, 12 x 100 mm thru-axle Drivetrain:

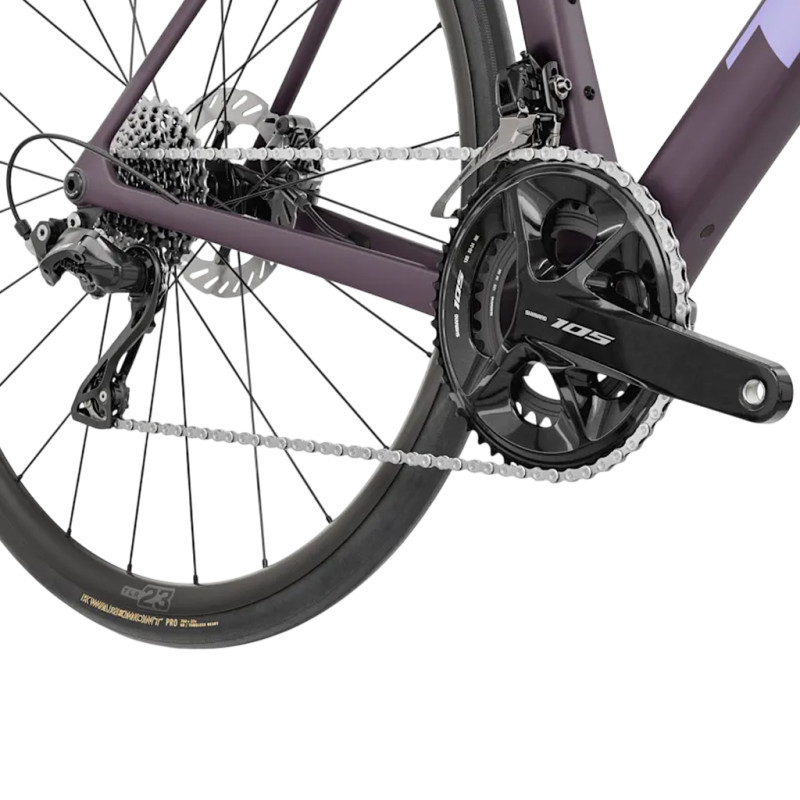

Drivetrain:

- Shifters: Shimano 105 R7120, 12-speed
- Crankset: 105 R7100 Shimano, 50/34 teeth (Crankset length: 160 mm XS/S, 165 mm M/ML, 170 mm L/XL)
- Cassette: Shimano 105 7101, 11-34, 12-speed
- Chain: Shimano SLX M7100, 12-speed
- Bottom bracket: Praxis, T47 threaded, internal bearings

Brakes:

- Brakes: Shimano 105 hydraulic disc brakes, Flat Mount mounting
- Rotors: Shimano CL700, Centerlock, 160 mm
- Maximum diameter: 180 mm at the front, 160 mm at the rear

Wheels and tyres:

- Wheels: alloy hub Bontrager, sealed bearings, Centrelock, Shimano 11-speed freehub
- Rims: Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm wide
- Spokes: 14 g stainless steel
- Tyres: Bontrager Kwaremont Pro, Tubeless Ready, GR puncture protection, aramid bead, 120 TPI, 700 x 35 mm
- Sealant: Bontrager TLR, 177 ml
- Maximum tyre width: 40 mm

Components:

- Saddle: Bontrager Verse Short Comp, steel rails, width 145 mm
- Seatpost: Bontrager carbon, 27.2 mm, offset 8 mm, length 330 mm
- Handlebars: Bontrager Comp Riser, aluminium, rise 20 mm, reach 70 mm (Width: XS/36 cm, S/38 cm, M, ML/40 cm, L, XL/42 cm)
- Stem: Trek RCS Pro, -7° (Length: XS/80 mm, S/90 mm, M/100 mm, ML, L/110 mm, XL/120 mm)

General information:

- Weight: 8.84 kg in size ML, with TLR sealant and without inner tubes
- Maximum total weight: 125 kg (bike + rider + luggage)
- Colours: Matte Nightshade / Purple

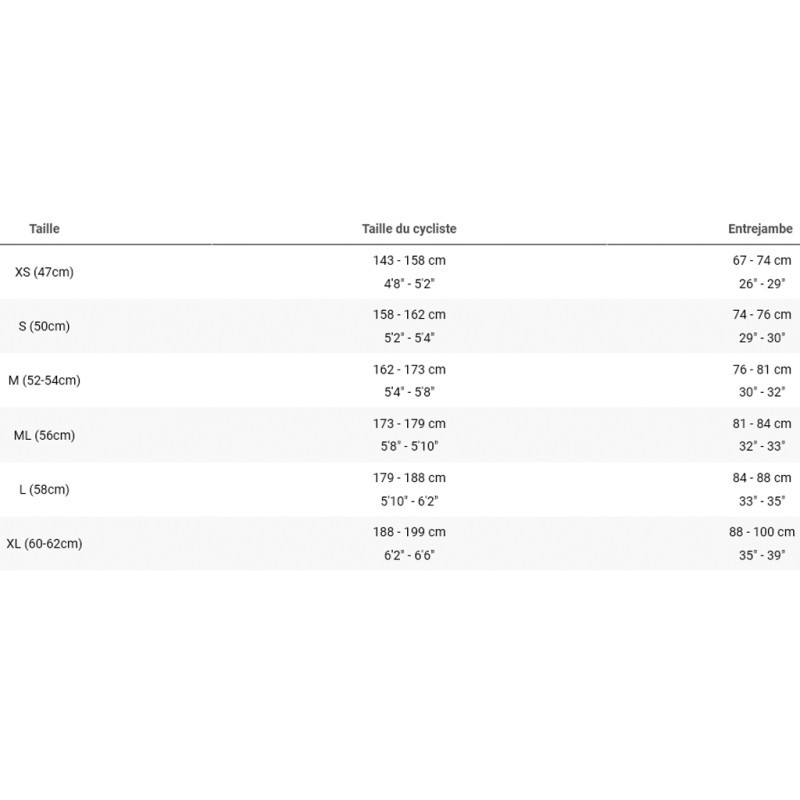

- Sizes: XS, S, M, ML, L, XL
- Brand: Trek
