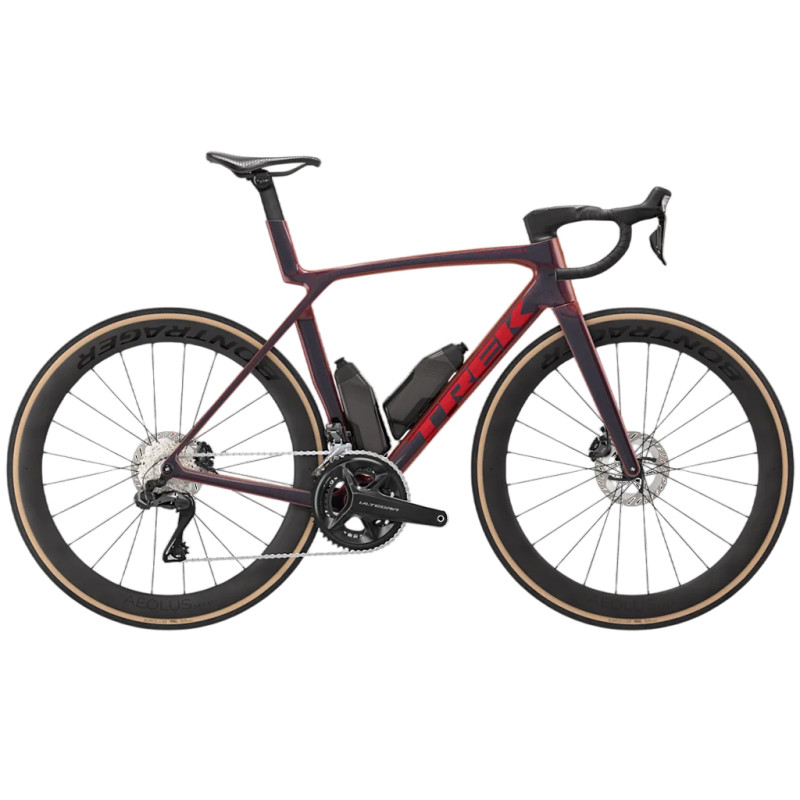

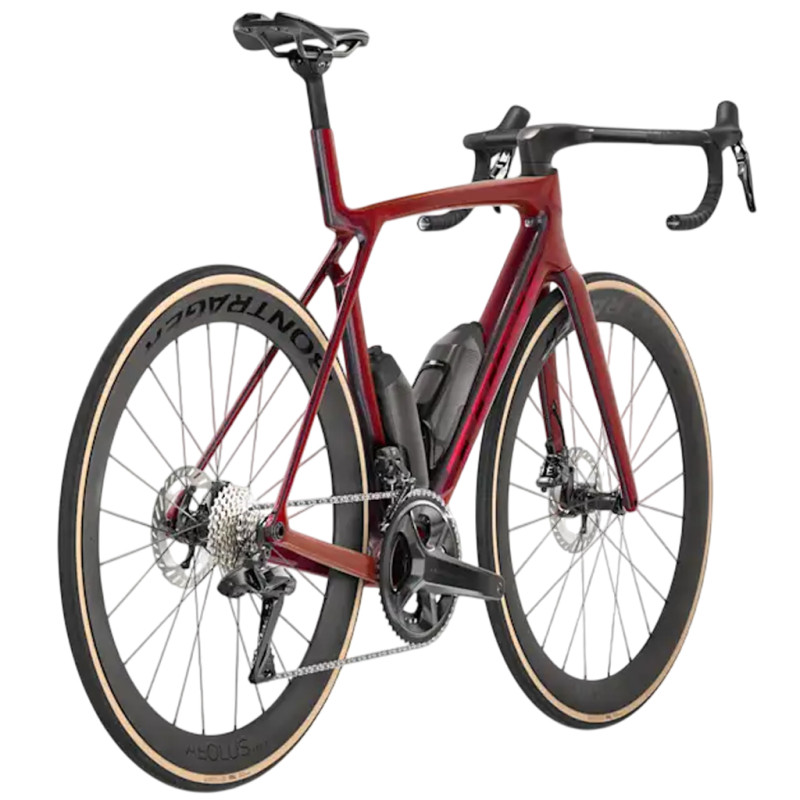

Trek Madone SLR 7 8th Gen road bike Shimano Ultegra Di2 12-speed Bontrager Aeolus Pro 51 Serpentine 2027

The Trek Madone SLR 7 8th Gen Shimano Ultegra Di2 12v Bontrager Aeolus Pro 51 Serpentine 2027 is designed for cyclists seeking an exceptional road bike that combines aerodynamics, lightness and efficiency to deliver top performance. Its 900 Series OCLV carbon frame, the most advanced in the Trek range, stands out for its remarkable stiffness and low weight. Combined with IsoFlow technology, it effectively enhances comfort by filtering out vibrations whilst maintaining maximum power transfer. The result is a responsive, precise and extremely high-performance bike, equally at home on attacks as it is on long, fast rides.

Developed with a resolutely competition-focused approach, the 8th-generation Madone SLR features Full System Foil aerodynamic profiles, full cable integration and a one-piece Trek Aero RSL cockpit that optimises both aerodynamic efficiency and stiffness in the riding position. Its T47 bottom bracket promotes particularly efficient power transfer, whilst the clearance for tyres up to 32 mm offers greater comfort, grip and versatility. The full-carbon fork completes the package, offering precise handling and excellent stability, even at very high speeds.

This model is fitted with the Shimano Ultegra Di2 12-speed electronic drivetrain, renowned for the speed, smoothness and precision of its gear changes in all situations. The Bontrager Aeolus Pro 51 carbon wheels enhance the bike’s dynamic qualities thanks to their excellent balance of aerodynamics, stiffness and control, making it easy to maintain high speeds whilst remaining highly responsive during accelerations. With its integrated Trek Aero RSL cockpit, its Bontrager Aeolus Pro saddle with carbon rails and its premium components, the Madone SLR 7 Serpentine is a top-of-the-range racing machine designed for cyclists who refuse to compromise on performance.

Technical specifications:

Frame & Fork:

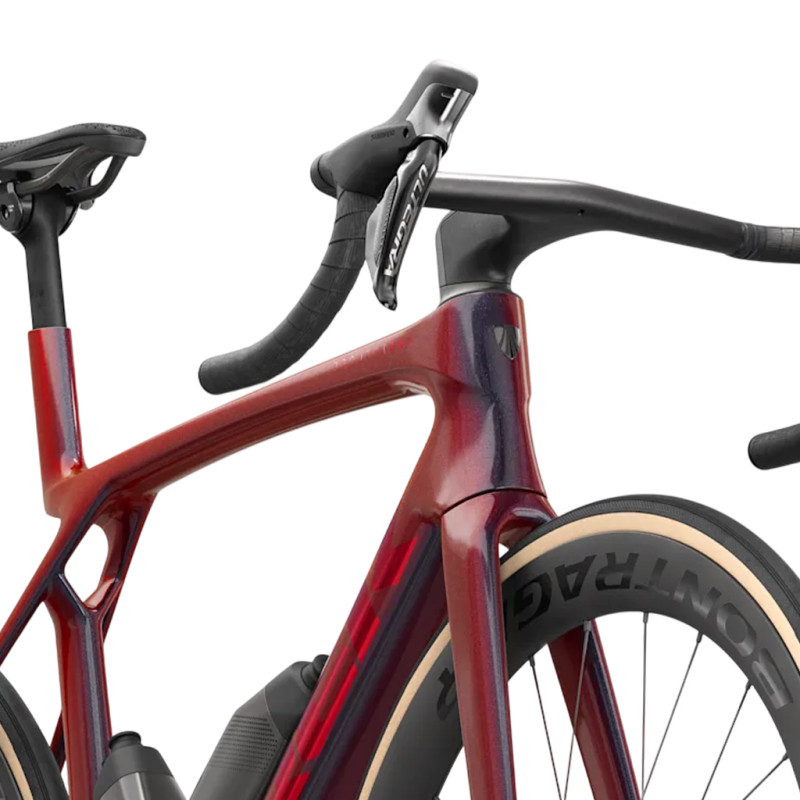

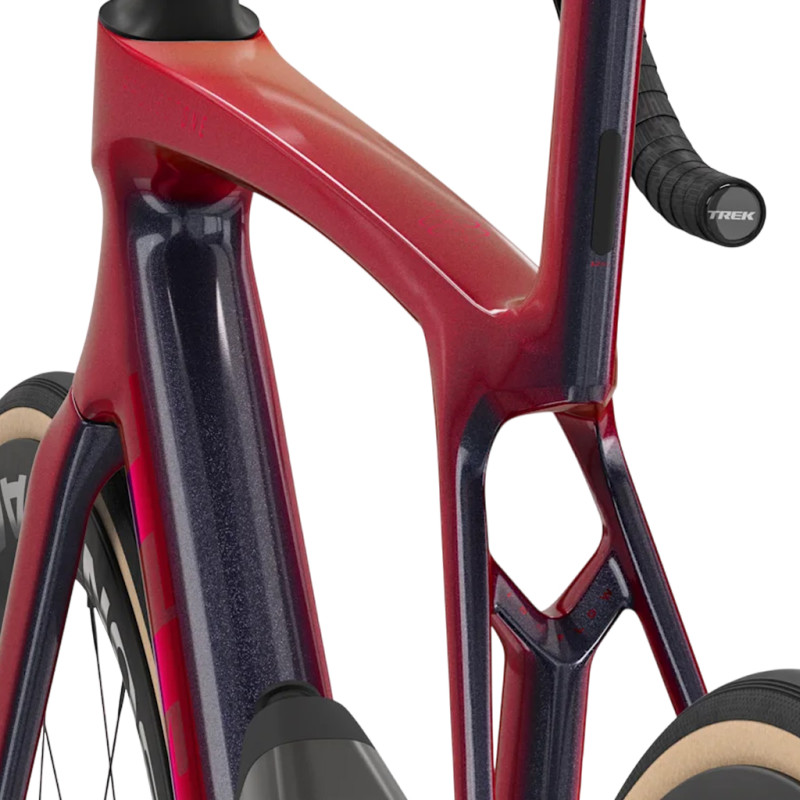

- Frame: 900 Series OCLV Carbon, Full System Foil tubes, IsoFlow technology, RCS headset, internal cable routing (electronic only), removable aerodynamic chain guard, T47 bottom bracket, Flat Mount disc brakes, universal derailleur hanger (UDH), 12 x 142 mm thru-axle
- Fork: 8th-generation all-carbon Madone, carbon tapered steerer, internal brake hose routing, Flat Mount mount, 12 x 100 mm threaded thru-axle Drivetrain:

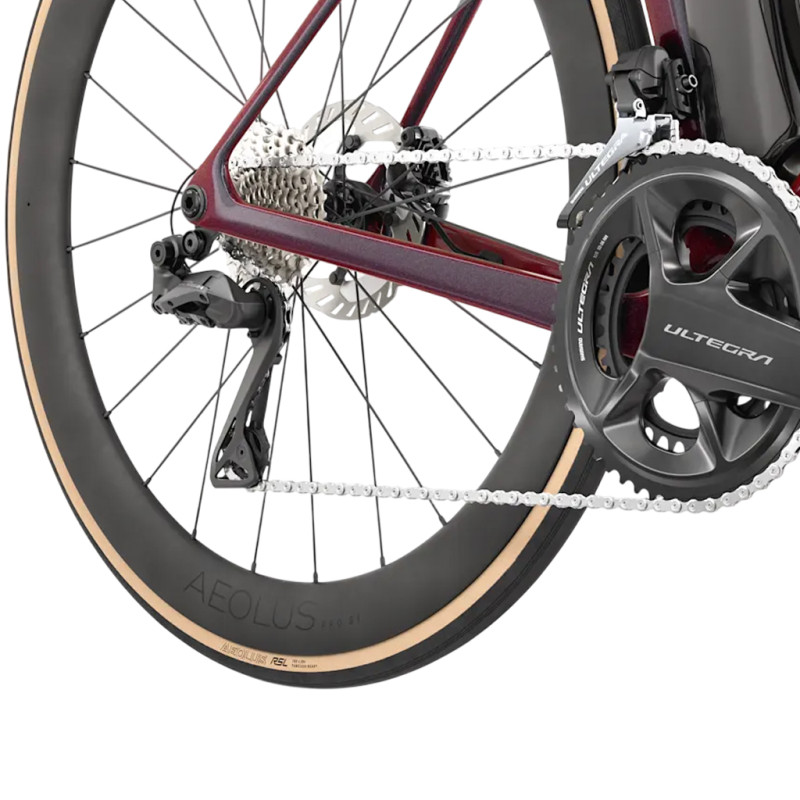

Drivetrain:

- Shifters: Shimano Ultegra Di2 R8170/R8171, 12-speed
- Front derailleur: Shimano Ultegra Di2 R8150, Down Swing
- Rear derailleur: Shimano Ultegra Di2 R8150, cassette up to 34 teeth
- Crankset: Shimano Ultegra R8100 52/36 (160 mm for XS, S / 165 mm for XS, S, M, ML / 170 mm for M, ML / 172.5 mm for ML, L, XL / 175 mm for XL)
- Cassette: Shimano Ultegra R8101, 11-30, 12-speed
- Chain: Shimano Ultegra / XT M8100
- Bottom bracket: Praxis T47 threaded, internal bearings
- Battery: Shimano BT-DN300

Brakes:

- Brakes: Shimano CL800 Centerlock, 160 mm discs (front and rear)
- Maximum disc size: 180 mm at the front / 160 mm at the rear

Wheels & Tyres:

- Wheels: Bontrager Aeolus Pro 51 OCLV carbon, Tubeless Ready, 12 x 100 mm thru-axle (front) / 12 x 142 mm (rear), Shimano 11/12-speed freehub body
- Tyres: Bontrager Aeolus RSL RD Tubeless Ready 700x28 mm or Pirelli P Zero Race / P Zero Race TLR RS 700x28 mm depending on fitment
- Inner tube: Pirelli P Zero SmarTube TPU
- Sealant: Bontrager TLR, 177 ml
- Maximum tyre width: 32 mm

Components:

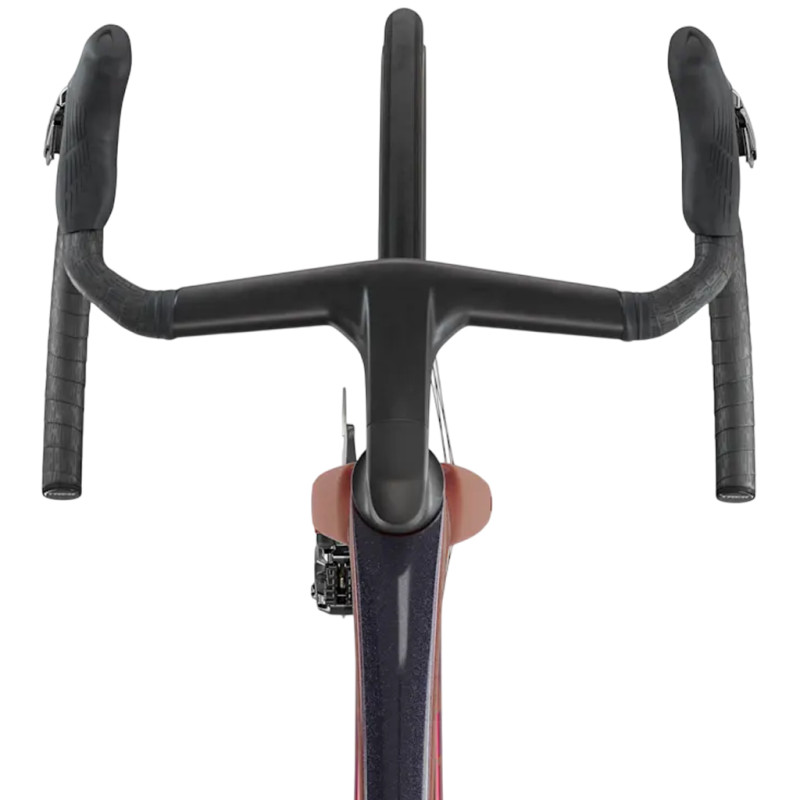

- Handlebars / Stem: Trek OCLV Carbon Aero RSL Road monoblock, Race Fit, reach 80 mm, drop 124 mm (35/38 cm with 80 mm stem for XS / 37/40 cm with 90 mm stem for S / 39/42 cm with 90 mm stem for M / 39/42 cm with 100 mm stem for ML, L / 41/44 cm with 110 mm stem for XL)
- Saddle: Bontrager Aeolus Pro, carbon rails, width 145 mm
- Seatpost: Madone Aero carbon, 0 mm offset
- Handlebar tape: Trek EcoTack or Trek Gel Cork

General information:

- Weight: 7.52 kg (size ML, with TLR sealant, excluding inner tubes and bottle cages)
- Maximum weight: 125 kg (bike + rider + kit)

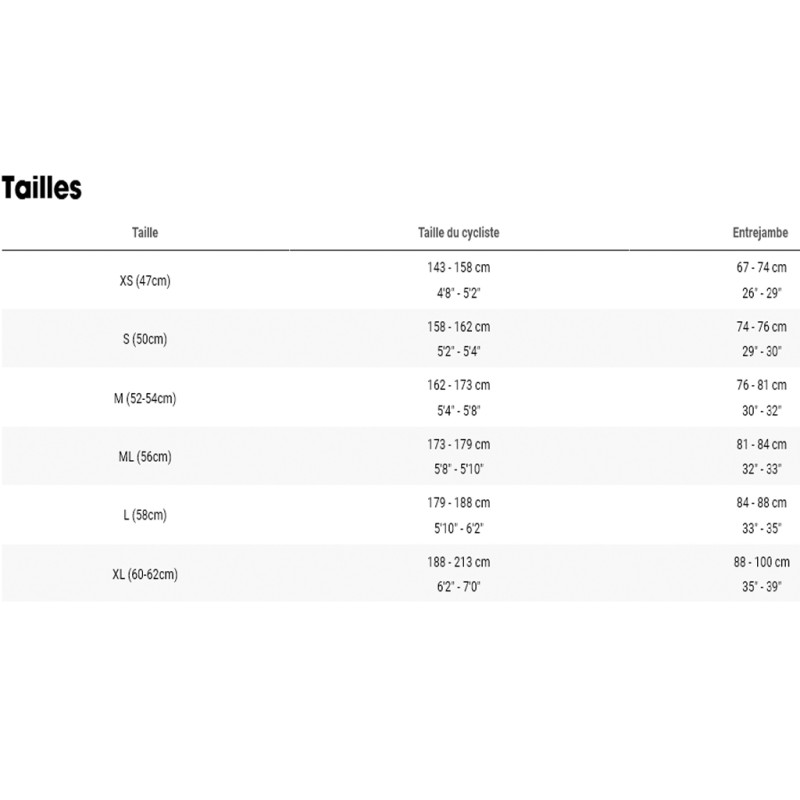

- Sizes: XS, S, M, ML, L, XL
- Colours: Serpentine / Red
- Brand: Trek
