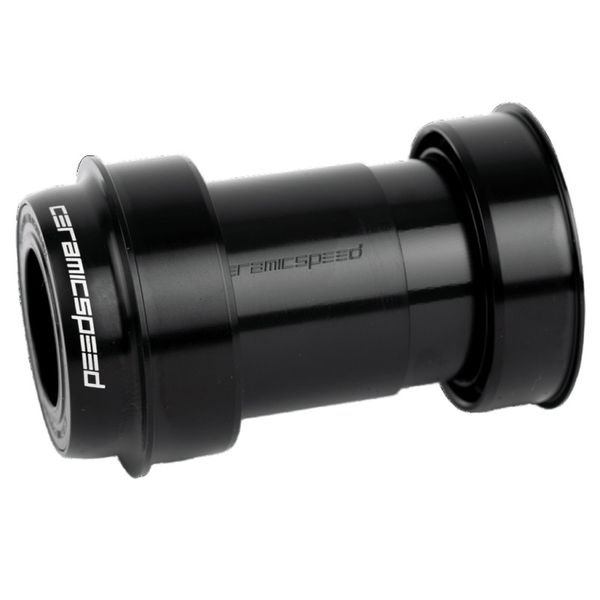

CeramicSpeed BB ALPHA BBright Shimano road bottom bracket

The CeramicSpeed BB Alpha BBright Shimano is a top-of-the-range 46mm pressfit bottom bracket designed to combine a Shimano bottom bracket (24mm axle) with a standard BBright frame (79mm). Hand-assembled in Denmark, it comes with silicon nitride ceramic bearings and a lifetime warranty.

The CeramicSpeed BB Alpha BBright Shimano bottom bracket is designed for cyclists looking for the best performance from their drivetrain. Designed for frames using the BBright standard - an asymmetrical 46mm pressfit 79mm wide, mainly used by Cervélo - it allows the installation of a Shimano crankset with a 24mm axle (Dura-Ace, Ultegra, 105 or any other crankset compatible with 24mm).

The BB Alpha range from CeramicSpeed is based on hardened stainless steel races, hand-assembled with grade 3 silicon nitride balls (CeramicSpeed Balls). The bespoke seals and dust caps, optimised over 28 development iterations, offer 500% better protection against moisture and contaminants than previous generations, while maintaining ultra-low friction. The simplified spacer tube design and lightened cups allow for quick installation and a 10% reduction in weight compared to previous models CeramicSpeed.

The CeramicSpeed BB Alpha BBright Shimano is supplied with a syringe of UFO TECH All Round Bearing Grease (5 ml) and a sticker CeramicSpeed. All BB Alpha cases are covered by the CeramicSpeed lifetime warranty.

EAN : 5711050143054 - Manufacturer's code : 115429

Technical specifications :

- Discipline: road, triathlon, track
- Case type: pressfit BBright (internal diameter 46 mm, width 79 mm)
- Crankset compatibility: Shimano and compatible (24 mm axle)
- Ball material: grade 3 silicon nitride (CeramicSpeed Balls)
- Race material: hardened stainless steel
- Colour: Black

Weight : 99 grams (net) - 211 grams (gross with packaging)

Box contents:
- 1x BB Alpha BBright bottom bracket Shimano Road
- 1x Syringe of UFO TECH All Round Bearing Grease (5 ml)
- 1x Sticker CeramicSpeed

Technological highlights:
- Corrosion-resistant hardened stainless steel body
- Custom seals: 500% improved moisture and contaminant protection
- Dust caps optimised in 28 development iterations
- Simplified spacer tube: -10% lighter than previous generations
- Lifetime warranty CeramicSpeed

Compatibility guide :

Frame standard: BBright - pressfit 46 mm, width 79 mm. Mainly used by Cervélo.

Compatible cranksets: all Shimano and compatible cranksets with 24 mm axles (Dura-Ace, Ultegra, 105, GRX, etc.).

Other BB Alpha BBright versions available:
- BBright for Campagnolo Ultra Torque: Bearing Kit ref. 115421
- BBright for Campagnolo Pro -Tech: Bearing Kit ref. 115422
- BBright for SRAM DUB: ref. 115431
- BBright for 30 mm axle: ref. 115430

Tools and accessories recommended by CeramicSpeed:
- Bottom Bracket Tool Kit CeramicSpeed
- CeramicSpeed Alloy Preload Bolt for Shimano cranks
- Bottom Bracket Seal and Dust Cover Service Tool

Maintenance: for optimum performance and longevity, CeramicSpeed recommends maintenance with one of the three UFO greases: All-Round Grease, Long-Life Grease or Race Day Grease.

Questions & Answers

1. Is the CeramicSpeed BB Alpha BBright compatible with my Cervélo frame?

This housing is designed for the BBright standard, a pressfit with an internal diameter of 46 mm and a width of 79 mm. This standard is mainly used by Cervélo. Check the specifications of your frame to make sure that the housing standard is "BBright" before you buy.

2. Which Shimano cranksets can be fitted with this housing?

All Shimano road cranksets with a 24 mm axle are compatible: Dura-Ace (R9200, R9100), Ultegra (R8100, R8000), 105 (R7100, R7000), as well as GRX cranksets and any other crankset compatible with a 24 mm axle.

3. What's the difference between the BB Alpha and the older CeramicSpeed cranksets?

The BB Alpha is the latest generation of CeramicSpeed cranksets. It features hardened stainless steel races (improved corrosion resistance), seals offering 500% extra protection against moisture, a 10% lighter design and a simplified spacer tube for faster assembly.

4. How do I maintain this bottom bracket?

CeramicSpeed recommends regular maintenance with one of their three UFO greases (All-Round, Long-Life or Race Day). The CeramicSpeed BB Seal and Dust Cover Service Tool makes it easy to remove the seals for re-greasing without removing the bottom bracket from the frame.

5. What is covered by the lifetime warranty CeramicSpeed?

All BB Alpha cases are covered by the CeramicSpeed lifetime warranty. To benefit from this, you need to register your product on the CeramicSpeed website after purchase. Details and conditions are available on the Warranty Program page of the CeramicSpeed website.
