Trek Madone SLR 7 8th Gen Sram Force AXS E1 Purple Phaze Amethyst Marble 2027 road bike

The Trek Madone SLR 7 AXS 8th Gen is a Purple Phaze/Amethyst Marble road bike. Its 900 Series OCLV carbon frame, Full System Foil tube shape and IsoFlow seat tube offer aerodynamics, lightness and comfort. Ideal for competitive cyclists.

It is equipped with a SRAM Force AXS E1 wireless electronic drivetrain with a power meter for precise and rapid gear changes, as well as Bontrager Aeolus Pro 51 wheels in OCLV Tubeless Ready carbon to optimise performance and weight.

The use of 900 Series OCLV Carbon, Trek’s highest-grade carbon, ensures a lightweight and stiff frame for optimal power transfer.

Technical specifications:

Frame:

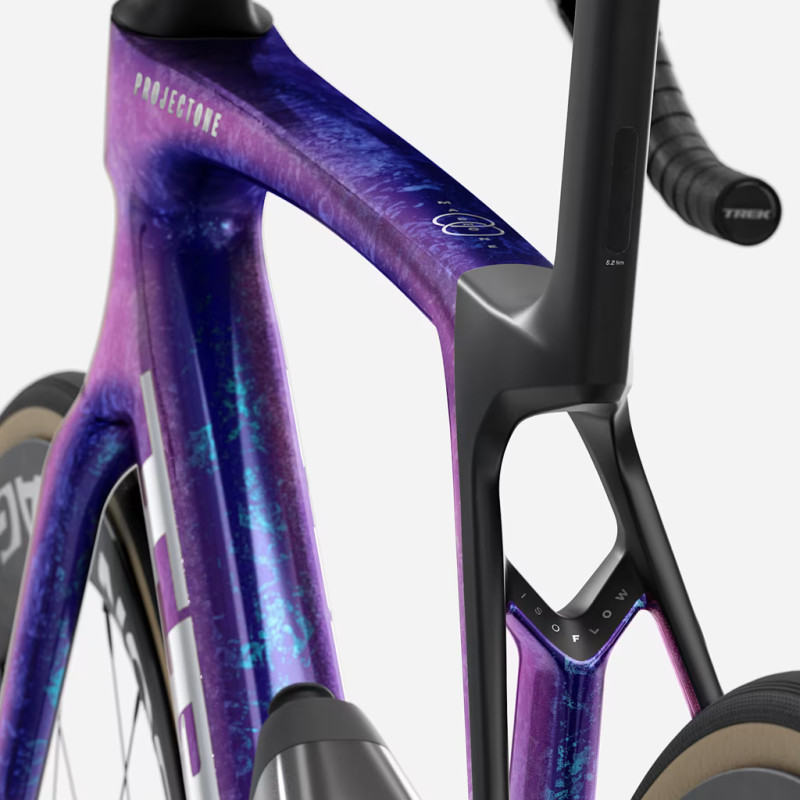

- Frame: 900 Series OCLV Carbon, Full System Foil tube shape, IsoFlow seat tube, RCS headset, electronic routing only, removable aerodynamic chain guard, T47 bottom bracket, Flat Mount disc brakes, universal derailleur hanger (UDH), 142x12 mm thru-axle
- Fork: 8th-gen Madone full carbon, carbon tapered steerer, internal brake cable routing, Flat-Mount disc brakes, 12x100 mm threaded thru-axles
- Axles: Bontrager Switch threaded thru-axle, removable lever

Drivetrain:

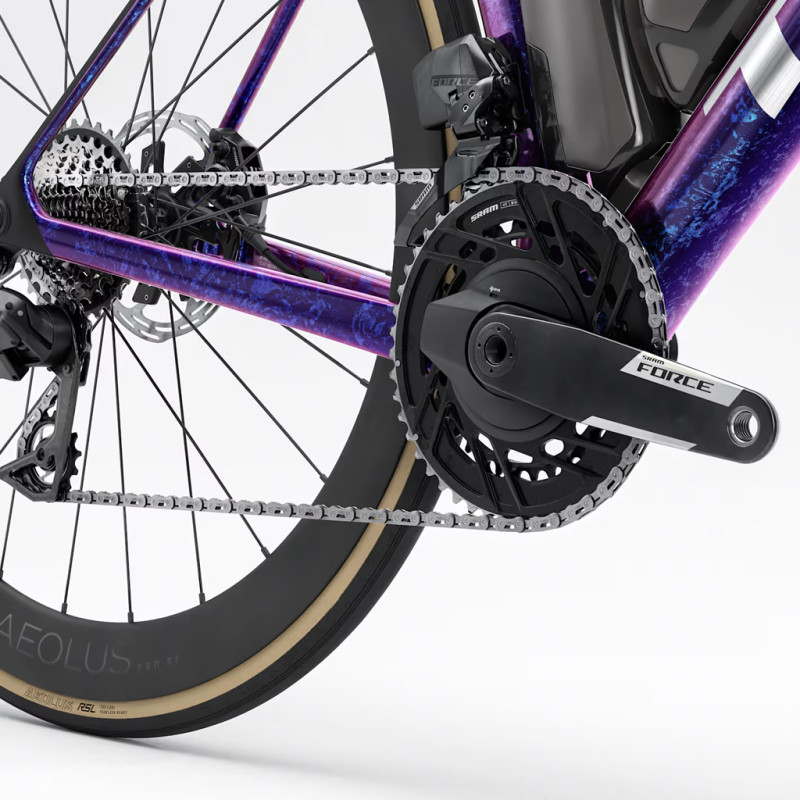

- Crankset: SRAM Force AXS E1, power meter, 48/35, DUB axle, 165 mm (XS, S), 170 mm (M, ML), 172.5 mm (XL, L)
- Cassette: SRAM Force E1 XG-1270, 10-33, 12-speed
- Chain: SRAM Force E1, 12-speed
- Shift levers: SRAM Force AXS E1, 12-speed
- Front derailleur: SRAM Force AXS E1, to be brazed
- Rear derailleur: SRAM Force AXS E1, max 36-tooth sprocket.
- Bottom bracket: SRAM DUB, T47 threaded, internal bearing

Braking system:
- Brakes: Flat Mount disc brakes
- Rotors: SRAM CenterLine X, Centerlock, rounded edge, 160 mm

Components:

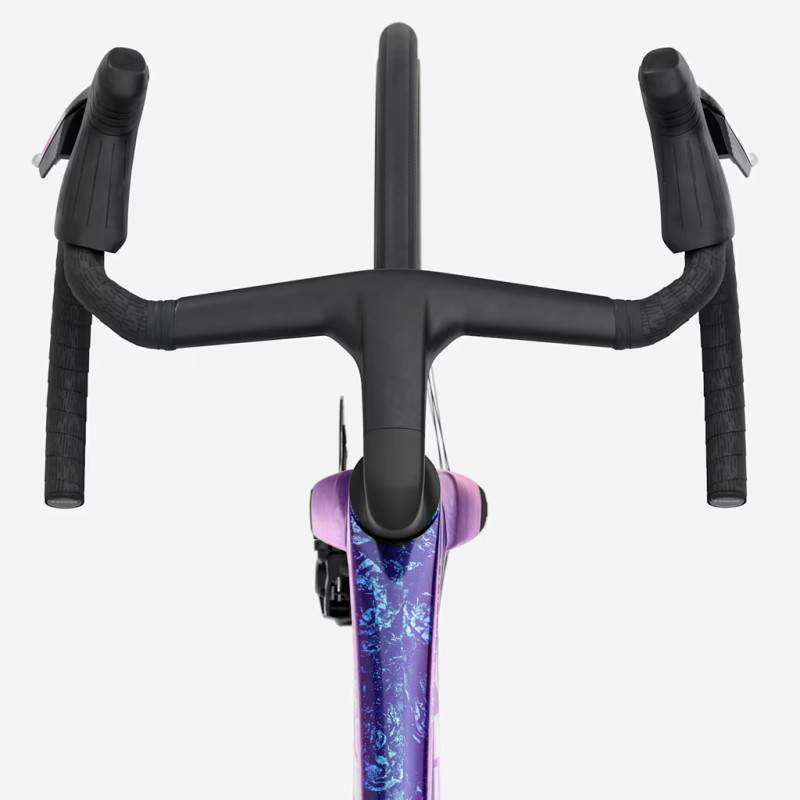

- Handlebar: Trek Aero RSL Road, OCLV Carbon, Race Fit, 80 mm drop, 124 mm rise, width varies by size in cm: (XS: 35/80, S: 37/90, M: 39/90, ML: 39/100, L: 39/100, XL: 41/110)
- Stem: Integrated into the handlebars
- Saddle: Bontrager Aeolus Pro, carbon rails, width 145 mm (XS, S, M, ML, L, XL)

Wheels:
- Wheels: Bontrager Aeolus Pro 51, OCLV carbon, Tubeless Ready
- Tyres: Pirelli P Zero Race, 120 tpi, tubeless-compatible, 700x28 mm

General information:
- Brand: Trek
- Bike type: Road bike
- Colour: Purple Phaze/Amethyst Marble
- Sizes: XS, S, M, ML, L, XL
- Weight: 7.22 kg (ML)

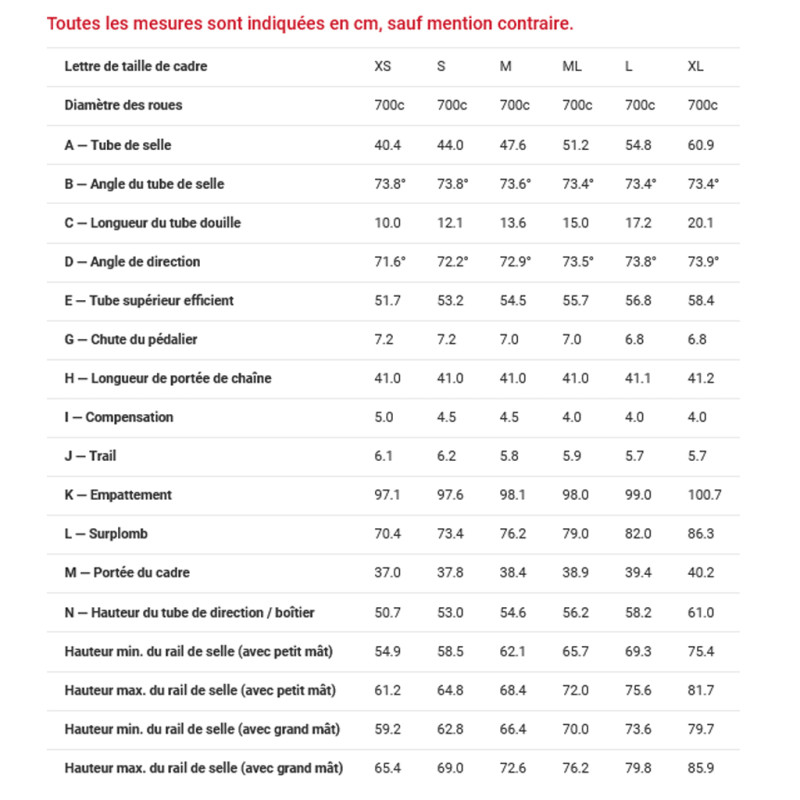

Geometry:

(mm)	XS	S	M	ML	L	XL
A	507	530	546	562	582	610
B	370	378	384	389	394	402
C	100	121	136	150	172	201
D	404	440	476	512	548	609
E	517	532	545	557	568	584

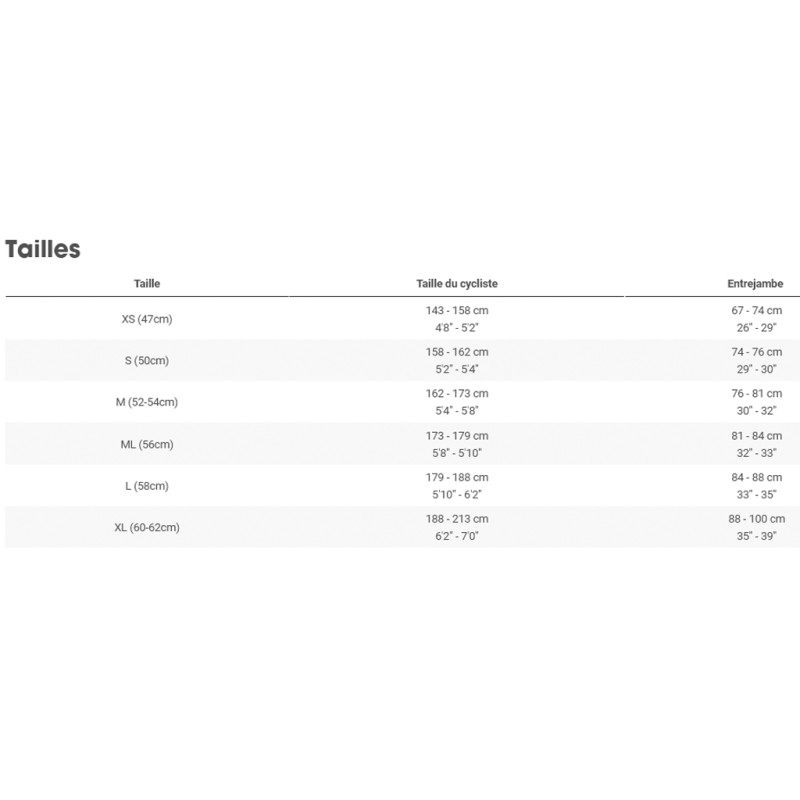

Bike size:
