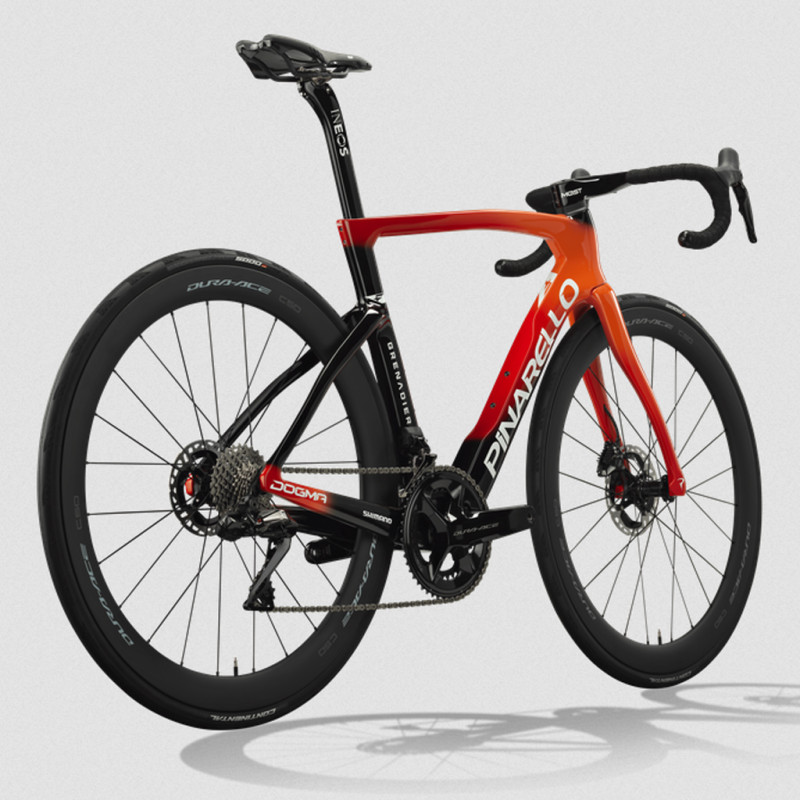

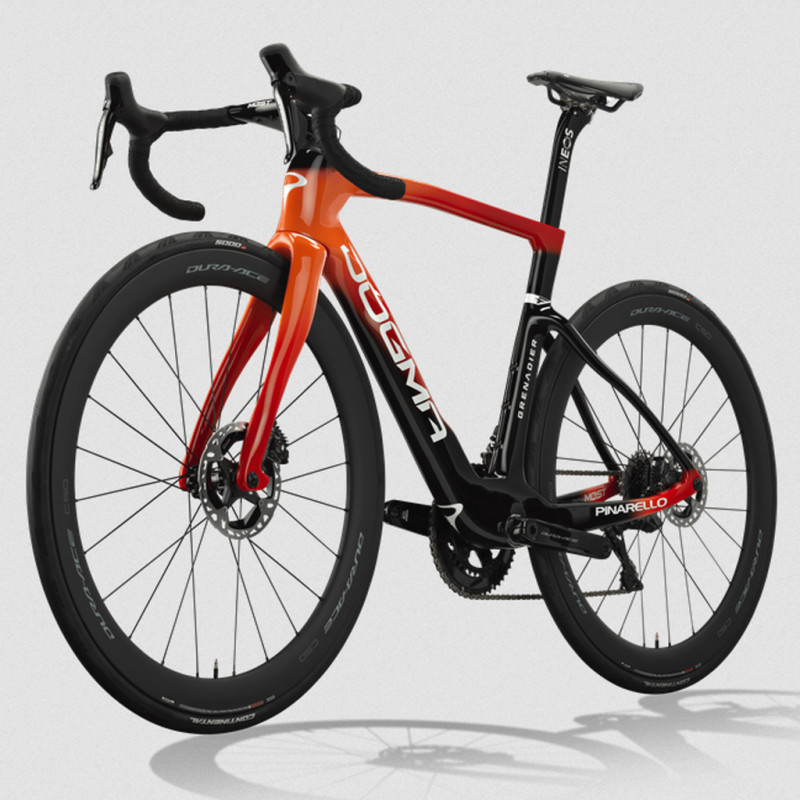

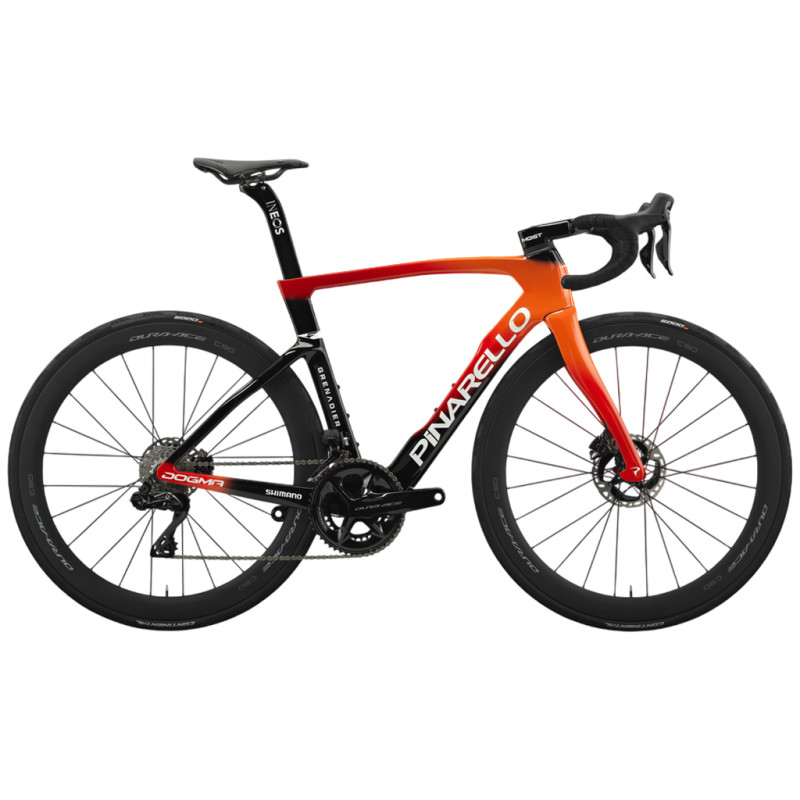

Pinarello New Dogma F Disc Shimano Dura-Ace Di2 12-speed DT Swiss Arc1400 G116 Ineos Replica 2025 road bike

The Pinarello New Dogma F Disc G116 is quite simply the bike used by the Ineos Grenadiers team. Fitted with the same components as the pros, it is the ultimate high-end bike. Constructed from TorayCa M40X carbon and a revolutionary new fibre, this model is lightweight, responsive and offers exceptional lateral stiffness.

The entire frame has been redesigned. From the reduced-diameter down tube, which improves aerodynamic performance. The head tube, which has been tapered in width for a sleeker design. The seatpost, integrated into the frame to reduce overall weight, or the Onda fork, which is slimmer and raked to improve handling. Finally, the new Talon Ultra Fast handlebar-stem combo is lighter and more aerodynamic.

This Pinarello New Dogma F Disc G116 is fitted with the Shimano Dura Ace Di2 12-speed electronic groupset. Finally, the DT Swiss Arc1400 wheels ensure exceptional efficiency and responsiveness.

Please note that the photo is for illustrative purposes only; this bike is indeed fitted with DT Swiss Arc1400 wheels.

Technical specifications:

Frame:
- Frame: TorayCa M40X, TiCR Cable Routing, Italian BB
- Fork: NEW eTICR Onda Fork with ForkFlap™, 1.5" upper and lower steerer

Drivetrain:
- Crankset: Shimano Dura Ace Di2 12-speed
- Cassette: Shimano Dura Ace CS-R9200 12-speed
- Chain: Shimano Dura Ace CN-HG 12-speed
- Grips: Shimano Dura Ace Di2 12-speed
- Front derailleur: Shimano Dura Ace Di2 FD-9200 12-speed
- Rear derailleur: Shimano Dura Ace Di2 FD-9200 12-speed

Braking:
- Brakes: Shimano Dura Ace BR-R9200, 2-piston caliper
- Discs: 160 mm front / 140 mm rear

Components:
- Integrated handlebar and stem: Most Talon Ultra Fast
- Saddle: Most Lynx Ultrafast Superflow L Carbon Large 145mm
- Seatpost: Pinarello Aero seatpost with 3D-printed titanium top seatclamp and bolts
- Bottle cages: Bottlecage Trap PACF ø 74mm, Fly Bottle Pinarello Bottle 550ml Black

Wheels:
- Wheels: DT Swiss Arc1400
- Tyres: Continental Grand Prix 5000S TR28-622

General information:
- Colour: G116 Ineos Replica
- Sizes: 43, 46.5, 50, 51.5, 53, 54, 55, 56, 57.5, 59.5, 62
- Weight: 6.77 kg (size 53)

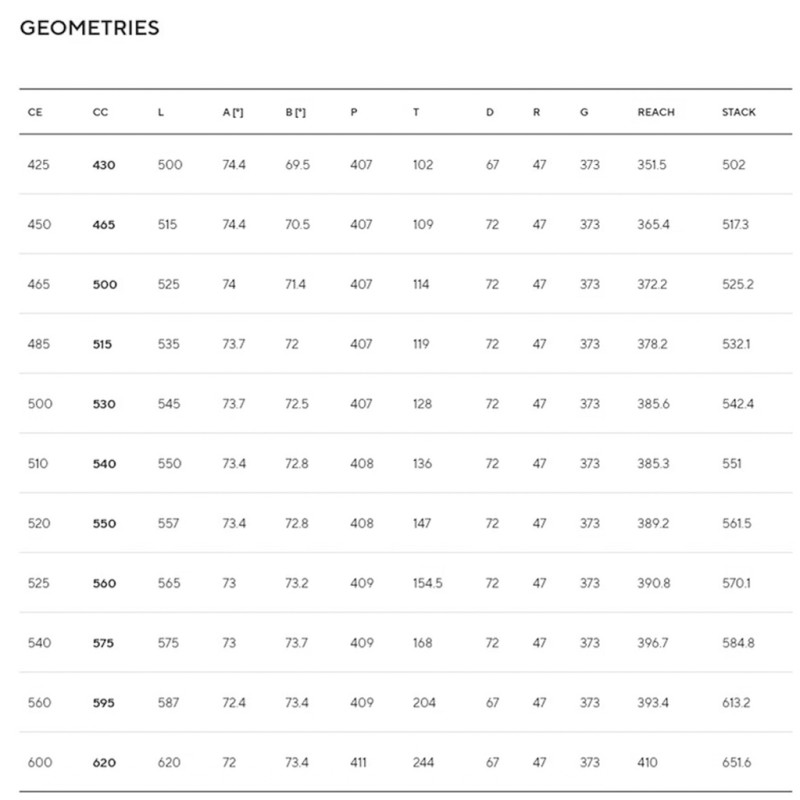

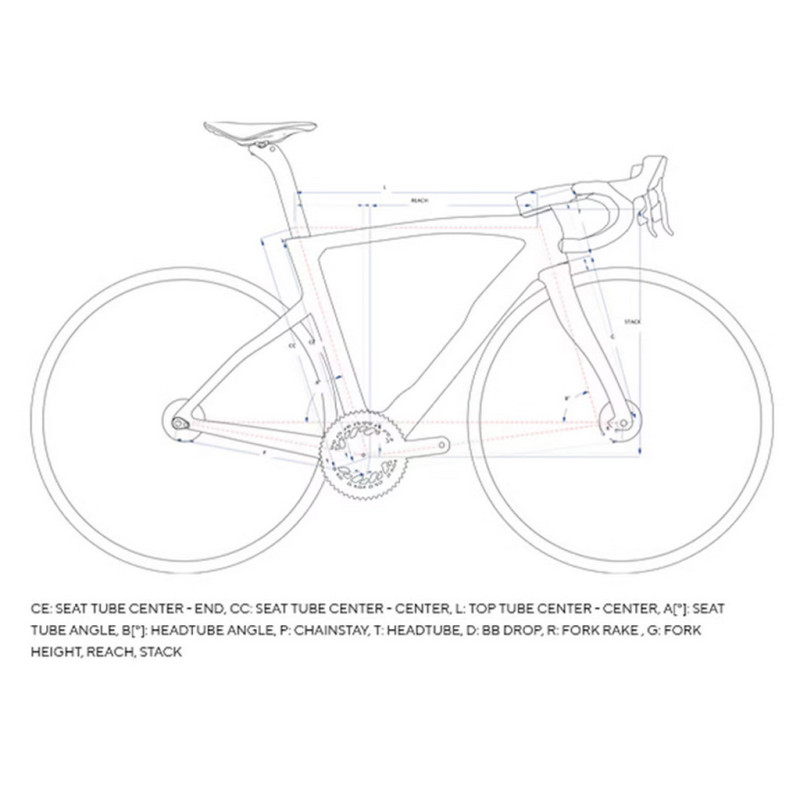

Geometry:

(mm)	43	46.5	50	51.5	53	54	55	56	57.5	59.5	62
A	502	517.3	525.2	532.1	542.4	551	561.5	570.1	584.8	613.2	651.6
B	351.5	365.4	372.2	378.2	383.6	385.3	389.2	390.8	396.7	393.4	410
C	102	109	114	119	128	136	147	154.5	168	204	244
D	425	450	465	485	500	510	520	525	540	560	600
E	500	515	525	535	545	550	557	565	575	587	620
