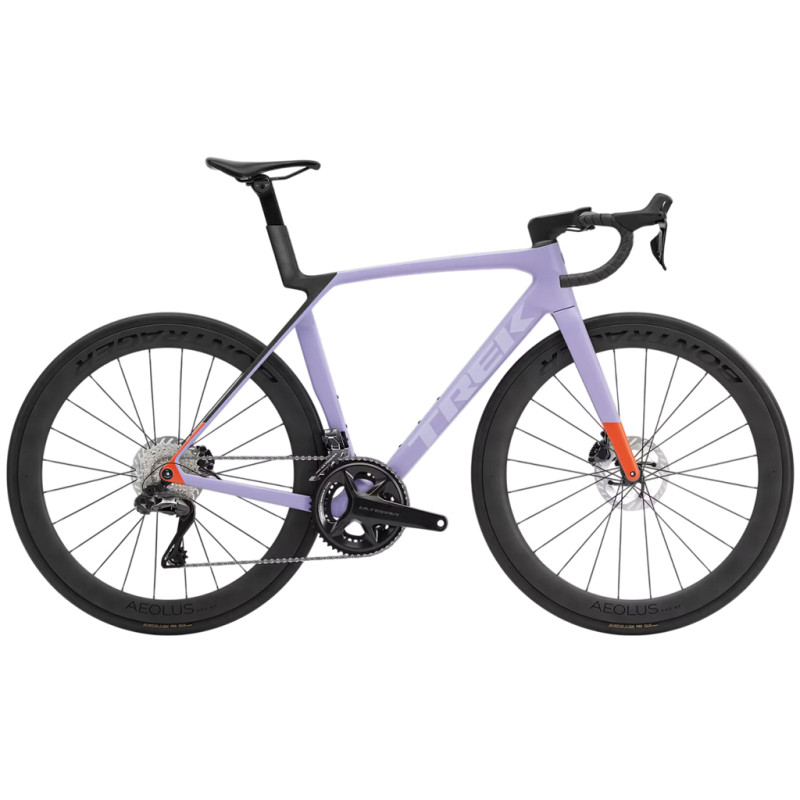

Trek Madone SL 7 8th Gen Ultegra Di2 12-speed Aeolus Pro 51 Matte Lavender Haze/Deep Smoke 2026 road bike

The Trek Madone SL 7 8th Gen represents the pinnacle of cycling engineering for enthusiasts of speed and performance. Designed for the most demanding riders, this road bike combines cutting-edge technology, aerodynamic finesse, low weight and mechanical precision. Its 900 Series OCLV carbon frame ensures excellent stiffness whilst maintaining remarkable lightness. Each section of the frame is shaped using Full System Foil technology, enabling aerodynamic optimisation that minimises wind resistance for maximum efficiency.

Trek’s signature IsoFlow technology increases the frame’s vertical compliance whilst absorbing road irregularities, without compromising speed. This system improves stability and responsiveness over long distances and varied terrain. When it comes to drivetrain, the Shimano Ultegra Di2 12-speed wireless system offers fast, smooth and customisable gear changes, even during intense efforts, thanks to the E-Tube app.

The Bontrager Aeolus Pro 51 carbon wheels deliver exceptional aerodynamic performance, ideal for maintaining a high pace on the flat whilst remaining manoeuvrable on climbs. The Trek Aero RSL monoblock cockpit, integrating the handlebars and stem into a single carbon piece, improves aerodynamics whilst optimising the stiffness of the bike’s front end. The RSL bottle cages and their aerodynamic bottles are seamlessly integrated into the design to minimise drag and maximise every watt of power. A bike built for competition, as fast as it is elegant.

Technical specifications:

Frame & Fork:
- Frame: OCLV Carbon 900 Series, Full System Foil tube shape, IsoFlow seat tube, RCS headset, electronic cable routing only, removable aerodynamic chain guard, T47 bottom bracket, Flat-Mount disc brakes, universal derailleur hanger (UDH), 142x12 mm thru-axle
- Fork: 8th Gen Madone full carbon, carbon tapered steerer, internal brake cable routing, Flat-Mount disc brakes, 12x100 mm splined thru-axles

Drivetrain:
- Shifters: Shimano Ultegra R8170 Di2, 12-speed
- Front derailleur: Shimano Ultegra R8150 Di2, towed, down swing
- Rear derailleur: Shimano Ultegra R8150 Di2, max 34-tooth sprocket
- Crankset: Shimano Ultegra R8100, 52/36 (165 mm for XS, S / 170 mm for M, ML / 172.5 mm for L, XL)
- Cassette: Shimano Ultegra R8101, 11-30, 12-speed
- Chain: Shimano Ultegra/XT M8100, 12-speed
- Bottom bracket: Praxis T47 with internal bearing

Braking:
- Brakes: Shimano CL800, Centerlock, with 160 mm discs (front and rear)

Wheels & Tyres:
- Wheels: Bontrager Aeolus Pro 51, OCLV carbon, Tubeless Ready
- Tyres: Pirelli P Zero Race, 120 tpi, tubeless-compatible, 700x28 mm
- Inner tube: Pirelli P Zero SmarTube, TPU

Components:
- Handlebar: Bontrager Aero Pro, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm depth, 124 mm rise, 35 cm grip width, 38 cm width (XS), 40 cm width (S), 42 cm width (M, ML, L), 44 cm width (XL)
- Stem: Trek RCS Pro, -7 degrees, 80 mm long (XS), 90 mm (S, M), 100 mm (ML, L), 110 mm (XL)
- Saddle: Bontrager Aeolus Pro, carbon rails, 145 mm width
- Seatpost: Madone Aero seatpost, 0 mm offset, short
- Handlebar tape: Trek EcoTack black

General information:
- Weight: 7.52 kg (size ML)
- Max load: 125 kg (bike + rider + accessories)
- Sizes: XS, S, M, ML, L, XL
- Colour: Matte Lavender Haze/Deep Smoke
- Brand: Trek
