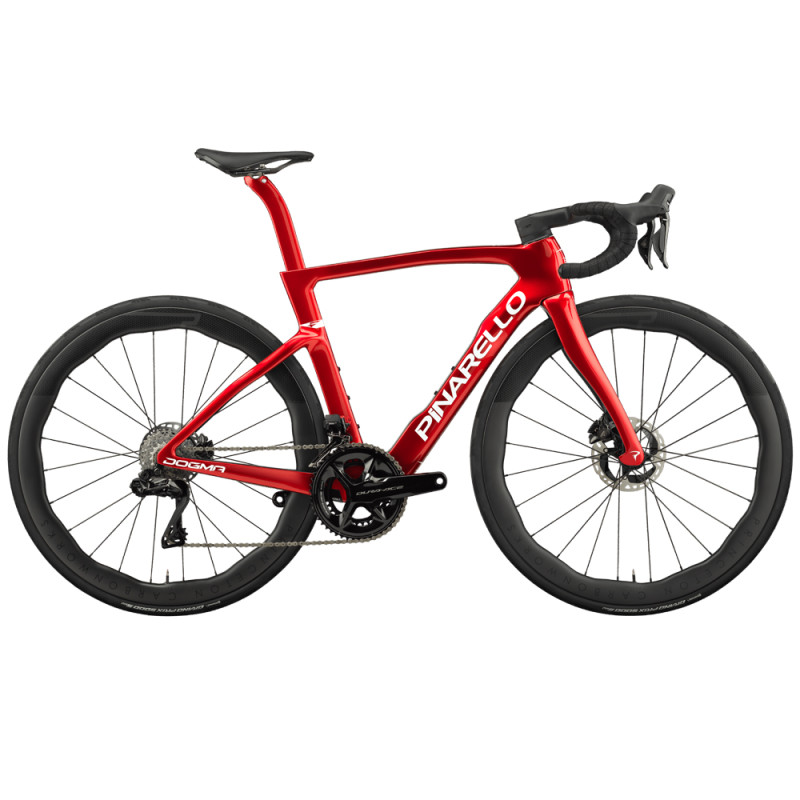

Pinarello New Dogma F Disc road bike Shimano, Dura-Ace Di2 12-speed Princeton, Peak 4550 G117 Starry Red

The New Dogma F Disc G117 Pinarello is the bike used by the Ineos Grenadiers team, apart from the fact that it doesn’t feature the same colour scheme. It offers the same specifications and features the same components as those used by the professionals. This is an exceptional bike that will put you at ease on all terrains. Made from TorayCa M40X carbon, a new, latest-generation fibre, this model is lightweight, responsive and offers exceptional lateral stiffness.

The frame features a new design that optimises the aerodynamic performance and lightness of this road bike. The tapered head tube has a sleeker shape, whilst the seatpost is integrated into the frame to reduce the overall weight. Onda ’s fork is also slimmer and raked, which improves handling. Finally, the new Talon Ultra Fast handlebar-stem combo is lighter and more aerodynamic than its predecessor.

This Pinarello New Dogma F Disc G117 is fitted with the Dura-Ace Di2 ‘ Shimano ’ electronic groupset, which ensures precise gear changes. The Princeton Peak 4550 carbon wheels complete this top-of-the-range package.

Technical specifications:

Frame:
- Frame: TorayCa M40X, TiCR Cable Routing, Italian BB
- Fork: NEW eTICR Onda Fork with ForkFlap™, 1.5' upper and lower steerer

Drivetrain:
- Crankset: Shimano Dura Ace Di2 12-speed
- Cassette: Shimano Dura Ace CS-R9200 12-speed
- Chain: Shimano Dura Ace CN-HG 12v
- Grips: Shimano Dura Ace Di2 12v
- Front derailleur: Shimano Dura Ace Di2 FD-9200 12v
- Rear derailleur: Shimano Dura Ace Di2 FD-9200 12v

Braking:
- Brakes: Shimano Dura Ace BR-R9200, 2-piston caliper
- Rotors: 160 mm front / 140 mm rear

Components:
- Integrated handlebar and stem: Most Talon Ultra Fast
- Saddle: Most Lynx Ultrafast Superflow L Carbon Large 145mm
- Seatpost: Pinarello Aero seatpost with 3D-printed titanium top seatclamp and bolts
- Bottle cages: Trap PACF bottle cage, ø 74mm, Fly Bottle Pinarello Bottle 550ml Black

Wheels:
- Wheels: Princeton Peak 4550 DB
- Tyres: Continental Grand Prix 5000S TR28-622

General information:
- Colour: G117 - STARRY RED
- Sizes: 43, 46.5, 50, 51.5, 53, 54, 55, 56, 57.5, 59.5, 62
- Weight: 6.77 kg (size 53)
- Brand: Pinarello
