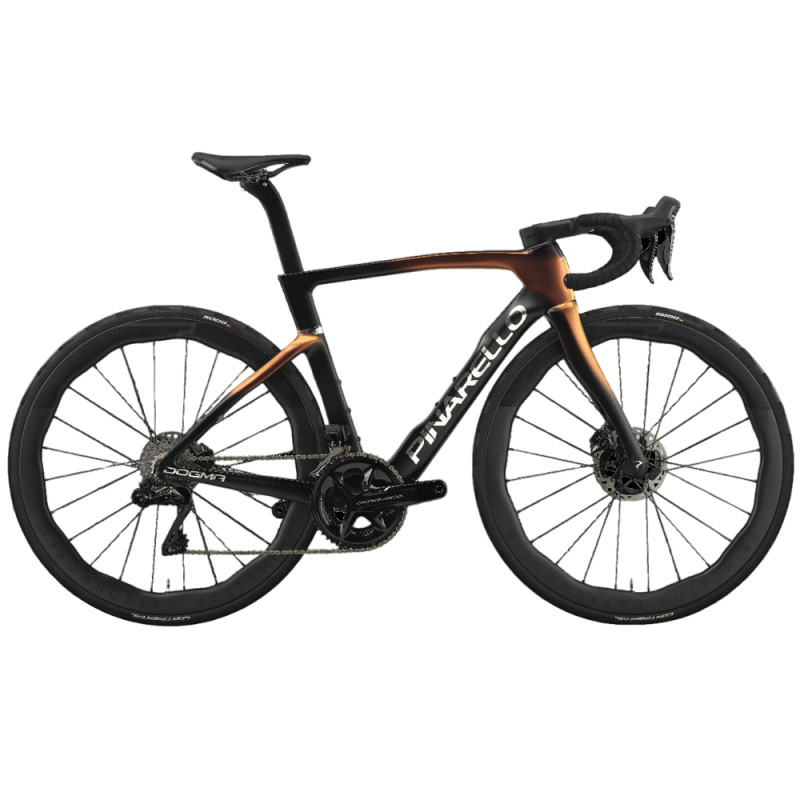

Pinarello New Dogma F Disc Shimano Dura Ace Di2 PM 12v DT Swiss ARC 1400 G110 Luxter Red Gold 2025 road bike

Model used by the INEOS Grenadiers team

I choose my options

Colours

Size

Type of braking

Ref : 18814740007
€15,500.00
In stock

Pinarello New Dogma F Disc Shimano Dura Ace Di2 PM 12v DT Swiss ARC 1400 G110 Luxter Red Gold 2025 road bike

More details In stock

Pinarello New Dogma F Disc Shimano Dura Ace Di2 PM 12v DT Swiss ARC 1400 G110 Luxter Red Gold 2025 road bike

€15,500.00
Our advice

Julien C.

20 years' experience in the world of cycling

Developed in collaboration with the INEOS Grenadiers team, the Pinarello New Dogma F Disc G112 Luxter Blue is the Italian brand’s top-performing bike. Featuring a TorayCa M40X carbon frame, this model utilises a new-generation carbon fibre offering exceptional lateral stiffness for ever-higher performance.

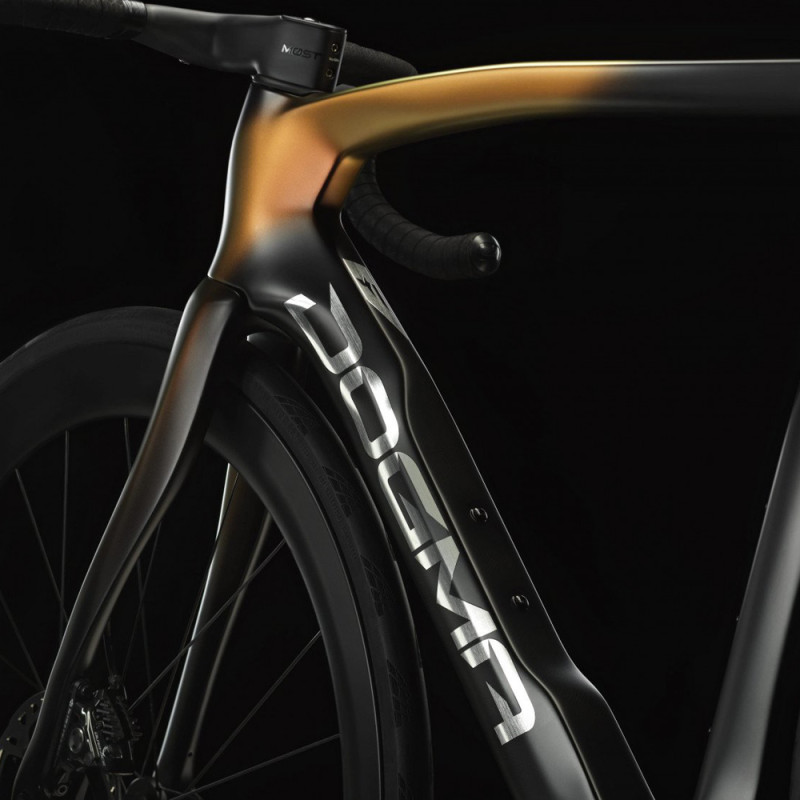

The down tube has been completely redesigned to improve the bike’s aerodynamics, whilst the elliptical head tube, reduced in width, gives a sleeker design. The integrated seatpost lightens the frame and optimises the clamping design. The new Onda fork, slimmer and raked, improves handling and speed, with a side bolt integrated into the carbon to reduce drag. The Talon Ultra Fast handlebar-stem combo offers a modern and aerodynamic riding position.

The Pinarello New Dogma F Disc G110 Luxter Red Gold 2025 is equipped with the Shimano Dura Ace Di2 12-speed electronic groupset, featuring an integrated power meter for precise tracking of your progress. The DT Swiss ARC 1400 wheels ensure optimal performance, allowing you to make the most of your abilities during competitions.

Bike shipping preparation

Technical specifications:

Frame:
- Frame: TorayCa M40X, TiCR Cable Routing, Italian BB
- Fork: NEW eTICR Onda Fork with ForkFlap™, 1.5" upper and lower steerer

Drivetrain:
- Crankset: Shimano Dura Ace Di2 12-speed with power meter
- Cassette: Shimano Dura Ace CS-R9200 12-speed
- Chain: Shimano Dura Ace CN-HG 12-speed
- Grips: Shimano Dura Ace Di2 12-speed
- Front derailleur: Shimano Dura Ace Di2 FD-9200 12-speed
- Rear derailleur: Shimano Dura Ace Di2 FD-9200 12-speed

Braking:
- Brakes: Shimano Dura Ace BR-R9200, 2-piston caliper
- Discs: 160 mm front / 140 mm rear

Components:
- Integrated handlebar and stem: Most Talon Ultra Fast
- Saddle: Most Lynx Ultrafast Superflow L Carbon Large 145mm
- Seatpost: Pinarello Aero seatpost with 3D-printed titanium top seatclamp and bolts
- Bottle cages: Bottlecage Trap PACF ø 74mm, Fly Bottle Pinarello Bottle 550ml Black

Wheels:
- Wheels: DT Swiss ARC 1400
- Tyres: Continental Grand Prix 5000S TR28-622

General information:
- Colour: G110 Luxter Red Gold
- Sizes: 43, 46.5, 50, 51.5, 53, 54, 55, 56, 57.5, 59.5, 62
- Weight: 6.77 kg (size 53)

Colours gold
Size 55
Type of braking disc brakes

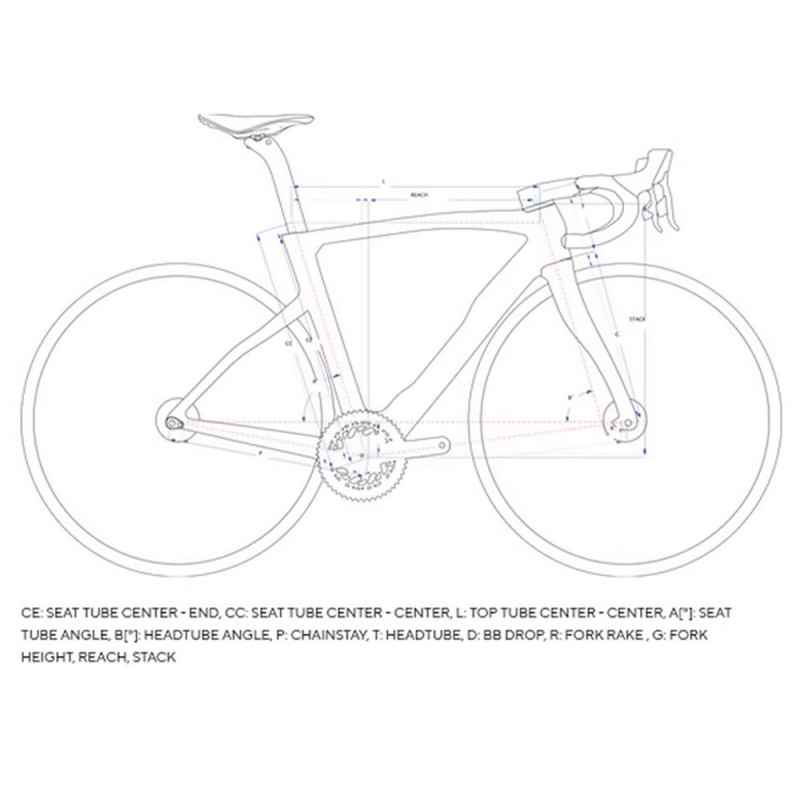

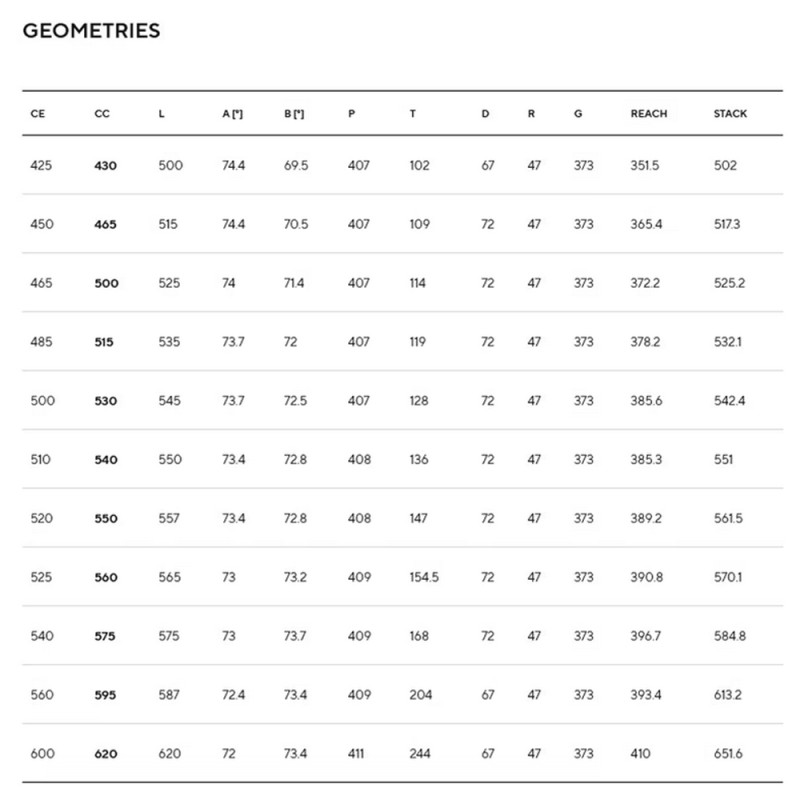

Frame dimensions diagram
(mm) 43 46.5 50 51.5 53 54 55 56 57.5 59.5 62
A (Stack) 502 517.3 525.2 532.1 542.4 551 561.5 570.1 584.8 613.2 651.6
B (Reach) 351.5 365.4 372.2 378.2 383.6 385.3 389.2 390.8 396.7 393.4 410
C (Head tube length) 102 109 114 119 128 136 147 154.5 168 204 244
D (Bottom bracket axis - top of seat tube) 425 450 465 485 500 510 520 525 540 560 600
E (Horizontal length) 500 515 525 535 545 550 557 565 575 587 620
