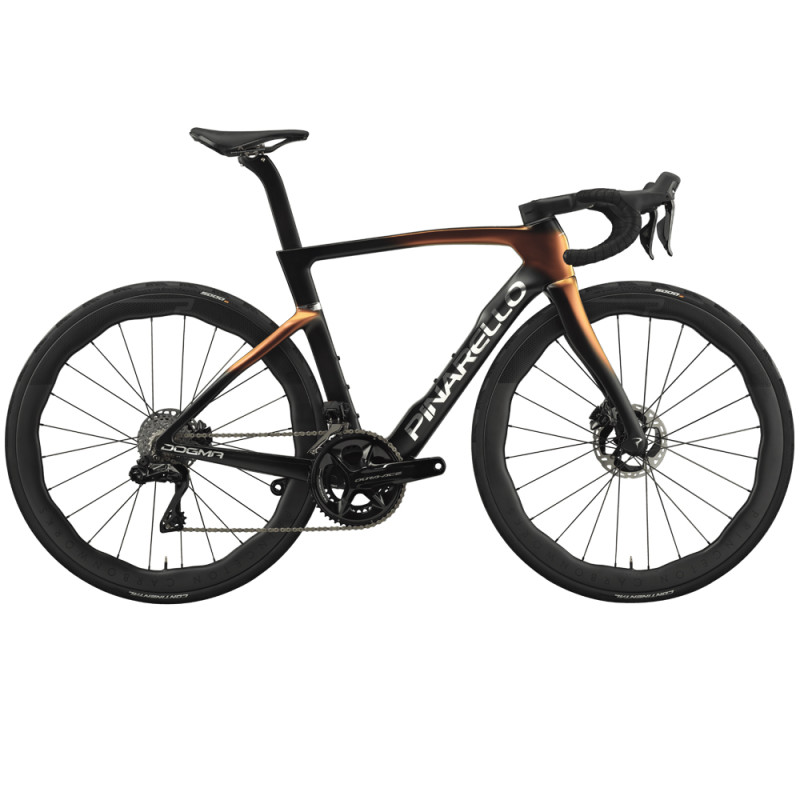

Pinarello New Dogma F Disc Shimano Dura Ace Di2 12-speed Princeton Peak 4550 G110 Luxter Red Gold 2025 road bike

Used by riders from the INEOS Grenadiers team in the world’s biggest races, including the Tour de France, the Pinarello New Dogma F Disc G110 Luxter Red Gold is a top-of-the-range bike. Its TorayCa M40X carbon frame is designed with a new fibre featuring exceptional tensile modulus to achieve a higher level of performance in lateral stiffness.

Completely redesigned, the down tube is thinner to improve aerodynamic performance. The elliptical head tube has also been reduced in size to offer a sleeker design, whilst the seatpost is integrated into the frame to reduce weight and improve the clamping system. The new Onda fork is slimmer and raked for greater manoeuvrability, whilst the bolt on the right-hand side is integrated into the carbon to ensure lower aerodynamic drag. The all-new Talon Ultra Fast handlebar-stem combo is lighter and more aerodynamic.

The Pinarello New Dogma F Disc G110 Luxter Red Gold is equipped with the Shimano Dura Ace Di2 12-speed electronic groupset, which offers very fast and precise gear changes as well as effective disc braking in all conditions. Finally, the Princeton Peak 4550 wheels offer maximum efficiency to help you shine on all terrains, whether in the mountains or on the flat.

Technical specifications:

Frame:
- Frame: TorayCa M40X, TiCR Cable Routing, Italian BB
- Fork: NEW eTICR Onda Fork with ForkFlap™, 1.5" upper and lower steerer

Drivetrain:
- Crankset: Shimano Dura Ace Di2 12-speed
- Cassette: Shimano Dura Ace CS-R9200 12-speed
- Chain: Shimano Dura Ace CN-HG 12-speed
- Grips: Shimano Dura Ace Di2 12-speed
- Front derailleur: Shimano Dura Ace Di2 FD-9200 12-speed
- Rear derailleur: Shimano Dura Ace Di2 FD-9200 12-speed

Braking:
- Brakes: Shimano Dura Ace BR-R9200, 2-piston caliper
- Discs: 160 mm front / 140 mm rear

Components:
- Integrated handlebar and stem: Most Talon Ultra Fast
- Saddle: Most Lynx Ultrafast Superflow L Carbon Large 145mm
- Seatpost: Pinarello Aero seatpost with 3D-printed titanium top seatclamp and bolts
- Bottle cages: Bottlecage Trap PACF ø 74mm, Fly Bottle Pinarello Bottle 550ml Black

Wheels:
- Wheels: Princeton Peak 4550 DB
- Tyres: Continental GP 5000S TR28-622

General information:
- Colour: G110 Luxter Red Gold
- Sizes: 43, 46.5, 50, 51.5, 53, 54, 55, 56, 57.5, 59.5, 62
- Weight: 6.77 kg (size 53)
