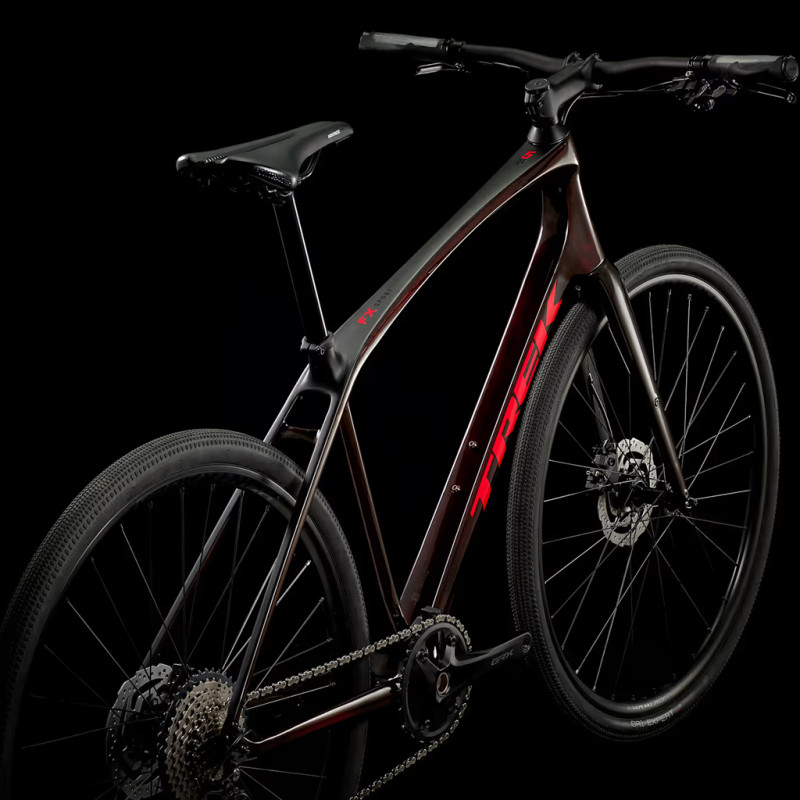

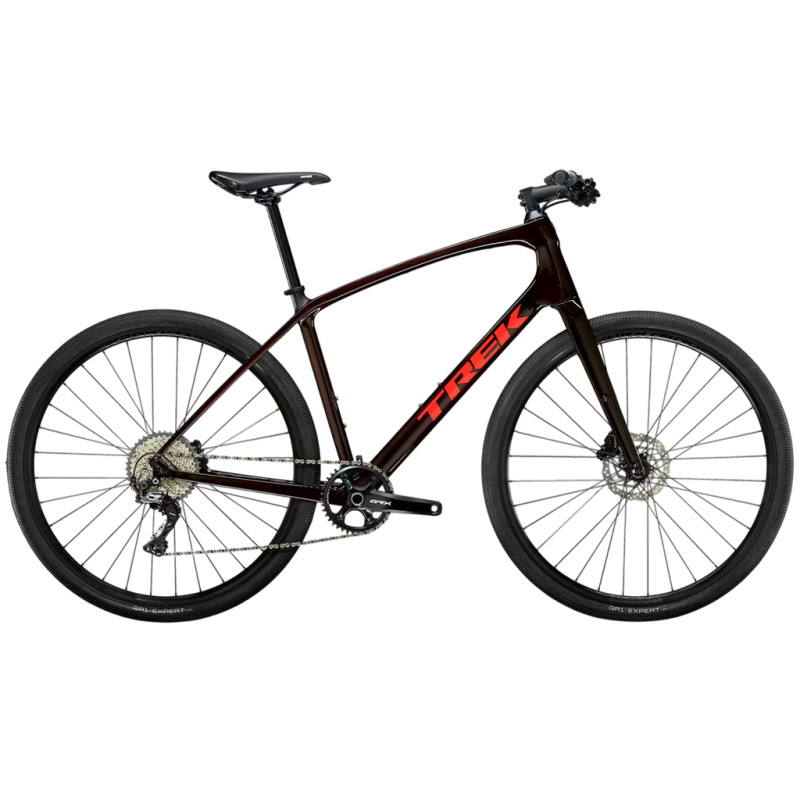

Trek FX Sport 5 Red Carbon Smoke men’s hybrid bike

The FX Sport 5 is a versatile carbon bike, designed for cyclists who want to combine the lightness and performance of a road bike with the control of flat handlebars. It is ideal for solo rides, intense training sessions or group rides. Its 400 Series OCLV carbon frame features internal cable routing, mudguard mounts and a Flat Mount setup for disc brakes. Lightweight and stiff, it accommodates tyres up to 40–42 mm for all-terrain versatility. The matching carbon fork, with internal cable routing and a 100 x 5 mm thru-axle, absorbs vibrations whilst maintaining high precision. It is equipped with a Shimano GRX/Apex 1×11 groupset, featuring a 40T chainring, 11–42T cassette and a long-cage rear derailleur – perfect for tackling flat terrain, bumps and light trails.

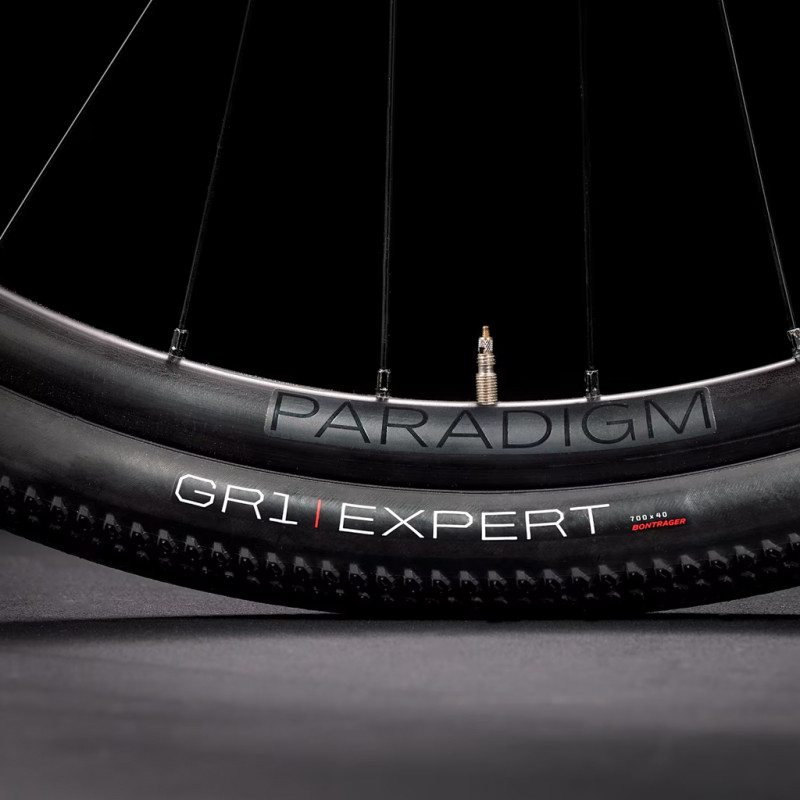

The Shimano MT201 hydraulic brakes, paired with 160 mm discs, guarantee consistent and reliable stopping power in all conditions. The cockpit features a manually adjustable IsoZone handlebar, designed for hand comfort, mounted on a Blendr-compatible stem, ideal for adding a GPS or lights. The tubeless-ready Bontrager Paradigm wheels, with an internal width of 21 mm, are fitted with Bontrager GR1 Expert 700×40c tyres, which are highly durable and offer excellent rolling efficiency.

Technical specifications

Frame:
- Frame: OCLV Carbon 400 Series, internal cable routing, 3-point chainstay, DuoTrap S compatible, mudguard mounts, Flat-Mount disc brakes, Thruskew 135x5 mm
- Fork: Carbon, concealed mudguard mounts, Flat-Mount disc brakes, 100x5 mm thru-axle

Drivetrain:
- Pedals: Model supplied: VPE-993T
- Shift lever: Shimano RS700, 11-speed
- Crankset: Size: S: Shimano GRX RX600, 40-tooth chainring, 170 mm length
- Cassette: Shimano SLX M7000, 11-42, 11-speed
- Rear derailleur: Shimano GRX RX812, long cage
- Chain: Shimano 105 HG601, 11-speed

Braking:
- Brakes: Shimano, hydraulic disc, MT201 lever, UR300 caliper
- Discs: Shimano RT10, Centerlock, 160 mm

Components:
- Handlebar: Size: S: Bontrager Satellite Plus IsoZone, aluminium alloy, 31.8 mm, 15 mm rise, 600 mm width
- Stem: Size: S: Bontrager Elite, 31.8 mm, Blendr-compatible, 7 degrees, 100 mm length
- Seatpost: Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length

Wheels:
- Rims: Bontrager Paradigm, Tubeless Ready, 32-hole, 21 mm width, Presta valve
- Tyres: Bontrager GR1 Expert, Hard-Case Lite, bead-sealed, 60 tpi, 700x40 mm

General information:
- Colour: Red Carbon Smoke

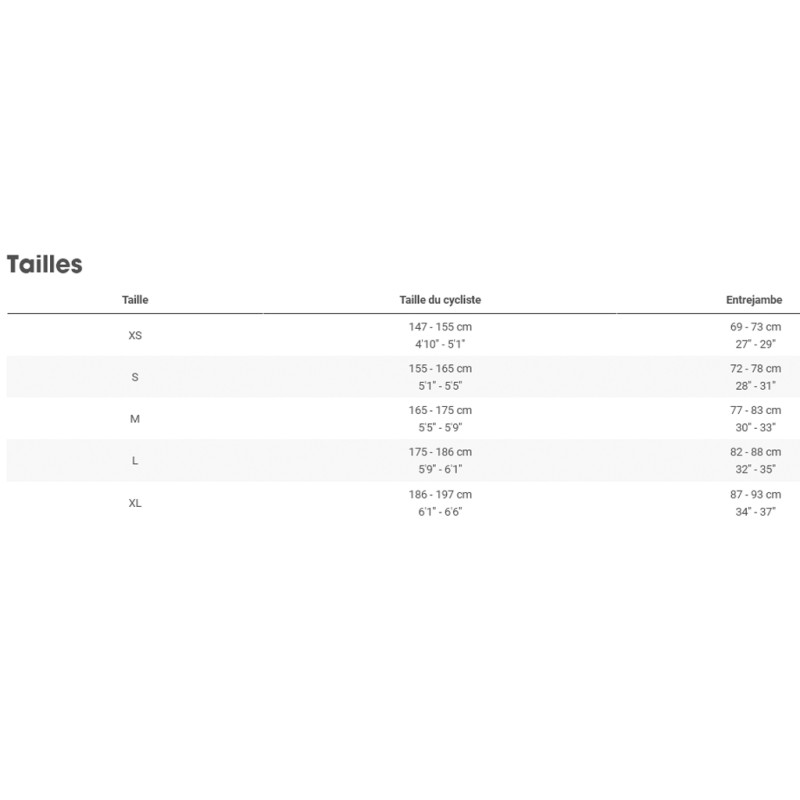

- Sizes: S
- Brand: Trek
- Weight: Approx. 10.2 kg (size M, without pedals)
