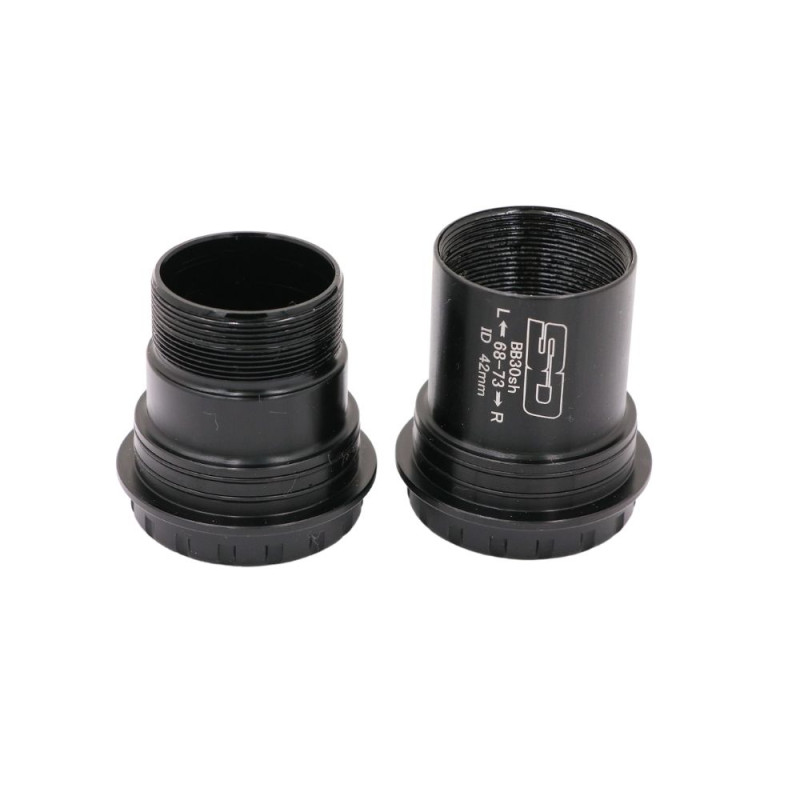

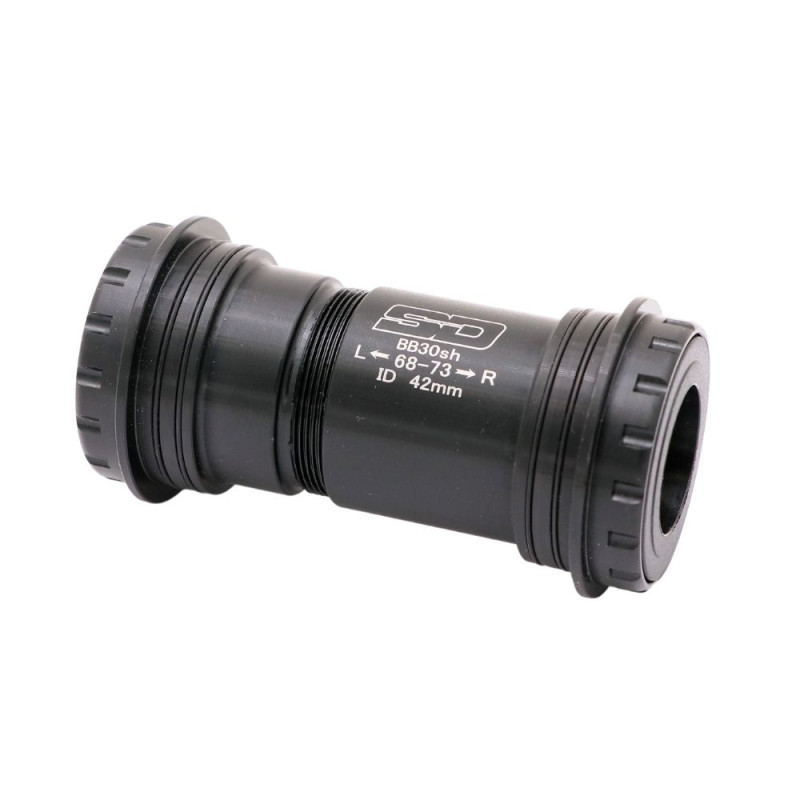

SD Components BB30 Black BMX Bottom Bracket

This SD Components bottom bracket is specially designed for BMX racing. It allows a crankset fitted with a 24mm axle to be installed on a frame with a bottom bracket shell 68mm wide externally and 42mm in internal diameter.
The SD bottom bracket offers both stiffness and practicality. Thanks to its threaded snap-fit system, it can be installed without a press, simply by screwing the two bearings together using a specific Shimano-type spanner.
Fast, efficient and rigid: these are the terms that perfectly describe this SD
Components bottom bracket.

Technical specifications:

- Material/Design: Aluminium - 100% CNC machined
- Bottom bracket type: BB30SH TO 24mm
- Inner diameter for the axle: 24mm
- External width (frame): 68mm
- Internal diameter (frame): 42mm
- Redesigned bearings for 24mm bottom bracket axle
- Threaded installation system for easy press-free assembly
- Clamping profile: Standard Shimano
- Double-lip seals for a secure fit in the frame

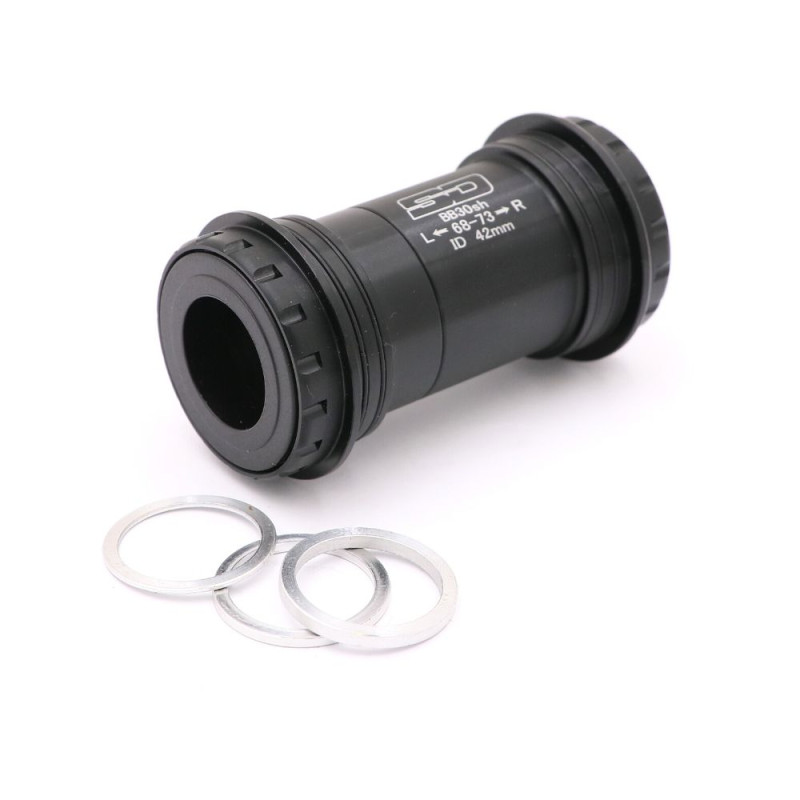

- Three spacers included to adjust the Q-factor and your chainline
- Weight: 123g
