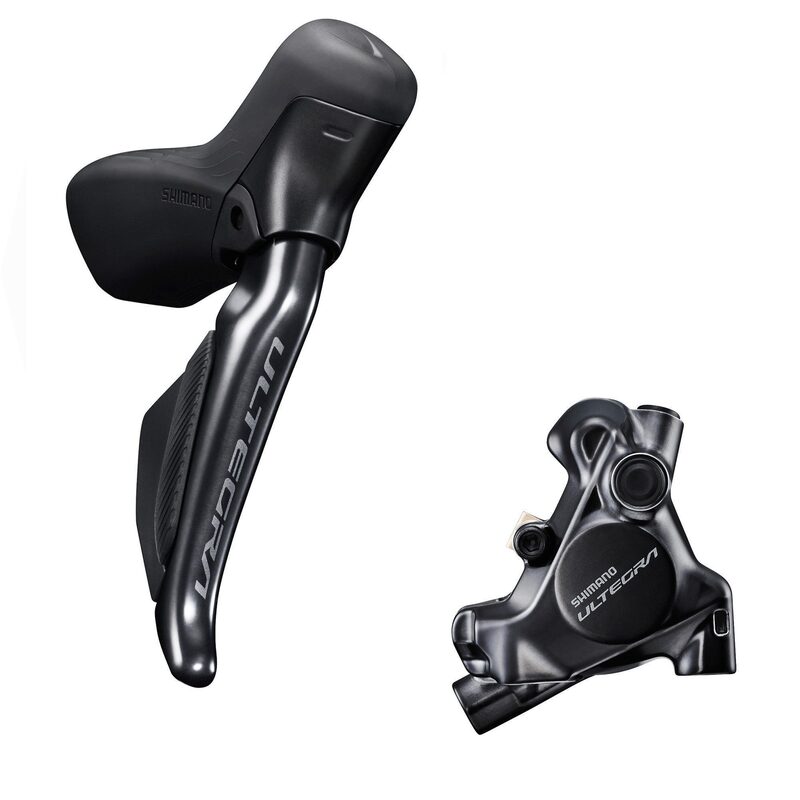

Shimano Ultegra DI2 12V R8170 hydraulic right-hand lever with flat mount brake caliper

Voir les avis clients Average rating: 4.8 out of 5. Based on 11 reviews
Rear brake assembly, wireless derailleur connection

I choose my options

Packaging

Bracket mounting

Transmission type

MPN : IR8170DRRDSC170A | EAN : 4550170889630 | Ref : 18696380001
€436.44
Price : €529.99
In stock
Logo Société des Avis Garantis

Based on 11 reviews

Show reviews
Poignée droite Shimano Ultegra DI2 11V R8170 Hydraulique avec Etrier de frein Flat Mount

Shimano Ultegra DI2 12V R8170 hydraulic right-hand lever with flat mount brake caliper

More details In stock

Shimano Ultegra DI2 12V R8170 hydraulic right-hand lever with flat mount brake caliper

€436.44
Our advice

The Ultegra DI2 handle and R8170 caliper combination will break records. Shimano's braking system is now the most sophisticated in this price range.

Bruno V.

Road specialist

- The Shimano R8170 lever offers high-end ergonomics and adjustment options. Firstly, it uses wireless technology to connect to the derailleur. This gives the cockpit a cleaner look. If you feel the need, a wired connection is also possible. The lever stroke is also adjustable, giving you a more precise and smoother feel. In an emergency, you always have the full power of disc braking. The handle is slightly larger to suit all body types. It is also oriented inwards to facilitate access to the paddles with your hands at the bottom of the handlebar. You have the option of connecting a sprinter-type satellite button (in the hollow of the handlebar) or a climber-type button (at the top of the handlebar).The caliper is more compact, with 10% more spacing for the disc and quieter operation. The bleeding system is also easier to use and therefore accessible to a wider audience. The J-Kit system allows for quick installation, although bleeding is always recommended after installation. The hose is reference SM-BH90-JK-SSR, the caliper has two pistons and a standard Flat Mount position. The caliper weighs 136 grams (manufacturer).

Technical specifications - 12 speeds - R8170 lever and caliper assembly - Lever stroke adjustment - Wireless connection to the derailleur- Improved maintenance and bleeding - Hose length (front brake) 1700 mm - Compatible with mineral oil only - J-Kit - Sold with brake pads- Caliper weight 136 grams, lever weight approx. 190 grams (391 grams per pair)
- Flat Mount caliper position, 2 pistons
- 10% more spacing at the pads to reduce noise
- Recommended disc: RT-MT800
- Brand: Shimano

Presentation and test of the new Shimano 12-speed groupset on velotech.fr: New Shimano 12-speed road groupset: R9200 and R8100 New Shimano 12-speed road groupset: R9200 and R8100

Packaging Right handle
Bracket mounting Flatmount
Transmission type Electric
EAN 4550170889630
Supplier reference IR8170DRRDSC170A

Customer reviews

Average rating: 4.8 out of 5

Based on 11 reviews

Show attestation (opens in a new window)
  • Rated 5 out of 5 Rodrigo P.

    Published Mar 12, 2026 at 11:13 pm Order date: Feb 28, 2026 Original language: Spanish (Translated review)

    Well prepared.

  • Rated 5 out of 5 Jean-claude T.

    Published Mar 12, 2026 at 05:51 pm Order date: Feb 27, 2026 Original language: French (Translated review)

    Good product

  • Rated 5 out of 5 Deyvid M.

    Published Jan 02, 2026 at 09:28 pm Order date: Dec 23, 2025 Original language: French (Translated review)

    I approve

  • Rated 5 out of 5 Flavien C.

    Published Nov 13, 2025 at 08:11 pm Order date: Nov 01, 2025 Original language: French (Translated review)

    Top

  • Rated 4 out of 5 Nicolas C.

    Published Sep 11, 2025 at 01:45 am Original language: French (Translated review)

    I take off one star because 1) the hose insert is missing 2) the handle requires a Di2 cable for firmware updates, which requires an additional purchase and disassembly of the battery (go figure, on the purchase of a complete group my left handle is up to date, and the right one is on an old firmware).

  • Rated 5 out of 5 JANICK G.

    Published Mar 19, 2025 at 04:36 pm Original language: French (Translated review)

    Very good group. Smooth, light and good braking.

  • Rated 4 out of 5 Frederic M.

    Published Sep 05, 2024 at 01:06 am Original language: French (Translated review)

    I received the group but the description deserves more details about the contents. The kit includes the hose, a di2 cap, a spacer plate, the screws for the caliper, an unknown element. But the insert to put at the end of the hose Y8JA98020 is missing, unfortunate

  • Rated 5 out of 5 Christian B.

    Published Jul 15, 2024 at 09:14 am Original language: French (Translated review)

    I received the complete group, perfect!!!

  • Rated 5 out of 5 Michel P.

    Published Mar 25, 2024 at 04:12 pm Original language: French (Translated review)

    I received the complete group I highly recommend more noise when shifting gears and braking is top I am in the Luberon and easy to mount

  • Rated 5 out of 5 Olivier s.

    Published Mar 07, 2024 at 07:08 pm Original language: French (Translated review)

    Very good ergonomics of the lever and wireless, a real plus
