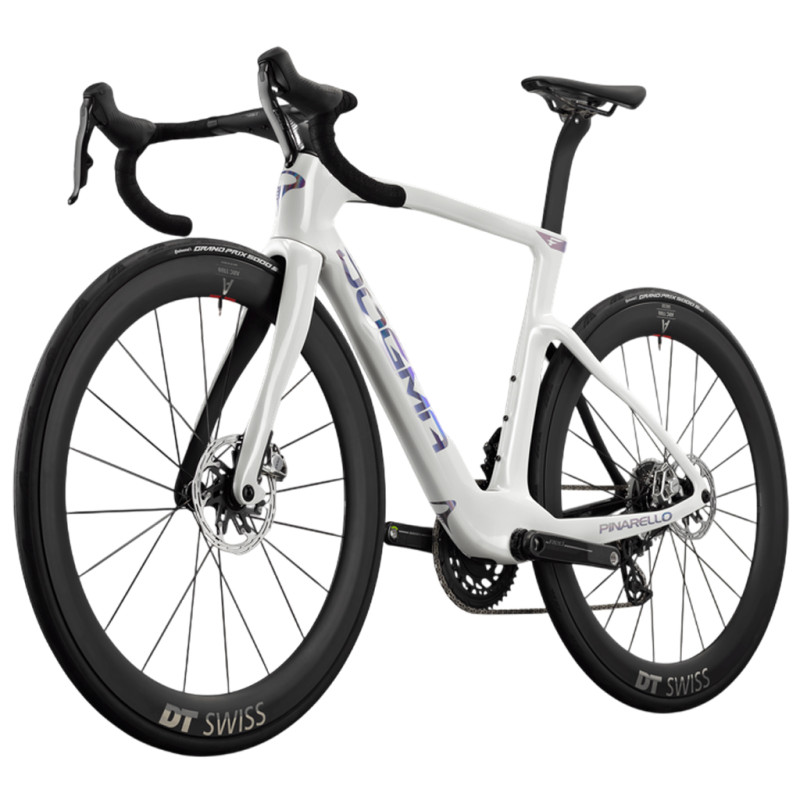

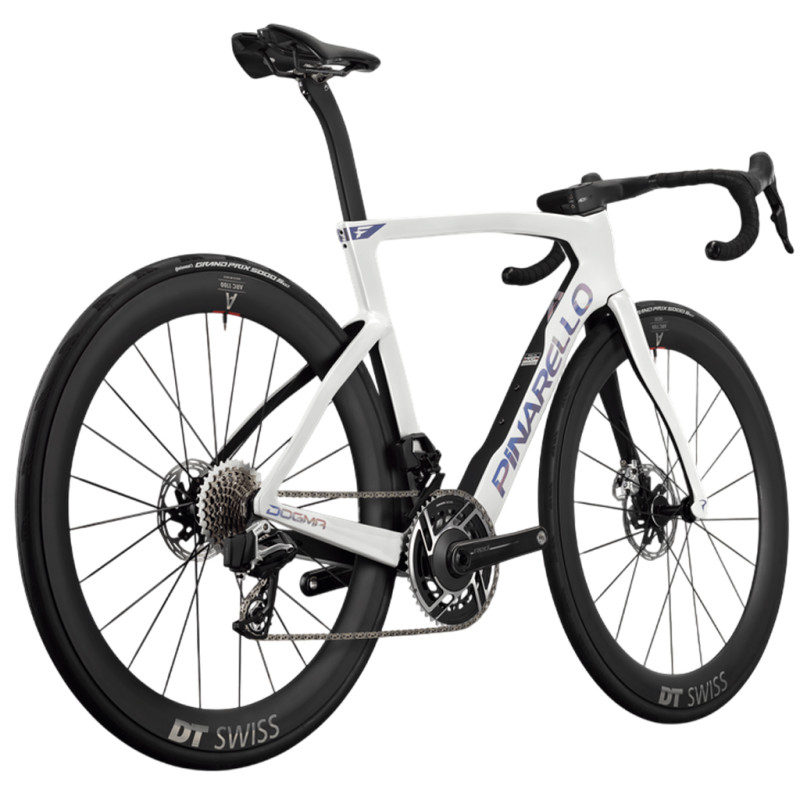

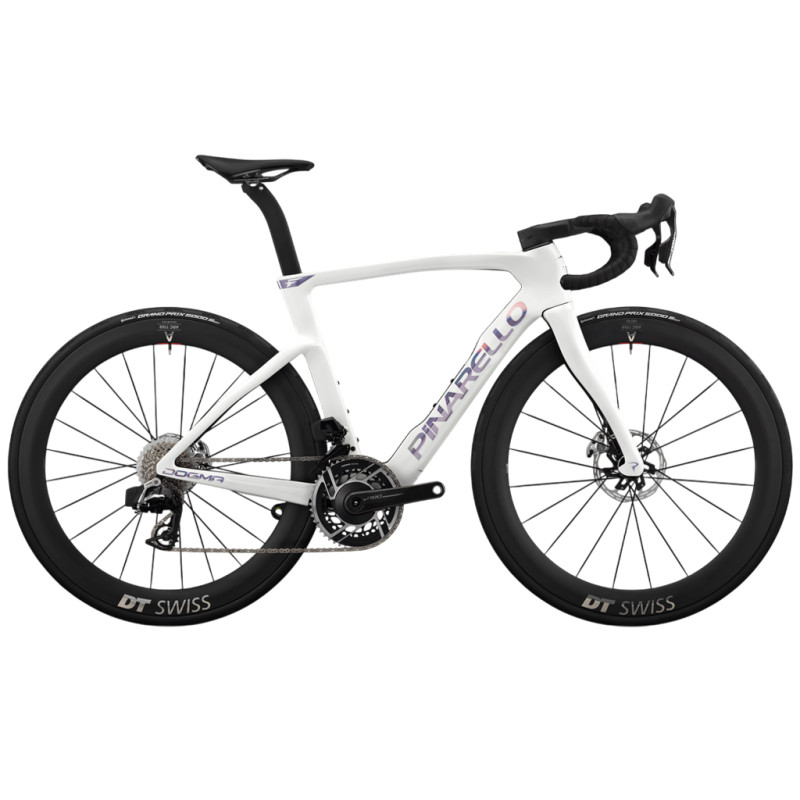

Pinarello road bike, Dogma F Shimano, Dura-Ace Di2 12-speed, DT Swiss, ARC 1100 55 J100 Phantom Ice

The Dogma F Pinarello embodies the brand’s most advanced expertise in competitive road bikes. Its TorayCa M40X carbon frame combines lateral stiffness with weight management, whilst the new down tube, the Aero-Keel bottom bracket area and the tapered head tube have been engineered to improve aerodynamic efficiency. The new Onda fork and performance-oriented geometry complete a package designed to deliver precision and efficiency when the pace picks up.

In this J100 Phantom Ice colourway, the Dogma F is fitted with theShimano Dura-Ace Di2 electronic groupset, which ensures precise and rapid gear changes as well as high-performance disc braking in all conditions. The pair of ARC 1100 55 wheelsets from DT Swiss further enhance its sporty character, whilst the Grand Prix 5000 S TR tyres from Continental and the integrated Talon Ultra Fast cockpit from Most round off this top-of-the-range build. Weighing just 6.63 kg (size 53), excluding pedals and water bottles, this Dogma F combines top-of-the-range components with a design entirely focused on speed.

Technical specifications:

Frame and fork:

- Frame: Pinarello Dogma F, TorayCa M40X carbon, eTiCR cable routing, Italian bottom bracket, UCI-approved
- Fork: Onda eTICR with ForkFlap, 1.5" upper and lower pivots

Drivetrain:

- Crankset: Shimano Dura Ace FC-R9200, HollowTech 2, 12-speed
- Front derailleur: Shimano Dura Ace Di2 FD-R9250
- Rear derailleur: Shimano Dura Ace Di2 RD-R9250
- Cassette: Shimano Dura Ace CS-R9200 12-speed
- Chain: Shimano Dura Ace CN-HG 12S
- Bottom bracket: Shimano Dura Ace SM-BB9200

Brakes:

- Calipers: Shimano Dura Ace BR-R9200, 2-piston caliper
- Discs: 160 mm at the front, 140 mm at the rear

Wheels and tyres:

- Wheels: DT Swiss ARC 1100 55
- Tyres: Continental Grand Prix 5000 S TR, 28-622

Components:

- Handlebars: Most Talon Ultra Fast integrated
- Handlebar tape: Most
- Seatpost: Pinarello Aero Seatpost with 3D Titanium Clamp
- Saddle: Most Lynx Ultrafast Superflow L Carbon Large, 145 mm
- Seatpost clamp: Dogma F TwinForce integrated

Weight and general information:

- Weight: 6.63 kg in size 53, excluding pedals and water bottles
- Discipline: Road / Competition
- Sizes: 43 – 46.5 – 50 – 51.5 – 53 – 54 – 55 – 56 – 57.5 – 59.5 – 62
- Colour: J100 Phantom Ice / White
- Brand: Pinarello

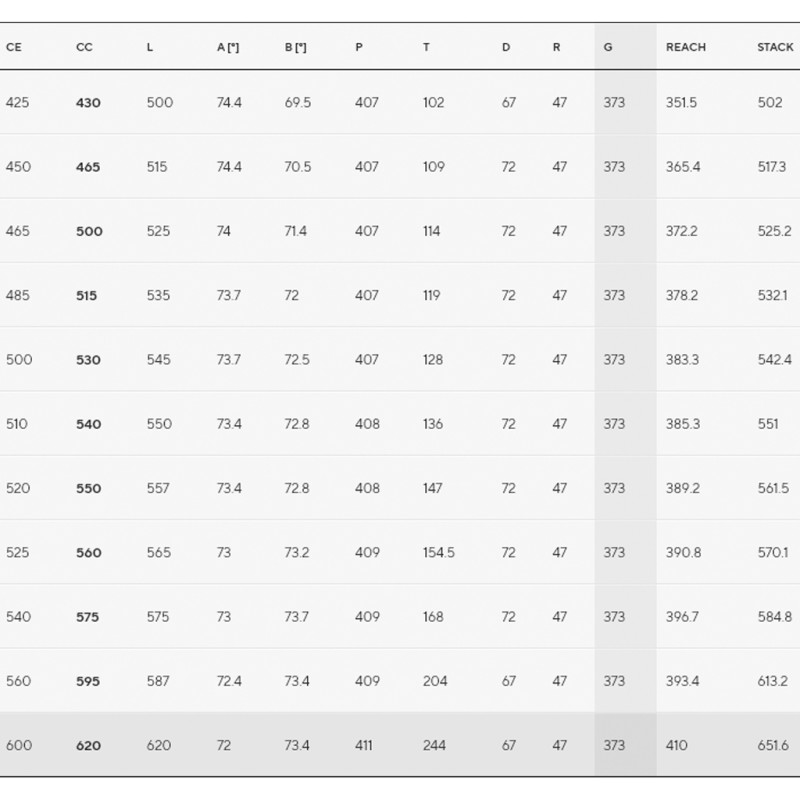

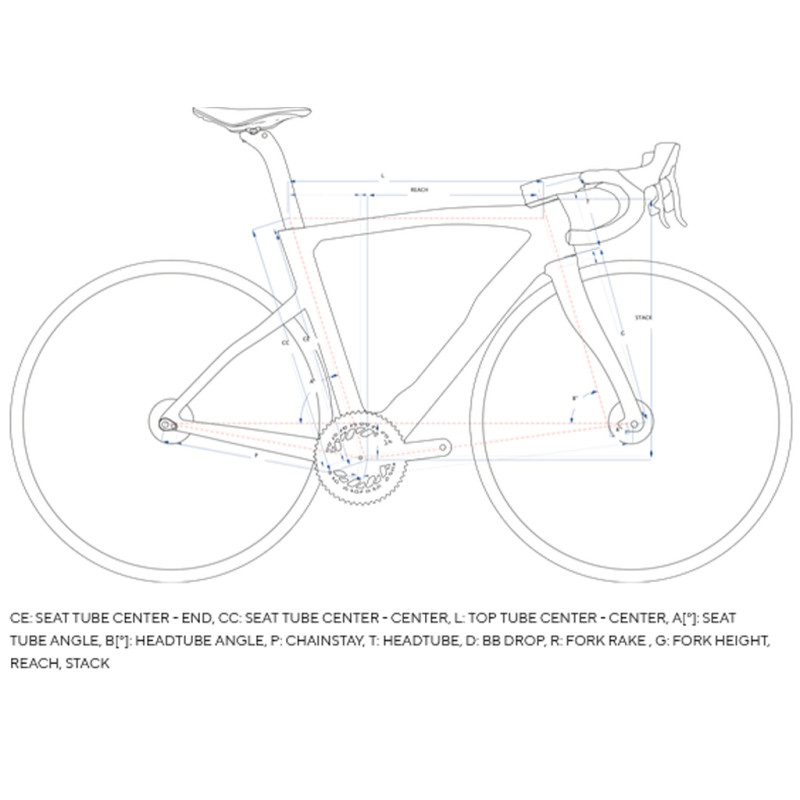

Geometry:

(mm)	43	46.5	50	51.5	53	54	55	56	57.5	59.5	62
A	502	517.3	525.2	532.1	542.4	551	561.5	570.1	584.8	613.2	651.6
B	351.5	365.4	372.2	378.2	383.6	385.3	389.2	390.8	396.7	393.4	410
C	102	109	114	119	128	136	147	154.5	168	204	244
D	425	450	465	485	500	510	520	525	540	560	600
E	500	515	525	535	545	550	557	565	575	587	620
