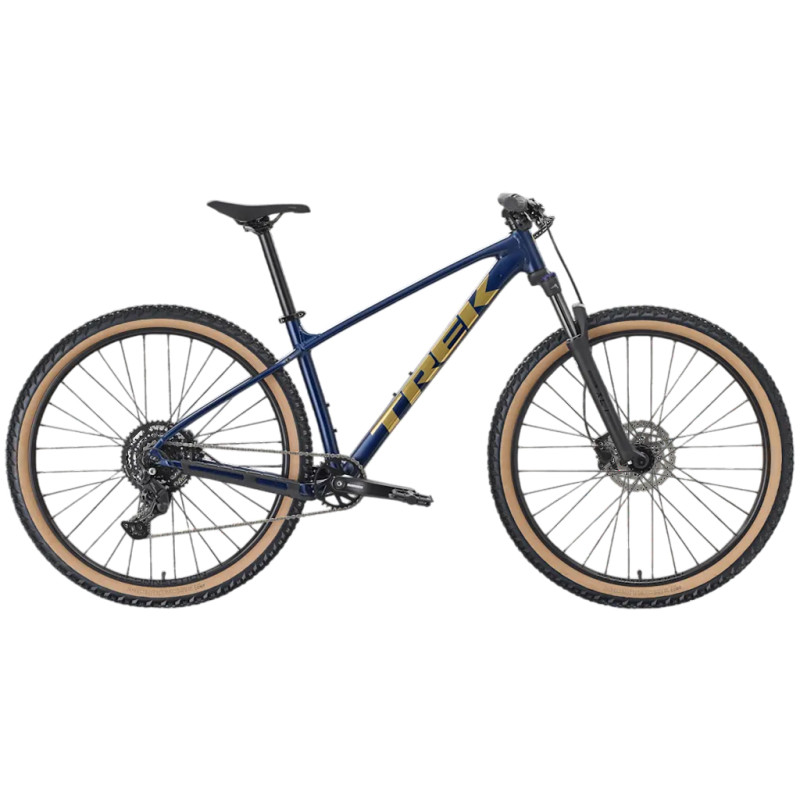

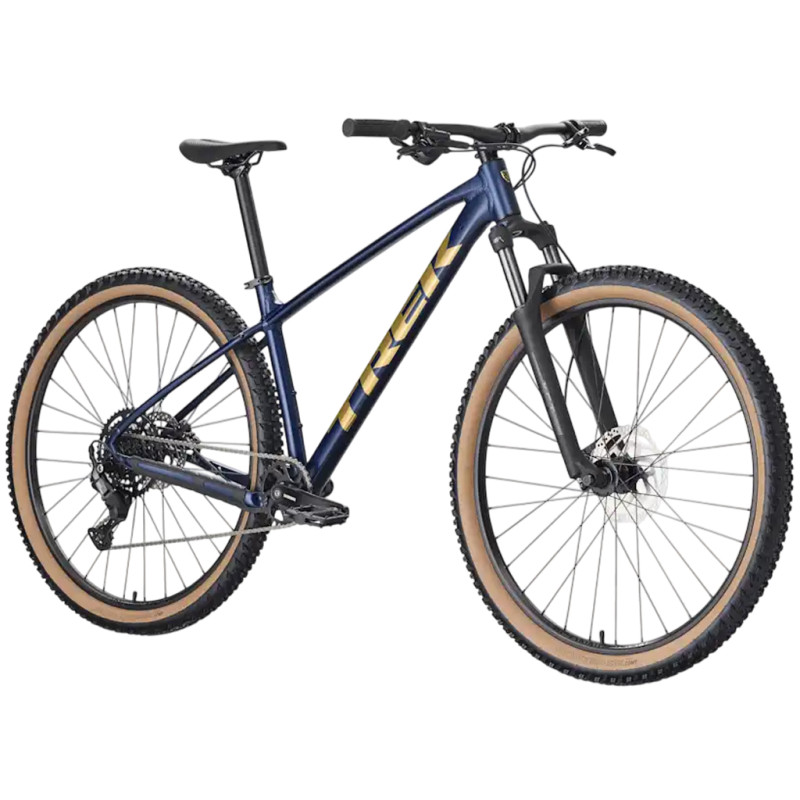

Trek ’s Marlin 5 3rd Gen hardtail mountain bike is a versatile bike designed for both trail riding and everyday commuting.

Its Alpha Silver aluminium frame offers an excellent balance between strength, comfort and stability. The Marlin 5’s geometry provides a confident and balanced riding position, whether on trails or on road sections. Its SR Suntour XCT 30 fork, with 80 or 100 mm of travel, effectively absorbs uneven terrain and enhances riding comfort.

The Shimano CUES 9-speed drivetrain with an 11–46-tooth cassette offers a wide range of gear ratios, allowing you to tackle climbs and fast sections with confidence. The 32-tooth single-chainring crankset simplifies use and makes it easier to manage gear ratios across different terrain profiles. Shimano ’s MT200 hydraulic disc brakes provide precise control and sufficient stopping power for both mountain bike rides and everyday commuting. The Bontrager Montrose Comp tyres, with a 2.40-inch width, enhance grip and stability on trails and uneven terrain.

Depending on the size, the Marlin 5 is fitted with 27.5-inch or 29-inch wheels to suit the rider’s build. Its rack and kickstand mounts enhance its versatility for urban travel, commuting and cycling adventures.

In its Mulsanne Blue colourway, the Trek Marlin 5 3rd Gen stands out as a comfortable, stable and versatile mountain bike for exploring trails or for everyday commuting.

Technical specifications

frame & fork- Frame: Alpha Silver aluminium, internal cable routing, rack and kickstand mounts, ThruSkew 135x5 mm
- Fork: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 80 or 100 mm travel depending on size

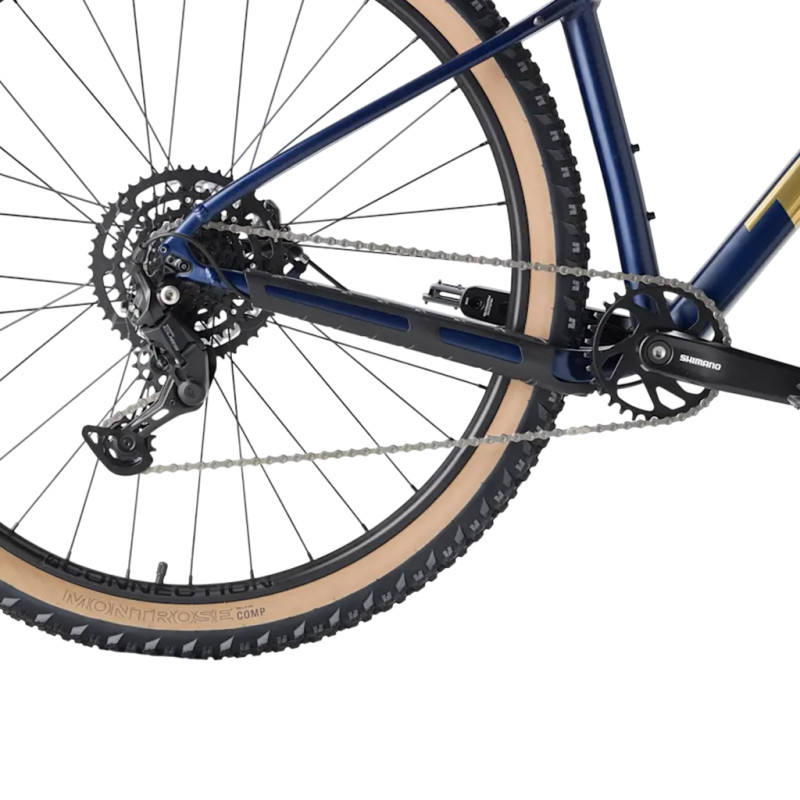

groupset- Drivetrain: Shimano CUES 9-speed
- Gear lever: Shimano CUES U4000, 9-speed with optical indicator
- Rear derailleur: Shimano CUES U4000
- Crankset: Shimano CUES U4001, 32 teeth, 170 mm (XS to ML) or 175 mm (L to XXL)
- Bottom bracket: Shimano, 73 mm, threaded cartridge, 122.5 mm axle
- Cassette: Shimano LINKGLIDE LG300, 11–46 teeth, 9-speed
- Chain: Shimano LG500

Braking
- Brakes: Shimano MT200, hydraulic disc brakes
- Discs: Shimano RT26

Components
- Handlebars: Bontrager, aluminium, 690mm (XS), 720mm (S), 750mm (M, L, XL, XXL)
- Stem: Bontrager Comp, 35mm (XS, S), 50mm (M, ML, L), 60mm (XL), 70mm (XXL)
- Saddle: Bontrager Verse Short, stainless steel rails
- Seatpost: Bontrager aluminium, 31.6 mm diameter, 12 mm offset
- Grips: Trek Line Comp Lock-On nylon
- Headset: Semi-integrated, 1.125"
- Pedals: Nylon platform

Wheels and tyres
- Wheels: Bontrager Connection, double-walled, 32-hole
- Front hub: Formula DC-20, 100x5 mm
- Rear hub: Formula DC-22, 135x5 mm, freehub body Shimano 8/9/10-speed
- Tyres: Bontrager Montrose Comp, 30 TPI, 27.5x2.40" or 29x2.40" depending on size
- Wheels depending on size: 27.5" in XS and S; 29" from M to XXL

General information
- Colours: Mulsanne Blue
- Sizes: XS, S, M, ML, L, XL, XXL
- Weight: 15.10 kg in size M
- Maximum authorised total weight: 136 kg, including bike, rider and luggage
- Brand: Trek
