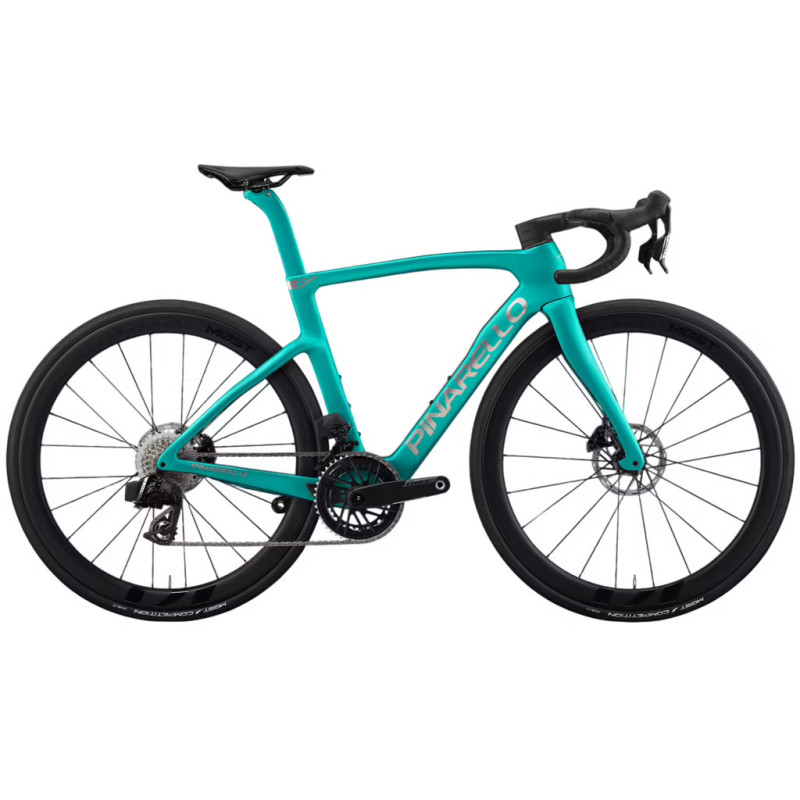

Pinarello F7 road bike with SRAM Force, AXS E1 12-speed, Ultrafast 45 DB H200, Formula, Green Matt – 25 mm cut-off fork pivot

Renowned for its exceptional bikes, the Pinarello brand showcases its expertise with the F7, a top-of-the-range road bike that combines technology, performance and comfort. Built around a Torayca T900 UD carbon frame, it offers the perfect balance between stiffness and lightness to give you a dynamic ride on all terrains.

The Sram Force AXS E1 12-speed electronic drivetrain ensures smooth, fast and precise gear changes, whilst the hydraulic disc brakes guarantee safety and control in all conditions. To complete the build, the Most Ultrafast 45 wheels offer a versatile profile that excels both on mountain terrain and on the flat, with remarkable stability in all conditions. Finally, the H200 ‘ Formula ’ Green Matt colour scheme will make you stand out from the crowd amongst other cyclists.

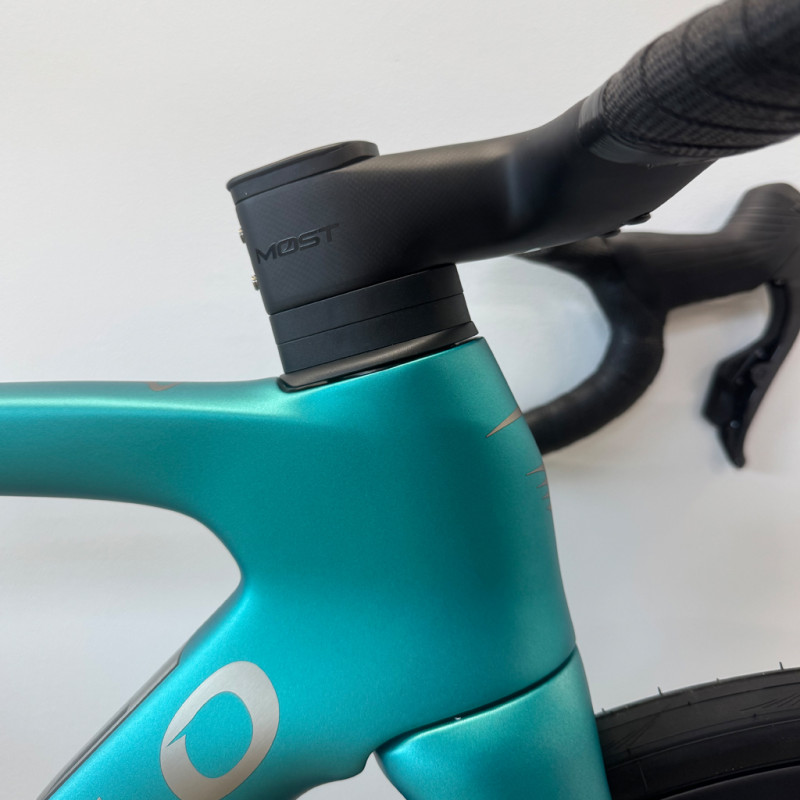

Please note that this bike is a display model, as the fork steerer tube has been cut to 25 mm in our workshop.

Technical specifications:

Frame:

- Frame: Torayca T900 UD, TiCR internal cable routing, Italian BB bottom bracket, UCI-approved
- Fork: Onda Carbon, fork steerer tube cut to 25 mm

Drivetrain:

- Crankset: SRAM Force AXS E1 12-speed
- Cassette: SRAM Force AXS E1 12-speed
- Chain: SRAM Force AXS E1 12-speed
- Grips: SRAM Force AXS E1 12-speed
- Front derailleur: SRAM Force AXS E1 12-speed
- Rear derailleur: SRAM Force AXS E1 12-speed

Braking:

- Disc brakes: SRAM Force E1

Components:

- Stem: Claw Ultra Aero Aluminium
- Handlebars: MOST Talon Ultra Fastu
- Saddle: Most Lynx My26
- Seatpost: FSC Frontal Seat Clamp

Wheels:

- Wheels: Most Ultrafast 45
- Tyres: Most 30

General information:

- Colour: H200 Formula Green Matt
- Size: 46.5
- Weight: 7.8 kg
- Brand: Pinarello

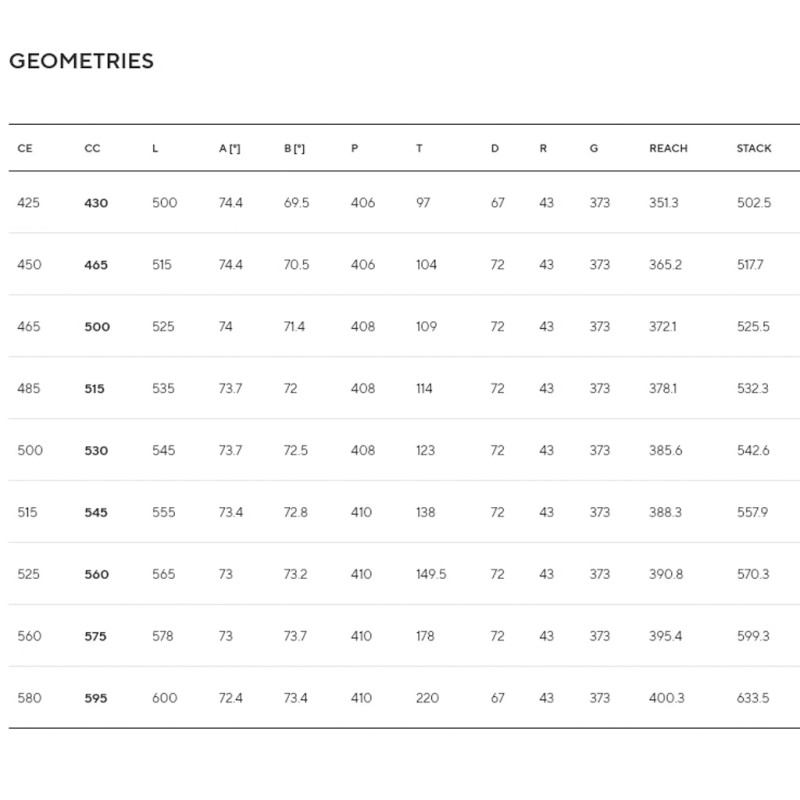

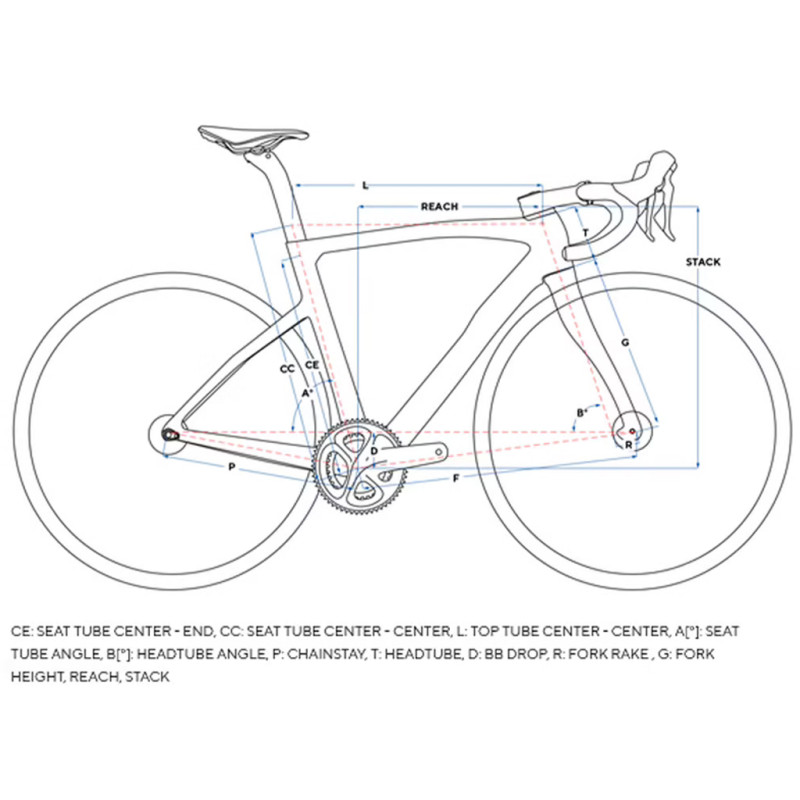

Geometry:

(mm)	43	46.5	50	51.5	53	54.5	56	57.5	59.5
A	502.5	517.7	525.5	532.3	542.6	557.9	570.3	599.3	633.5
B	351.3	365.2	372.1	378.1	385.6	388.3	390.8	395.4	400.3
C	97	104	109	114	123	138	149.5	178	220
D	425	450	465	485	500	515	525	560	580
E	500	515	525	535	545	555	565	578	600
