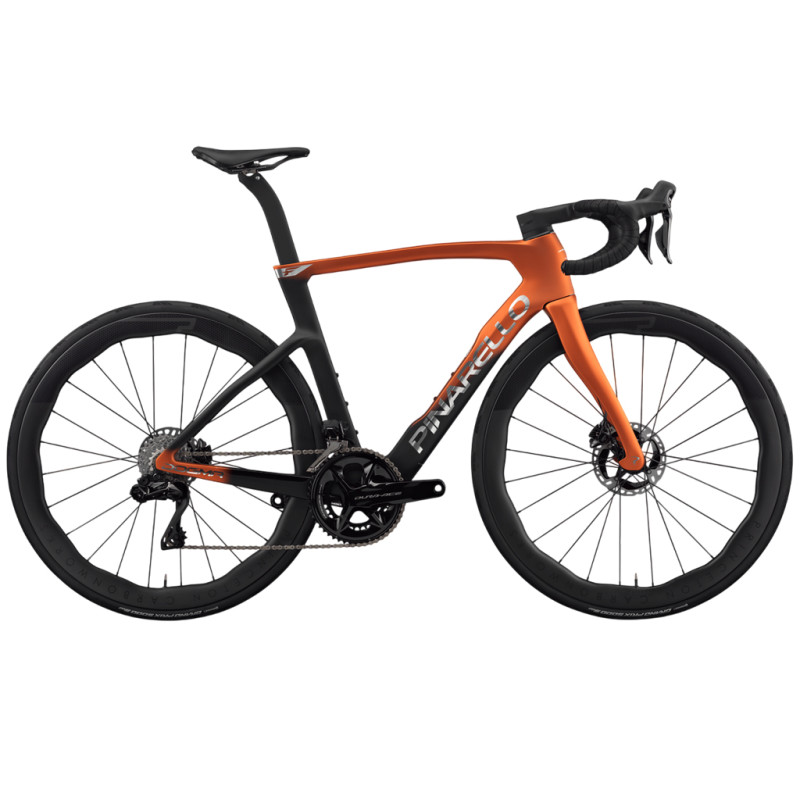

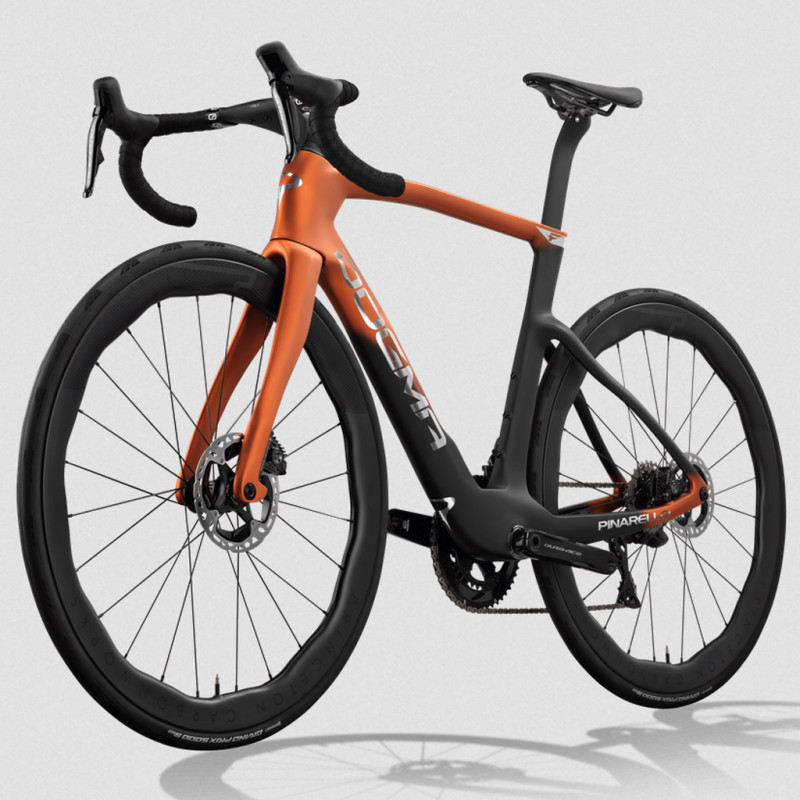

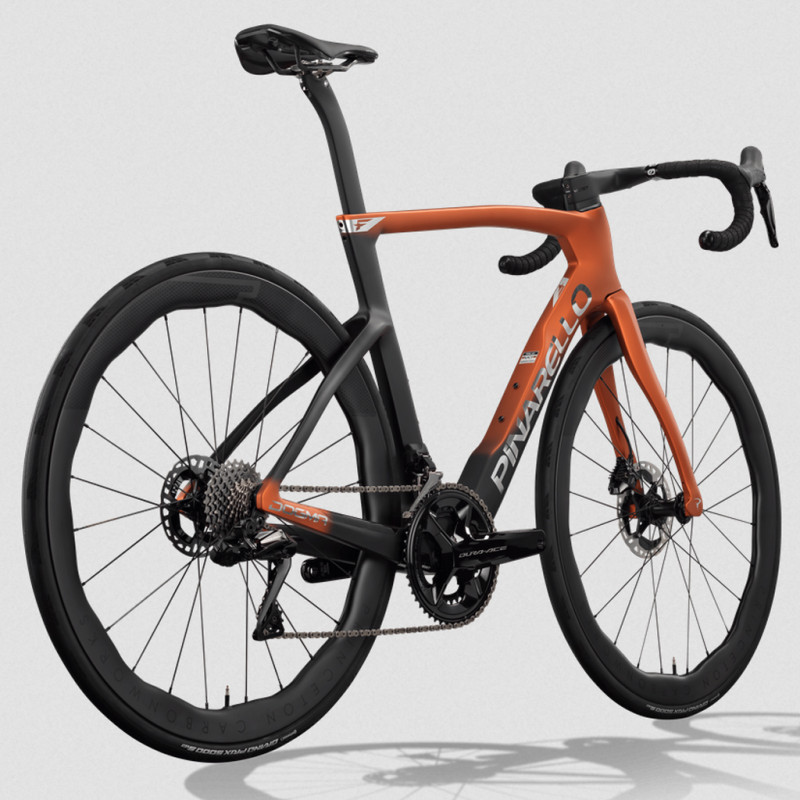

Road bike Pinarello Dogma F Disc Shimano Dura Ace Di2 12v Princeton Peak 4550 H102 Luxter Amber

This Pinarello Dogma F Disc H102 Luxter Amber is the same bike used by the Ineos Grenadiers team in the Tour de France, but in a different colour. Assembled with the same top-of-the-range components, it is THE top-of-the-range bike par excellence. Made from TorayCa M40X carbon and a revolutionary new fibre, the frame is light, responsive and offers exceptional lateral rigidity to transform all your power into speed.

The entire frame has been redesigned. Whether it's the reduced downtube, which improves aerodynamic performance. Or the head tube, slimmer across the width, for a sleeker design. The seatpost is integrated into the frame to lighten the overall weight, while the Onda fork is slimmer and angled to improve handling. The Talon Ultra Fast handlebar and stem combo is lighter and more aerodynamic.

This Pinarello New Dogma F Disc H102 Luxter Amber is fitted with the Shimano Dura-Ace Di2 12v electric groupset, which provides surgical gear shifting and ultra-efficient disc braking in all conditions. Finally, the Princeton Peak 4550 carbon wheels guarantee exceptional performance and responsiveness, so you can shine on any terrain, whether mountain or flat.

Technical specifications :

Frame:
- Frame: TorayCa M40X, TiCR cable routing
- Fork: New eTICR Onda with Forkflap, 1.5' top and bottom pivot

Drivetrain:
- Crankset: Shimano Dura Ace Hollowtech 2 FC-R9200 12s
- Cassette: Shimano Dura Ace CS-R9200 12
- Chain: Shimano Dura Ace CN-M9100
- Handles: Shimano Dura Ace Di2 ST-R9270
- Front derailleur: Shimano Dura Ace Di2 FD-R9200 12v
- Rear derailleur: Shimano Dura Ace Di2 RD-R9200 12v

Braking:
- Brakes: Shimano Dura Ace BR-R9200, 2 pistons
- Discs: 160mm front 140mm rear

Components:
- Integrated handlebar-post: Most Talon UltraFast
- Saddle: Most lynx Ultrafast Superflox L Carbon Large 145mm
- Seatpost: Pinarello Aero with 3d printed titanium seat clamp Bottle cage: Most Trap PACF, and Elite Fly 550ml black bottle cage

Wheels:
- Wheels: Princeton Peak 4550
- Tyres: Continental GP5000 S TR 28mm

General information:
- Colour: H102 Luxter Amber
- Sizes: 43, 46.5,50 ,51.5,53,54,55,56,57.5,59,5,62
- Weight: 6.77kgs (size 53)
- Brand : Pinarello

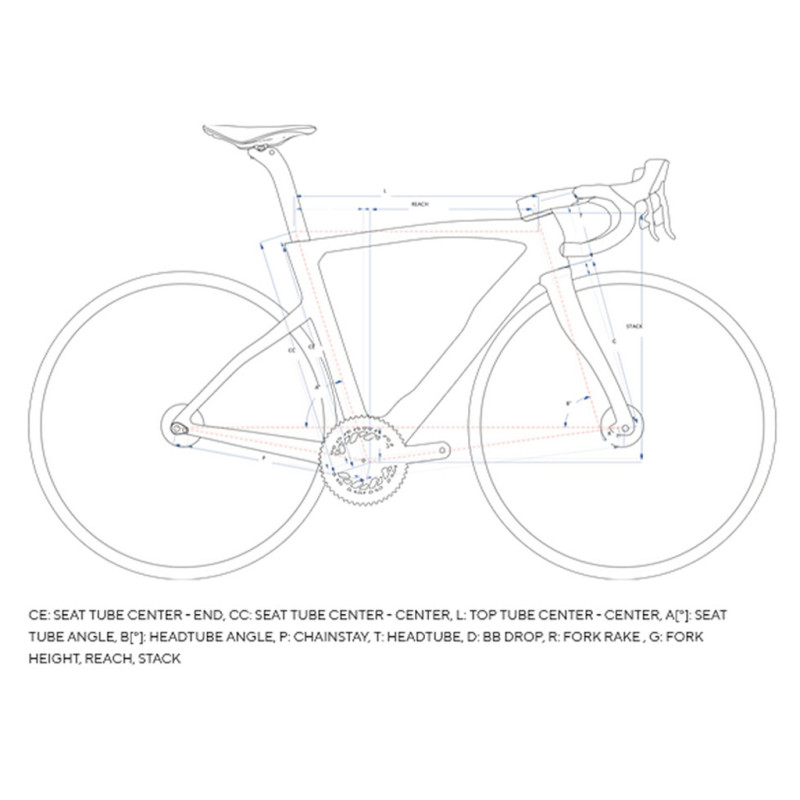

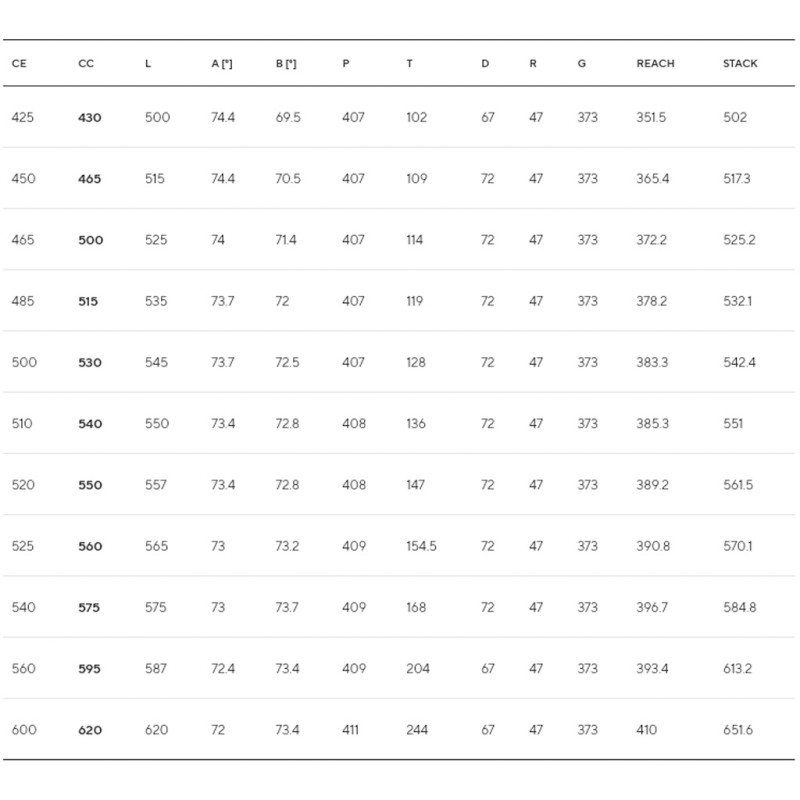

Geometry :

(mm)	43	46.5	50	51.5	53	54	55	56	57.5	59.5	62
A	502	517.3	525.2	532.1	542.4	551	561.5	570.1	584.8	613.2	651.6
B	351.5	365.4	372.2	378.2	383.6	385.3	389.2	390.8	396.7	393.4	410
C	102	109	114	119	128	136	147	154.5	168	204	244
D	425	450	465	485	500	510	520	525	540	560	600
E	500	515	525	535	545	550	557	565	575	587	620
