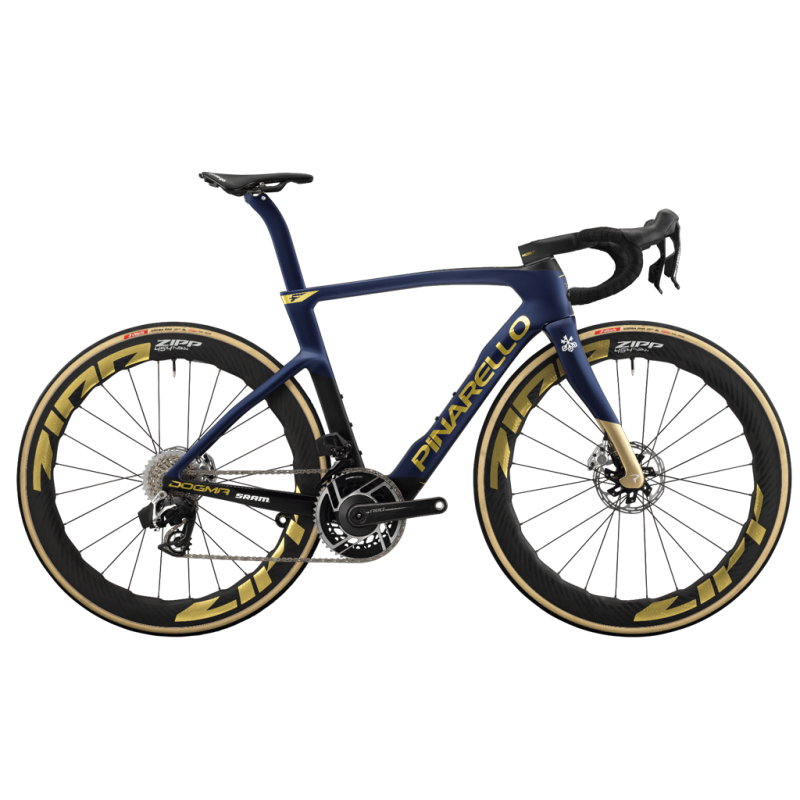

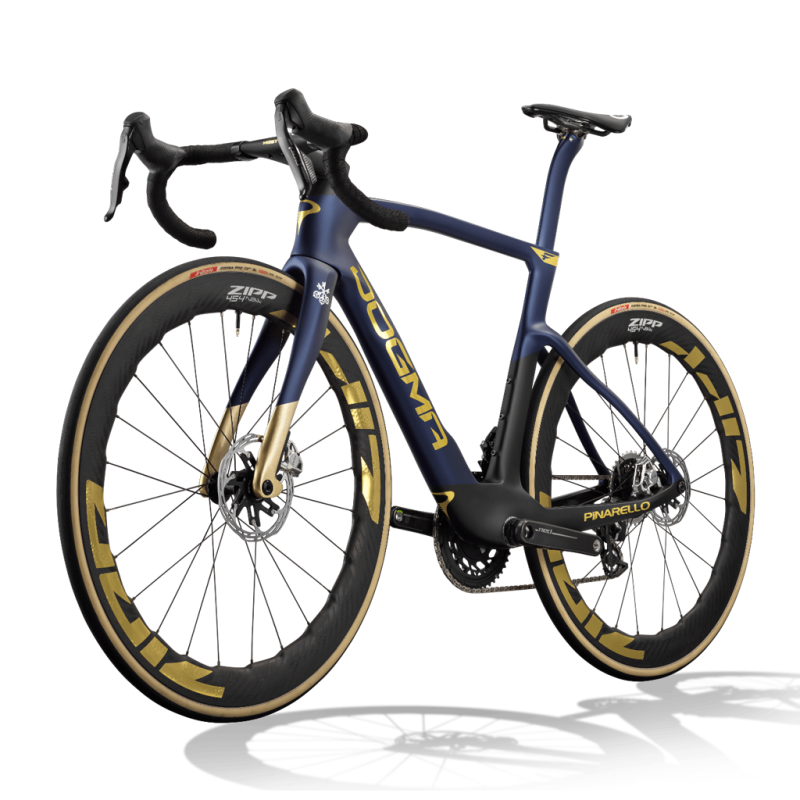

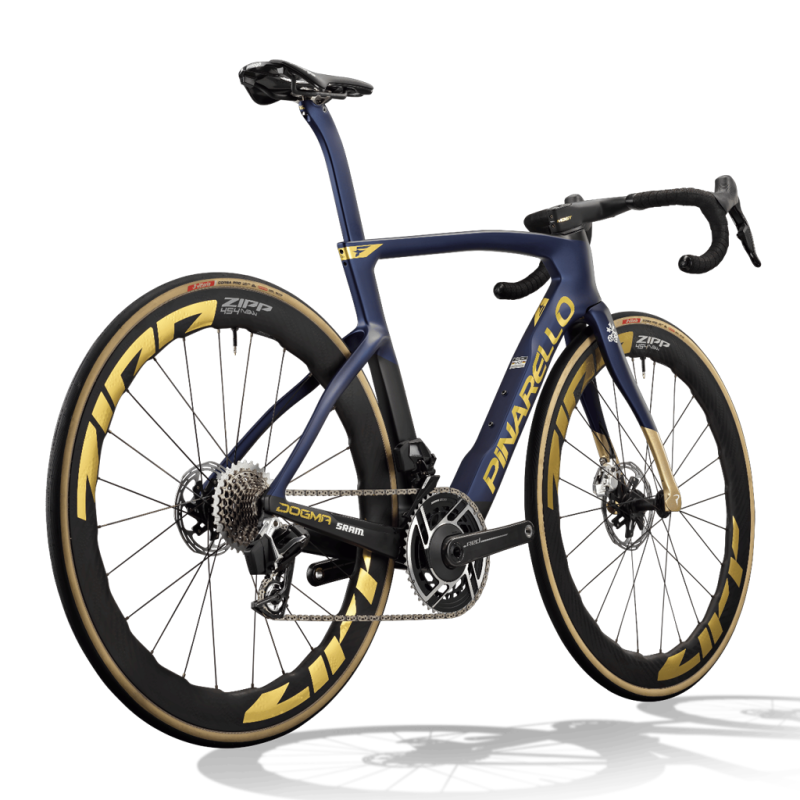

Pinarello New Dogma F Disc Sram Red AXS 12v Zipp 454 NSW H105 Q36.5 Replica 2026 road bike

The Pinarello New Dogma F Disc 2026 in the SRAM Red eTap AXS version represents the ultimate in road performance. Developed in collaboration with professional teams and available here in the prestigious H105 Q36.5 Replica colour scheme, this bike embodies the perfect fusion of aerodynamics, stiffness and lightness.

Its TorayCa M40X carbon frame delivers exceptional performance thanks to increased lateral stiffness and optimal vibration absorption. Every detail has been optimised for aerodynamics: AeroKeel seat tube, new Onda fork, full TiCR cable integration, integrated thru-axles and Talon Ultra Fast headset.

Fitted with the SRAM Red AXS 12-speed electronic groupset featuring a power meter, the Dogma F ensures instant gear changes and impeccable ergonomics. The Zipp 454 NSW high-profile carbon wheels paired with Continental GP 5000 S TR tyres guarantee speed, precision and control, even at very high speeds.

Technical specifications

Frame:
- Frame: Pinarello Dogma F Disc - TorayCa M40X carbon, TiCR cable routing, Italian bottom bracket
- Fork: Onda eTICR carbon with ForkFlap, 1.5" upper and lower steerer

Drivetrain:
- Crankset: SRAM Red eTap AXS 12-speed - Power meter
- Cassette: SRAM Red XG-1290 12-speed
- Chain: SRAM Red 12-speed
- Grips: SRAM Red eTap AXS, 2x12-speed
- Front derailleur: SRAM Red eTap AXS
- Rear derailleur: SRAM Red eTap AXS, 12-speed

Braking:
- Brakes: SRAM Red hydraulic, 2-piston calipers
- Discs: 160 mm front / 160 mm rear

Components:
- Integrated handlebar and stem: MOST Talon Ultra Fast
- Saddle: MOST Lynx Ultrafast Superflow L Carbon - 145 mm
- Seatpost: Pinarello Aero with integrated clamp and 3D-printed titanium bolts
- Bottle cage: Pinarello Fly Cage + 550 ml bottle

Wheels:
- Wheels: Zipp 454 NSW Carbon Disc
- Tyres: Continental Grand Prix 5000 S TR - 28 mm

General information
- Colour: H105 Q36.5 Replica
- Sizes: 43, 46.5, 50, 51.5, 53, 54, 55, 56, 57.5, 59.5, 62
- Weight: 6.63 kg (size 53, excluding pedals and bottle cage)
- Brand: Pinarello

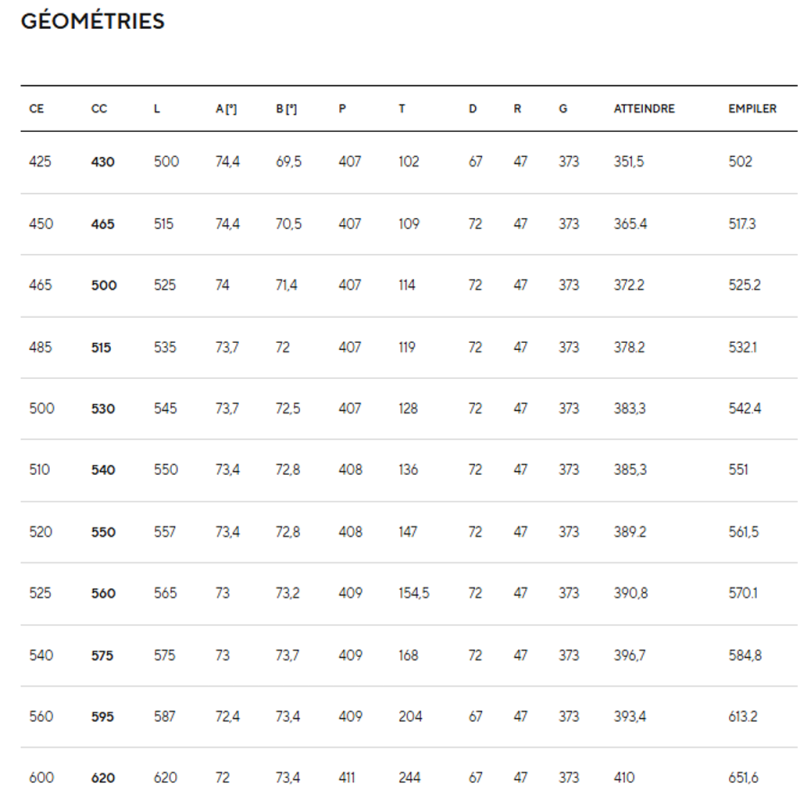

Geometry:

(mm)	43	46.5	50	51.5	53	54	55	56	57.5	59.5	62
A	502.4	517.6	525.4	532.3	542.6	551.2	561.6	570.2	584.8	613.3	651.7
B	351.4	364.8	372.1	378	383.3	385	388.8	390.7	396.7	393.3	410.1
C	97	104	109	114	123	131	142	149.5	163	199	239
D	425	450	465	485	500	510	520	525	540	560	600
E	500	515	525	535	545	550	557	565	575	587	620
