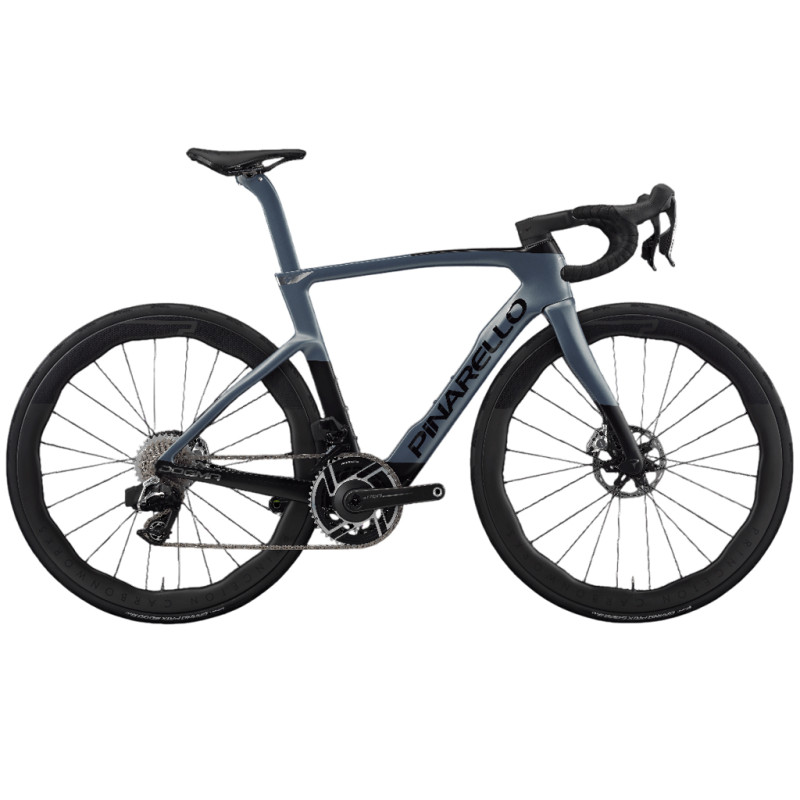

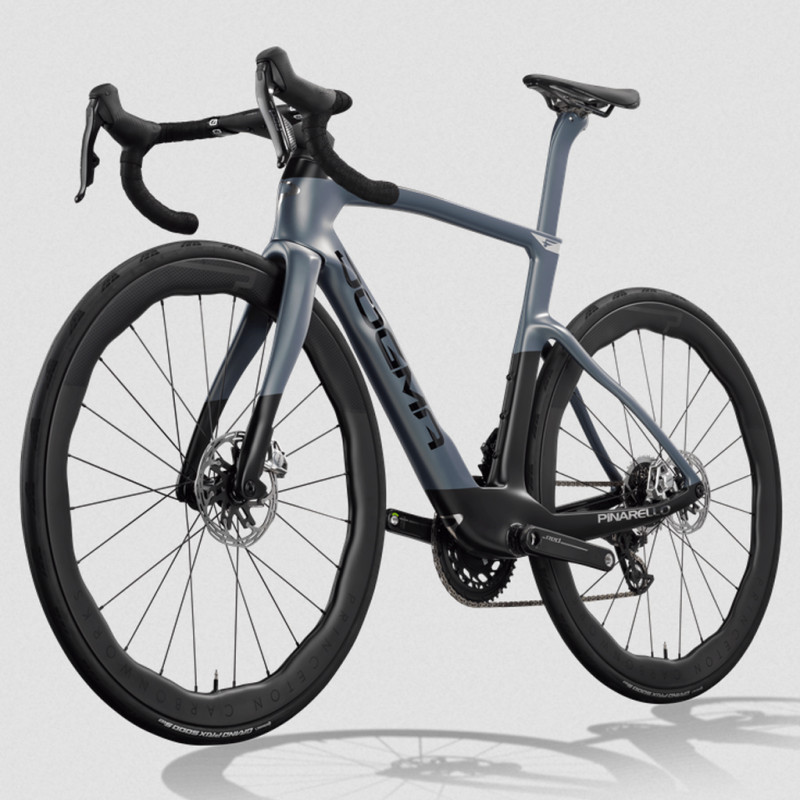

Pinarello road bike, New Dogma F Disc Shimano, Dura-Ace Di2 12-speed DT Swiss, Arc 1450 H101 Luxter Grey Matt

Chosen by the INEOS team riders for major races on the world calendar such as the Tour de France, the Pinarello Dogma F Disc is a top-of-the-range bike. This Italian machine is built around a TorayCa T1100 1K carbon frame designed to be stiff, responsive, lightweight and aerodynamic. Just as fast in the mountains as it is on the flat, this Pinarello Dogma F Disc H101 Luxter Grey Matt is fitted with the Shimano Dura-Ace Di2 groupset, one of the best on the market for both gear changes and disc braking. As for the DT Swiss Arc 1450 wheels, they offer excellent performance on all terrains, whether for racing or training.

Please note that the photo is for illustrative purposes only; the bike is fitted with DT Swiss Arc 1450 wheels and a Shimano Dura-Ace Di2 groupset.

Technical specifications:

Frame:
- Frame: TorayCa T1100 1K Dream Carbon with Nanoalloy technology, TiCR cable routing, Italian BB, UCI approved
- Fork: F Onda Fork with ForkFlap, 1.5" upper and lower steerer, Ultra Light Headset bearings

Drivetrain:
- Crankset: Shimano Dura Ace FC-R9200, HollowTech 2, 12-speed
- Cassette: Shimano Dura Ace CS-R9200 12-speed
- Chain: Shimano Dura Ace CN-HG 12-speed
- Grips: Shimano Dura Ace
- Front derailleur: Shimano Dura Ace Di2 FD-9200 12-speed
- Rear derailleur: Shimano Dura Ace Di2 RD-R9200 12-speed

Brakes:
- Brakes and discs: front - Dura Ace BR-R9200, 2-piston caliper, 160mm rotor / rear - Dura Ace BR-R9200, 2-piston caliper, 140mm rotor

Components:
- Handlebar: Most Talon Ultra Fast
- Saddle: Most Lynx Ultrafast Superflow L Carbon Large 145mm
- Seatpost: Pinarello Aero seatpost with 3D-printed titanium top seatclamp and bolts

Accessories:
- Siphon PACF bottle cage ø 74mm, Fly Bottle Pinarello Bottle 550ml Black

Wheels:
- Wheels: DT Swiss Arc 1450
- Tyres: Pirelli P Zero Race 26mm - Black, 127 tpi aramid breaker

General information:
- Colour: H101 Luxter Grey Matt
- Sizes: 43, 46.5, 50, 51.5, 53, 54, 55, 56, 57.5, 59.5, 62
- Brand: Pinarello

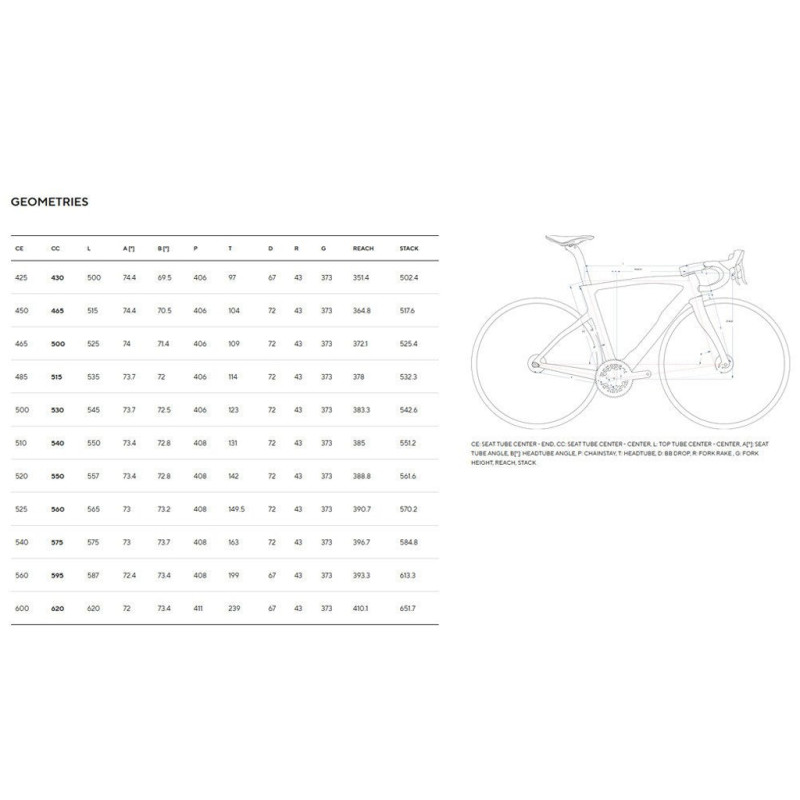

Geometry:

(mm)	43	46.5	50	51.5	53	54	55	56	57.5	59.5	62
A	502.4	517.6	525.4	532.3	542.6	551.2	561.6	570.2	584.8	613.3	651.7
B	351.4	364.8	372.1	378	383.3	385	388.8	390.7	396.7	393.3	410.1
C	97	104	109	114	123	131	142	149.5	163	199	239
D	425	450	465	485	500	510	520	525	540	560	600
E	500	515	525	535	545	550	557	565	575	587	620
