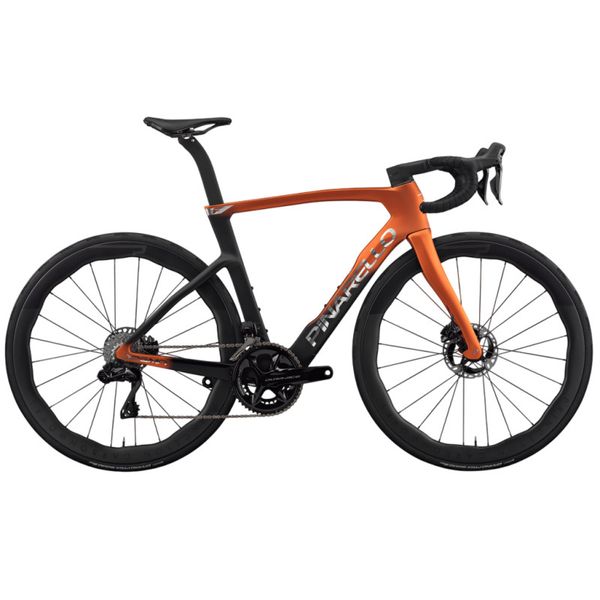

Road bike Pinarello New Dogma F Disc Shimano Dura Ace Di2 12v DT Swiss ARC1450 H102 Luxter Amber

The Pinarello New Dogma F Disc H102 Luxter Amber is the bike used by the Ineos Grenadiers team in the Tour de France, but in a different colour scheme. Fitted with the same components as the pros, it is the ultimate high-end bike. Constructed from TorayCa M40X carbon and a revolutionary new fibre, the frame is lightweight, responsive and offers exceptional lateral stiffness.

The entire frame has been redesigned. This includes the down tube, which has been reduced in size to improve aerodynamic performance, and the head tube, which has been tapered for a sleeker design. The seatpost is integrated into the frame to reduce overall weight, whilst the slimmer, raked Onda fork improves handling. The Talon Ultra Fast handlebar-stem combo is lighter and more aerodynamic.

This Pinarello New Dogma F Disc H102 Luxter Amber is fitted with the Shimano Dura Ace Di2 12-speed electronic groupset. Finally, the DT Swiss Arc1400 wheels ensure exceptional efficiency and responsiveness.

Please note that the photo is for illustrative purposes only; this bike is indeed fitted with DT Swiss ARC1400 wheels.

Technical Specifications:

Frame:
- Frame: TorayCa M40X, TiCR cable routing
- Fork: New eTICR Onda with Forkflap, 1.5" upper and lower pivots

Drivetrain:
- Crankset: Shimano Dura Ace Hollowtech 2 FC-R9200 12-speed
- Cassette: Shimano Dura Ace CS-R9200 12-speed
- Chain: Shimano Dura Ace CN-M9100
- Shifters: Shimano Dura Ace Di2 ST-R9270
- Front derailleur: Shimano Dura Ace Di2 FD-R9200 12-speed
- Rear derailleur: Shimano Dura Ace Di2 RD-R9200 12-speed

Brakes:
- Brakes: Shimano Dura Ace BR-R9200, 2-piston
- Discs: 160mm front, 140mm rear

Components:
- Integrated handlebar-stem: Most Talon UltraFast
- Saddle: Most Lynx UltraFast Superflox L Carbon Large 145mm
- Seatpost: Pinarello Aero with 3D-printed titanium clamp Bottle cages: Most Trap PACF, and Elite Fly 550ml black bottle

Wheels:
- Wheels: DT Swiss ARC1400
- Tyres: Continental GP5000 S TR 28mm

General information:
- Colour: H102 Luxter Amber
- Sizes: 43, 46.5, 50, 51.5, 53, 54, 55, 56, 57.5, 59.5, 62
- Weight: 6.77kg (size 53)
- Brand: Pinarello

Geometry:

(mm)	43	46.5	50	51.5	53	54	55	56	57.5	59.5	62
A	502	517.3	525.2	532.1	542.4	551	561.5	570.1	584.8	613.2	651.6
B	351.5	365.4	372.2	378.2	383.6	385.3	389.2	390.8	396.7	393.4	410
C	102	109	114	119	128	136	147	154.5	168	204	244
D	425	450	465	485	500	510	520	525	540	560	600
E	500	515	525	535	545	550	557	565	575	587	620
