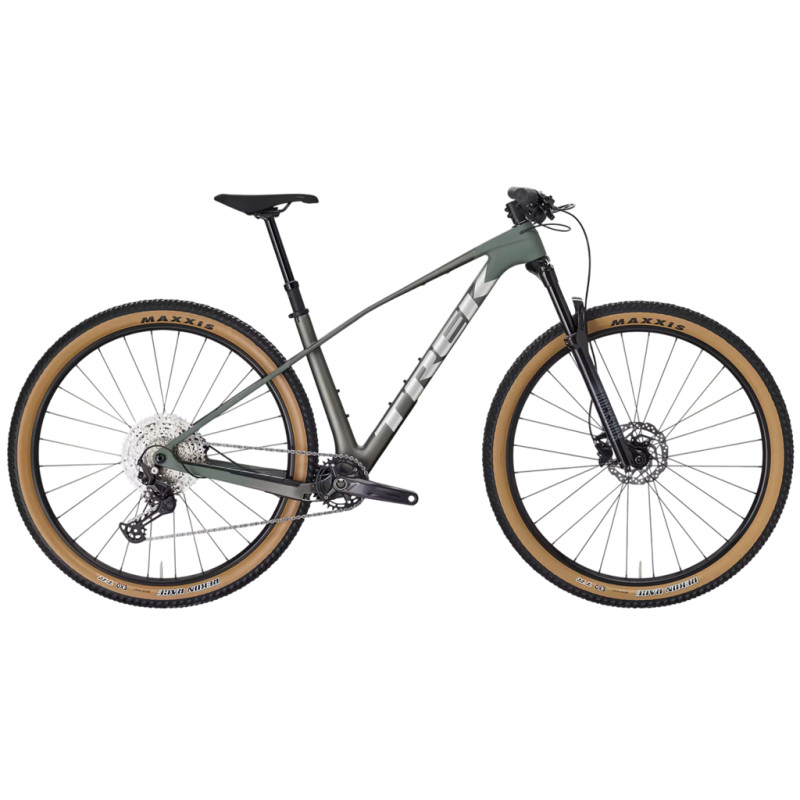

Trek Procaliber 9.5 3rd Gen Matte Keswick Green/Mercury 2026 hardtail

The Procaliber 9.5 3rd generation is a carbon hardtail designed for speed and performance. Its IsoBow technology absorbs terrain vibrations, whilst its aggressive XC geometry ensures agility, control and efficiency on the most demanding trails.

Technical specifications:

Frame:
- OCLV Mountain Carbon with IsoBow technology
- Tapered head tube
- Internal cable routing
- Balanced Post-Mount brake mounts
- Boost148 standard

Fork:
- RockShox Judy Gold, Solo Air spring
- TurnKey lockout
- Tapered steerer, 42 mm offset
- Boost110, 15 mm Maxle Stealth thru-axle
- 120 mm travel

Wheels:
- Front hub: Shimano TC500, aluminium, Centerlock, 110x15 mm thru-axle
- Rear hub: Shimano TC500, aluminium, Centerlock, 148x12 mm thru-axle
- Rims: Bontrager Kovee, double-walled, Tubeless Ready, 28-hole, 23 mm wide

Tyres:
- Front/rear: Bontrager Sainte-Anne Pro XR, Tubeless Ready, aramid bead, 60 TPI
- Tire sizes: 29x2.20" or 29x2.40" depending on fit

Drivetrain:
- Shift lever: Shimano Deore M6100, 12-speed
- Rear derailleur: Shimano Deore M6100, long cage
- Crankset: Shimano MT512, 32-tooth chainring, 55 mm chainline:
- S, M, ML: 170 mm cranks
- L, XL: 175 mm cranks
- Bottom bracket: Shimano MT500, PressFit 92 mm
- Cassette: Shimano Deore M6100, 10-51, 12-speed
- Chain: Shimano Deore M6100, 12-speed
- Max. compatible chainring: 38 teeth

Components:
- Saddle: Bontrager Verse Short, chromoly rails, width 145 mm
- Bontrager Line Dropper seatpost, internal routing, MaxFlow:
- S: 100 mm, Ø31.6, length 310 mm
- M, ML, L: 150 mm, Ø31.6, length 410 mm
- XL: 170 mm, Ø31.6, length 450 mm
- Handlebar:
- S: Bontrager Comp, aluminium, 720 mm, 5 mm rise
- M, ML, L, XL: Bontrager Rhythm Comp, aluminium, 750 mm, 15 mm rise
- Grips: Bontrager XR Trail Comp or Trek Line Comp, nylon lock-on
- Bontrager stem, Blendr-compatible, 31.8 mm, 7° angle:
- S: Comp 50 mm
- M, ML: Elite 60 mm
- L: Elite 70 mm
- XL: Elite 80 mm
- Headset: FSA IS-2 (1-1/8" top, 1.5" bottom)

Braking:
- Brakes: Shimano MT200 hydraulic disc brakes
- Discs: Shimano RT10, Centerlock
- S, M, ML: 160 mm
- L, XL: 180 mm front, 160 mm rear
- Max. disc size: frame 180 mm, fork as per manufacturer

General information:
- Weight (size M): 12.13 kg (26.75 lbs) without inner tubes
- Maximum load capacity: 136 kg (bike + rider + equipment + luggage)
- Brand: Trek
