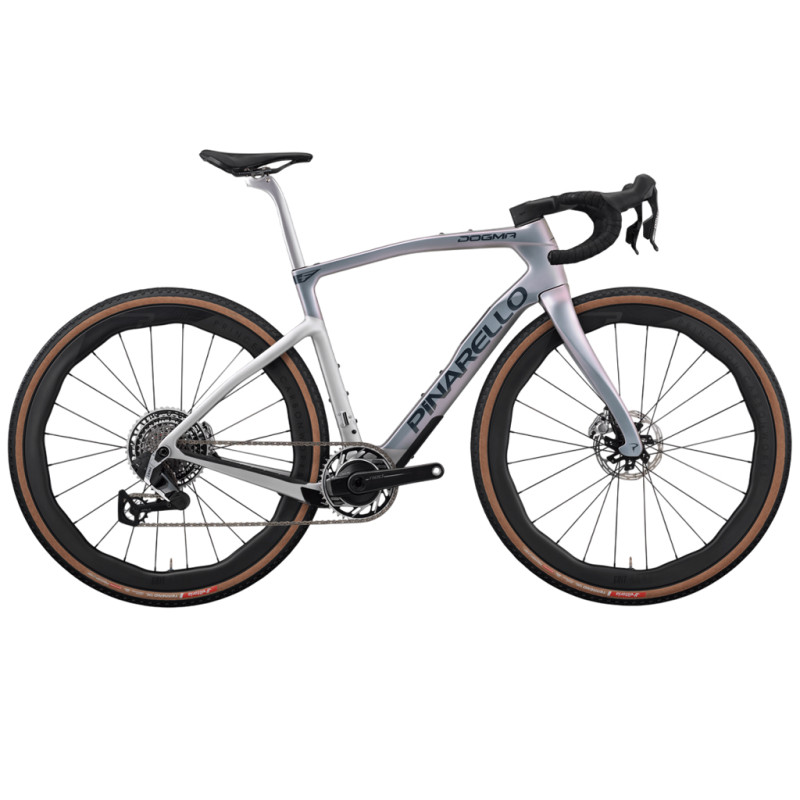

The new Pinarello gravel bike
Be the first to get your hands on Pinarello's brand new high-end gravel bike, the Dogma GR, and shine on every trail. Incredible comfort thanks to the seat post, 42 tyres, frame and, of course, the responsiveness and manoeuvrability you'd expect from a Dogma.
A former racer with a keen eye for equipment
With its Dogma GR, Pinarello offers a clever blend of the speed of the Dogma F, the off-road control of the Crossista and the traction of the Dogma XC. Much more than a classic gravel bike, this Pinarello Dogma GR is designed for competitive riders seeking a high-end bike for fast races over varied terrain. It combines performance, lightness and aerodynamics, whilst offering comfort suited to long distances.

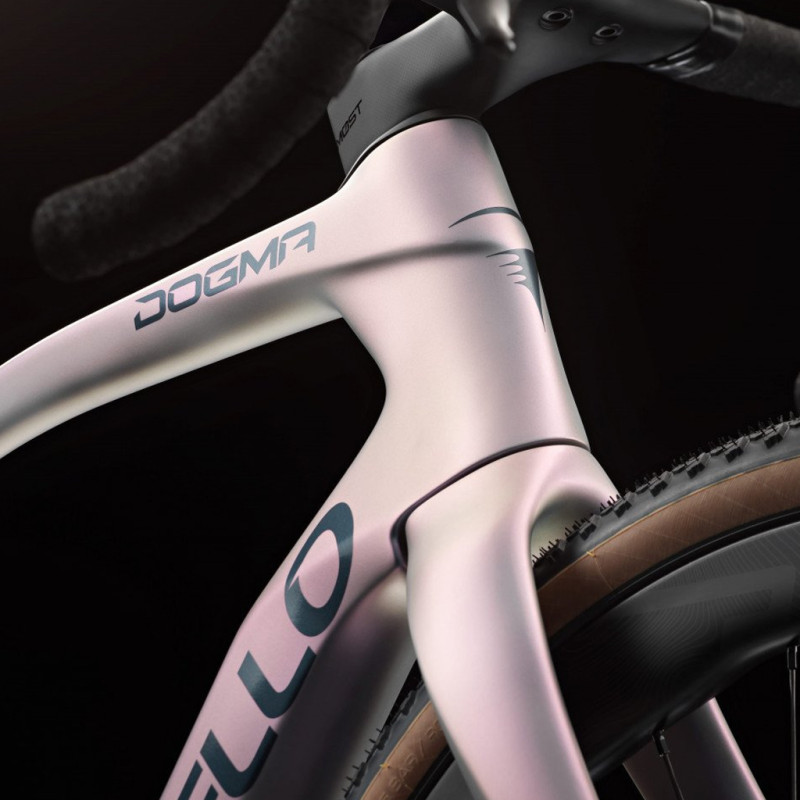

Its stiff and lightweight TorayCa M40X carbon frame features a special gravel geometry. The angles of the seat tube and head tube promote an aero position whilst increasing the feeling of security and stability. The head tube nose features a more streamlined design to improve aerodynamic efficiency. The Talon Ultra Fast GR handlebar combo makes this bike even more high-performance.
The Sram Red XPLR AXS 13-speed groupset offers fast and precise gear changes, as well as high-performance disc braking in all conditions. The Princeton Grit 4540 DB wheels ensure excellent performance on all terrains. With the Pinarello Dogma GR CH140 Interstellar Grey Mat, you’ll be able to dominate gravel races with style and efficiency.
Frame:
- Frame: TorayCa M40X, TiCR Cable Routing, Italian BB
- Fork: NEW eTICR Onda Fork with ForkFlap, 1.5" upper and lower pivots
Drivetrain:
- Crankset: SRAM Red XPLR AXS 1x13-speed
- Cassette: SRAM Red XPLR AXS 1x13-speed
- Chain: SRAM Red
- Grips: SRAM Red
- Rear derailleur: SRAM Red XPLR AXS 1x13-speed
- Bottom bracket: SRAM BB DUB ITALIAN 70mm ROAD WIDE
Brakes:
- Brakes: SRAM Red 2-piston caliper
- Discs: SRAM 160mm
Components:
- Handlebar / integrated stem: Talon Ultra Fast GR
- Saddle: Lynx 2.0 XC
- Seatpost: Pinarello Aero with top clamp and 3D-printed titanium bolts
Wheels:
- Wheels: Princeton Grit 4540 DB
- Tyres: Vittoria Terreno T30 40
General information:
- Colour: CH140 Interstellar Grey Matt

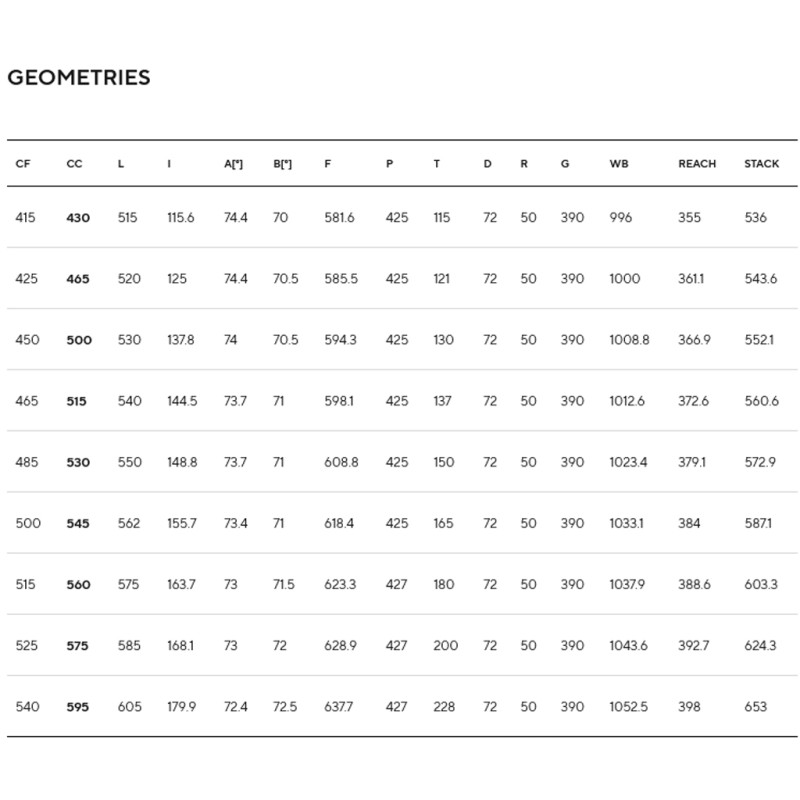

- Sizes: 43, 46.5, 50, 51.5, 53, 54.5, 56, 57.5, 59.5
- Brand: Pinarello
| Colours | grey |
|---|---|
| Size | 56 |
| Type of braking | disc brakes |
| Colours | Size | Type of braking | Availability | Price | Supplier reference | EAN | |
|---|---|---|---|---|---|---|---|
| Web | Stores | ||||||
| grey | 43 | disc brakes | To order, contact us on 04.74.694.694 | Sold out | €14,000.00 | ||
| grey | 46.5 | disc brakes | To order, contact us on 04.74.694.694 | Sold out | €14,000.00 | ||
| grey | 54.5 | disc brakes | To order, contact us on 04.74.694.694 | Sold out | €14,000.00 | ||
| grey | 50 | disc brakes | To order, contact us on 04.74.694.694 | Sold out | €14,000.00 | ||
| grey | 51.5 | disc brakes | To order, contact us on 04.74.694.694 | Sold out | €14,000.00 | ||
| grey | 53 | disc brakes | To order, contact us on 04.74.694.694 | Sold out | €14,000.00 | ||
| grey | 56 | disc brakes | To order, contact us on 04.74.694.694 | Sold out | €14,000.00 | ||
| grey | 57.5 | disc brakes | To order, contact us on 04.74.694.694 | Sold out | €14,000.00 | ||
| grey | 59.5 | disc brakes | To order, contact us on 04.74.694.694 | Sold out | €14,000.00 | ||
