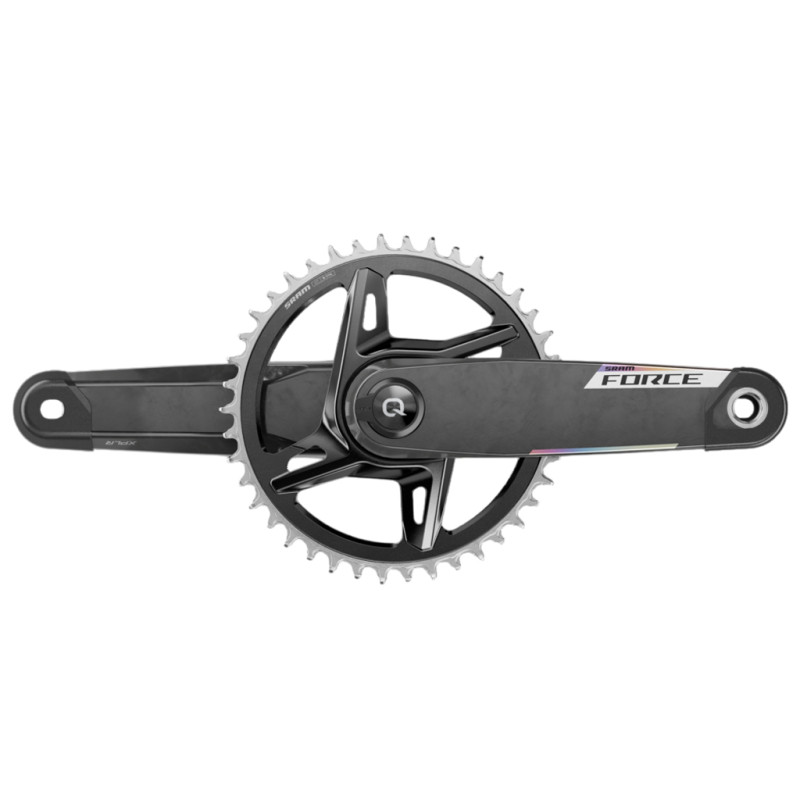

SRAM Force XPLR AXS Power Meter 1x13-speed gravel bike crankset

Measure your power and track your performance with unrivalled accuracy thanks to the Force XPLR AXS power meter, discreetly integrated into the DUB axle. It allows you to easily collect all the essential data you need to progress effectively. This power meter combines long battery life, low weight and optimal reliability, even in challenging weather conditions, ensuring accurate and consistent measurements.

Axle-based, it measures power on the left side to calculate total power. Available with 44- and 46-tooth aerodynamic chainrings, it offers over 400 hours of battery life – enough for a full season of rides. The AAA lithium battery is easily replaceable by the user. The DUB bottom bracket ensures robustness and ease of use. Waterproof to IPX7 standard (immersion up to 1 metre for 30 minutes), this sensor is available in several crank lengths: 160, 165, 170, 172.5 and 175 mm. It weighs less than 40 g more than a standard crankset.

Technical specifications:

- Gears: 12, 13
- Bottom bracket compatibility: All SRAM Road WIDE DUB bottom brackets
- Chainring sizes: 42T, 44T, 46T, 48T, 50T
- Crankset lengths: 160 mm, 165 mm, 170 mm, 172.5 mm, 175 mm
- Chainline: 47.5 mm
- Bottom bracket axle interface: DUB
- Chainring material: Aluminium
- Bolt circle diameter (BCD): Direct Mount (DM)
- Power meter: Yes
- Power meter type: Spindle, spider
- Bottom bracket technology: DUB
- Chainring offset: 6.5 mm, N/A
- Front tooth spacing: 0
