Genuine spare part
Road specialist

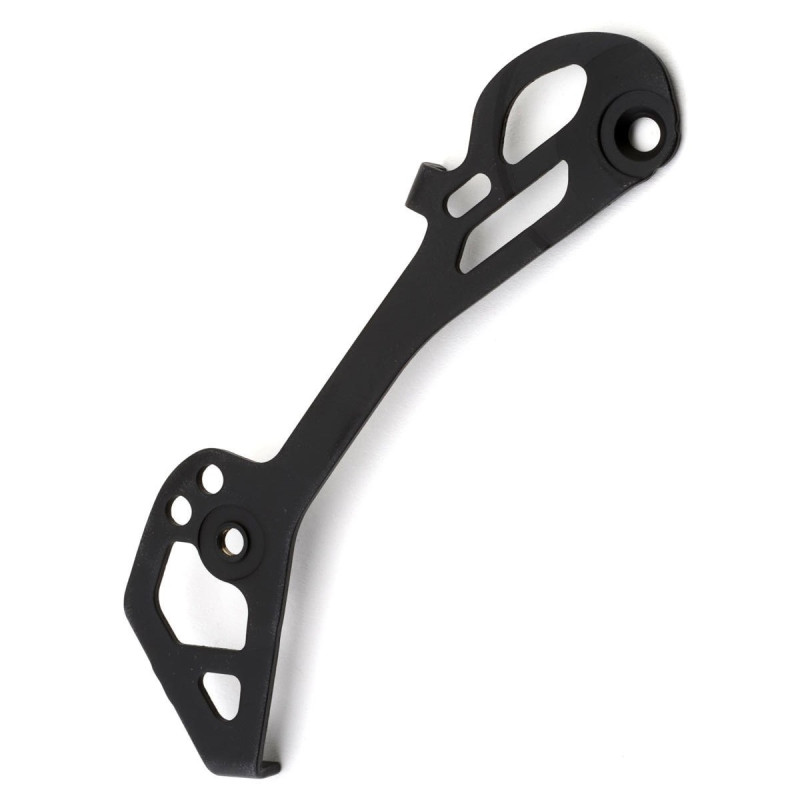

Shimano ’s Y3JU9801T inner plate is a genuine spare part designed for the Shimano 105 RD-R7100 12-speed rear derailleur.
Also known as the ‘Inner Plate’, this plate forms the inner part of the derailleur cage, situated on the spoke side. It helps to hold and guide the chain around the rear derailleur pulleys.

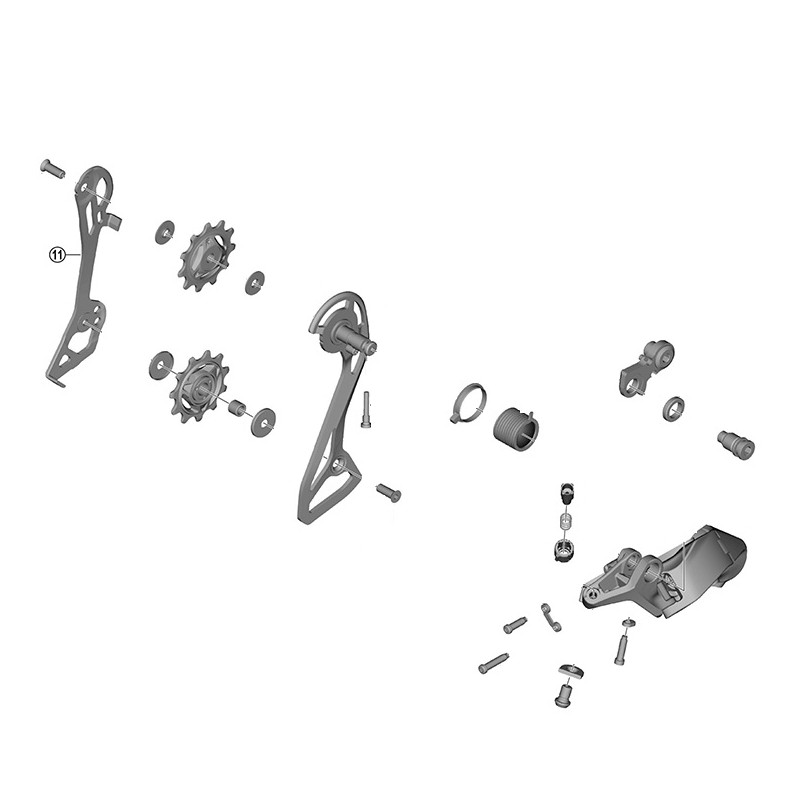

Part number Y3JU9801T is officially listed by Shimano in the RD-R7100 exploded view as part no. 11, under the designation ‘Inner plate’.
This part allows you to replace only the damaged section of the derailleur cage rather than having to replace the entire rear derailleur. This is a particularly useful solution when a fall, impact or wear and tear has damaged the inner plate whilst the rest of the derailleur remains in good condition.
The cage plays an important role in guiding the chain: it keeps the pulleys in position and helps ensure the chain runs smoothly between them. A warped or broken cage can therefore disrupt the operation of the drivetrain.
The rear derailleur cage is the component that surrounds the two pulleys and guides the chain along the lower part of the derailleur.
The inner plate holds the pulley system in place and contributes to the rigidity of the assembly. It therefore helps ensure the chain runs smoothly and that the derailleur functions normally during gear changes.
In the event of an impact, the cage may become bent or damaged. Replacing just the inner plate can then restore the derailleur to working order without having to replace the entire component.
Part number Y3JU9801T is specifically associated with the Shimano 105 RD-R7100 12-speed rear derailleur. Shimano identifies it as the ‘Inner plate’ part, number 11 in the derailleur exploded view.
It is important not to rely solely on the number of speeds to determine compatibility. Derailleur hangers and inner plates may have different dimensions, shapes and mounting systems depending on the generation of derailleur.
Tip: check the exact part number of your derailleur before ordering. For this part, the part number to look for is RD-R7100.
A fall or impact can damage the cage without necessarily affecting the derailleur body, the springs or the gear-changing mechanism.
In this case, replacing only the inner cage (Y3JU9801T ) allows for a targeted repair.
This approach has several advantages:
Our workshop tip: before replacing the derailleur hanger, also check the condition of the pulleys, the fixing screws and the derailleur body. Following a significant impact, check in particular that the derailleur hanger and the alignment of the assembly have not been affected.
If only the inner plate is damaged and the rest of the derailleur is in good condition, this part offers a logical and cost-effective repair solution.
| Specification | Details |
|---|---|
| Brand | Shimano |
| Range | 105 |
| Derailleur model | RD-R7100 |
| Part number | Y3JU9801T |
| Description Shimano | Inner Plate |
| Type | Chape / inner plate |
| Position | Internal, spoke side |
| Gear system | 12-speed |
| Use | Road bike |
| Part in exploded view | No. 11 |
| EAN | 4550170313975 |
| Speed compatibility | 12v |
|---|---|
| EAN | 4550170313975 |
| Supplier reference | Y3JU9801T |
The Y3JU9801T is the inner plate of the rear derailleur cage for the Shimano 105 RD-R7100. It helps to support and guide the pulley system and the chain.
It is designed for the Shimano 105 RD-R7100 12-speed derailleur. Shimano identifies it as part no. 11, ‘Inner plate’, in the derailleur exploded view.
Yes. Part number Y3JU9801T is a spare part ( Shimano ) listed in the RD-R7100 documentation.
The mechanical RD-R7100 and the RD-R7150 Di2 should not be confused. The part number Y3JU9801T is specifically identified as the internal plate for the RD-R7100. It is therefore essential that you check the exact model of your derailleur before placing your order.
Yes. It is designed for the Shimano 105 RD-R7100 12-speed derailleur.
No. The Y3JU9801T refers to the inner plate/bracket, not the complete rear derailleur assembly. Shimano lists the part number as ‘Inner plate’ in its exploded view.
Yes. The advantage of a spare part such as the Y3JU9801T is precisely that it allows you to replace the damaged part without necessarily having to replace the entire derailleur.
Yes. A bent chainstay can alter the position of the chainrings and cause the chain to run off track. It is therefore important to check the chainstay after an impact.
Look for the part number marked on your derailleur. For this part, the model you’re looking for is theShimano 105 RD-R7100. Don’t just assume that your bike has a 12-speed drivetrain.
