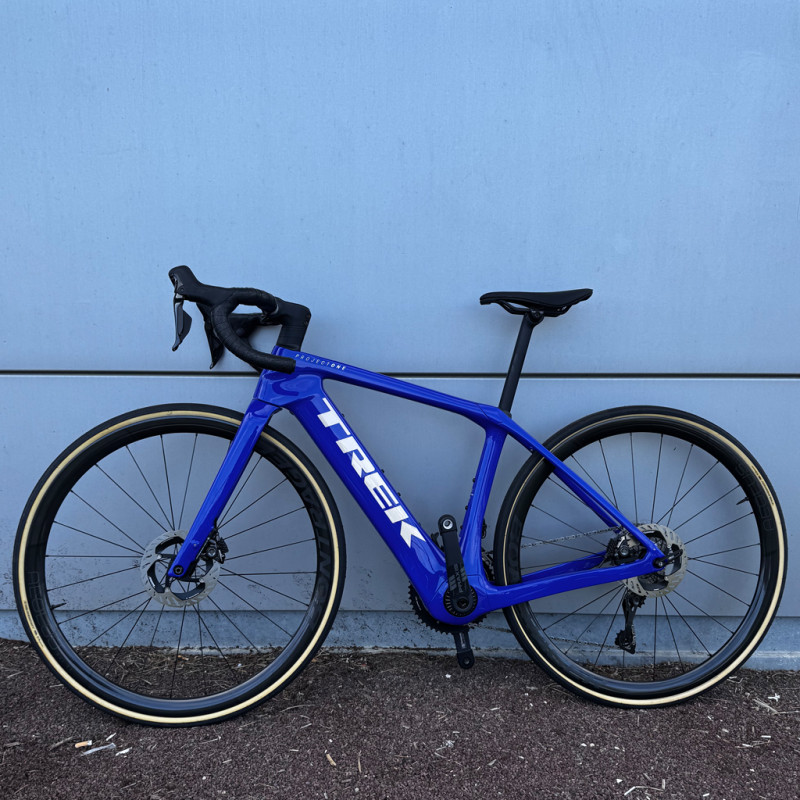

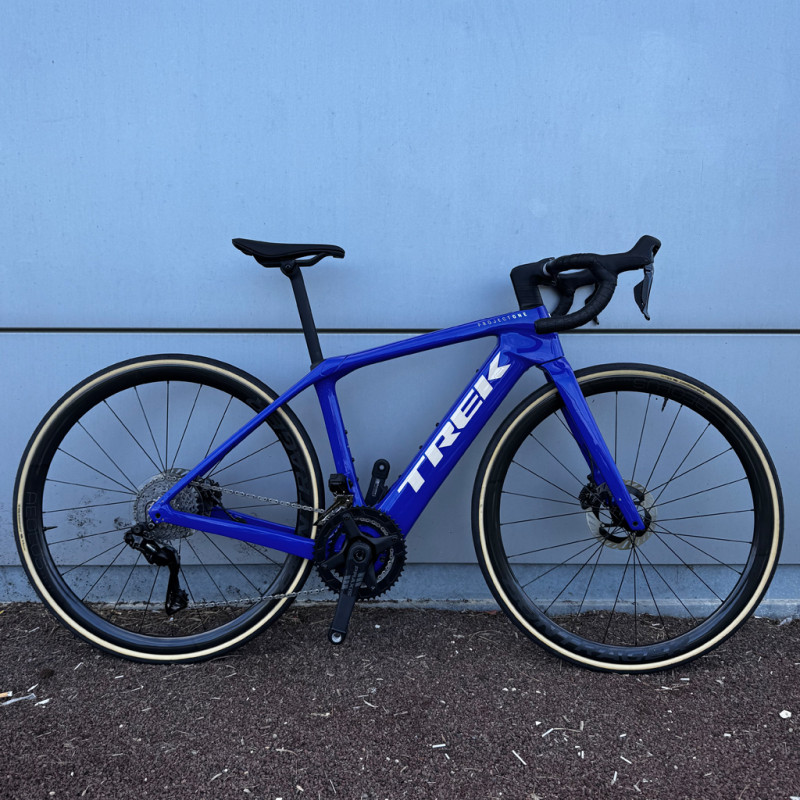

Trek Domane+ SLR+9 electric bike Shimano, Dura-Ace Di2 12-speed, Blue, Project One

Featuring an OCLV 800 Series carbon frame and rear IsoSpeed technology, the Trek Domane+ SLR+9 Blue Project One offers optimum comfort. Its compact and quiet TQ motor, featuring a pin-ring harmonic gear system, provides assistance up to 25 km/h. Versatile, it is suitable for both road and gravel riding. At the heart of its performance lies the lightweight yet robust OCLV 800 Series carbon frame, paired with a vibration-absorbing Domane+ carbon fork. Internal cable routing adds a touch of elegance.

The riding experience is enhanced by innovative technologies. TQ ’s powerful yet discreet motor provides natural assistance. The Dura-Ace Di2 wireless electronic Shimano drivetrain ensures precise gear changes. The Aeolus RSL 37 carbon wheels Bontrager, the Pro IsoCore handlebar Bontrager and the RCS Alu stem optimise performance and comfort.

Technical specifications:

Frame:

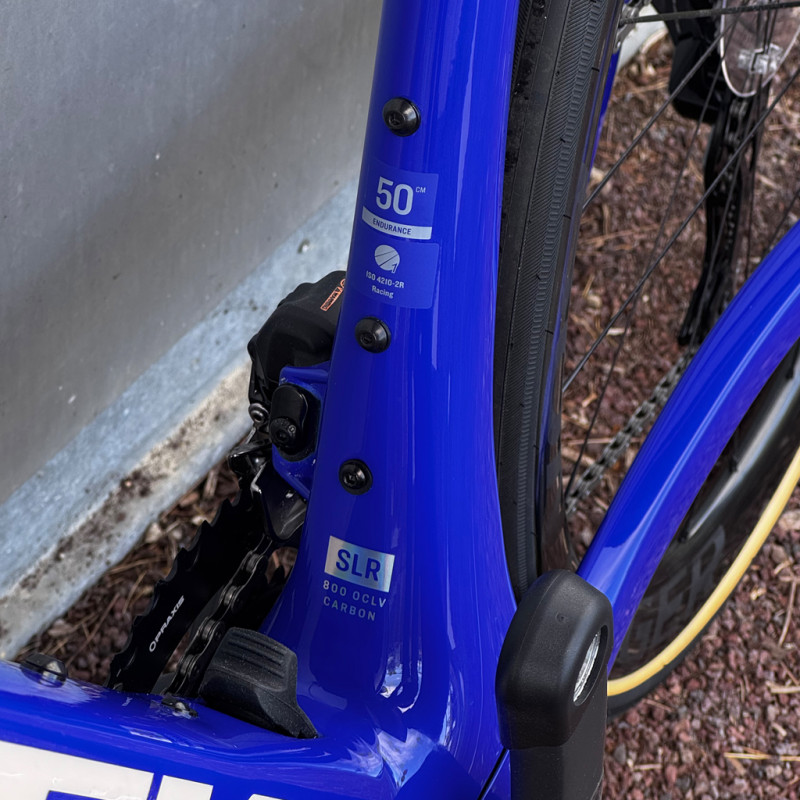

- Frame: OCLV 800 Series carbon, drivetrain TQ, tapered head tube, rear IsoSpeed, internal cable routing, Flat-Mount disc brakes, mudguard mounts, 142x12 mm thru-axle

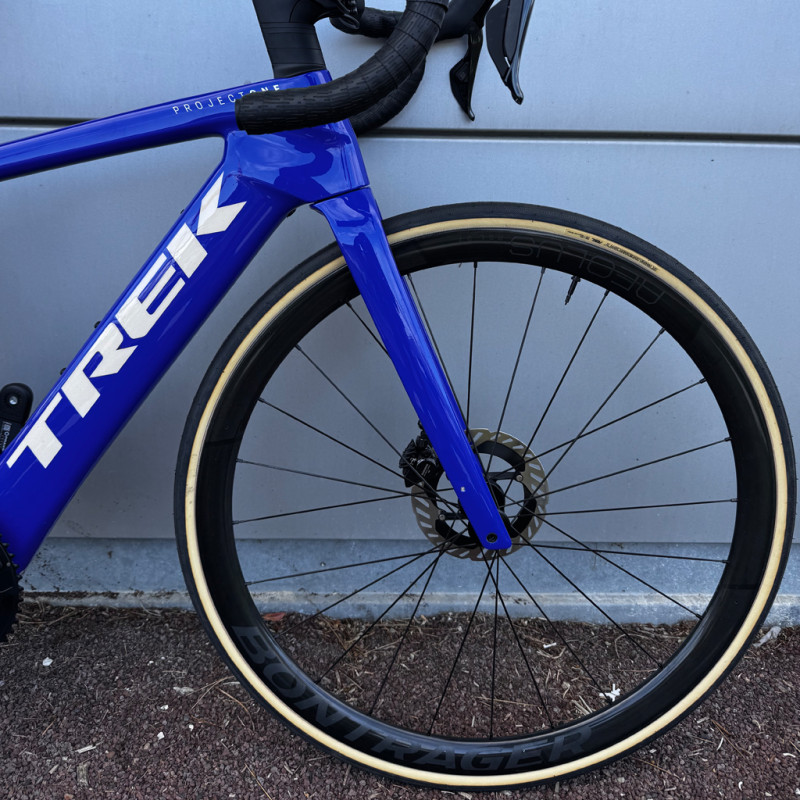

- Fork: Domane+ carbon, carbon tapered steerer tube, internal brake cable routing, mudguard mounts, Flat-Mount disc brakes, 12x100 mm thru-axle

Drivetrain:
- Crankset: Praxis carbon, 170 mm, 50x34
- Cassette: Shimano Dura-Ace R9200, 11-34, 12-speed
- Chain: Shimano Dura-Ace/XTR M9100, 12-speed
- Shift levers: Shimano Dura-Ace R9270 Di2, 12-speed
- Front derailleur: Shimano Dura-Ace R9250 Di2
- Rear derailleur: Shimano Dura-Ace R9250 Di2

Motorisation:
- Motor: TQ with pin-ring harmonic gear, 50 Nm, assistance up to 25 km/h
- Battery: 360 Wh

Braking:
- Brakes: Shimano Dura-Ace BR-9270, hydraulic disc, Flat Mount, resin pads with fin
- Discs: Shimano CL900, Centerlock, 160 mm

Components:
- Handlebars: Bontrager Pro IsoCore VR-SF, 36 cm centre-to-centre
- Stem: Trek Aluminium 60 mm
- Saddle: Verse Short Pro, carbon rails, 155 mm

Wheels:
- Wheels: Bontrager Aeolus RSL 37, OCLV carbon, Tubeless Ready, 37 mm rim height
- Tyres: Bontrager R3 Hard-Case Lite, 700x32 mm

General information:
- Colour: Project One Blue
- Size: 50
- Weight: 11.75 kg
- Brand: Trek

Geometry:

(mm)	50 cm	52 cm	54 cm	56 cm	58 cm	60 cm	62 cm
A	546	561	575	591	611	632	656
B	368	371	374	377	380	383	386
C	130	145	160	175	195	220	245
D	450	475	500	525	548	567	586
E	519	530	542	554	567	579	593
