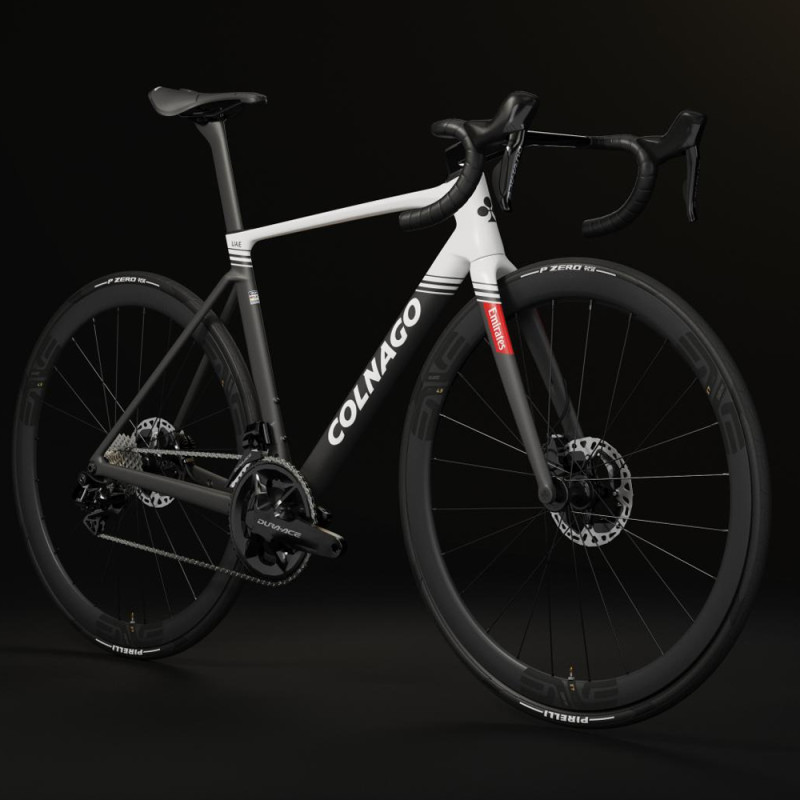

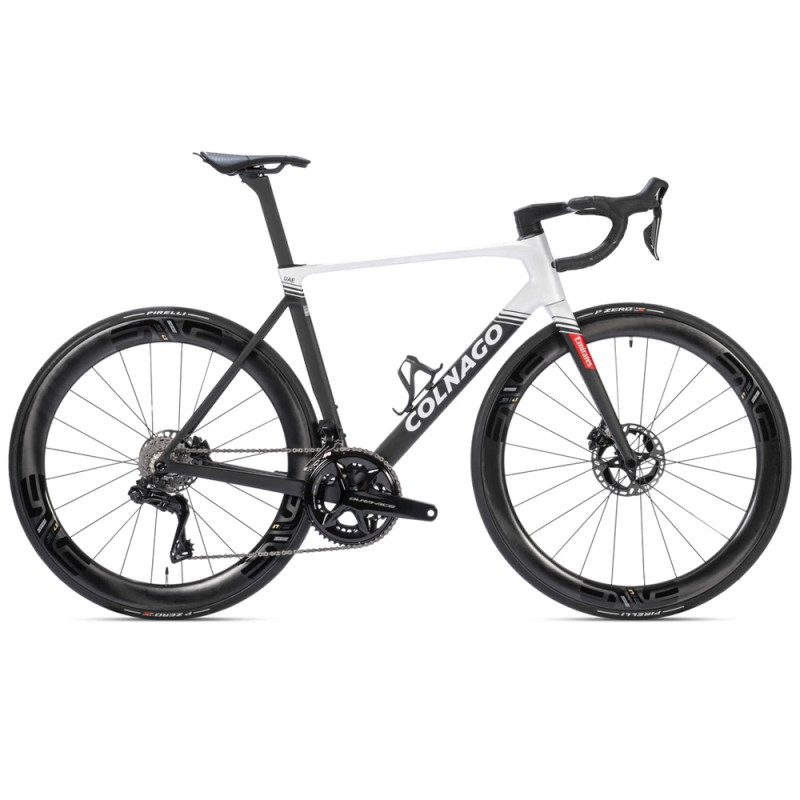

Colnago V5Rs Disc Road Bike Shimano Dura-Ace Di2 12-speed Enve SES 4.5 SDM5 UAE Team Emirates

True to the fundamentals and craftsmanship of the renowned Italian brand, the Colnago V5Rs SDM5 builds on the success of its predecessor, whilst improving on certain key aspects to make it the perfect road bike. A clever blend of aerodynamics, comfort, power transfer, handling, stability and lightness, it guarantees optimal performance. Compared to the V4Rs, the frame-and-fork assembly is 146 grams lighter thanks to a combination of new carbon layering and manufacturing techniques.

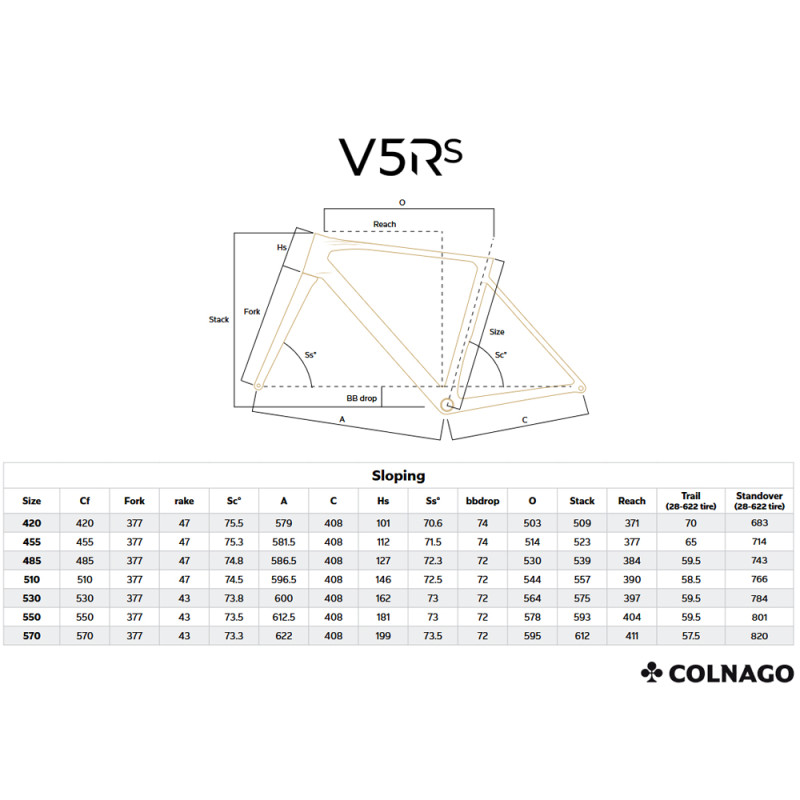

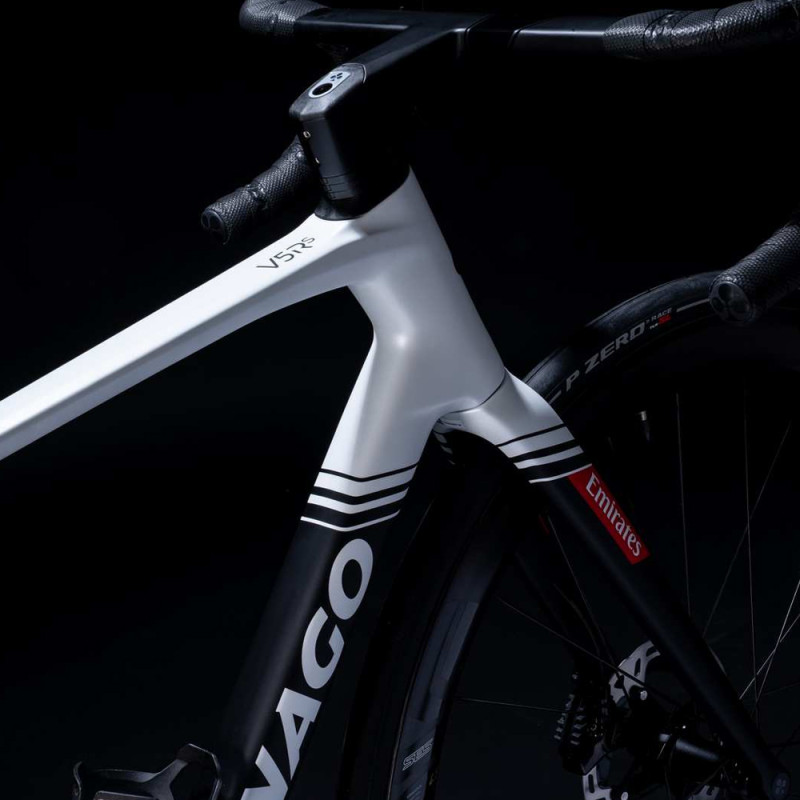

Drawing on the experience gained from research carried out for the Y1Rs, Colnago has refined the design of the V5Rs with sleek, high-performance profiles. Rivaling the best in terms of aerodynamics, the frame features a reduced frontal area, with a slimmer head tube and seat tube, to improve the drag coefficient and save watts. This Colnago V5Rs SDM5 makes no compromises on stiffness and responsiveness to meet the demands of professional riders such as Tadej Pogacar. In addition to a new fork profile, this bike features revised geometry to better accommodate more aggressive and efficient riding positions. It also adopts the BSA bottom bracket standard, a choice dictated by the frame’s stiffness, which allows for a less oversized and therefore lighter bottom bracket.

Built around this high-quality base, the Colnago V5Rs SDM5 is fitted with the Shimano Dura-Ace Di2 groupset, which guarantees precise and rapid gear changes as well as high-performance disc braking in all conditions. This bike is fitted with Enve SES 4.5 Carbon wheels, offering excellent performance on all terrains, whether in the mountains or on the flat.

Technical specifications:

Frame:
- Frame: Colnago V5Rs Monocoque carbon (685g)
- Fork: Carbon fork for disc brakes, integrated cables, semi-circular profile (342g)

Drivetrain:
- Crankset: Shimano Dura-Ace 12-speed, 52-36T / 170 mm cranks (42, 45.5, 48.5), 172.5 mm (51, 53), 175 mm (55, 57)
- Cassette: Shimano Dura-Ace 12-speed, 11-30T
- Chain: Shimano CN-M9100 12-speed
- Grips: Shimano Dura-Ace Di2 12-speed
- Front derailleur: Shimano Dura-Ace Di2 12-speed FD-R9250
- Rear derailleur: Shimano Dura-Ace Di2 12-speed RD-R9250
- Bottom bracket: Shimano T47 with steel bearings

Braking:
- Brakes: Shimano Dura-Ace R9270
- Discs: Shimano RT-CL900 / 160 mm front, 140 mm rear

Components:
- Handlebar / integrated stem: Colnago CC.01
- Saddle: Prologo Dimension
- Seatpost: Colnago carbon, 15 mm offset
- Bottle cage: Colnago Matt Black

Wheels:
- Wheels: Enve WS SES 3.4 C Carbon
- Tyres: Pirelli PZero Race TLR 700x28

General information:
- Colour: SDM5 UAE Team Emirates
- Sizes: 42, 45.5, 48.5, 51, 53, 55, 57
- Weight: 7 kg
- Brand: Colnago
