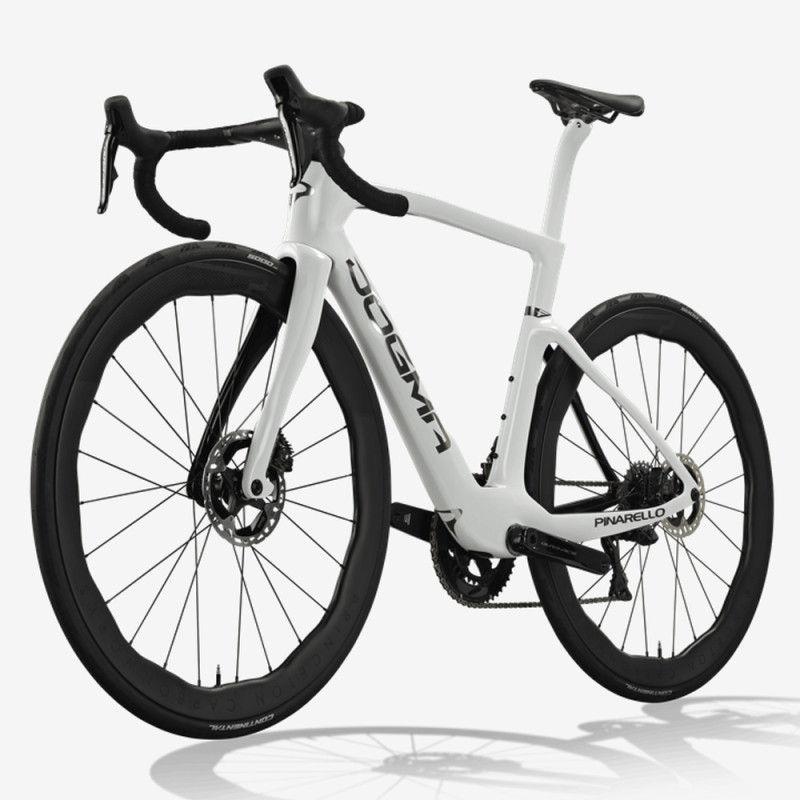

Pinarello New Dogma F Disc Sram Red AXS 2x12v DT Swiss ARC1450DB G113 Edge Crystal White 2025 road bike

High-end bike - Sram Red AXS E1 drivetrain

I choose my options

Colours

Size

Type of braking

Ref : 18814730001
€15,000.00
To order, contact us on 04.74.694.694

Pinarello New Dogma F Disc Sram Red AXS 2x12v DT Swiss ARC1450DB G113 Edge Crystal White 2025 road bike

More details To order, contact us on 04.74.694.694

Pinarello New Dogma F Disc Sram Red AXS 2x12v DT Swiss ARC1450DB G113 Edge Crystal White 2025 road bike

€15,000.00
Our advice

A bike designed for competition, equipped with the best components on the market.

Julien C.

20 years' experience in the world of cycling

The Pinarello New Dogma F Disc G113 Edge Crystal White is designed for all enthusiasts of beautiful machines, those who want to enjoy the best equipment to break all records. This technological gem is the choice of the INEOS Grenadiers team in the world's biggest competitions, including the Tour de France. Its TorayCa M40X carbon frame uses revolutionary fibre to achieve unprecedented stiffness. The redesigned, slimmed-down down tube optimises aerodynamic performance, while the elliptical head tube, now thinner, offers a sleek design. The integrated seat post reduces weight, and the new, slimmer and more slanted Onda fork improves handling. A clever detail: the bolt on the right side is integrated into the carbon, minimising drag. The Talon Ultra Fast handlebar-stem combo is lighter and more aerodynamic.This luxurious version of the Pinarello New Dogma F Disc G110 is equipped with the Sram Red AXS E1 12v groupset, ensuring fast and precise gear changes and powerful disc braking in all conditions. The exceptional quality DT Swiss ARC 1400 wheels guarantee maximum performance, whether in the mountains or on flat terrain.Technical specifications: Frame: TorayCa M40X, TiCR Cable Routing, Italian BB- Fork: NEW eTICR Onda Fork with ForkFlap™, 1.5" upper and lower steerer

Drivetrain:
- Crankset: Sram Red AXS E1 12v
- Cassette: Sram Red AXS E1 12v XG-1290- Chain: Sram Red AXS E1 12v
- Handlebars: Sram Red AXS E1 12v
- Front derailleur: Sram Red AXS E1 12v
- Rear derailleur: Sram Red AXS E1 12v

Braking:
- Brakes: Sram Red AXS E1 12v
- Discs: 160mm front and rear

Components:
- Integrated stem and handlebar: Most Talon Ultra Fast
- Saddle: Most Lynx Ultrafast Superflow L Carbon Large 145mm
- Seatpost: Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
- Bottle cage: Bottlecage Trap PACF ø 74mm, Fly Bottle Pinarello Bottle 550ml Black - Wheels: DT Swiss ARC 1400- Tyres: Continental Grand Prix 5000S TR28-622

General information:
- Colour: G113 Edge Crystal White
- Sizes: 43, 46.5, 50, 51.5, 53, 54, 55, 56, 57.5, 59.5, 62
- Weight: 6.77 kg (size 53)

Bike shipping preparation

Colours white
Size 43
Type of braking disc brakes

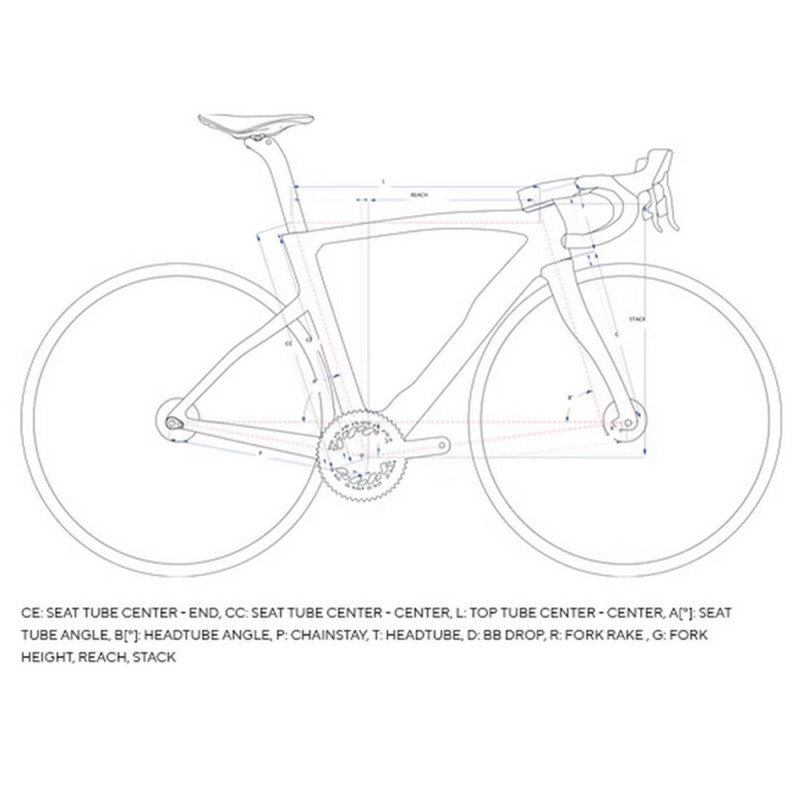

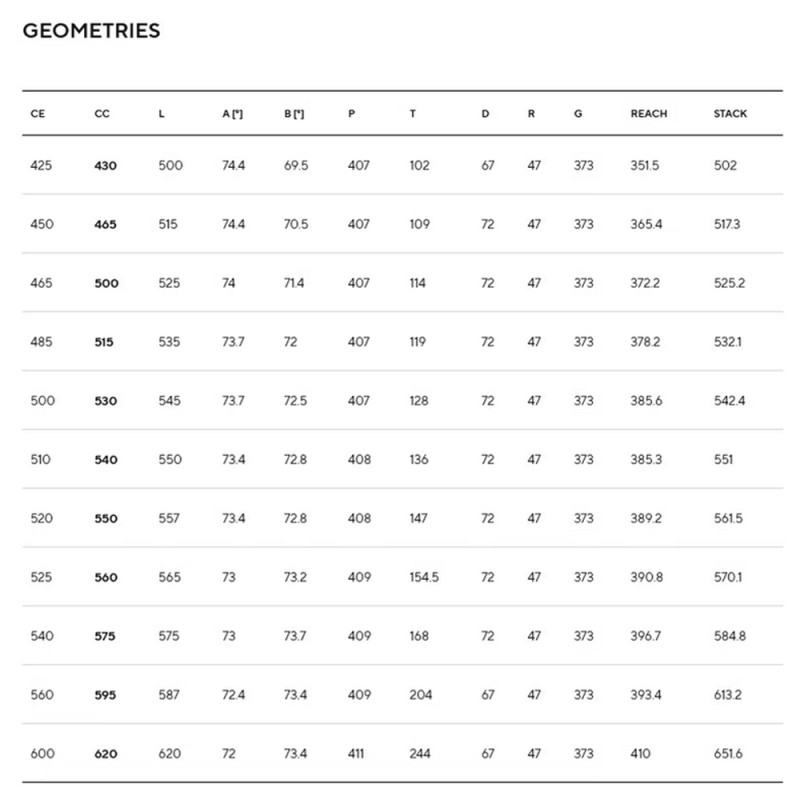

Frame dimensions diagram
(mm) 43 46.5 50 51.5 53 54 55 56 57.5 59.5 62
A (Stack) 502 517.3 525.2 532.1 542.4 551 561.5 570.1 584.8 613.2 651.6
B (Reach) 351.5 365.4 372.2 378.2 383.6 385.3 389.2 390.8 396.7 393.4 410
C (Head tube length) 102 109 114 119 128 136 147 154.5 168 204 244
D (Bottom bracket axis - top of seat tube) 425 450 465 485 500 510 520 525 540 560 600
E (Horizontal length) 500 515 525 535 545 550 557 565 575 587 620

Colours Size Type of braking Availability Price Supplier reference EAN
Web Stores
white43disc brakesTo order, contact us on 04.74.694.694Sold out€15,000.00
white46.5disc brakesTo order, contact us on 04.74.694.694Sold out€15,000.00
white50disc brakesTo order, contact us on 04.74.694.694Sold out€15,000.00
white51.5disc brakesTo order, contact us on 04.74.694.694Sold out€15,000.00
white53disc brakesTo order, contact us on 04.74.694.694Sold out€15,000.00
white54disc brakesTo order, contact us on 04.74.694.694Sold out€15,000.00
white55disc brakesTo order, contact us on 04.74.694.694Sold out€15,000.00
white56disc brakesTo order, contact us on 04.74.694.694Sold out€15,000.00
white57.5disc brakesTo order, contact us on 04.74.694.694Sold out€15,000.00
white59.5disc brakesTo order, contact us on 04.74.694.694Sold out€15,000.00
white62disc brakesTo order, contact us on 04.74.694.694Sold out€15,000.00
