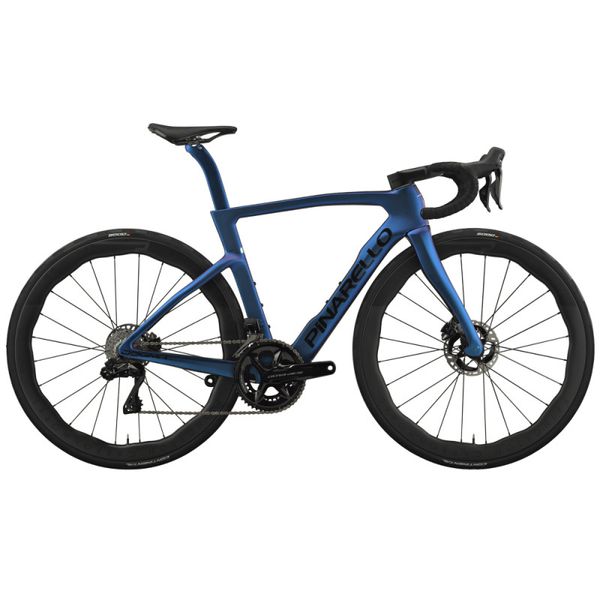

Pinarello New Dogma F Disc Shimano Dura Ace Di2 PM 12-speed road bike Princeton Peak 4550 G112 Luxter Blue 2025

Developed in collaboration with the riders of the INEOS Grenadiers team, who use it in the world's biggest races, including the Tour de France, the Pinarello New Dogma F Disc G112 Luxter Blue is the ultimate high-end bike. It is based on a TorayCa M40X carbon frame, designed with new carbon fibre with exceptional tensile strength to achieve a higher level of performance in lateral stiffness. The down tube has been completely redesigned to reduce thickness and improve aerodynamic performance. Reduced in width, the elliptical head tube offers a more streamlined design. The seat post is integrated into the frame to reduce weight and improve the clamping design. Around this frame, the new Onda fork is slimmer and more slanted to improve handling and speed, with the bolt on the right-hand side integrated into the carbon to eliminate the external hole for better air penetration. The new Talon Ultra Fast handlebar-stem combo is lighter and more aerodynamic. This Pinarello New Dogma F Disc G112 Luxter Blue is fitted with the Shimano Dura Ace Di2 12v electronic groupset, enhanced with an integrated power meter to better manage your progress. Finally, the Princeton Peak 4550 wheels guarantee maximum efficiency so that you can perform at your best in all competitions.Technical specifications:

Frame:
- Frame: TorayCa M40X, TiCR Cable Routing, Italian BB
- Fork: NEW eTICR Onda Fork with ForkFlap™, 1.5" upper and lower steerer

Drivetrain:
- Crankset: Shimano Dura Ace Di2 12-speed with power meter
- Cassette: Shimano Dura Ace CS-R9200 12-speed
- Chain: Shimano Dura Ace CN-HG 12-speed
- Handlebars: Shimano Dura Ace Di2 12-speed
- Front derailleur: Shimano Dura Ace Di2 FD-9200 12-speed
- Rear derailleur: Shimano Dura Ace Di2 FD-9200 12-speed

Brakes:
- Brakes: Shimano Dura Ace BR-R9200, 2-piston caliper
- Discs: 160 mm front / 140 mm rear

Components:
- Integrated stem: Most Talon Ultra Fast- Saddle: Most Lynx Ultrafast Superflow L Carbon Large 145mm- Seatpost: Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts- Bottle cage: Bottlecage Trap PACF ø 74mm, Fly Bottle Pinarello Bottle 550ml Black Wheels: Princeton Peak 4550 DB- Tyres: Continental Grand Prix 5000S TR28-622

General information:
- Colour: G112 Luxter Blue
- Sizes: 43, 46.5, 50, 51.5, 53, 54, 55, 56, 57.5, 59.5, 62
- Weight: 6.77 kg (size 53)

Geometry:
