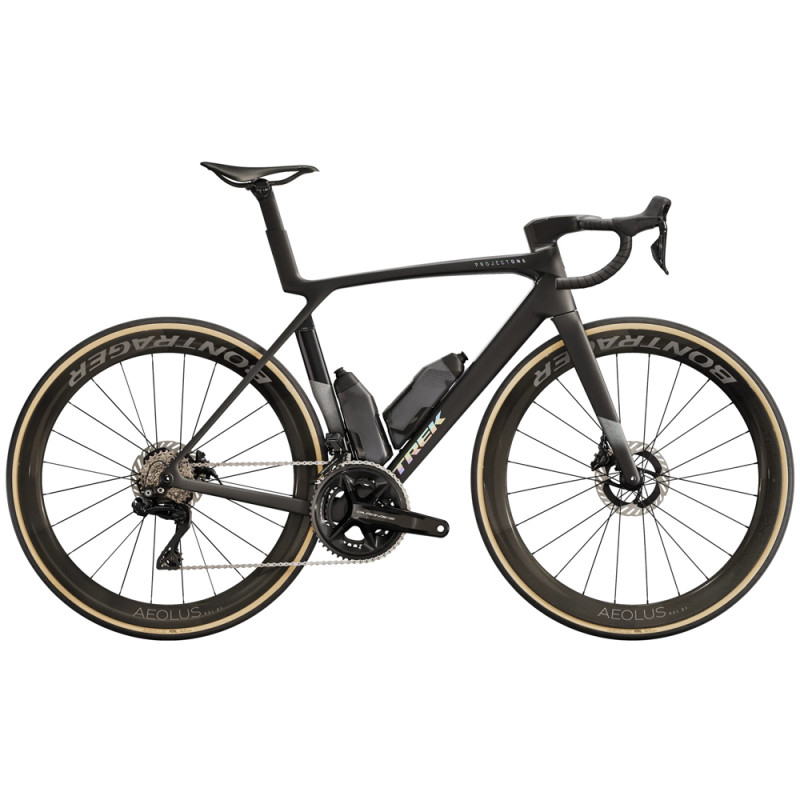

Trek Madone SLR 9 8th Gen Road Bike Shimano Dura-Ace Di2 12-speed Matte/Gloss Carbon Smoke 2025

This is the latest sensation from the American company Trek; the new Madone SLR 9 8th Gen is quite simply the highest-performing and fastest bike ever designed by the brand. If you’re used to understated colours, the Matte/Gloss Carbon Smoke will be perfect for you. Made from 900 Series OCLV carbon, the frame utilises the brand’s highest-grade carbon to ensure minimal weight whilst delivering stiffness and responsiveness.

Lightweight or aerodynamic – sometimes you have to choose. With this new Madone, that’s no longer the case. Indeed, the Full System Foil tubes feature revolutionary shapes, offering a new design whilst optimising the bike’s aerodynamic performance. When it comes to comfort, it’s no slouch either, with IsoFlow technology allowing you to ride for hours without the slightest discomfort.

With a top-of-the-range groupset such as the Shimano Dura-Ace Di2, a pair of Bontrager Aeolus RSL 51 wheels and a Trek Aero RSL Road monoblock cockpit, this bike offers top-level performance and will help you achieve your wildest goals.

Technical specifications:

Frame:
- Frame: OCLV Carbon 900 Series, Full System Foil tube shape, IsoFlow seat tube, RCS headset, electronic routing only, removable aerodynamic chain guard, T47 bottom bracket, Flat Mount disc brakes, universal derailleur hanger (UDH), 142x12 mm thru-axle
- Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Drivetrain:
- Crankset: Shimano Dura-Ace R9200, 52/36, crank length 165 mm (XS, S), 170 mm (M), 172.5 mm (ML, L), 175 mm (XL)
- Bottom bracket: Praxis, T47 threaded, internal bearings
- Cassette: Shimano Dura-Ace R9200, 11-30, 12-speed
- Chain: Shimano Dura-Ace/XTR M9100, 12-speed
- Shifters: Shimano Dura-Ace R9270 Di2, 12-speed
- Front derailleur: Shimano Dura-Ace R9250 Di2, towed, down swing
- Rear derailleur: Shimano Dura-Ace R9250 Di2, max 34-tooth sprocket

Braking:
- Disc brakes: Shimano CL800, Centerlock, 160 mm

Components:
- Handlebar/Stem combo: Trek Aero RSL Road, OCLV Carbon, Race Fit, 80 mm depth, 124 mm height, 35 cm width at the dropouts, 38 cm width at the bends, 80 mm stem length (XS), 40 cm width - 90 mm stem (S), 42 cm width - 90 mm stem (M), width 42 cm - 100 mm stem (ML, L), width 44 cm - 110 mm stem (XL)
- Saddle: Aeolus RSL, carbon rails, width 155 mm (XS, S), 145 mm (M, ML, L, XL)

Wheels:
- Wheels: Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim height
- Tyres: Pirelli P Zero Race, 120 tpi, tubeless-compatible, 700x28 mm

General information:
- Colour: Matte/Gloss Carbon Smoke

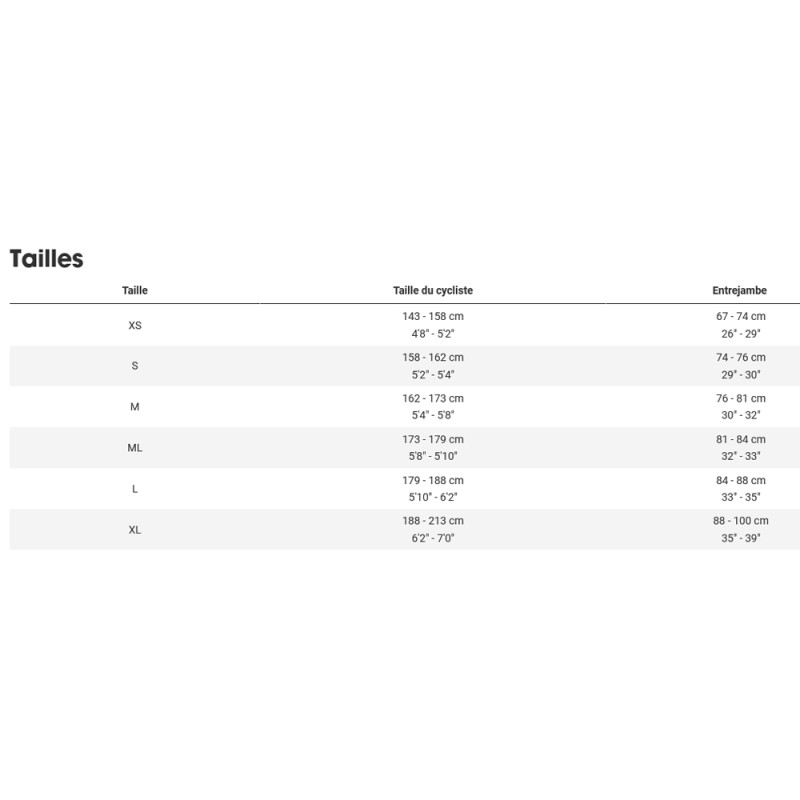

- Sizes: XS, S, M, M-L, L, XL
- Weight: 7.08 kg (ML)

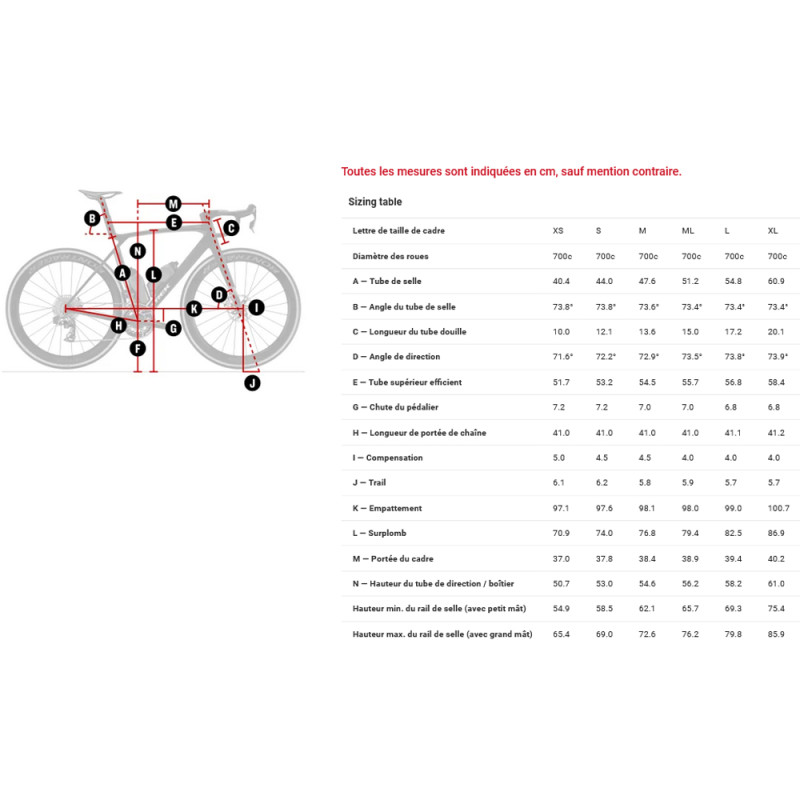

Geometry:

(mm)	XS	S	M	ML	L	XL
A	507	530	546	562	582	610
B	370	378	384	389	394	402
C	100	121	136	150	172	201
D	404	440	476	512	548	609
E	517	532	545	557	568	584
