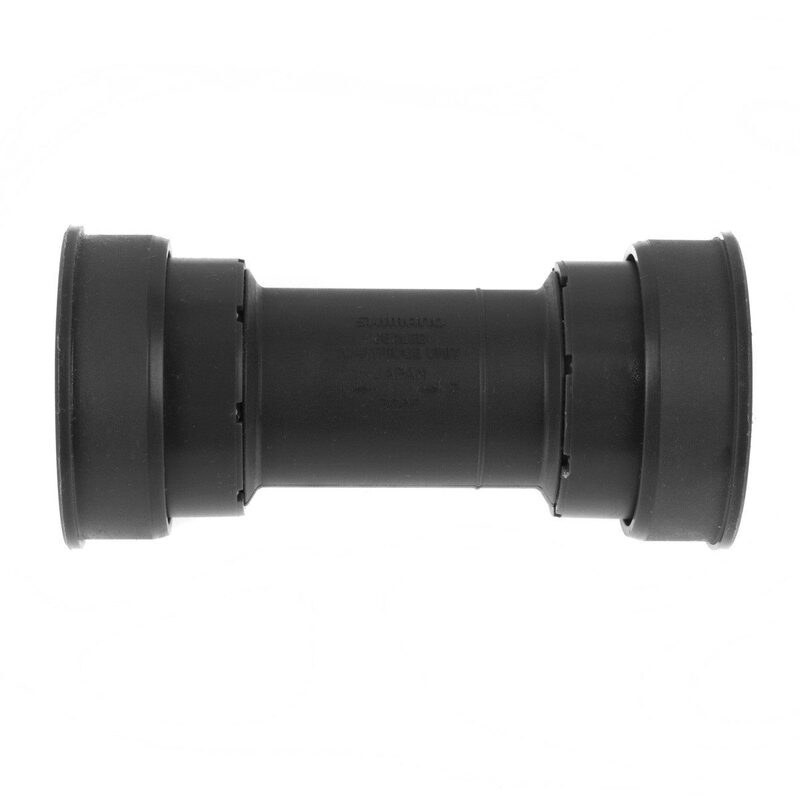

Road bike bottom bracket Shimano 105 Press-fit - ISMBB7141B

Voir les avis clients Average rating: 4.9 out of 5. Based on 17 reviews
Allows you to mount a Shimano crankset on a frame with a Pressfit bottom bracket with an internal diameter of 41mm

I choose my options

Bottom bracket

Crankset compatibility

Bearings

MPN : ISMBB7141B | EAN : 4524667434238 | Ref : 15426000001
€24.50
Price : €37.99
In stock
Logo Société des Avis Garantis

Based on 17 reviews

Show reviews

Road bike bottom bracket Shimano 105 Press-fit - ISMBB7141B

More details In stock

Road bike bottom bracket Shimano 105 Press-fit - ISMBB7141B

€24.50
Our advice

Bruno V.

Road specialist

Shimano Press-Fit bottom bracket designed for Hollowtech II cranksets

The Shimano SM-BB71-41B bottom bracket – ISMBB7141B is a replacement part for road bikes fitted with a frame featuring an 86.5 mm Press-Fit bottom bracket shell and a compatible Hollowtech II Shimano crankset.

Part of the Shimano range, this bottom bracket connects the frame to the crankset axle whilst ensuring smooth and precise rotation. Its Press-Fit design allows for direct integration into the frame, without the need for traditional BSA threading.

The SM-BB71-41B is specifically designated by Shimano as a Press-Fit bottom bracket for an 86.5 mm bottom bracket shell. It is constructed using resin spacers and has an advertised average weight of approximately 54 g.

Key features of the Shimano SM-BB71-41B

  • Genuine Shimano bottom bracket.
  • Part number: SM-BB71-41B.
  • Product code: ISMBB7141B.
  • Hollowtech II technology.
  • Press-Fit mounting.
  • Compatible with an 86.5 mm bottom bracket shell.
  • Designed for Shimano cranksets compatible with a 24 mm axle.
  • Resin adaptors.
  • Average weight: approx. 54 g.
  • Suitable for many Shimano road bikes fitted with a compatible Press-Fit bottom bracket.

Shimano SM-BB71-41B compatibility

The SM-BB71-41B is designed for frames fitted with the 86.5 mm Press-Fit standard, which is generally associated with the BB86 standard on road bikes.

It is recommended for use with various Shimano road crankset configurations featuring Hollowtech II technology. The technical tables at Shimano list it specifically as the recommended Press-Fit bottom bracket for several road cranksets.

Please note: the number of gears or the reference ‘ Shimano 105’ is not sufficient to determine compatibility. Before purchasing, it is essential to check:

  • the frame standard
  • the bottom bracket width
  • the type of bottom bracket axle
  • Hollowtech II compatibility
  • the part number of the bottom bracket currently fitted.

Technical specifications

Specification Details
Brand Shimano
Model SM-BB71-41B
Reference ISMBB7141B
Technology Hollowtech II
Type Press-Fit
Main use Road bike
Bottom bracket width 86.5 mm
Compatible axle type Hollowtech II
Adapter material Resin
Average weight Approx. 54 g
Assembly Press-fitted into the frame
Code Shimano ISMBB7141B

Why replace your bottom bracket?

There are several signs that may indicate a replacement is needed:

  • creaking noises when pedalling;
  • squeaking noises coming from the bottom bracket area;
  • lateral play;
  • uneven rotation of the axle;
  • a sensation of rubbing;
  • noisy bearings;
  • signs of wear or corrosion.

Regular maintenance of the drivetrain and crankset helps to detect these problems before they become more serious.

Why choose the Shimano SM-BB71-41B ISMBB7141B?

The Shimano SM-BB71-41B ISMBB7141B bottom bracket is a suitable replacement for road bikes fitted with an 86.5 mm Press-Fit standard and a compatible Hollowtech II Shimano crankset.

A genuine Shimano part, lightweight and designed for the relevant configurations, it allows you to replace a worn bottom bracket whilst maintaining a setup that complies with Shimano specifications.

Before placing an order, you must check your frame’s standard and your crankset’s part number.

Bottom bracket Pressfit BB86-BB92 41x86-92
Crankset compatibility Shimano and Rotor 24 mm axle
Bearings steel
EAN 4524667434238
Supplier reference ISMBB7141B

Customer reviews

Average rating: 4.9 out of 5

Based on 17 reviews

Show attestation (opens in a new window)
  • Rated 5 out of 5 Philippe f.

    Published Mar 28, 2026 at 09:20 am Order date: Mar 16, 2026 Original language: French (Translated review)

    Meets expectations.

  • Rated 5 out of 5 Pascal H.

    Published Nov 17, 2025 at 06:06 pm Order date: Nov 06, 2025 Original language: French (Translated review)

    Product compliant. No problem

  • Rated 5 out of 5 Sylvie A.

    Published May 06, 2024 at 07:07 pm Original language: French (Translated review)

    Reliable product, easy to install. Smooth bearing with a good lifespan. Good quality-price ratio

  • Rated 5 out of 5 Romain M.

    Published May 01, 2024 at 06:08 pm Original language: French (Translated review)

    Does the job

  • Rated 5 out of 5 Jean-Philippe h.

    Published Mar 05, 2024 at 03:30 pm Original language: French (Translated review)

    Ordered with complete group!

  • Rated 5 out of 5 Olivier B.

    Published Aug 08, 2023 at 12:21 pm Original language: French (Translated review)

    Very good fast delivery

  • Rated 5 out of 5 Ludovic L.

    Published Feb 12, 2023 at 07:37 pm Original language: French (Translated review)

    Easy to assemble, inexpensive, and effective with, as always, ultra-fast delivery.

  • Rated 5 out of 5 Alain F.

    Published Feb 03, 2023 at 10:47 am Original language: French (Translated review)

    Bottom bracket, easy to install, smooth bearings,,, reasonable price ,,

  • Rated 5 out of 5 Hippolyte P.

    Published Oct 20, 2022 at 12:44 am Original language: French (Translated review)

    Mounted on a Scott foil rc, good quality, does the job.

  • Rated 5 out of 5 Arnaud T.

    Published Sep 18, 2022 at 08:54 pm Original language: French (Translated review)

    Product conforms to the description, solid and easy to mount

10 reviews shown out of 17

ISMBB7141B is the product code Shimano corresponding to the SM-BB71-41B, a Hollowtech II Press-Fit bottom bracket.

No. This is a Press-Fit bottom bracket. Shimano clearly distinguishes between Press-Fit models and 68 mm BSA threaded bottom brackets.

The SM-BB71-41B is designed for an 86.5 mm Press-Fit bottom bracket.

Yes. The SM-BB71-41B is one of the bottom brackets used with Hollowtech II - Shimano -compatible set-ups.

A Press-Fit bottom bracket is fitted directly into the frame socket by pressing it into place, whilst a BSA bottom bracket is screwed into a threaded bottom bracket shell. The two standards are not interchangeable.

No. The frame must be compatible with the Press-Fit standard and have a width of 86.5 mm. The crankset must also be compatible with the corresponding Hollowtech II system.

Shimano The manufacturer states that this model has an average weight of around 54 g.

Noticeable play in the crankset, uneven rotation or the occurrence of creaking and squeaking noises are common signs. To confirm the diagnosis, it is recommended that you check the crankset and bearings after dismantling them.

Yes. The installation and, above all, the removal of a Press-Fit bottom bracket should ideally be carried out using the appropriate tools to avoid damaging the frame or the bottom bracket cups. A bottom bracket press is recommended to ensure a clean and perfectly aligned fit.
